Virtua Athletics / Virtua Athlete (prototype)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 01/10/2017 |
| emulator | MAME 0.191 |
| dev | MetalliC |
| name | vathletep on ProgettoEMMA vathletep on Arcade Database |
| description | Virtua Athletics / Virtua Athlete (prototype) |
| year | 2001 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 21x | DA28F640J5 | ic1s - ic21s | dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY7C199-15VC | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7885A
Cart N°: no cart, only PCB
Protection IC: SEGA 315-5881 (no label)
Key: no key
Files
-

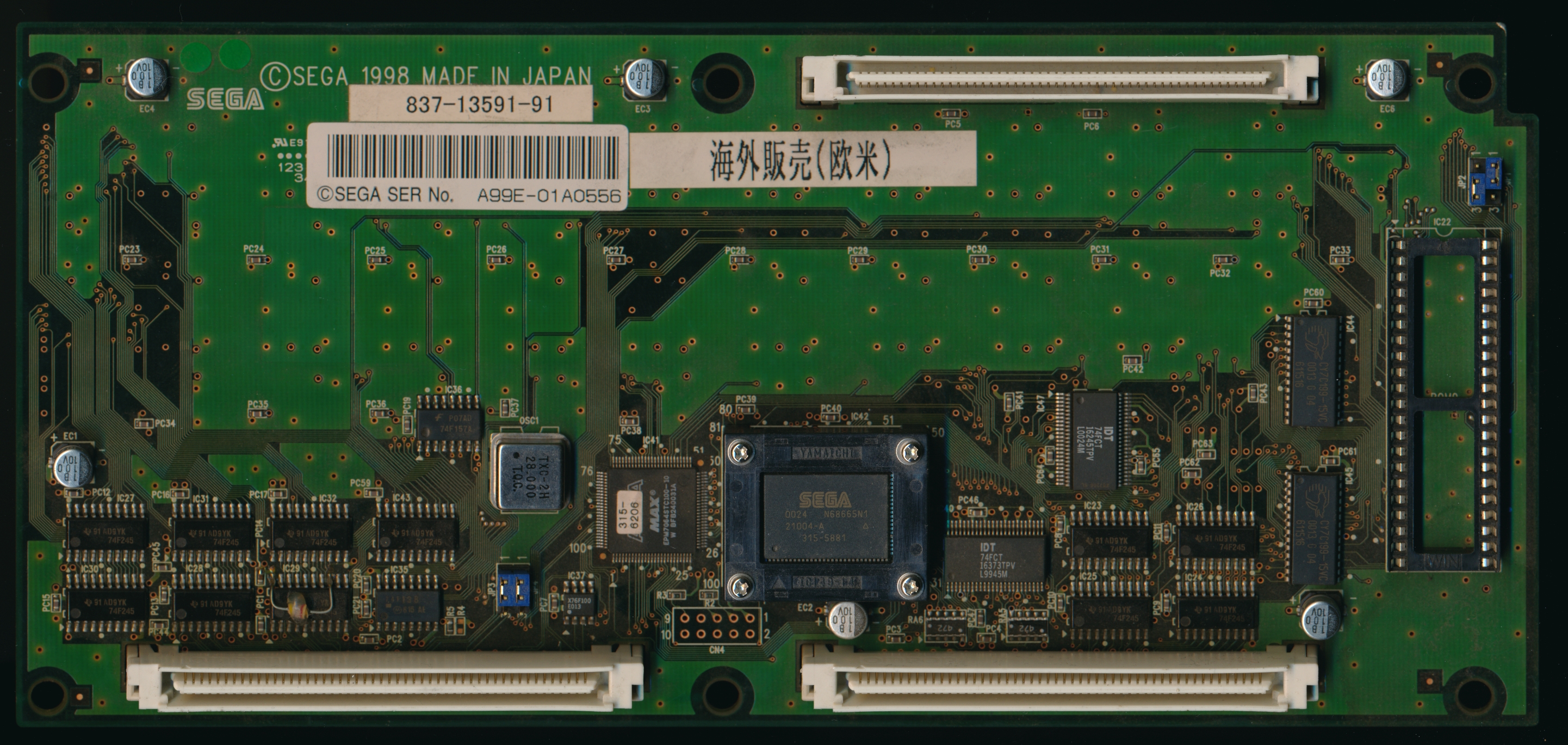

PCB component side
-

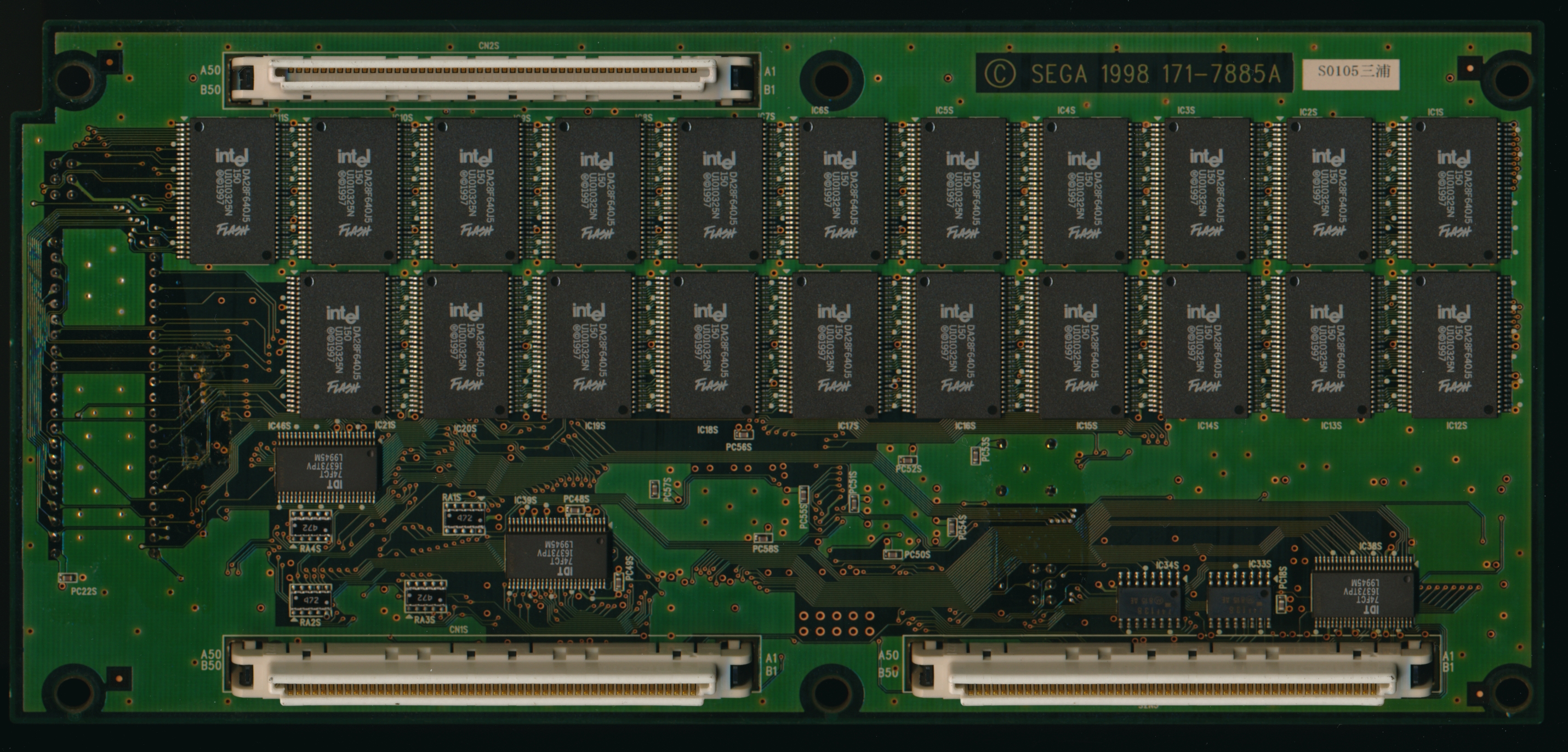

PCB solder side
-
