Video Hustler (bootleg, set 4)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 23/07/2019 |
| emulator | MAME 0.212 |
| dev | Osso |
| name | hustlerb6 on ProgettoEMMA hustlerb6 on Arcade Database |
| description | Video Hustler (bootleg, set 4) |
| year | 1981 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MK3880N | 1st PCB 10k | 8-bit Microprocessor - main | |
| 1x | Z8400A-Z80ACPU | 1st PCB 3a | 8-bit Microprocessor - sound | |
| 1x | Z8400A-Z80ACPU | 2nd PCB 10k | 8-bit Microprocessor - main | |
| 1x | MK3880N | 2nd PCB 3a | 8-bit Microprocessor - sound | |
| 1x | AY-3-8910 | both PCBs 6a | Programmable Sound Generator - sound | |
| 1x | LM380N | - | both PCBs 1 | Audio Amplifier - sound |
| 1x | oscillator | 12.000MHz | both PCBs 12h |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS2516 | 1st PCB h3,h4 | dumped |
| 4x | TMS2732 | 1st PCB h0,h1,h2,h5 | dumped |
| 1x | N74S288N | 1st PCB 1k | dumped |
| 2x | TMS2516 | 2nd PCB h3,h4 | dumped |
| 3x | D2732A | 2nd PCB h0,h1,h2 | dumped |
| 1x | MBM2732 | 2nd PCB h5 | dumped (bitrot - bad dump) |
| 1x | 6331-1j | 2nd PCB 1k | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | SN74S201N | both PCBs 1d,2d,3d,4d |
| 8x | MM2114N-2 | both PCBs 6j,7j,5k,6k,3l,4l,5l,6l |
| 1x | MK4118N-2 | both PCBs 5b |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume son)(2)
1x 8 DIP switches bank (11b)
Notes
1st PCB is marked: "F/R" on component side
1st PCB is marked: "FR" on solder side
2nd PCB in not marked
Files
-

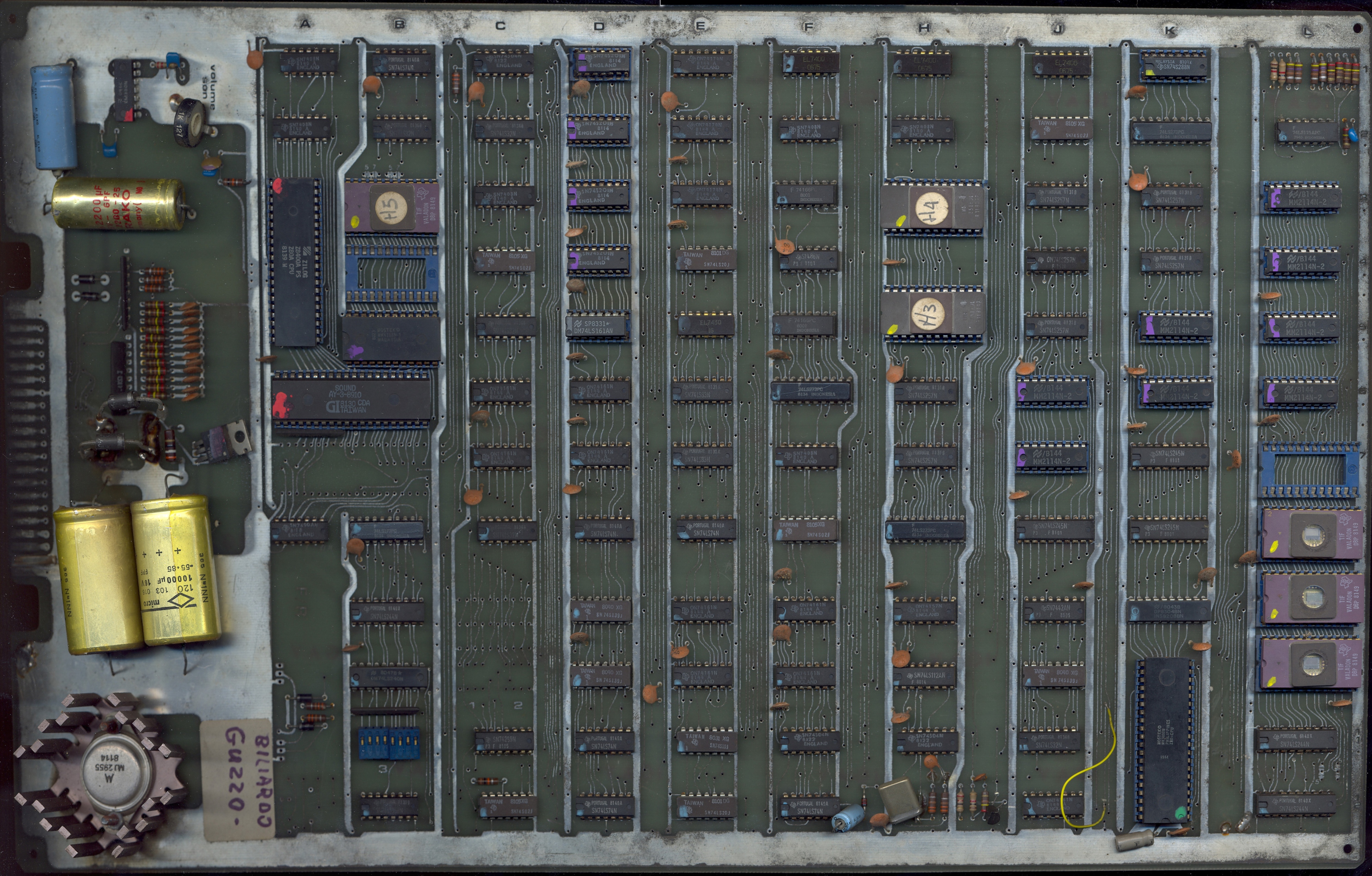

1st PCB component side
-

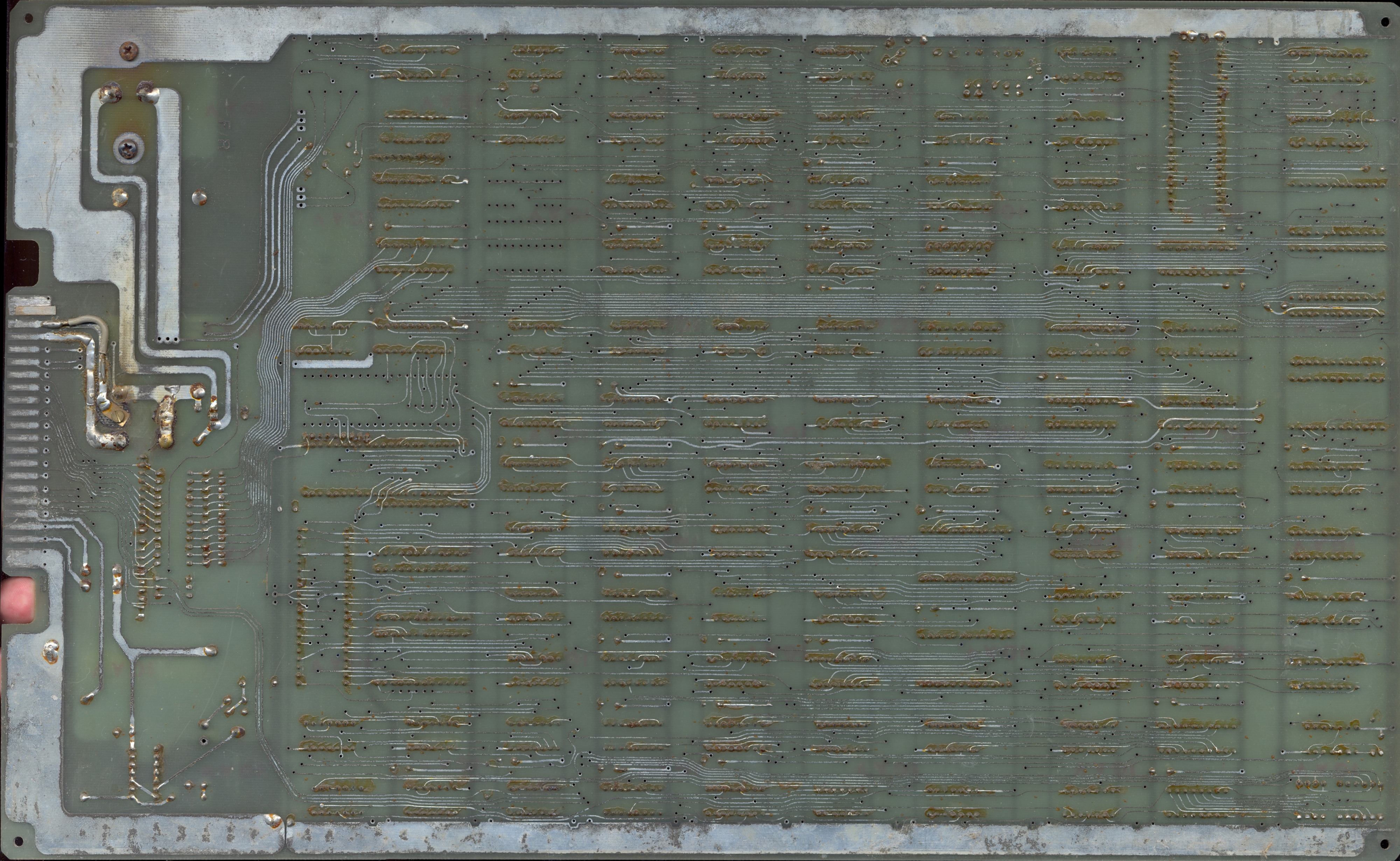

1st PCB solder side
-

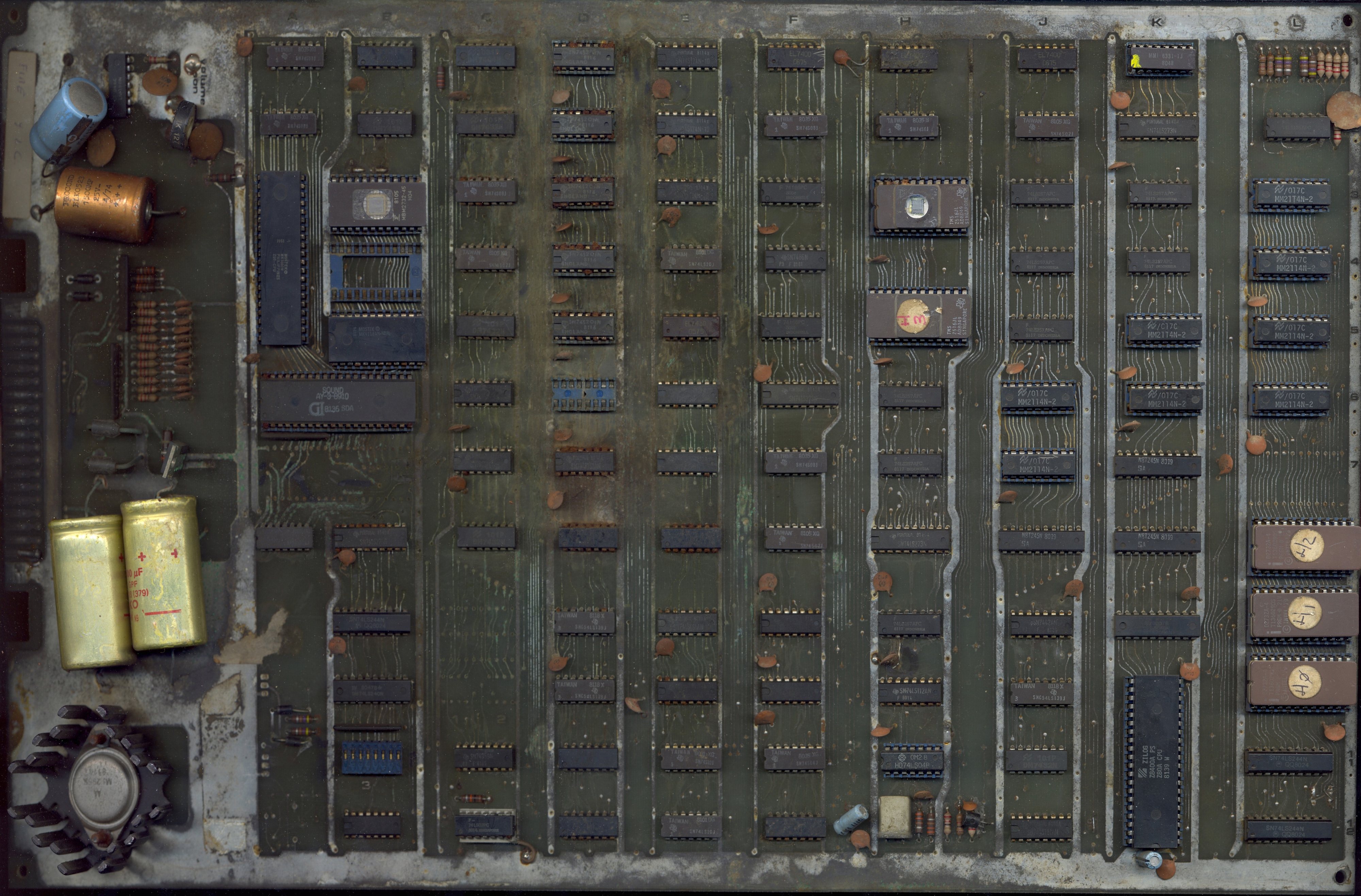

2nd PCB component side
-

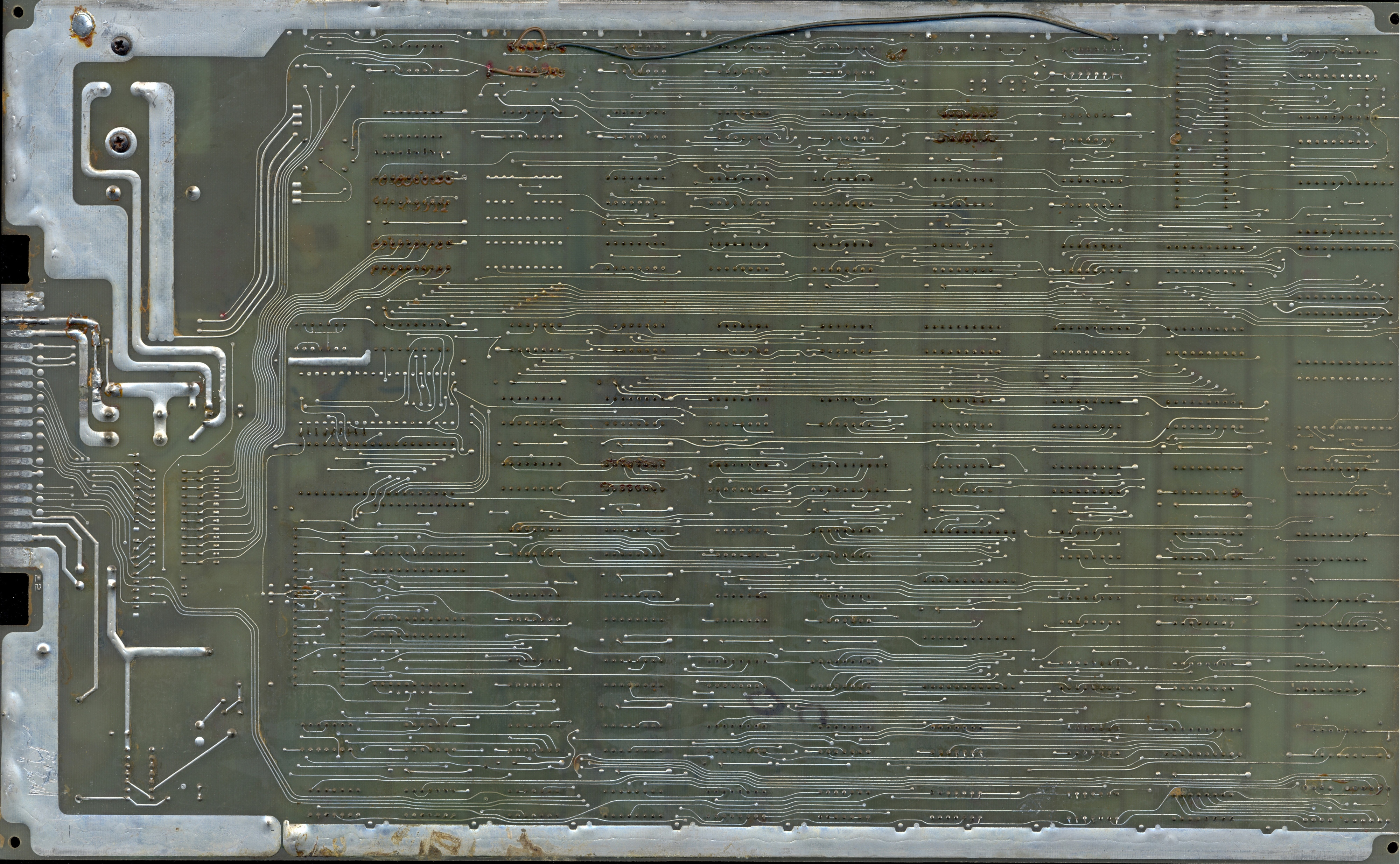

2nd PCB solder side
