Video Carnival 1999 / Super Royal Card (Version 0.11)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 17/05/2010 |
| emulator | MAME 0.138u1 |
| dev | f205v, Angelo Salese |
| name | vcarn on ProgettoEMMA vcarn on Arcade Database |
| description | Video Carnival 1999 / Super Royal Card (Version 0.11) |
| year | 1999 |
| manufacturer | Electronic Projects |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z84C0006VEC-Z80CPU | u1 | 8-bit Microprocessor - main | |
| 1x | U6295 | u30 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358 | u31 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 12.000MHz | u34 | |
| 1x | green resonator | 1000 | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C4001 | 1,2 | dumped |
| 1x | M27C010 | 3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | D43256BGU-70LL | u20,u21,u29 |
| 1x | UM62256AM-10L | u37 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI1032E-70LJ | u25 | not dumped |
Others
1x 28x2 edge connector
1x pushbutton
1x trimmer (volume)
1x red LED
1x battery 3.6V
Notes
update 20160425: added operator's manuals (formerly 513)
Files
-

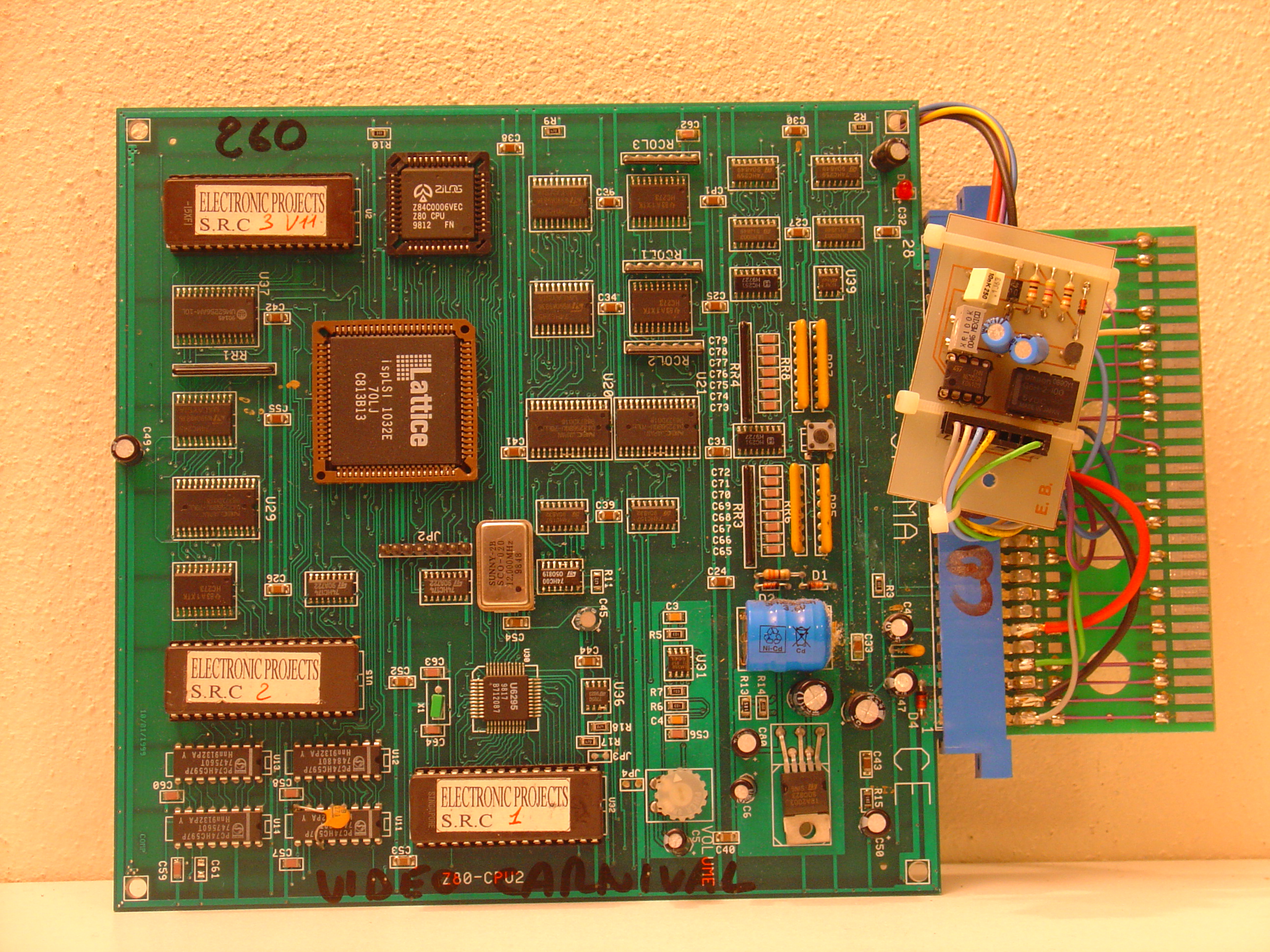

PCB component side 1
-

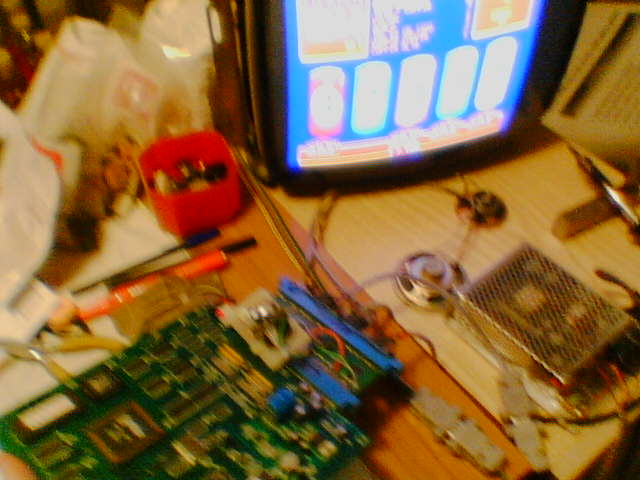

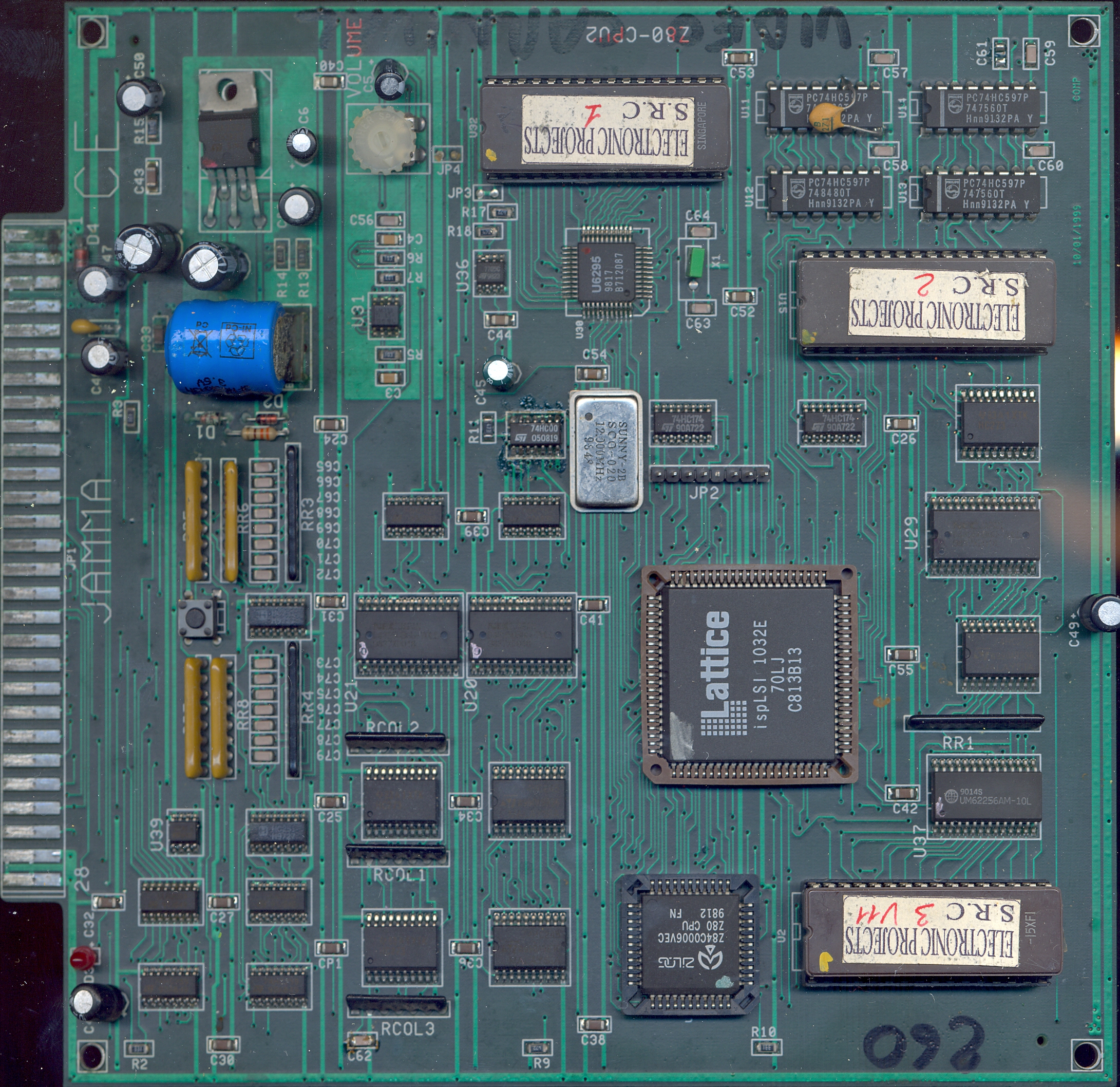

PCB component side 2
-

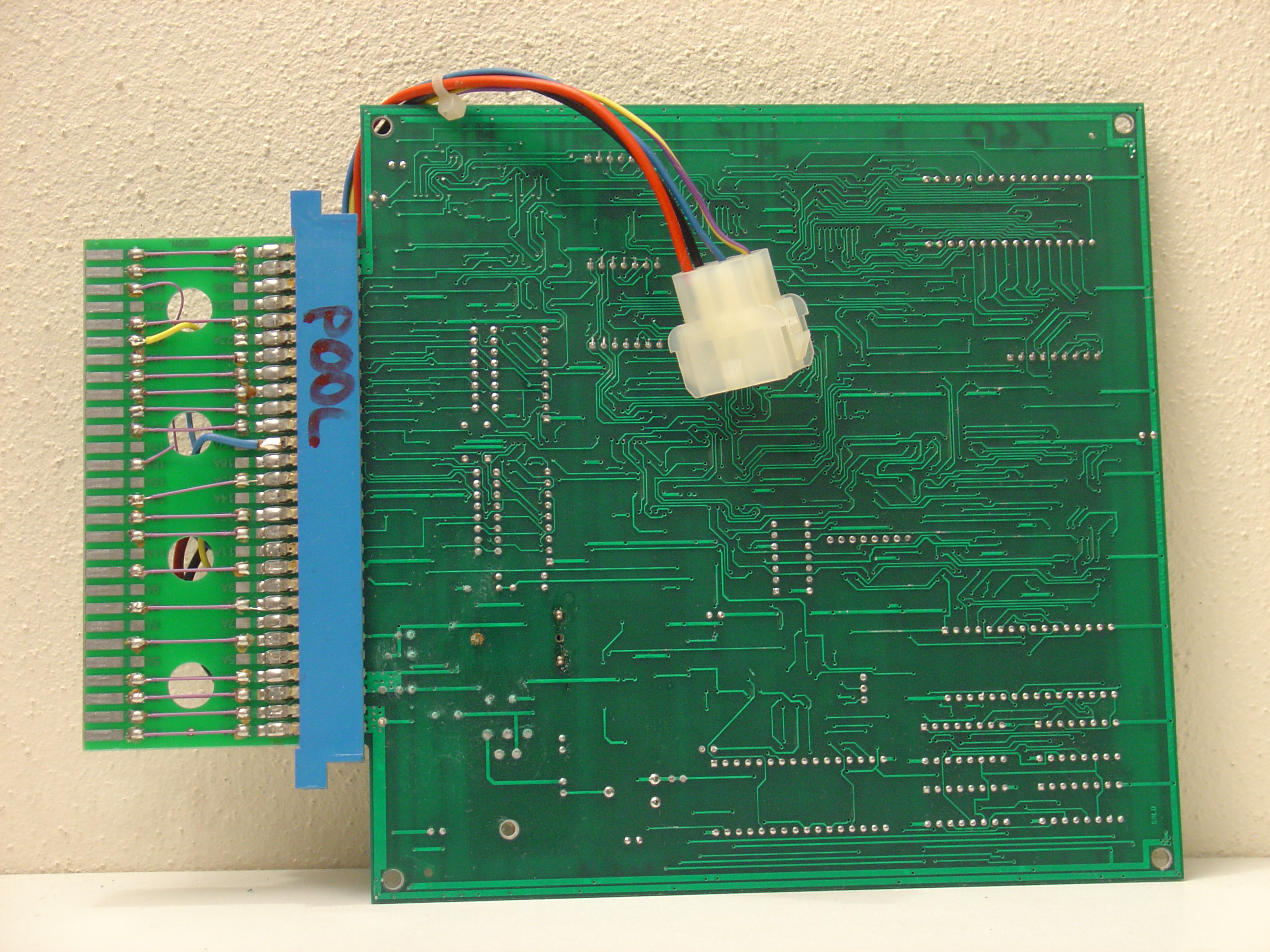

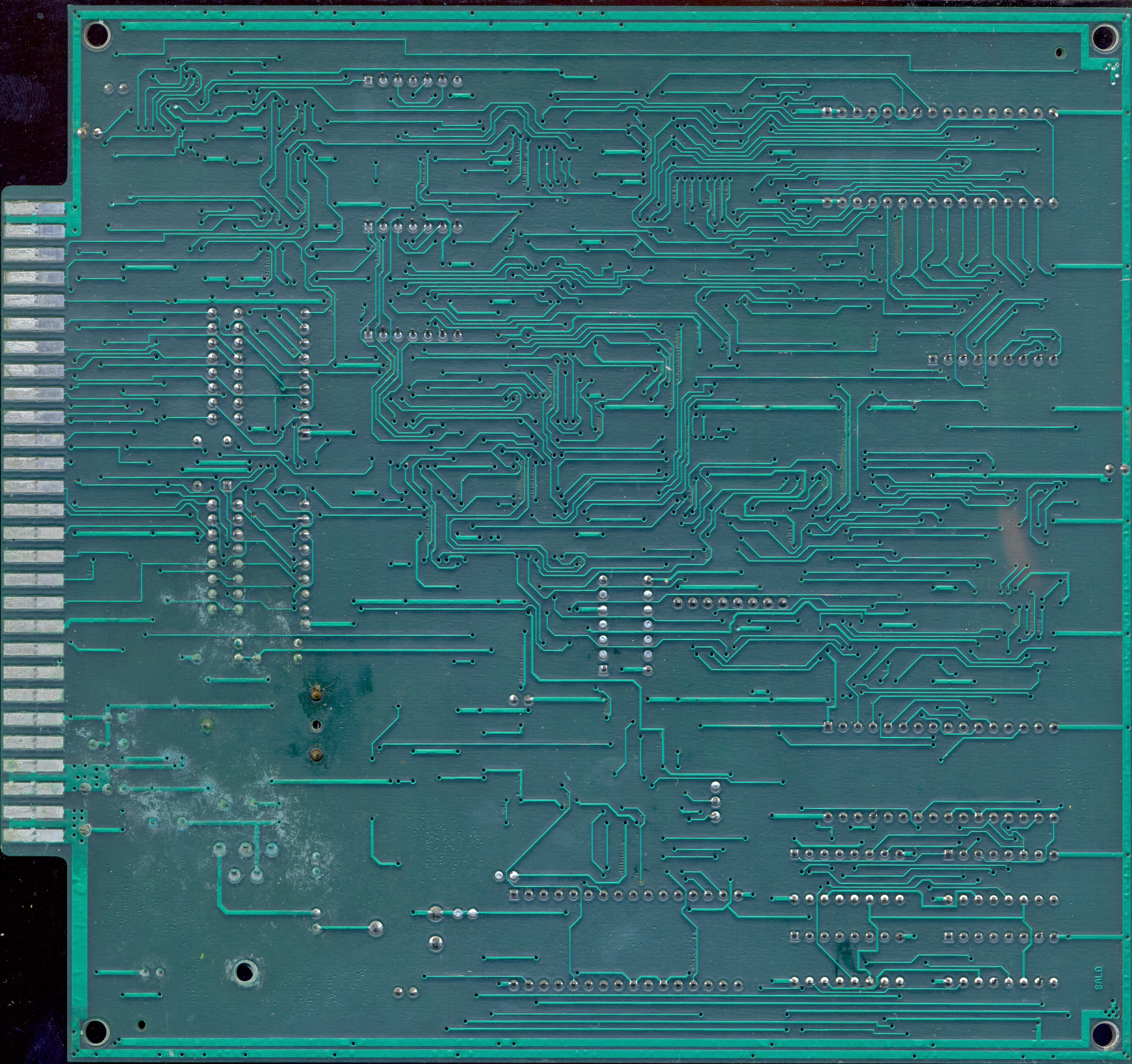

PCB solder side
-

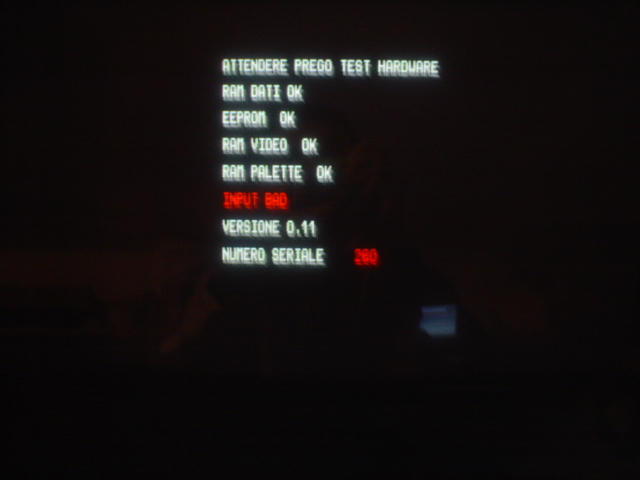

Boot
-

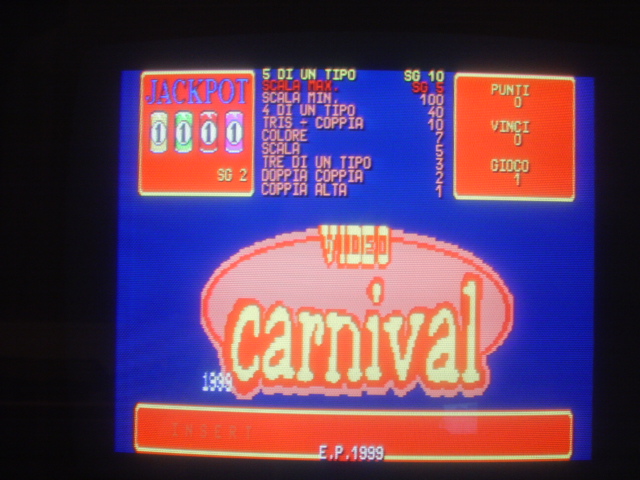

Title 1
-

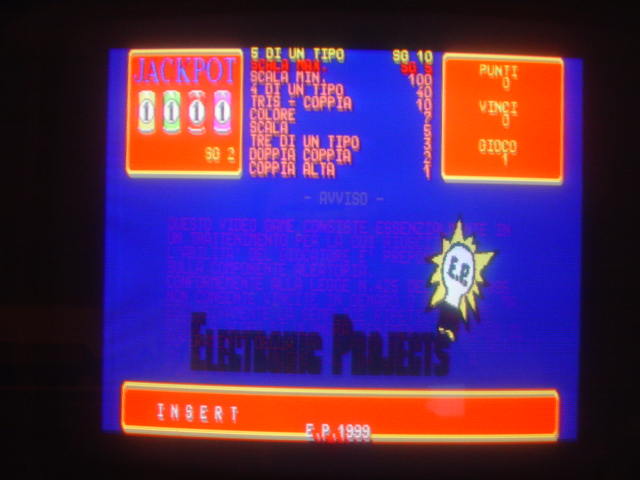

Title 2
-

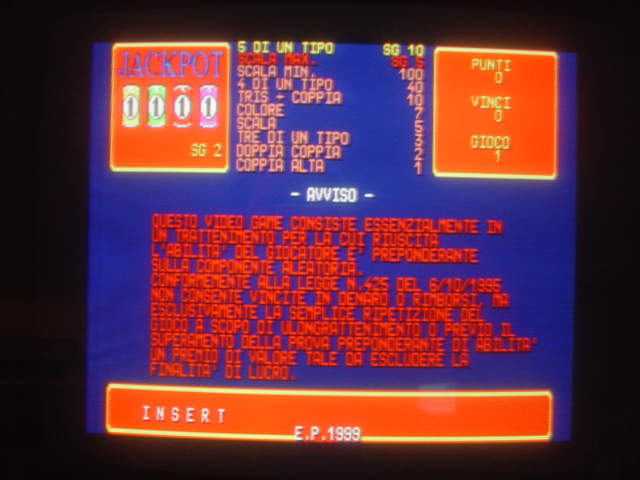

Game disclaimer
-

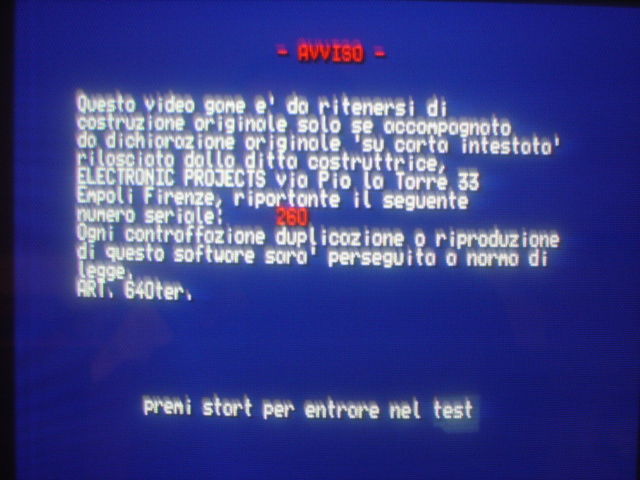

Test disclaimer
-

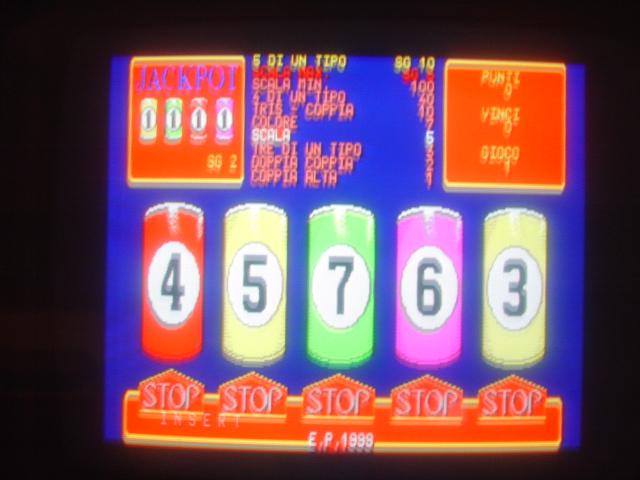

In game
-

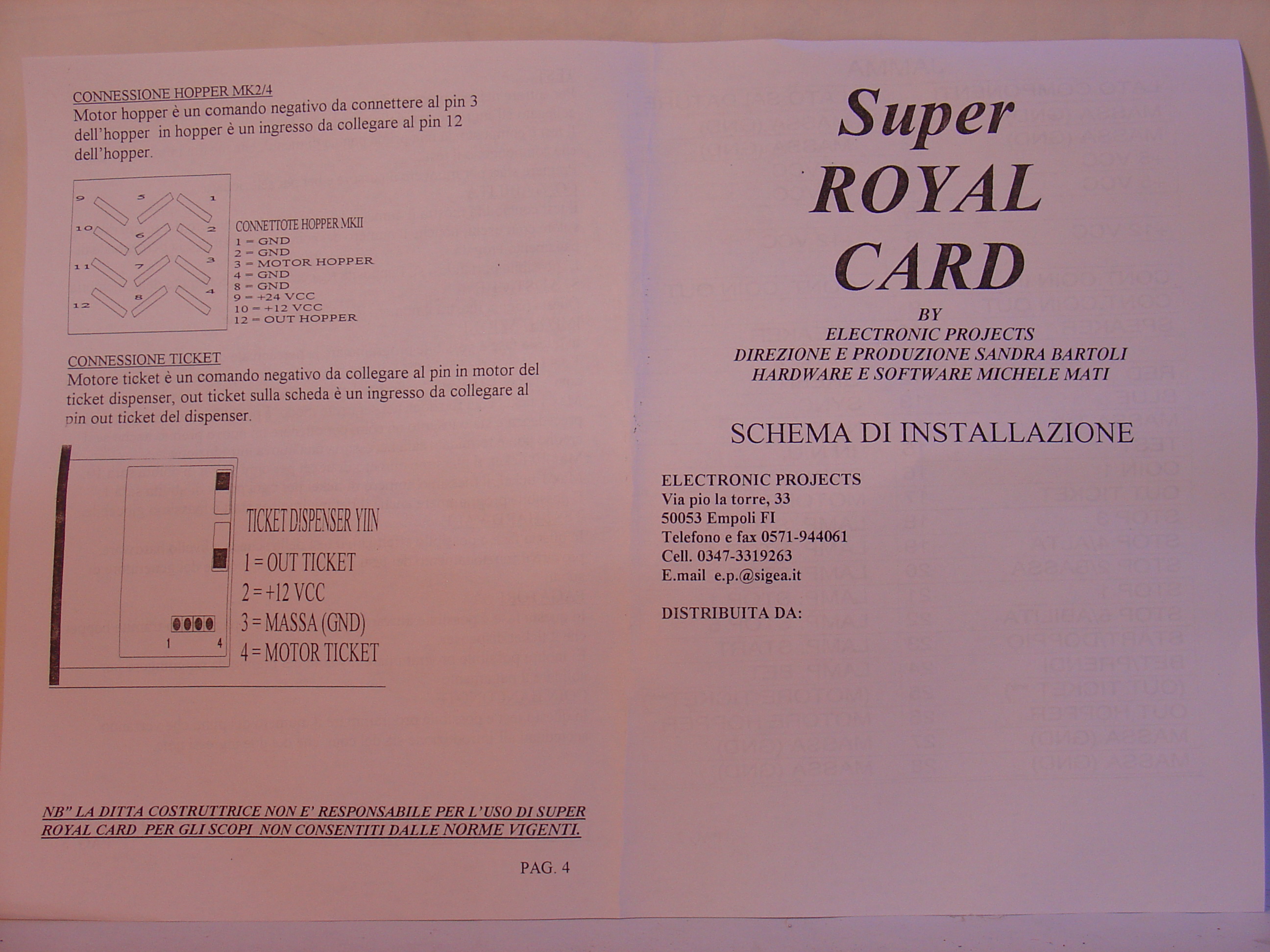

Operator's manual 1
-

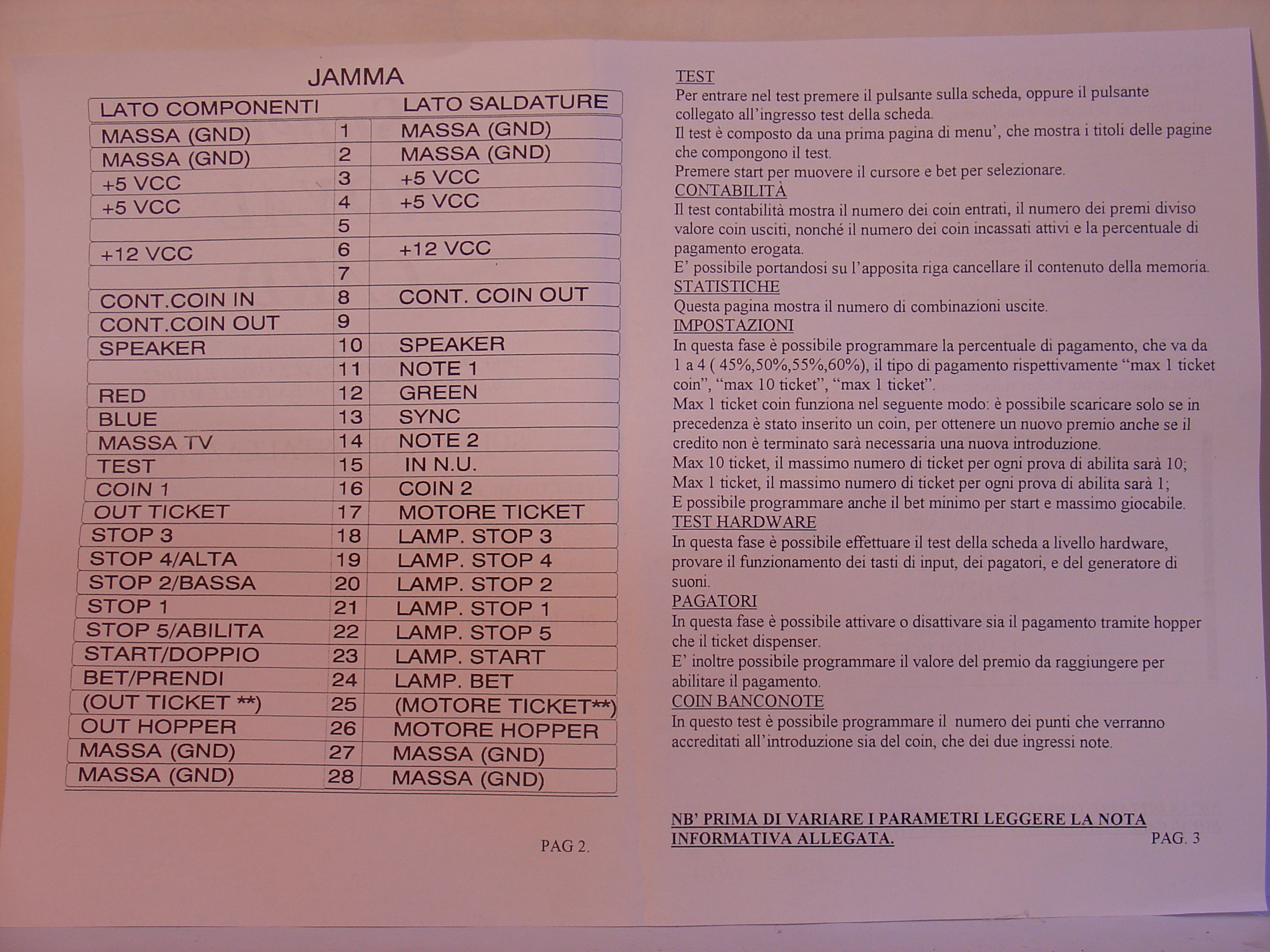

Operator's manual 2
513, 916
