Versus Net Soccer (ver EAD)

From Citylan
Jump to navigationJump to search
EMU Infos
dumper f205v
date 18/10/2005
emulator MAME 0.107u3
dev R. Belmont
PCB Infos
name vsnetscr on ProgettoEMMA
vsnetscr on Arcade Database
description Versus Net Soccer (ver EAD)
year 1996
manufacturer Konami

Technical references

CPUs

QTY Type clock position function
1x MC68EC000FNB system PCB 8P 16/32-bit Microprocessor - main
1x MC68EC020FG25 system PCB 23J 32-bit Microprocessor - main
1x TMS57002DPHA system PCB 7G Digital Audio Signal Processor (DASP)(internal ROM not dumped) - Sound
1x Konami custom 056602 system PCB 1C Audio DAC
1x Konami custom 056800 system PCB 9F Sound interface and audio control
1x Konami custom 058141 system PCB 7K/12K 8-Channel ADPCM sound generator (made by NEC?)
1x Konami custom 058232 system PCB 1E sound filter?
1x LA4705 system PCB 2A Audio Power Amplifier - sound
1x Konami custom 055555 system PCB 19R Video Mixer/Priority encoder
1x Konami custom 055673 system PCB 31S Video Sprite generator
1x Konami custom 056766 system PCB 18D Video RGB DAC (made by Sony?)
1x Konami custom 056820 system PCB 16D Video RGB voltage regulator
1x Konami custom 056832 system PCB 13S Video Tilemaps generator (made by NEC?)
2x Konami custom 056879 system PCB 22C, 24F Video?
1x Konami custom 058142 system PCB 25S Video Sprite generator
1x Konami custom 058143 system PCB 14P Video 3D Graphics (made by NEC?)
1x Konami custom 058144 system PCB 16G Video Color mixer for special effects/alpha blending etc
1x oscillator 18.432000MHz and 30.000000MHz system PCB 18J
1x oscillator 48.00 system PCB 17K
2x MC44200 game PCB 1D, 14C Triple 8-bit Video DAC
1x Konami custom 053936 game PCB 26B Video roz+ 3D (made by Yamaha?) also marked KS10011-PF PSAC2
1x Konami custom 058146 game PCB 6J ?

ROMs

QTY Type position status
1x Konami 057546 system PCB 34K dumped
1x 93C46 system PCB 22D not dumped yet
1x HN624316P Konami 003487 game PCB 22H dumped
2x MX27C1000 system PCB 7M, 9M dumped
2x AM27C4096 system PCB 29M, 31M dumped
4x Konami 003476 003477 003484 003485 game PCB 31R, 29R, 11M, 11R dumped
7x Konami 003478 003479 003480 003481 003482 003483 003486 game PCB 25R, 23R, 21R, 18R, 16R, 14R, 7R dumped

RAMs

QTY Type position
2x M514256C-60J system PCB 4F, 4H
3x CY7C185-25VC system PCB 17E, 17G, 17H
7x MB8464C-70L system PCB 8N, 8Q, 8S, 12E, 14E, 24P, 26P
4x M51257CLL-70 system PCB 28E, 31E, 33E, 35E
2x 814260-70 game PCB 2G, 2J
6x CY7C185-25VC game PCB 5G, 7G, 9G, 11G, 13G, 15G
2x HM62256BLFP-7T game PCB 23A, 23C
2x MB8464C-70L game PCB 28E, 29G

PLDs

QTY Type position status
2x PALCE16V8H-15PC/4 system PCB 8J, 10J read protected (marked K057496, K057497)
5x PALCE16V8H-15PC/4 game PCB 17J, 28J, 18J, 20G, 12J read protected (marked K000141, K000143, K002205, K002206, K002207)
1x Konami custom 003462 game PCB 33G Xilinx FPGA

Others

1x 28x2 JAMMA edge connector (system PCB JAMMA)
1x 4 legs connector (system PCB CN2)
1x 4 legs connector (system PCB CN5 GUN 1P)
1x 4 legs connector (system PCB CN6 GUN 2P)
1x 15 legs connector (system PCB CN3 3P)
1x 15 legs connector (system PCB CN4 4P)
5x 100 pins direct connectors from system PCB (male, CN106 CN107 CN108 CN109 CN110) to game PCB (female, CN106 CN107 CN108 CN109 CN110)
1x pushbutton (system PCB TEST SW)
1x 8 DIP switches bank (system PCB DIPSW1)
12x Konami custom 005273B Inputs (system PCB)
2x 6 legs connectors (game PCB CN14 MAIN RGB OUT, CN15)
5x 100 pins direct connectors from game PCB (female, CN101 CN102 CN103 CN104 CN105) not used

Notes

system PCB is marked: "SYSTEM GX TM" and "KONAMI MOTHER PCB PWB300456A MADE IN JAPAN AI AM-2" on component side
system PCB is marked: "KONAMI PWB300456A" on solder side

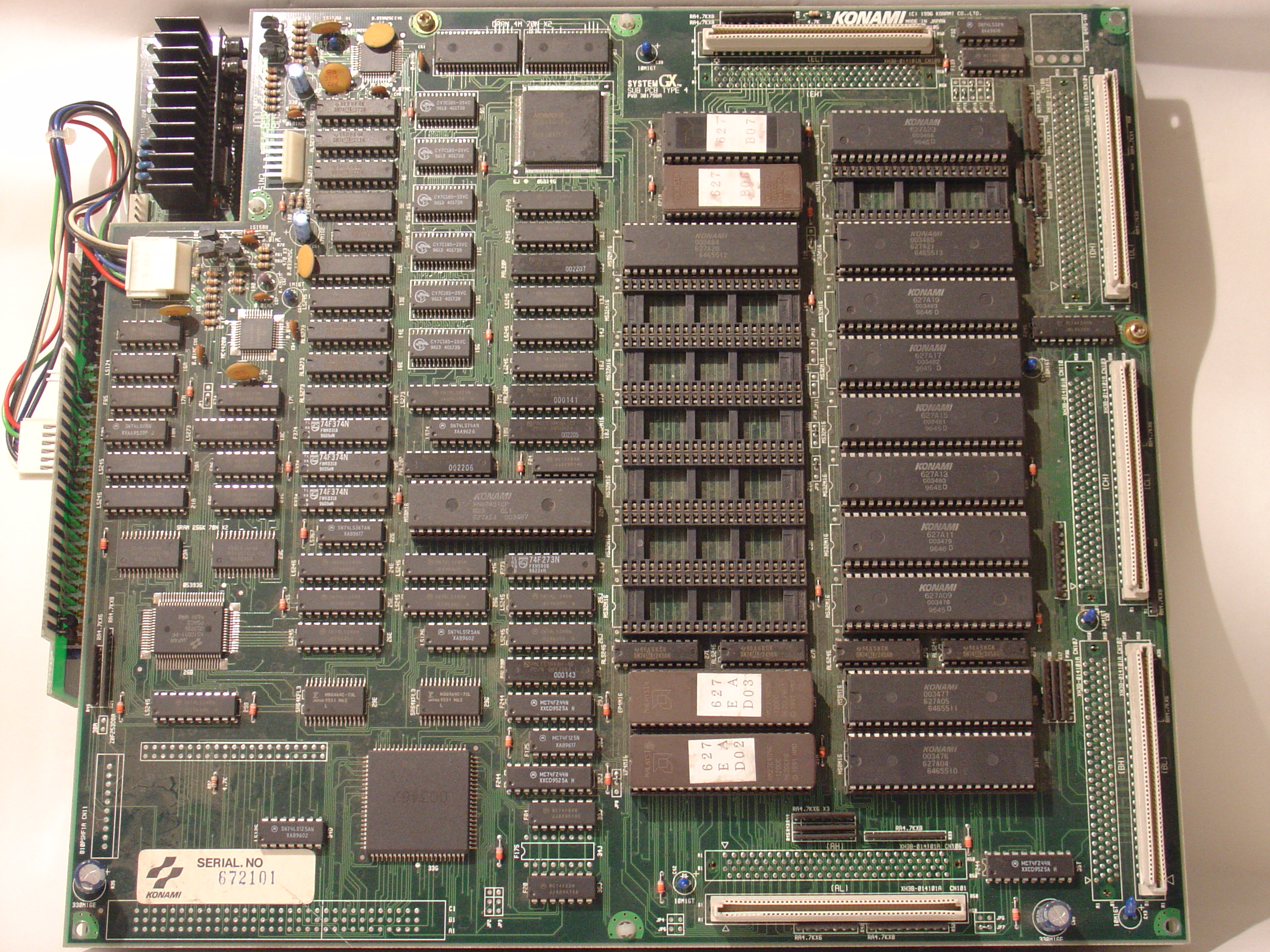

game PCB is marked: "SYSTEM GX TM SUB PCB TYPE 4 PWB 301798A" and "KONAMI (C) 1996 Konami CO. LTD. MADE IN JAPAN" on component side
game PCB is marked: "PWB 301798A SUB PCB TYPE 4 KONAMI" on component side


update 20180612: better description
