Versus Net Soccer (ver EAB)

EMU Infos
dumper	f205v
date	17/10/2005
emulator	MAME 0.107u3
dev	R. Belmont

PCB Infos
name	vsnetscreb on ProgettoEMMA vsnetscreb on Arcade Database
description	Versus Net Soccer (ver EAB)
year	1996
manufacturer	Konami

Technical references

CPUs

QTY	Type	clock	position	function
1x	MC68EC000FNB		system PCB 8P	16/32-bit Microprocessor - main
1x	MC68EC020FG25		system PCB 23J	32-bit Microprocessor - main
1x	TMS57002DPHA		system PCB 7G	Digital Audio Signal Processor (DASP)(internal ROM not dumped) - Sound
1x	Konami custom 056602		system PCB 1C	Audio DAC
1x	Konami custom 056800		system PCB 9F	Sound interface and audio control
1x	Konami custom 058141		system PCB 7K/12K	8-Channel ADPCM sound generator (made by NEC?)
1x	Konami custom 058232		system PCB 1E	sound filter?
1x	LA4705		system PCB 2A	Audio Power Amplifier - sound
1x	Konami custom 055555		system PCB 19R	Video Mixer/Priority encoder
1x	Konami custom 055673		system PCB 31S	Video Sprite generator
1x	Konami custom 056766		system PCB 18D	Video RGB DAC (made by Sony?)
1x	Konami custom 056820		system PCB 16D	Video RGB voltage regulator
1x	Konami custom 056832		system PCB 13S	Video Tilemaps generator (made by NEC?)
2x	Konami custom 056879		system PCB 22C, 24F	Video?
1x	Konami custom 058142		system PCB 25S	Video Sprite generator
1x	Konami custom 058143		system PCB 14P	Video 3D Graphics (made by NEC?)
1x	Konami custom 058144		system PCB 16G	Video Color mixer for special effects/alpha blending etc
1x	oscillator	18.432000MHz and 30.000000MHz	system PCB 18J
1x	oscillator	48.00	system PCB 17K
2x	MC44200		game PCB 1D, 14C	Triple 8-bit Video DAC
1x	Konami custom 053936		game PCB 26B	Video roz+ 3D (made by Yamaha?) also marked KS10011-PF PSAC2
1x	Konami custom 058146		game PCB 6J	?

ROMs

QTY	Type	position	status
1x	Konami 057546	system PCB 34K	dumped
1x	93C46	system PCB 22D	dumped
1x	HN624316P Konami 003487	game PCB 22H	dumped
2x	MX27C1000	system PCB 7M, 9M	dumped
2x	AM27C4096	system PCB 29M, 31M	dumped
4x	Konami 003476 003477 003484 003485	game PCB 31R, 29R, 11M, 11R	dumped
7x	Konami 003478 003479 003480 003481 003482 003483 003486	game PCB 25R, 23R, 21R, 18R, 16R, 14R, 7R	dumped

RAMs

QTY	Type	position
2x	M514256C-60J	system PCB 4F, 4H
3x	CY7C185-25VC	system PCB 17E, 17G, 17H
7x	MB8464C-70L	system PCB 8N, 8Q, 8S, 12E, 14E, 24P, 26P
4x	M51257CLL-70	system PCB 28E, 31E, 33E, 35E
2x	814260-70	game PCB 2G, 2J
6x	CY7C185-25VC	game PCB 5G, 7G, 9G, 11G, 13G, 15G
2x	HM62256BLFP-7T	game PCB 23A, 23C
2x	MB8464C-70L	game PCB 28E, 29G

PLDs

QTY	Type	position	status
2x	PALCE16V8H-15PC/4	system PCB 8J, 10J	read protected (marked K057496, K057497)
5x	PALCE16V8H-15PC/4	game PCB 17J, 28J, 18J, 20G, 12J	read protected (marked K000141, K000143, K002205, K002206, K002207)
1x	Konami custom 003462	game PCB 33G	Xilinx FPGA read protected

Others

1x 28x2 JAMMA edge connector (system PCB JAMMA)
1x 4 legs connector (system PCB CN2)
1x 4 legs connector (system PCB CN5 GUN 1P)
1x 4 legs connector (system PCB CN6 GUN 2P)
1x 15 legs connector (system PCB CN3 3P)
1x 15 legs connector (system PCB CN4 4P)
5x 100 pins direct connectors from system PCB (male, CN106 CN107 CN108 CN109 CN110) to game PCB (female, CN106 CN107 CN108 CN109 CN110)
1x pushbutton (system PCB TEST SW)
1x 8 DIP switches bank (system PCB DIPSW1)
12x Konami custom 005273B Inputs (system PCB)
2x 6 legs connectors (game PCB CN14 MAIN RGB OUT, CN15)
5x 100 pins direct connectors from game PCB (female, CN101 CN102 CN103 CN104 CN105) not used

Notes

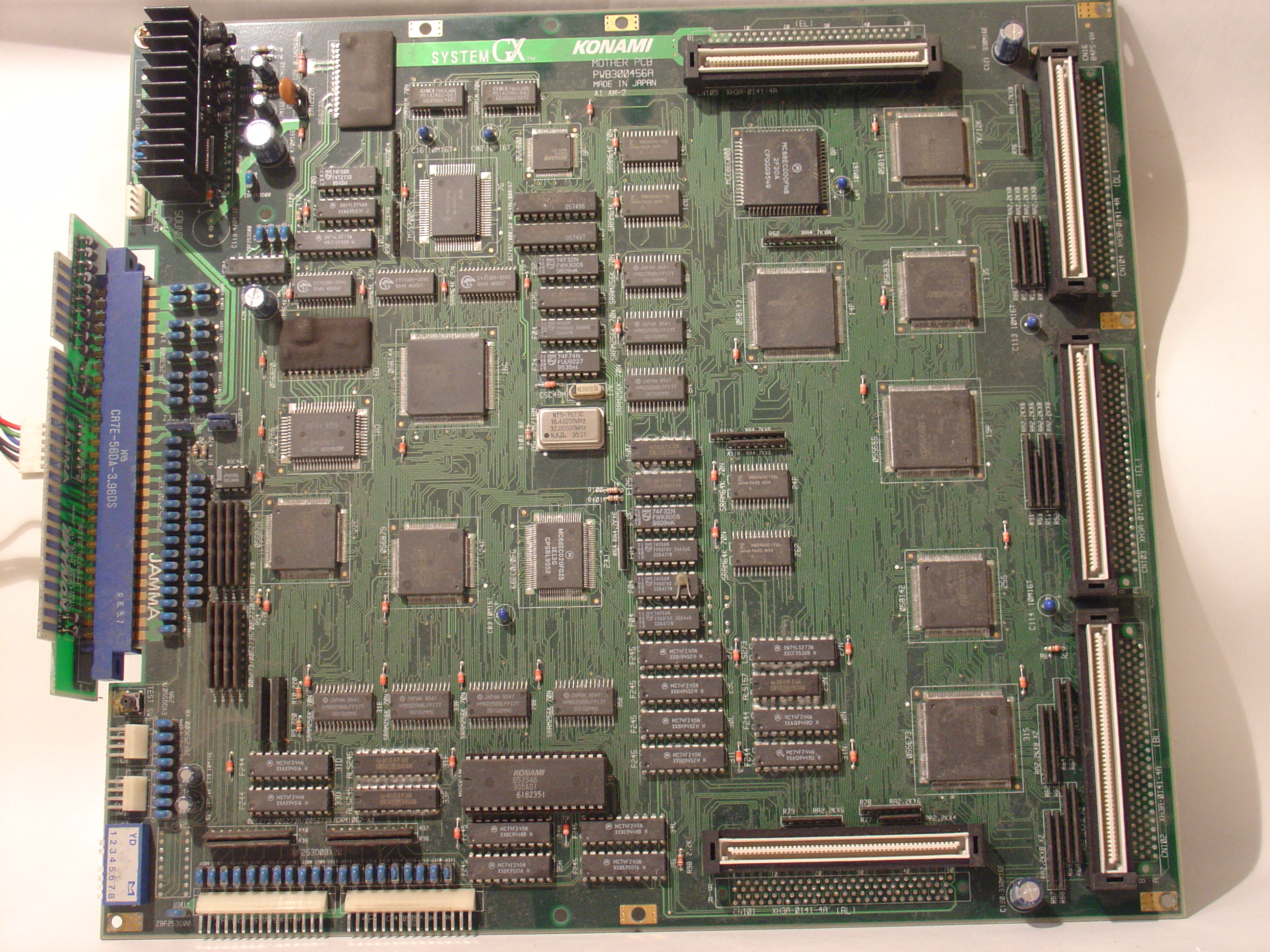

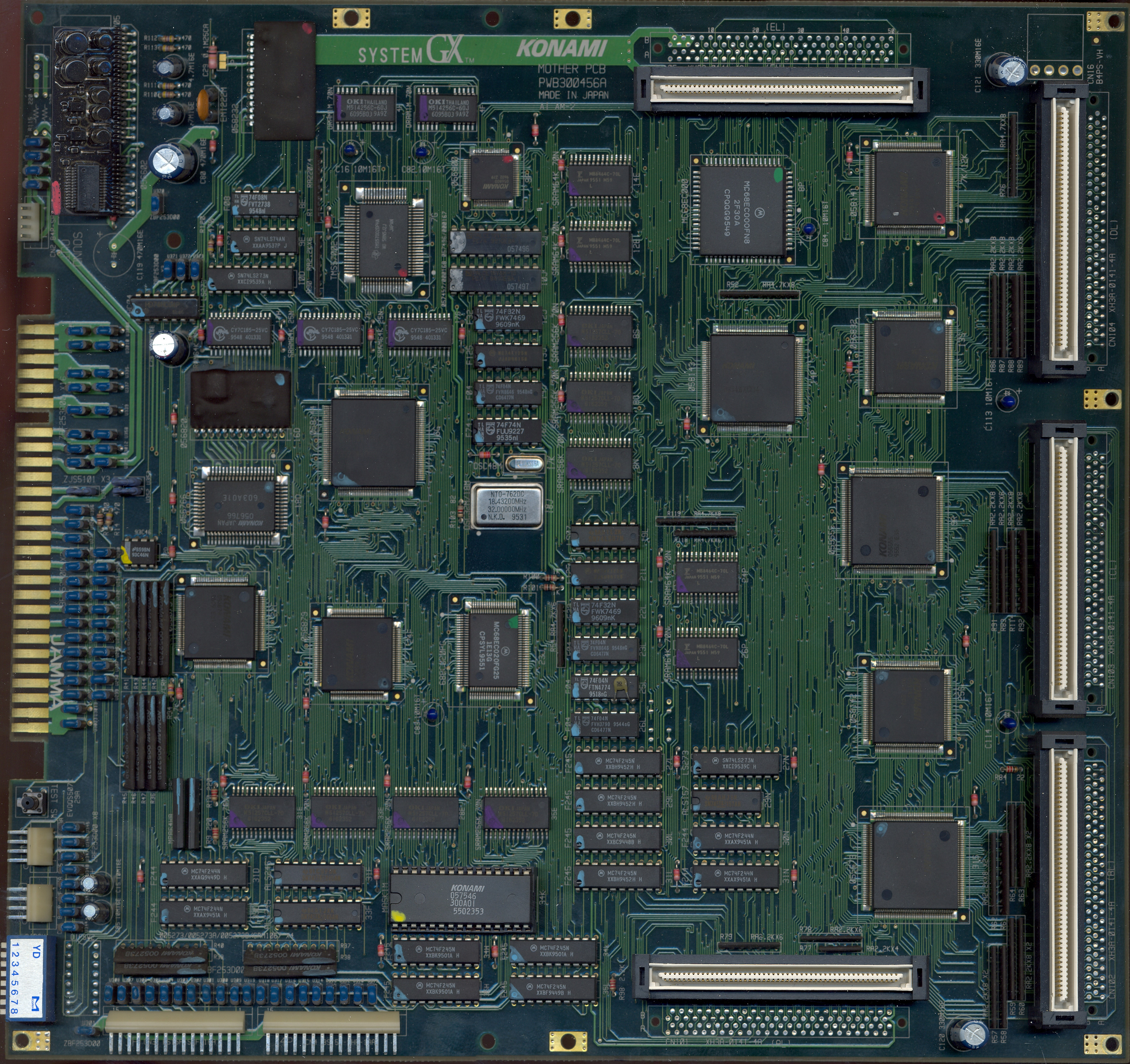

system PCB is marked: "SYSTEM GX TM" and "KONAMI MOTHER PCB PWB300456A MADE IN JAPAN AI AM-2" on component side

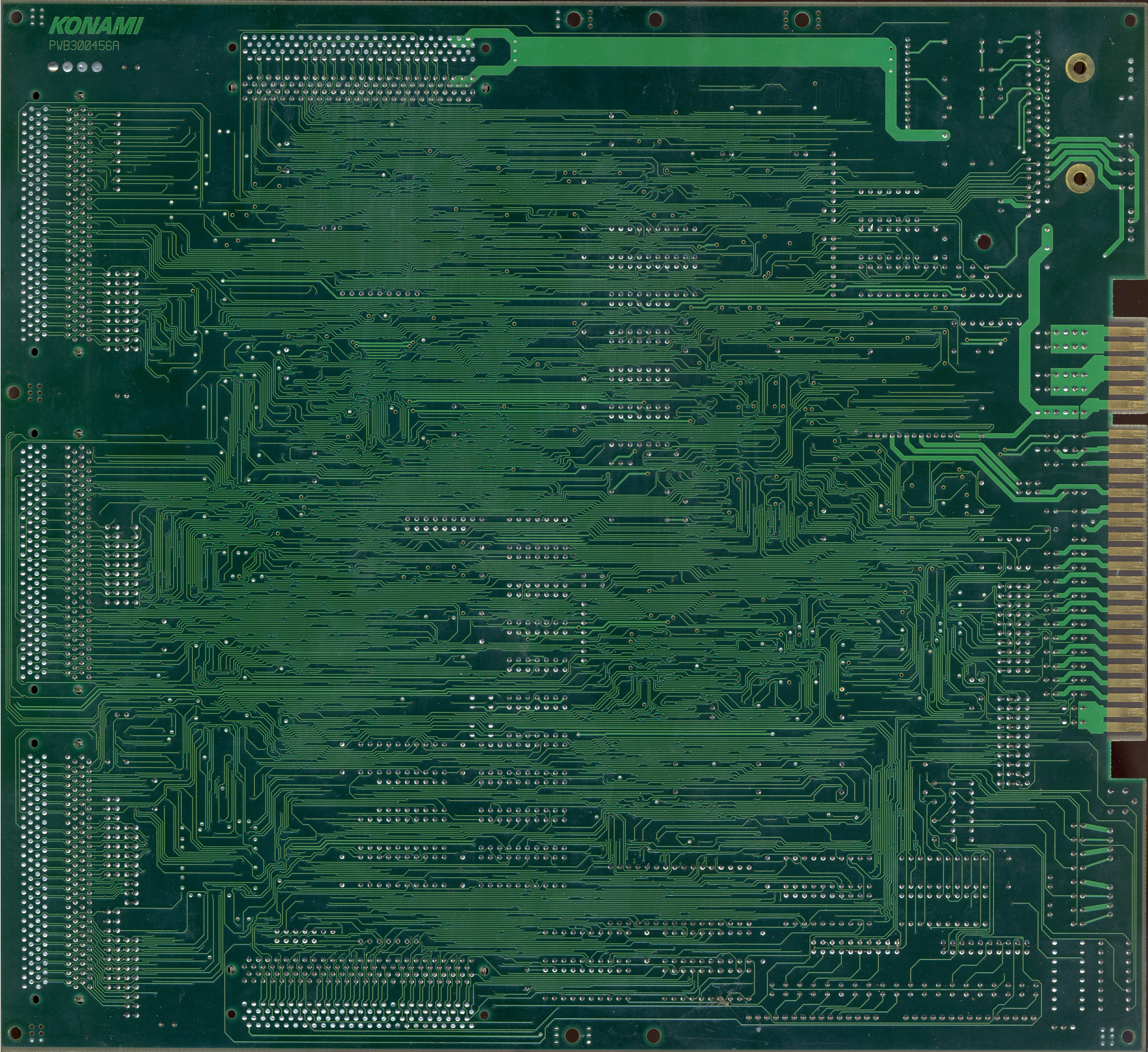

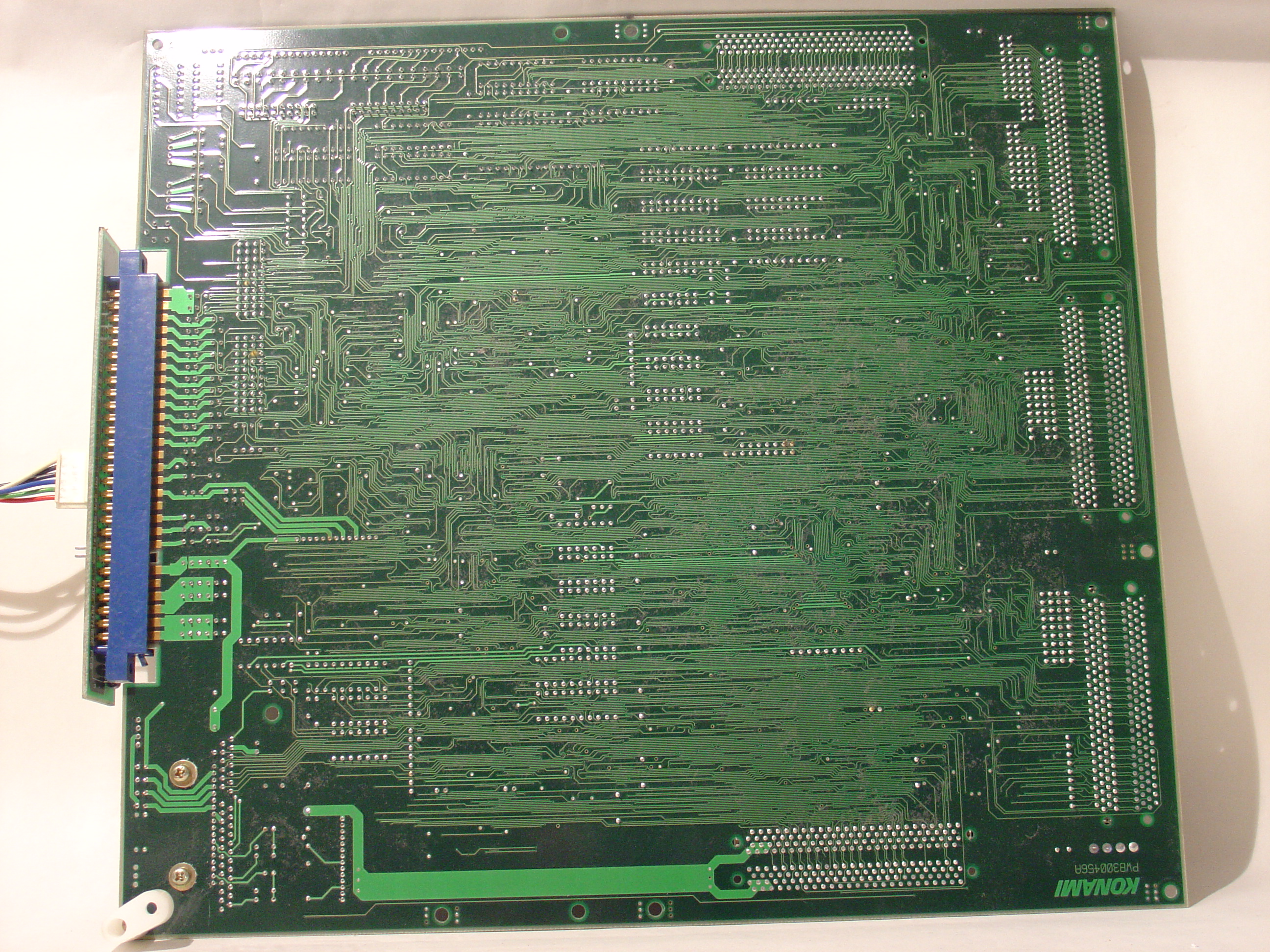

system PCB is marked: "KONAMI PWB300456A" on solder side

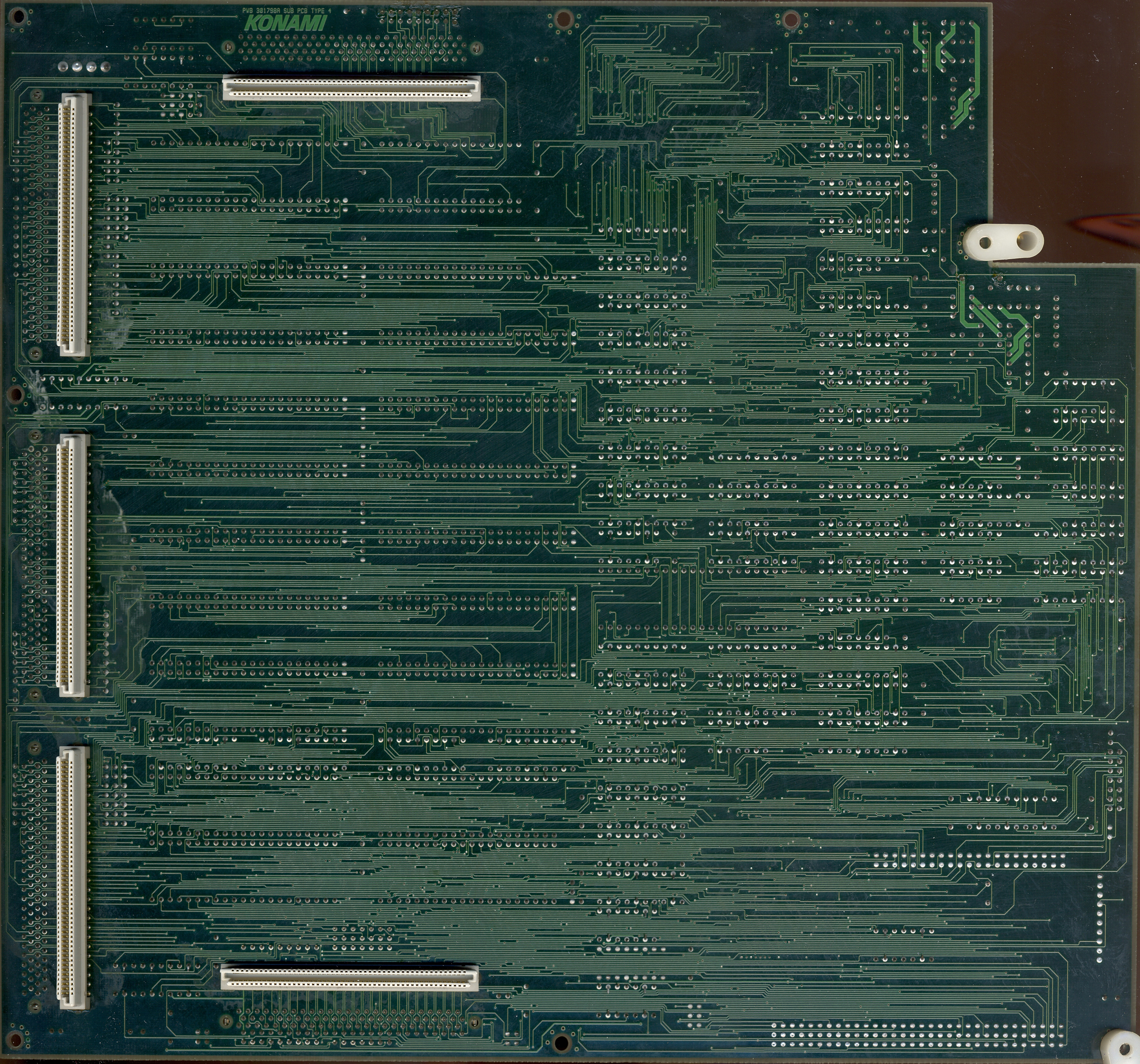

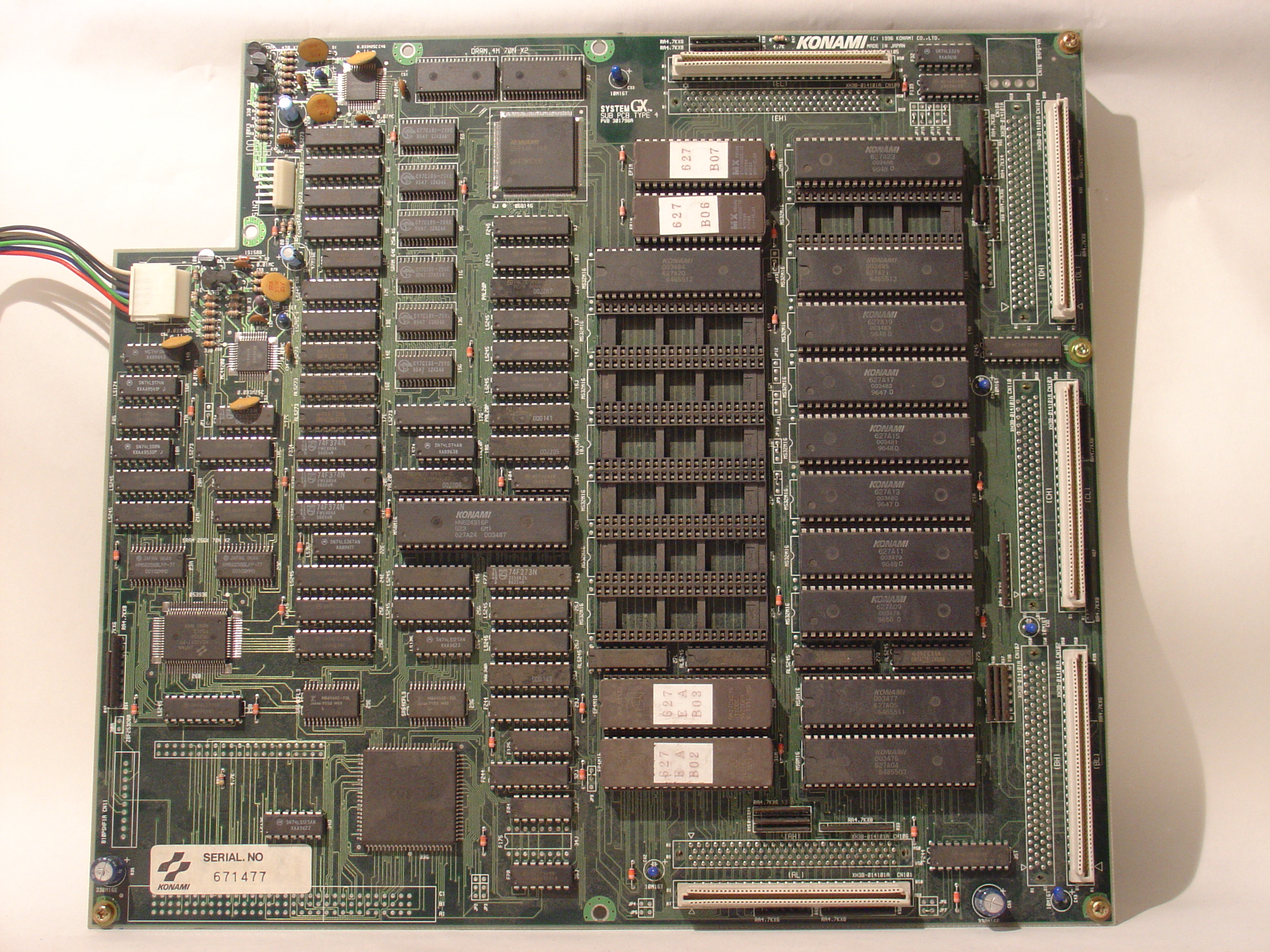

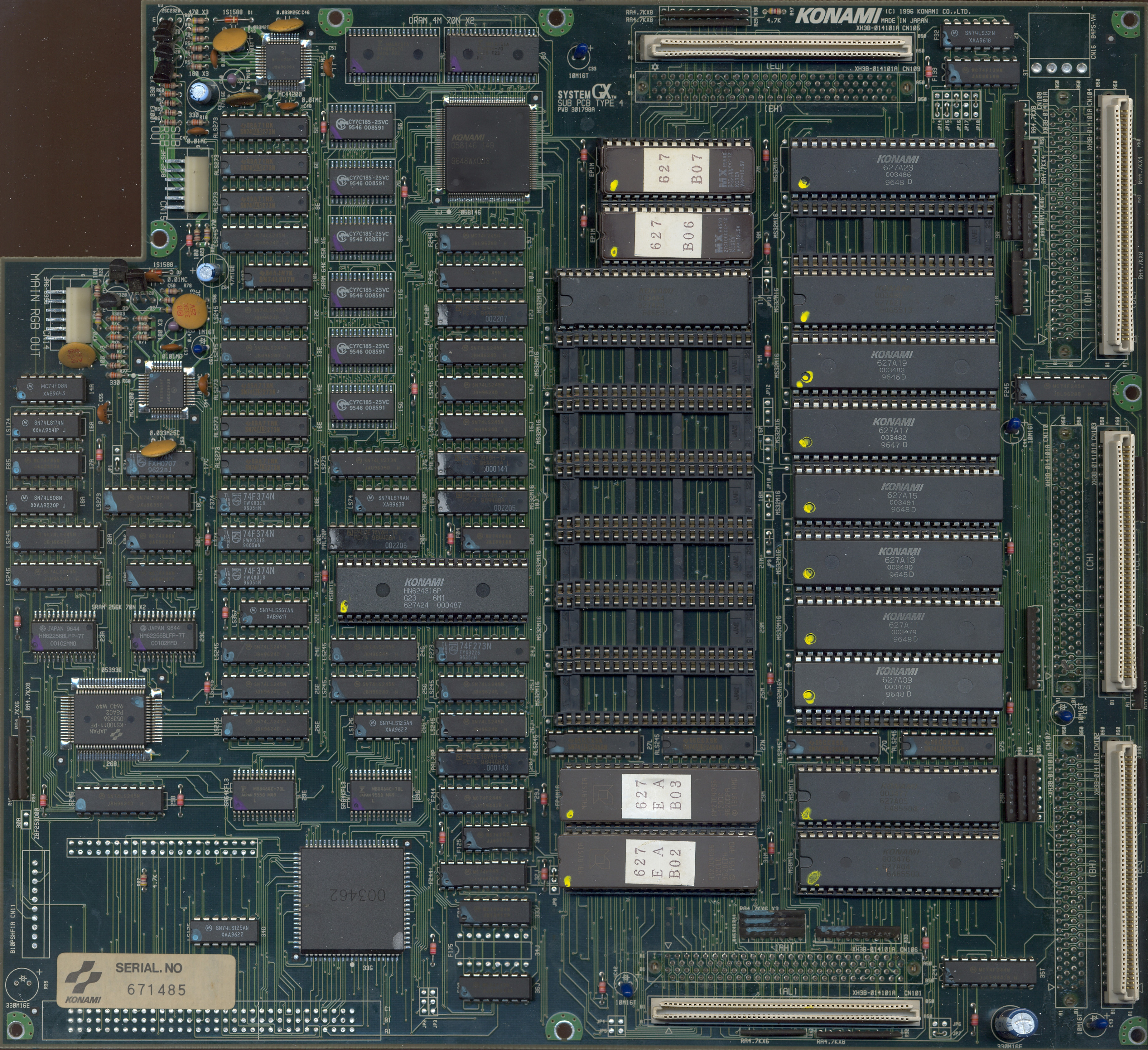

game PCB is marked: "SYSTEM GX TM SUB PCB TYPE 4 PWB 301798A" and "KONAMI (C) 1996 Konami CO. LTD. MADE IN JAPAN" on component side

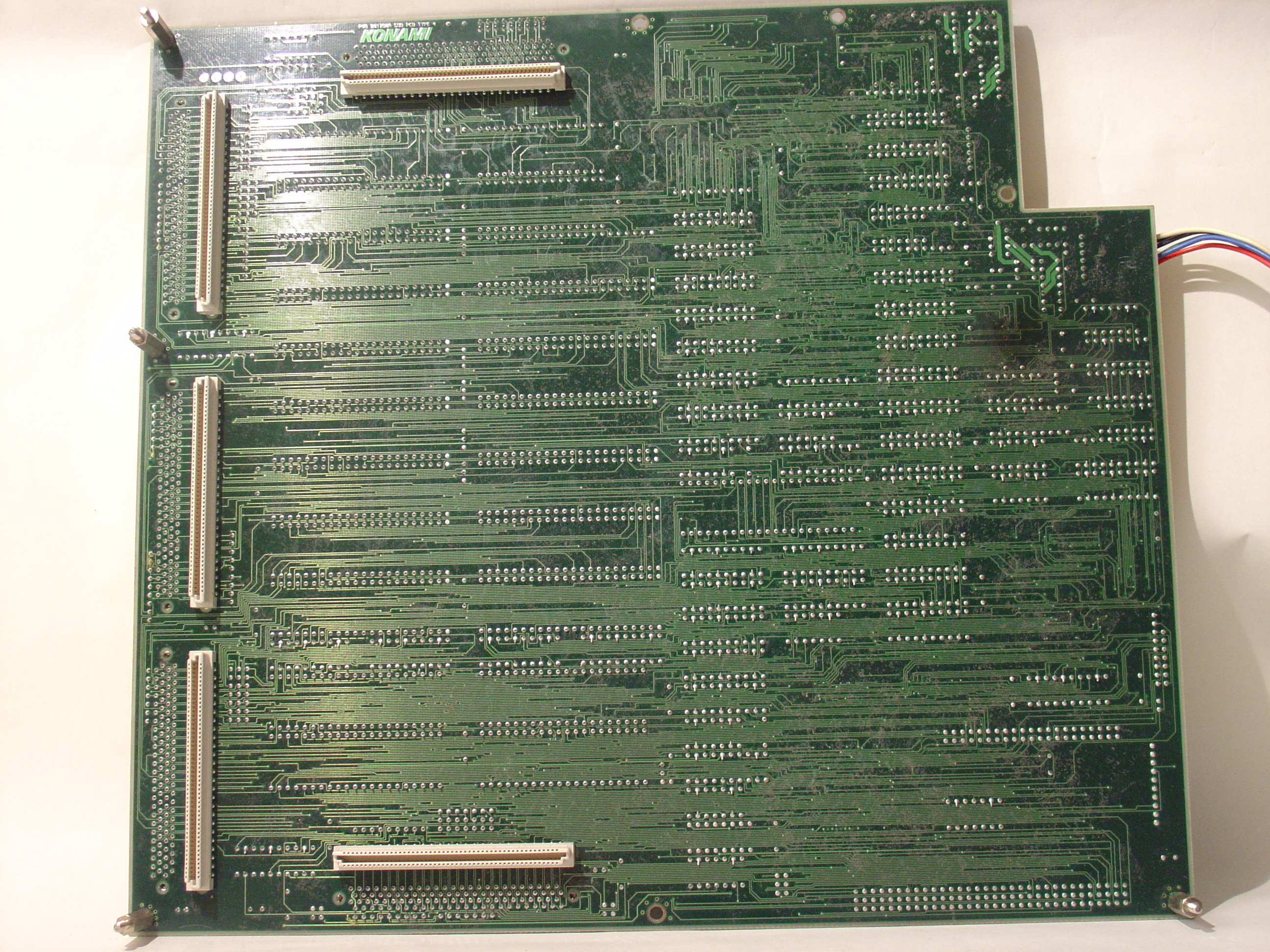

game PCB is marked: "PWB 301798A SUB PCB TYPE 4 KONAMI" on component side

update 20180612: full redumped, better pics and description

update 20180613: finally dumped EEPROM
