Varth: Operation Thunderstorm (Japan 920714)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 26/08/2008 |
| emulator | MAME 0.35b2 |
| dev | Nicola Salmoria |
| name | varthj on ProgettoEMMA varthj on Arcade Database |
| description | Varth: Operation Thunderstorm (Japan 920714) |
| year | 1992.07.14 |
| manufacturer | Capcom |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 12.000MHz |
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
update 20170115: from Corrado Tomaselli: "my Varth has the longer A-board from 1988, but with the CPS Dash sticker and offcourse the 12mhz OSC, the revision is 88617-5", and "the 12mhz OSC is not "resoldered", it is factory installed without reflux"
Files
-

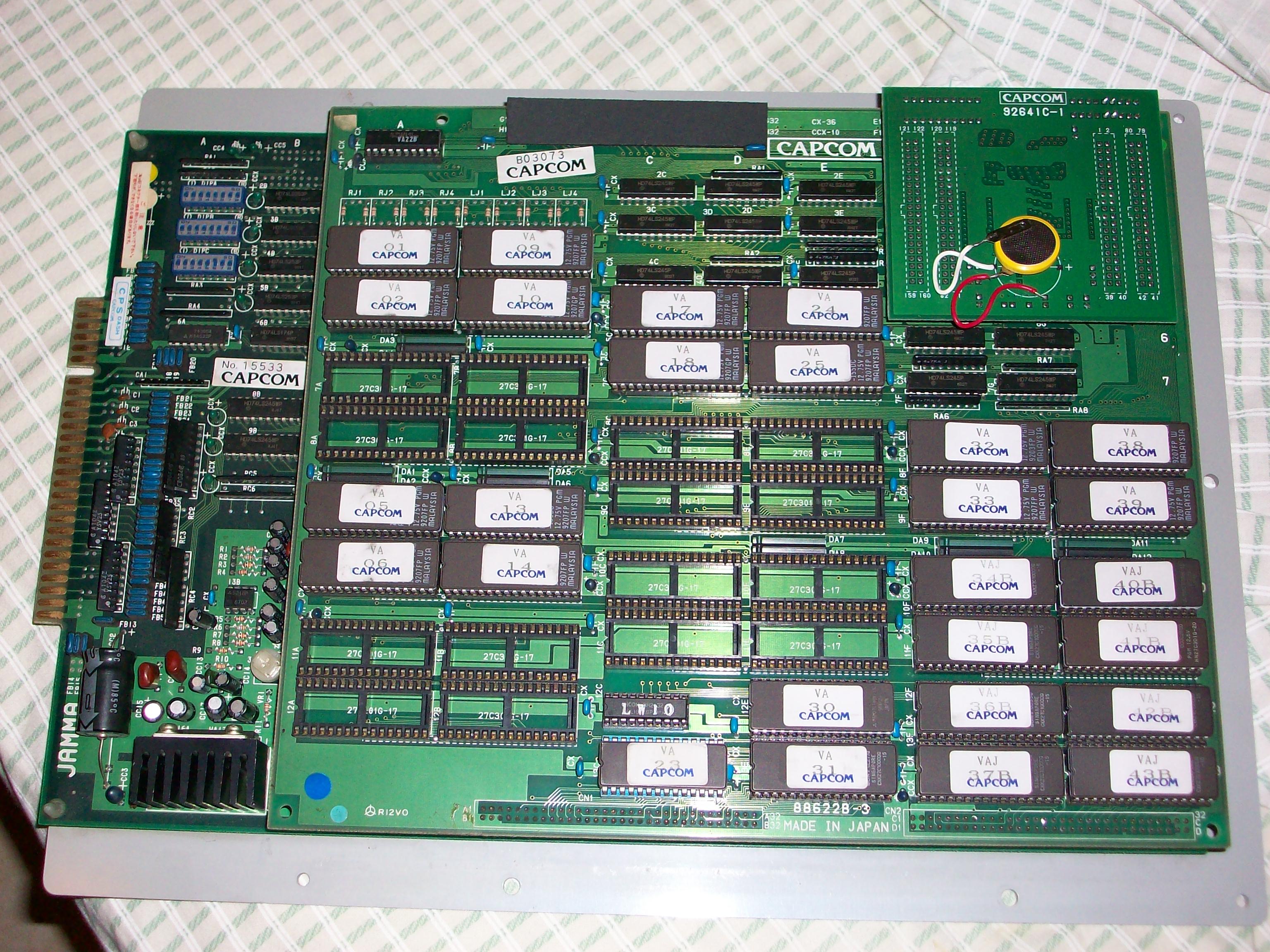

PCB component side 1
-

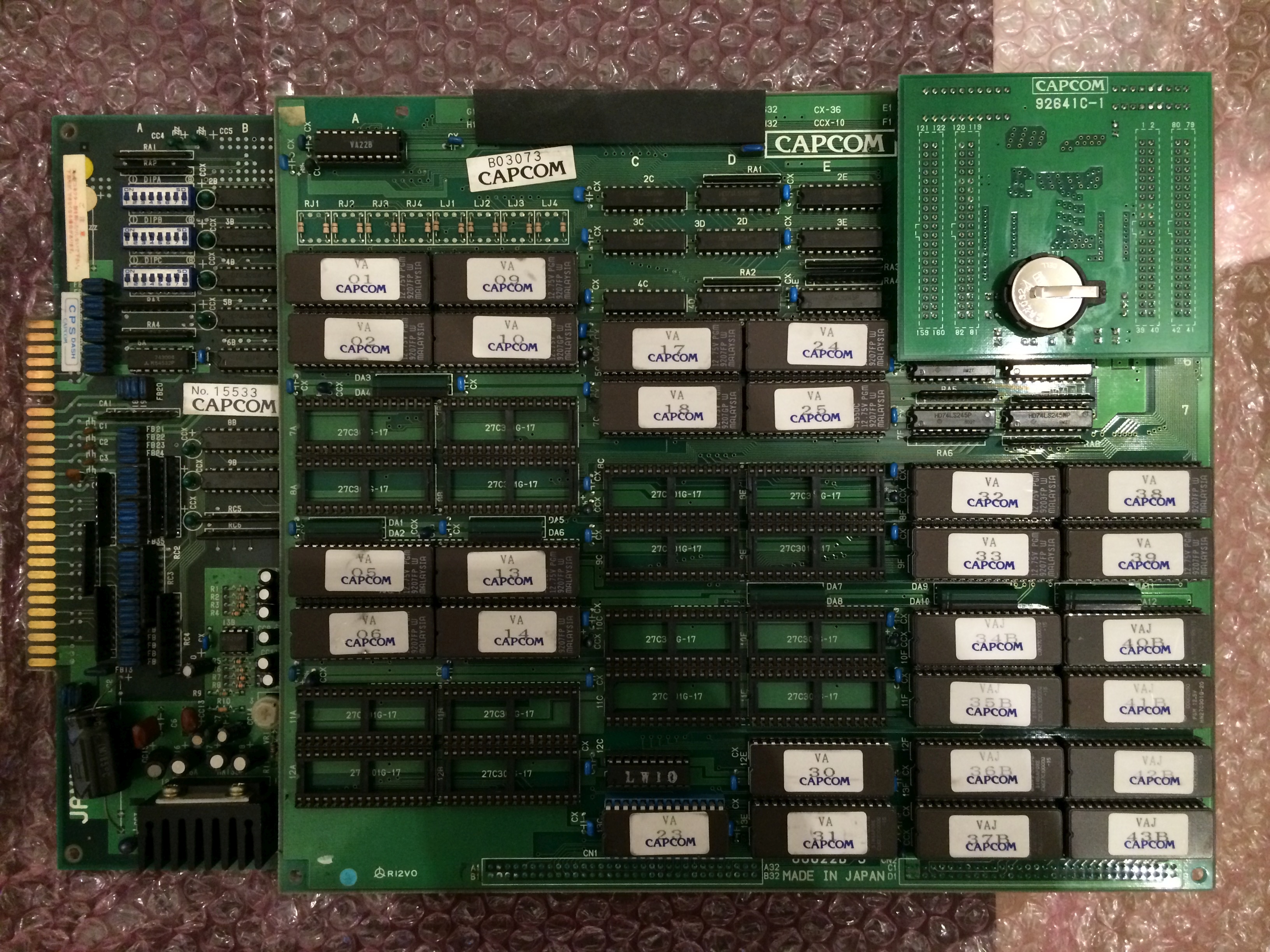

PCB component side 2
