Unknown ELSY poker
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/03/2018 |
| emulator | MAME 0.197 |
| dev | Osso |
| name | elsypokr on ProgettoEMMA elsypokr on Arcade Database |
| description | unknown ELSY poker |
| year | 200x |
| manufacturer | Electro System (Elsy) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | unknown quad SMT chip etched "ELSY" | main | ||
| 1x | M30624FGMFP | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 40.000 | ||
| 1x | oscillator | marked "S10B00E4" | ||
| 1x | oscillator | 32768 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MX29LV160BBTC-70 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | V62C5181024LL-70W |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 JAMMA edge connector
1x 8 legs connector
1x 50 pins flat cable connector
2x 10 pins flat cable connector (JAMMA side, "GETTONIERA" (Coin Counter) and "CCTALK2")
1x 4 pins white connector (solder side, "CCTALK1")
1x VGA connector (solder side, "MONITOR VGA")
2x RS232 connectors (solder side, "RS232 GES.TELEM." (remote control) and "RS232/2")
1x TILT button
1x 8 DIP switches bank
1x battery 3.6V
Notes
PCB is marked: "ELSY CE" and "OM1 2-030B" on component side
PCB is marked: "23:04E" and "N2557 TE" on solder side
PCB is labeled: "ELECTROSYSTEM ELSY" and "TEST OK 26" and "F03E04 Ver. 2.2" on component side
update 20180324: dumped
Files
-

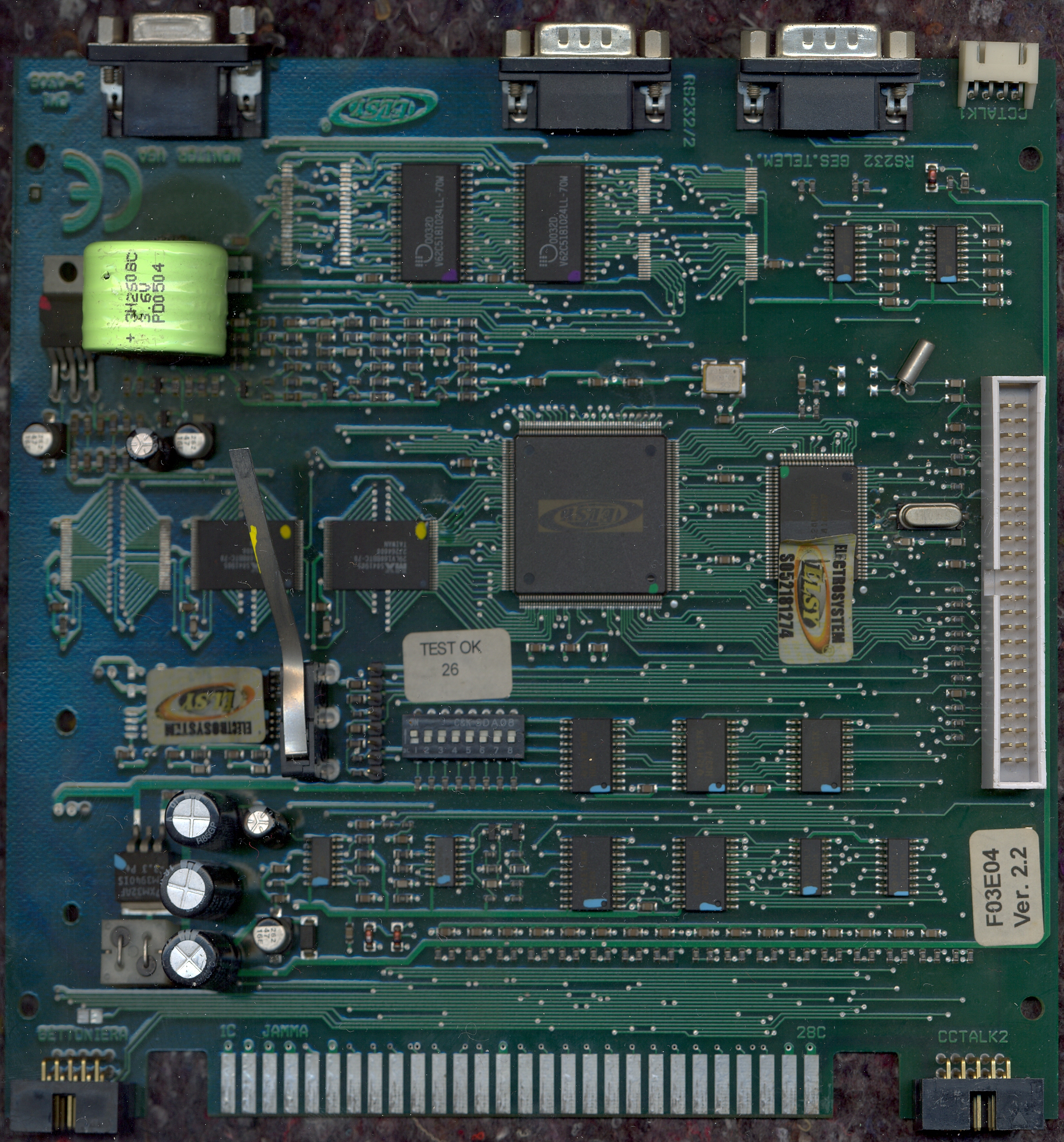

PCB component side
-

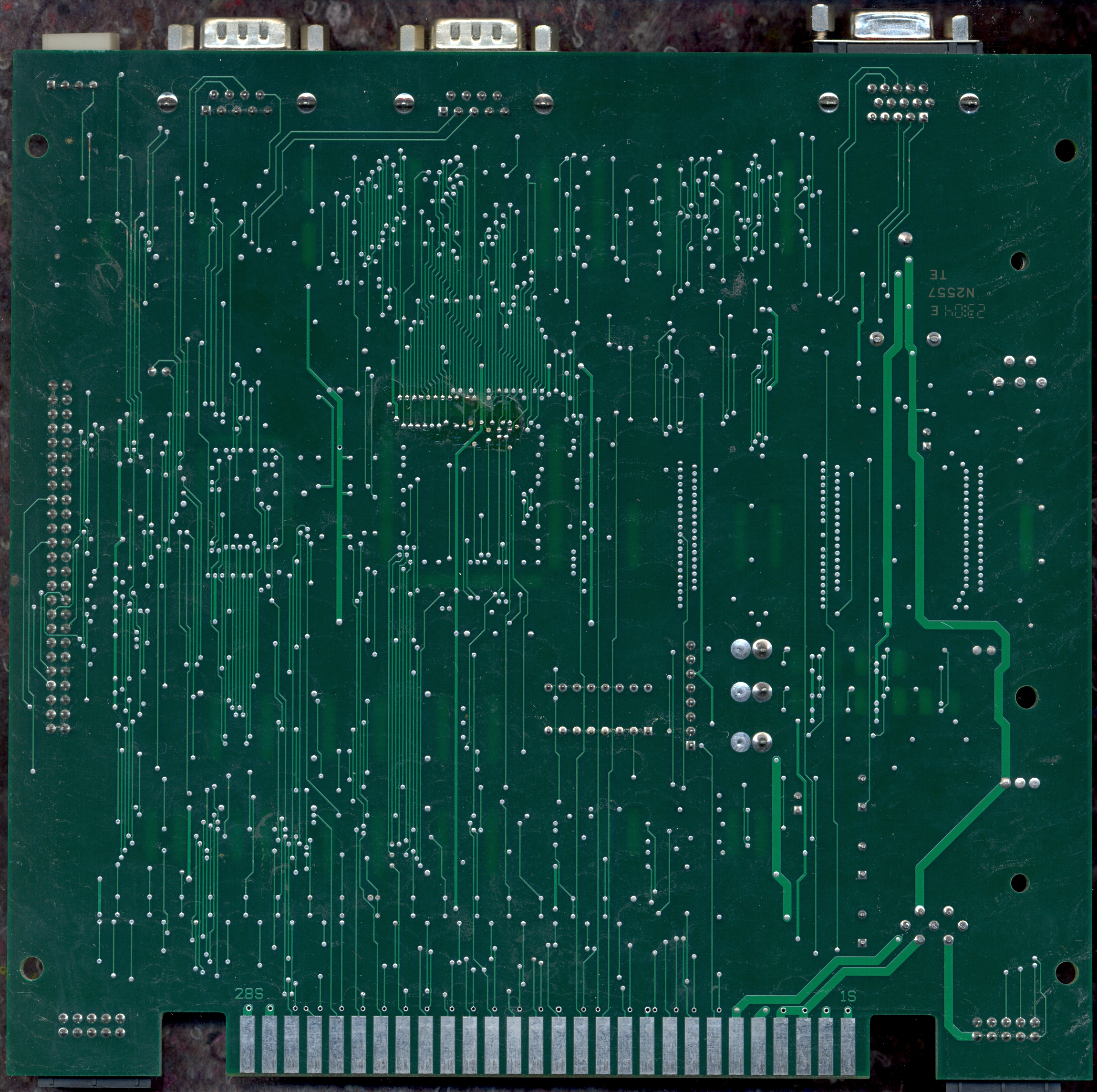

PCB solder side
-

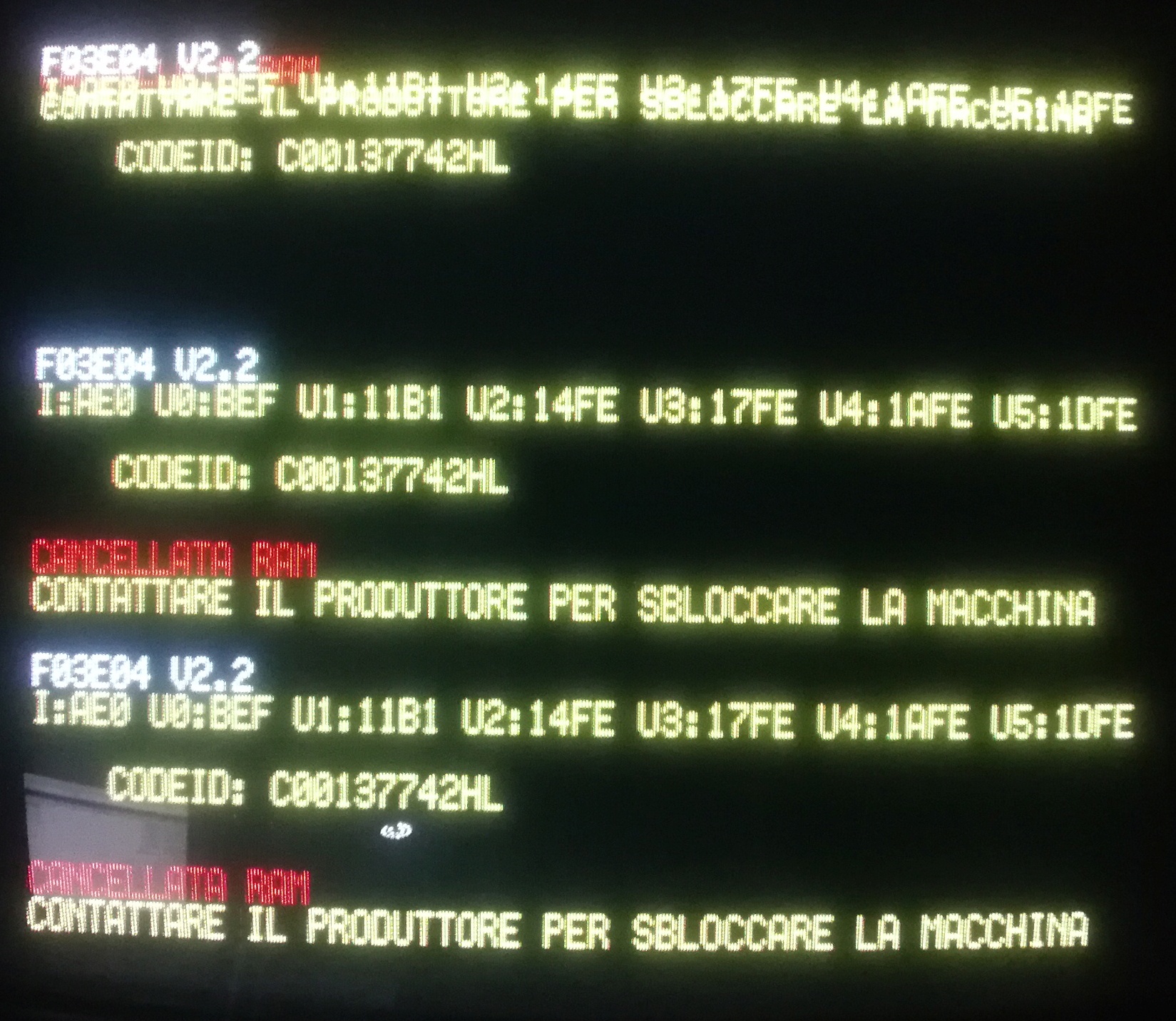

Boot error
