Triple Star 2000
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 26/04/2009 |
| emulator | MAME 0.131u1 |
| dev | f205v |
| name | trstar2k on ProgettoEMMA trstar2k on Arcade Database |
| description | Triple Star 2000 |
| year | 1999 |
| manufacturer | A.M. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3337YCP16 | 32-bit Single-Chip Microcomputer - main (not dumped) | ||
| 2x | NEC D7759GC | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 16.000000 | ||
| 1x | oscillator | 14.318180 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C1001 | 0 | dumped |
| 4x | M27C4001 | 1,2,3,4 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | TC551001 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI10032E-70LJ | not dumped |
Others
1x 28x2 edge connector
1x 14 legs connector
1x RS232 connector
1x trimmer (volume)
1x trimmer (unknown)
1x red LED
2x 8x2 switches DIP
1x battery 3.6V
Notes
Partially working
Files
-

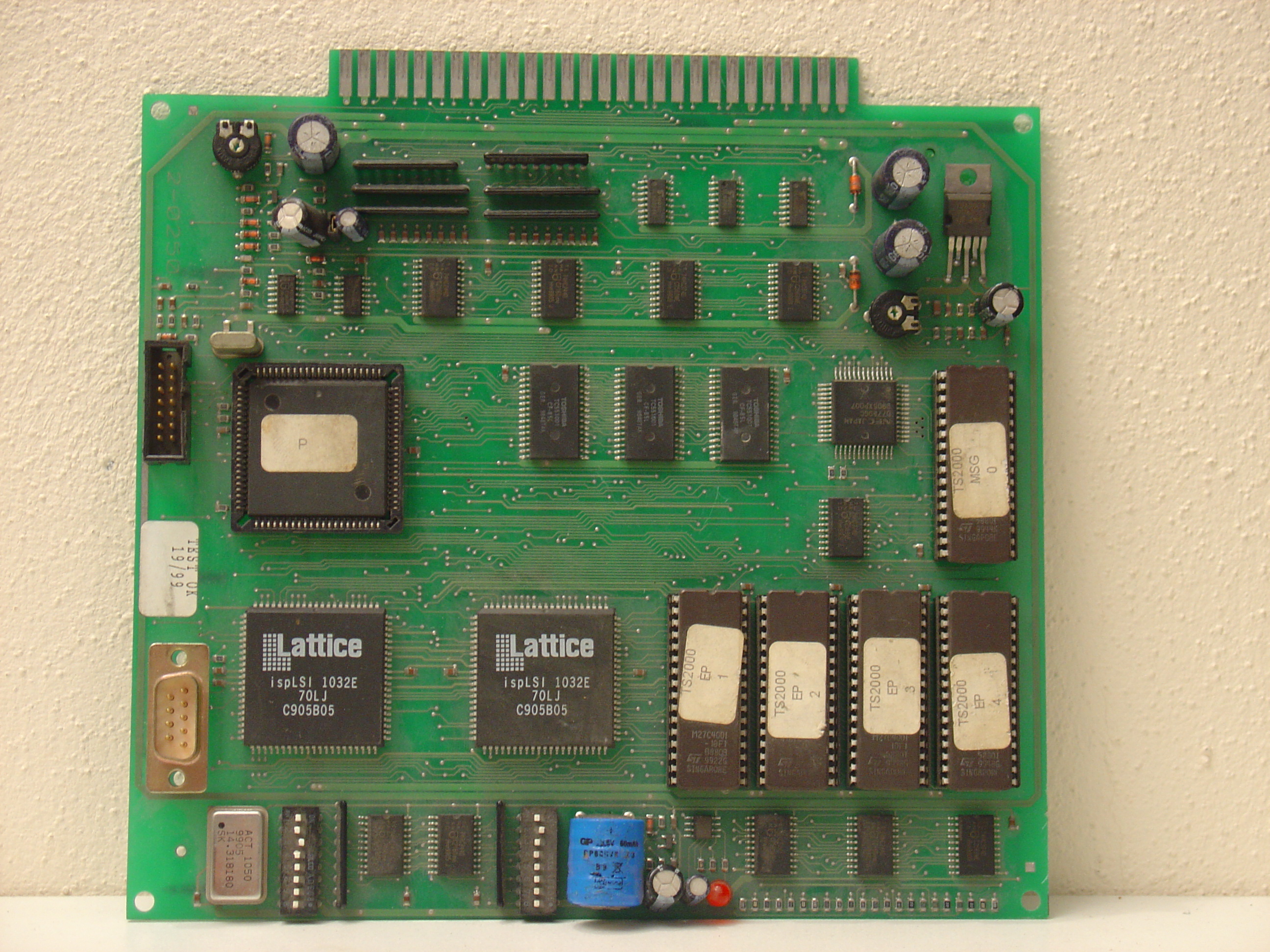

PCB component side
-

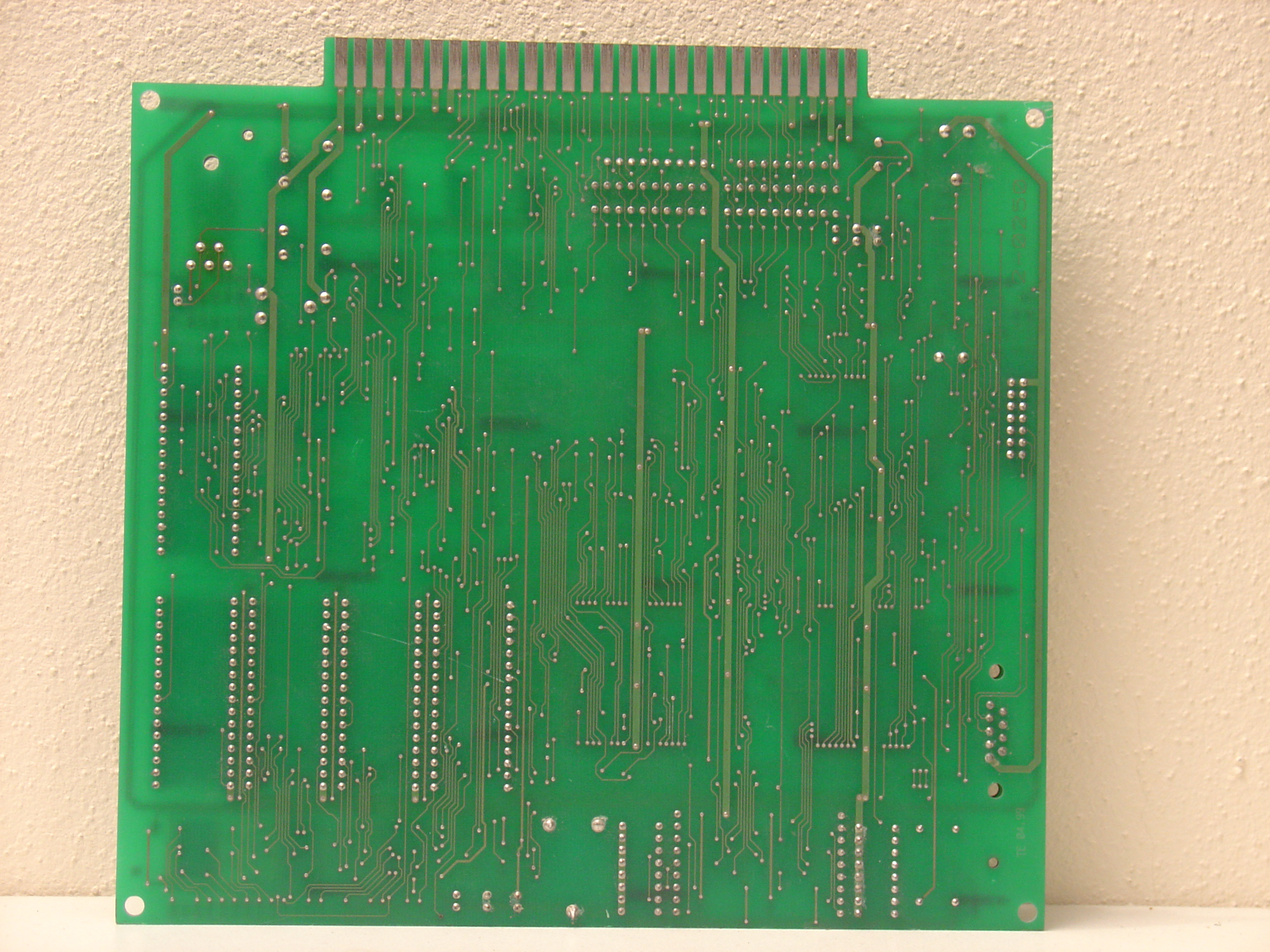

PCB solder side
-

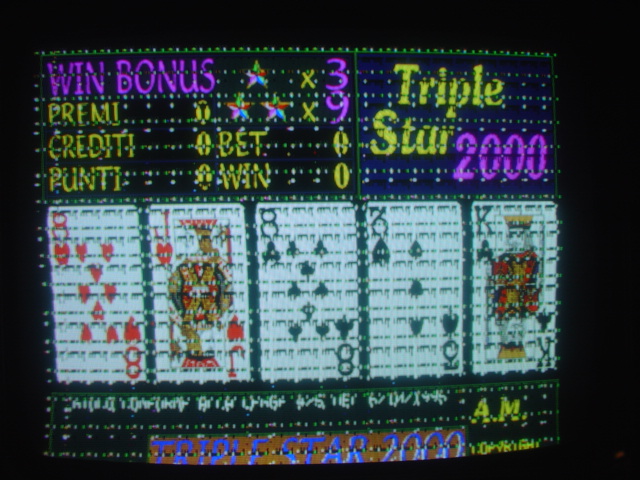

In game
-

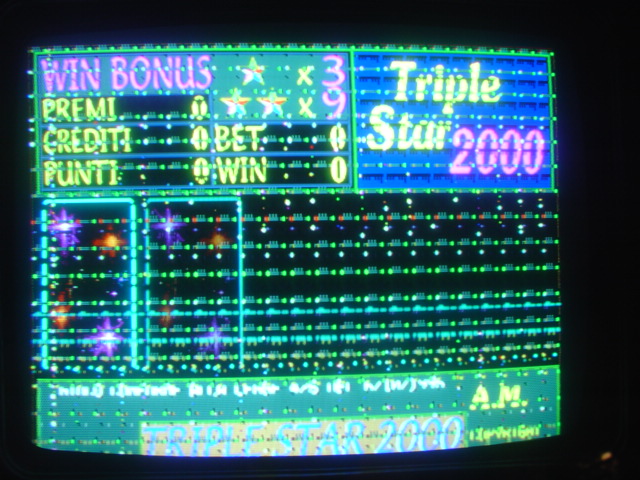

Title
