Touch de Uno! 2 (Japan)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/10/2011 |
| emulator | MAME 0.144u6 |
| dev | f205v, The Dumping Union |
| name | tduno2 on ProgettoEMMA tduno2 on Arcade Database |
| description | Touch de Uno! 2 (Japan) |
| year | 2000.02.25 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27160 | epr23071.ic11 | dumped |
| 6x | 236410 | mpr23063.ic17s-mpr23064.ic18-mpr23065.ic19s-mpr23066.ic20-mpr23067.ic21s-mpr23068.ic22 | dumped |
| 1x | 25LC040 | ic13s | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32 317-0276-JPN | ic1 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0022C
Key: 0x2f6f0f8d
update 20170604: dumped 25LC040, better scans
Files
-

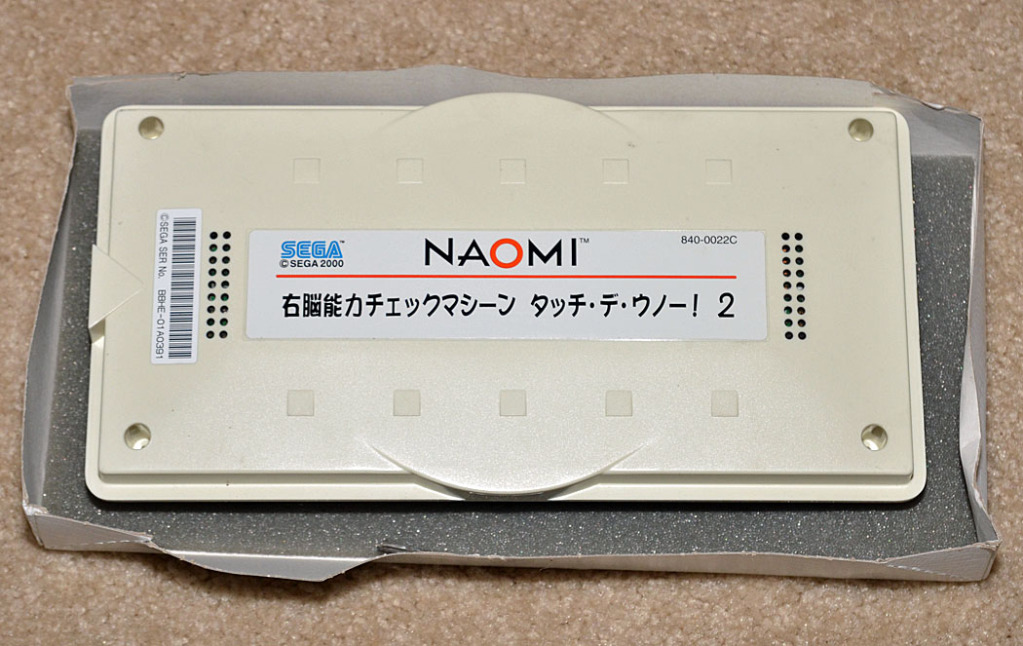

cart 1
-

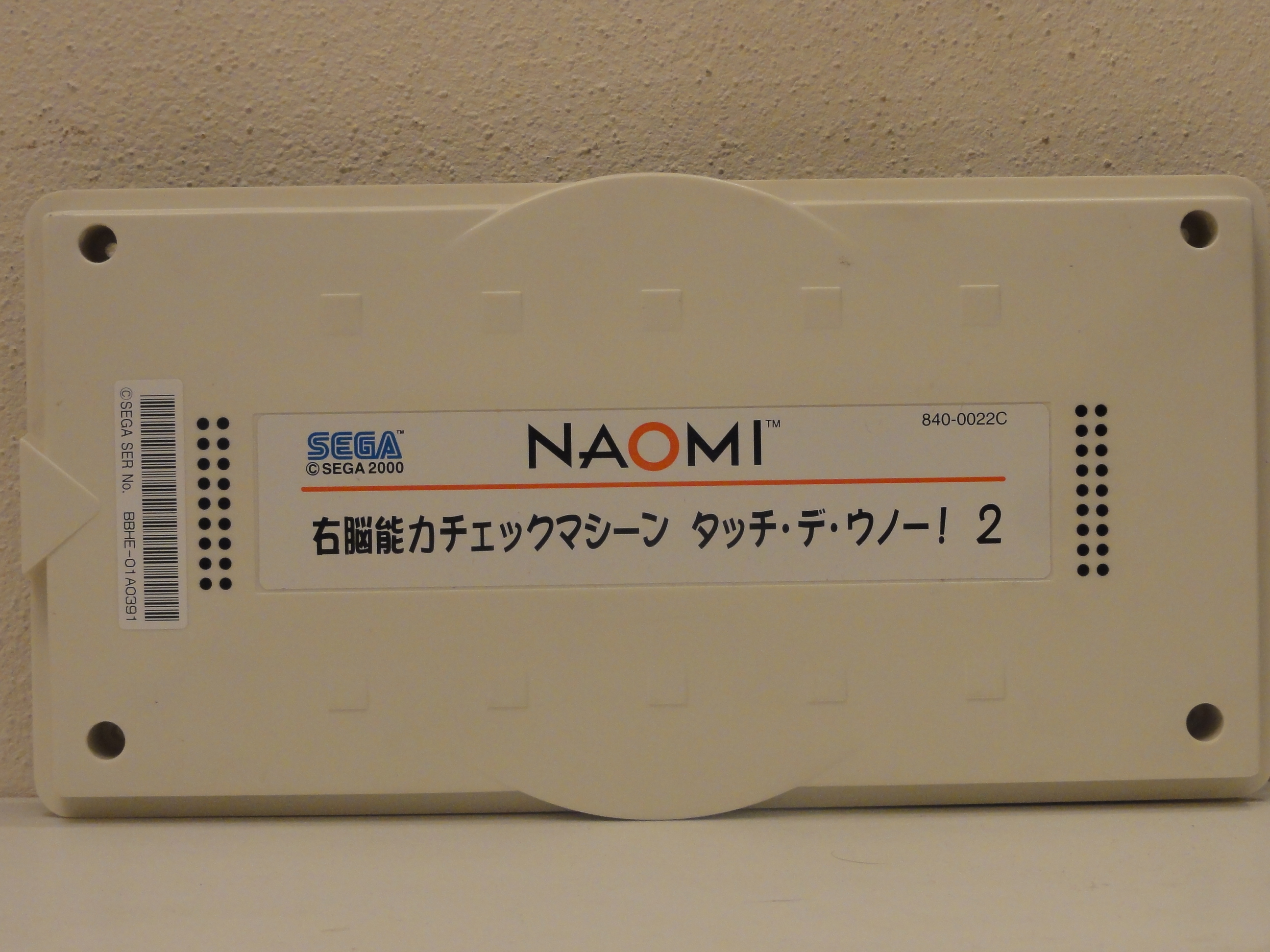

cart 2
-
cart 3
-
cart 4
-
cart 5
-
PCB component side
-
PCB component side 2
-
PCB component side 3
-
PCB solder side
-
PCB solder side 2
-
PCB solder side 3
-
PCB solder side 4
-
bootup
-
system menu
-
ROM board test
-
ROM board test 2
-
game test mode 1
-
game test mode 2
-
