Touch De Zunou (Japan, Rev A)
From Citylan
Jump to navigationJump to search
dumper | f205v, CaH4e3 |
date | 28/06/2010 |
emulator | MAME 0.153 |
dev | R. Belmont |
name | zunou on ProgettoEMMA zunou on Arcade Database |
description | Touch De Zunou (Japan, Rev A) |
year | 2006.07.13 |
manufacturer | Sega |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | PIC16C621A | 317-0435-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (not dumped) |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | XCF01SVG | ic4 | not dumped |
2x | S29GL512N10T | FPR-24338.ic8, FPR-24339.ic9 | dumped |
RAMs
QTY | Type | position |
---|
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 840-0166C
EPR.ic7: not present
key 0x82b49a8c
IC4# is marked "18", requires 837-14672 sensor board (SH4 based)
Files
-
PCB component side
-

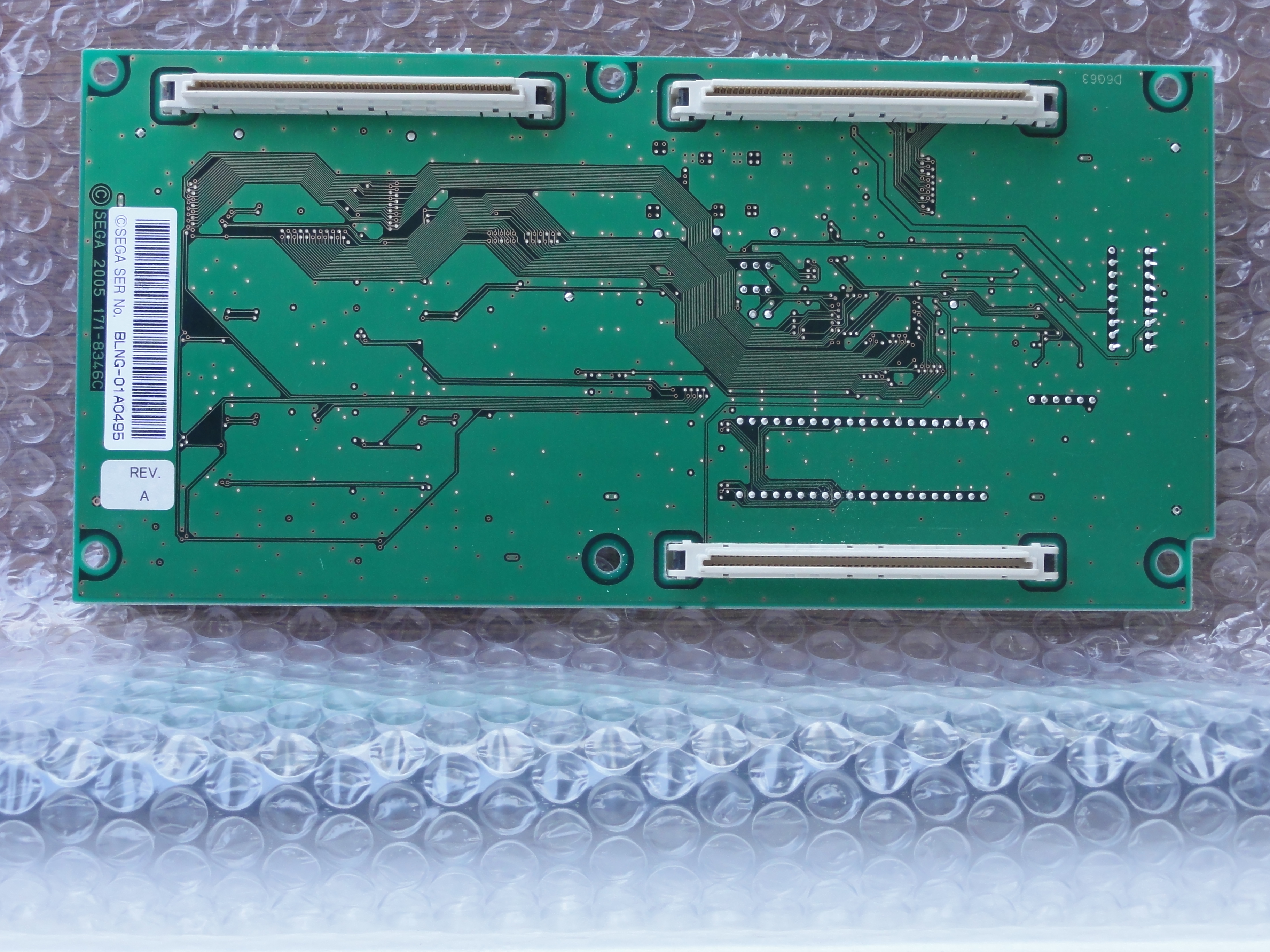

PCB solder side
-
