Top T. Cash
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 03/11/2018 |
| emulator | MAME 0.204 |
| dev | Osso |
| name | toptcash on ProgettoEMMA toptcash on Arcade Database |
| description | Top T. Cash |
| year | 2002.02.21 |
| manufacturer | VideoIdea |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3337 | 32-bit Single-Chip Microcomputer - main (internal ROM not dumped) | ||
| 1x | D7759 | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 14.318181MHz | ||
| 1x | oscillator | 16.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | M27C4001 | 0,1,2,3,4 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | YY628100BllG-70 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI1032E-70LJ | read protected |
Others
1x 28x2 JAMMA edge connector
1x 14 pins flat cable connector
1x 34 pins flat cable connector
1x RS232 male connector
2x trimmer (volume)
2x 8 DIP switches banks
1x battery 3.6V
Notes
PCB is marked: "VideoIdea - Via Turati,2 - 40026 Imola (BO)" and "2-0257/V" on component side
PCB is marked: "TE 1100 CE" on solder side
PCB is labeled: "BACCHI 1883 - 21/02/02 - Rip[] RiProg[X]" on component side
Files
-

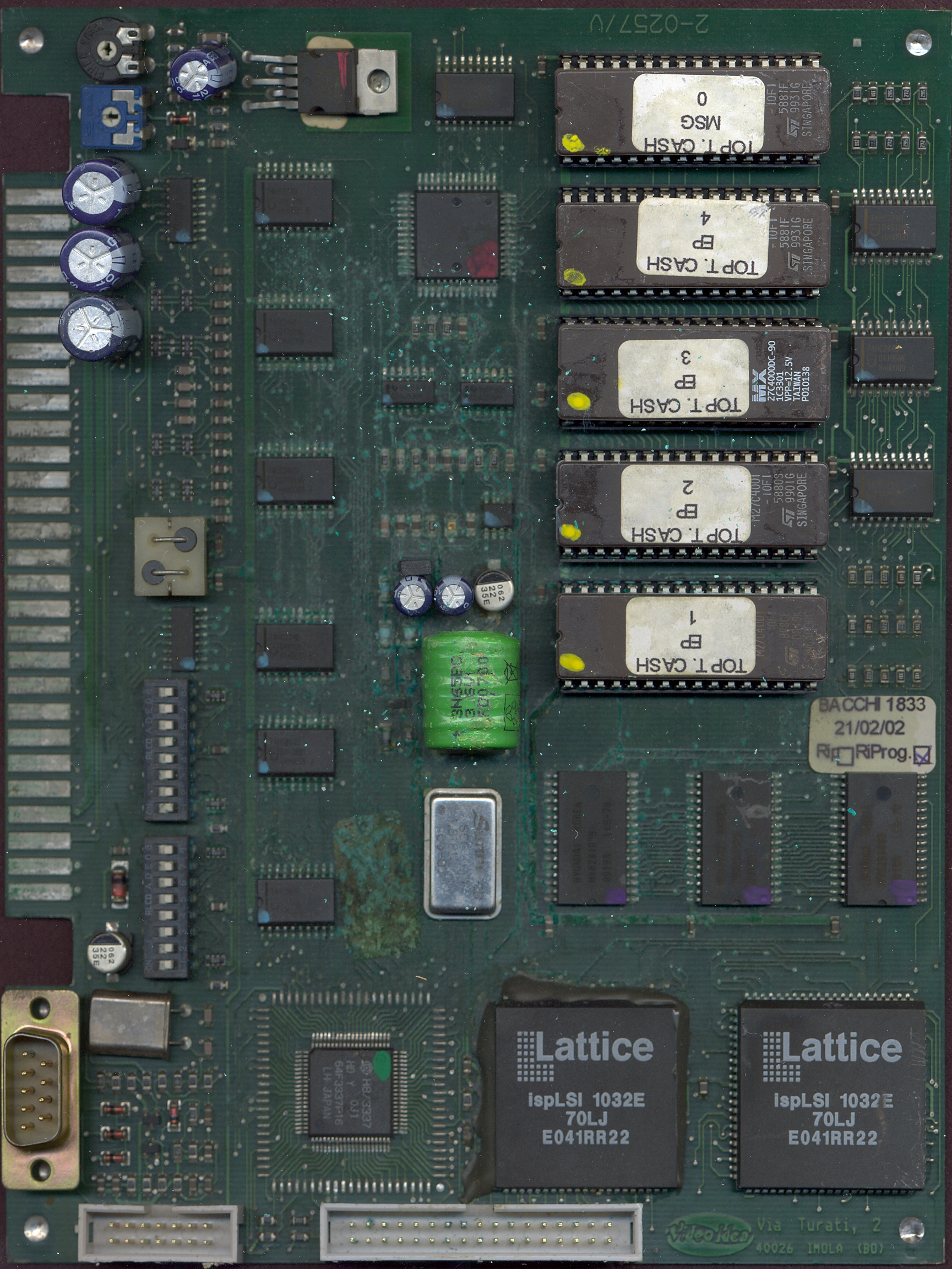

PCB component side
-

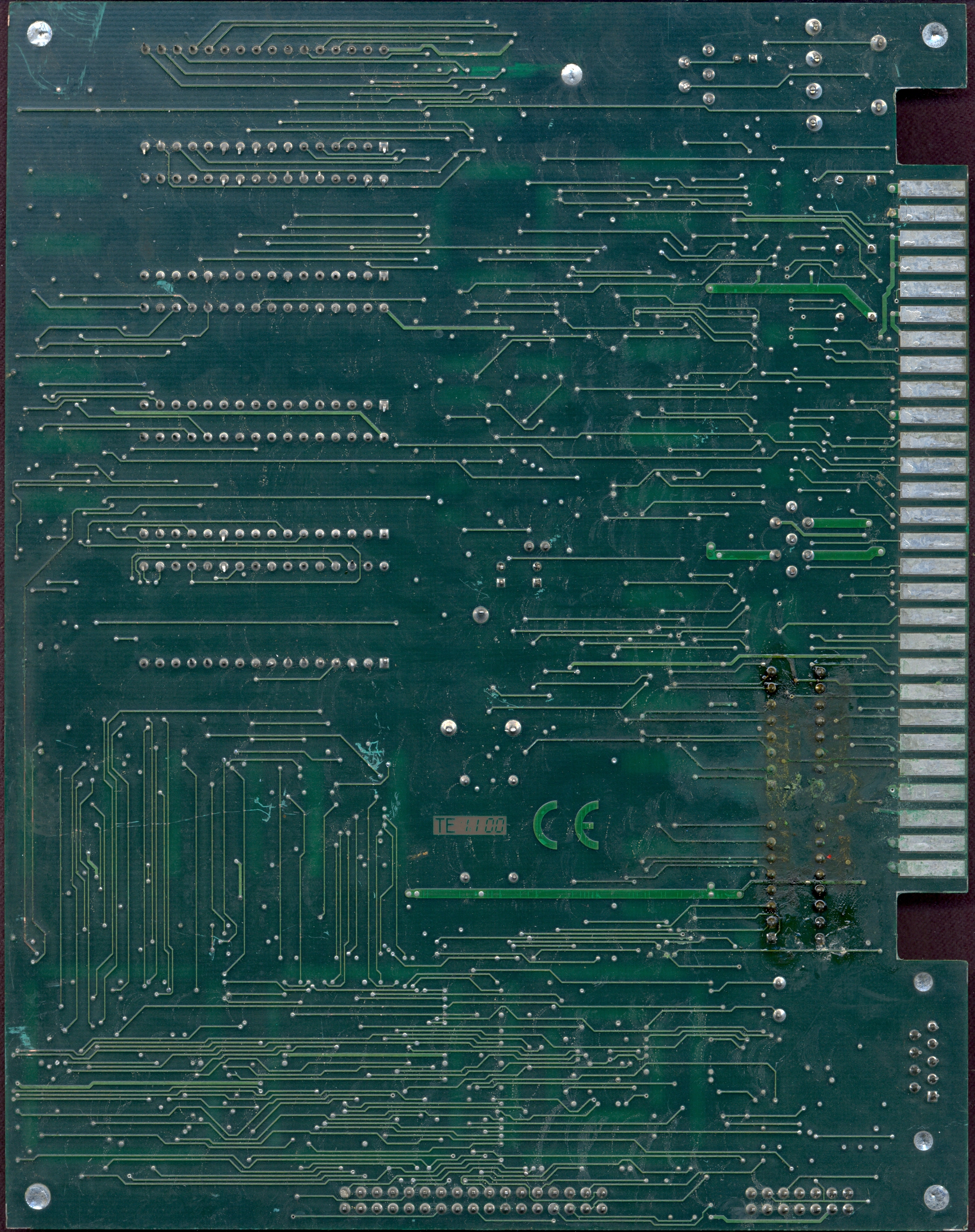

PCB solder side
