Three Ds - Three Dealers Casino House (set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 18/03/2006 |
| emulator | MAME 0.128u7 |
| dev | David haywood - Angelo Salese |
| name | 3ds on ProgettoEMMA 3ds on Arcade Database |
| description | Three Ds - Three Dealers Casino House (set 1) |
| year | 1985 |
| manufacturer | Nihon Bussan |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | custom Nichibutsu PG14111 (DIL40) | |||
| 1x | custom Nichibutsu PG14112 (DIL40) | |||
| 1x | custom Nichibutsu PG1411M1XBA (DIL28) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | MB27128 | 9-11 | dumped |
| 7x | MB27256 | 1-7 | dumped |
| 2x | MB7112E | 2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MN41464-12 | 8j |
| 1x | MN4416-12 | 11e |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | custom Nichibutsu PG14113 (DIL20) | PAL? | |
| 1x | custom Nichibutsu PG14114 (DIL20) | PAL? |
Others
1x 18x2 edge connector
1x 10x2 edge connector
2x trimmer (MAIN,SUB)
2x 8x2 switches DIP
Notes
Files
-

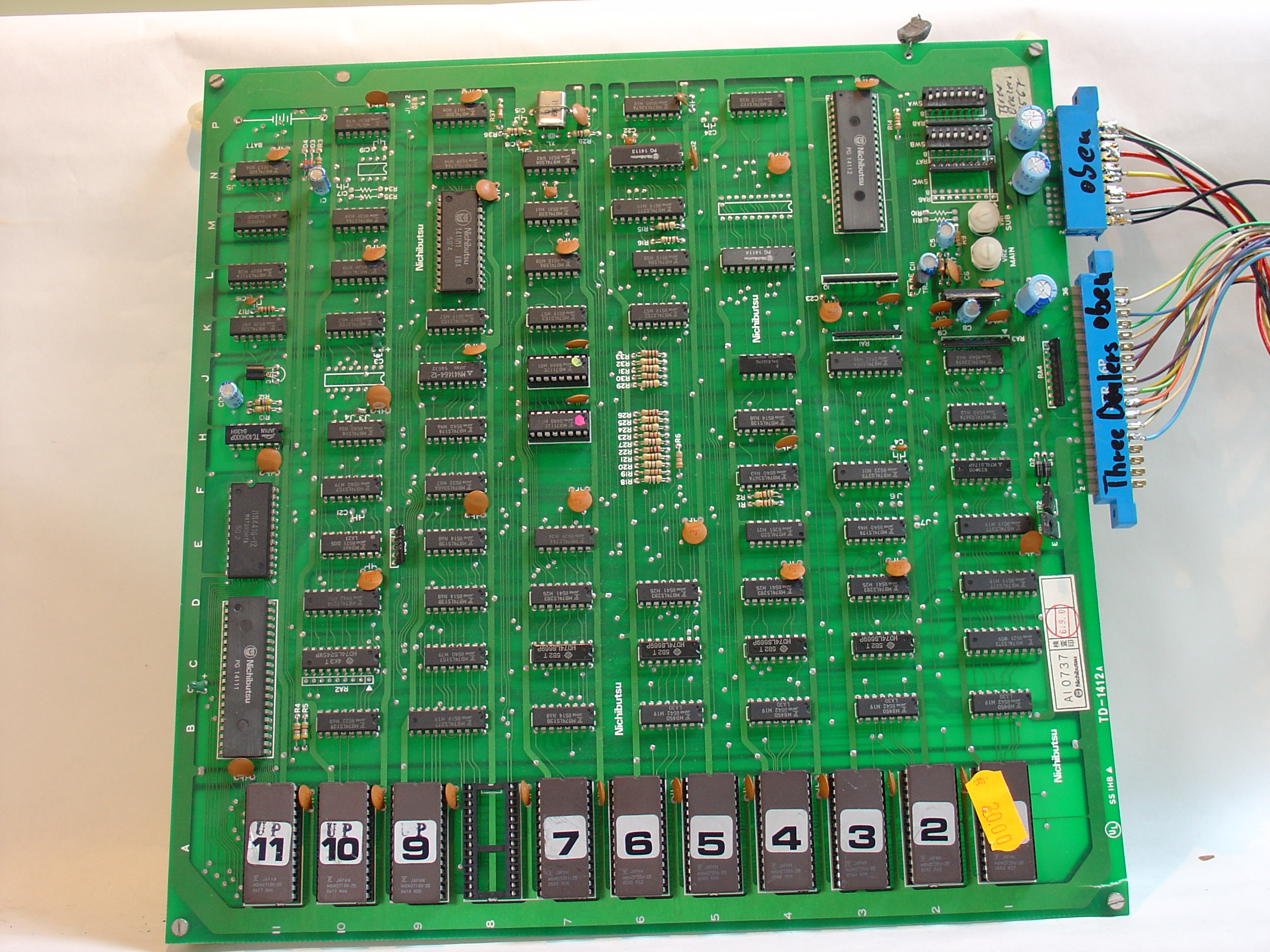

PCB component side
-

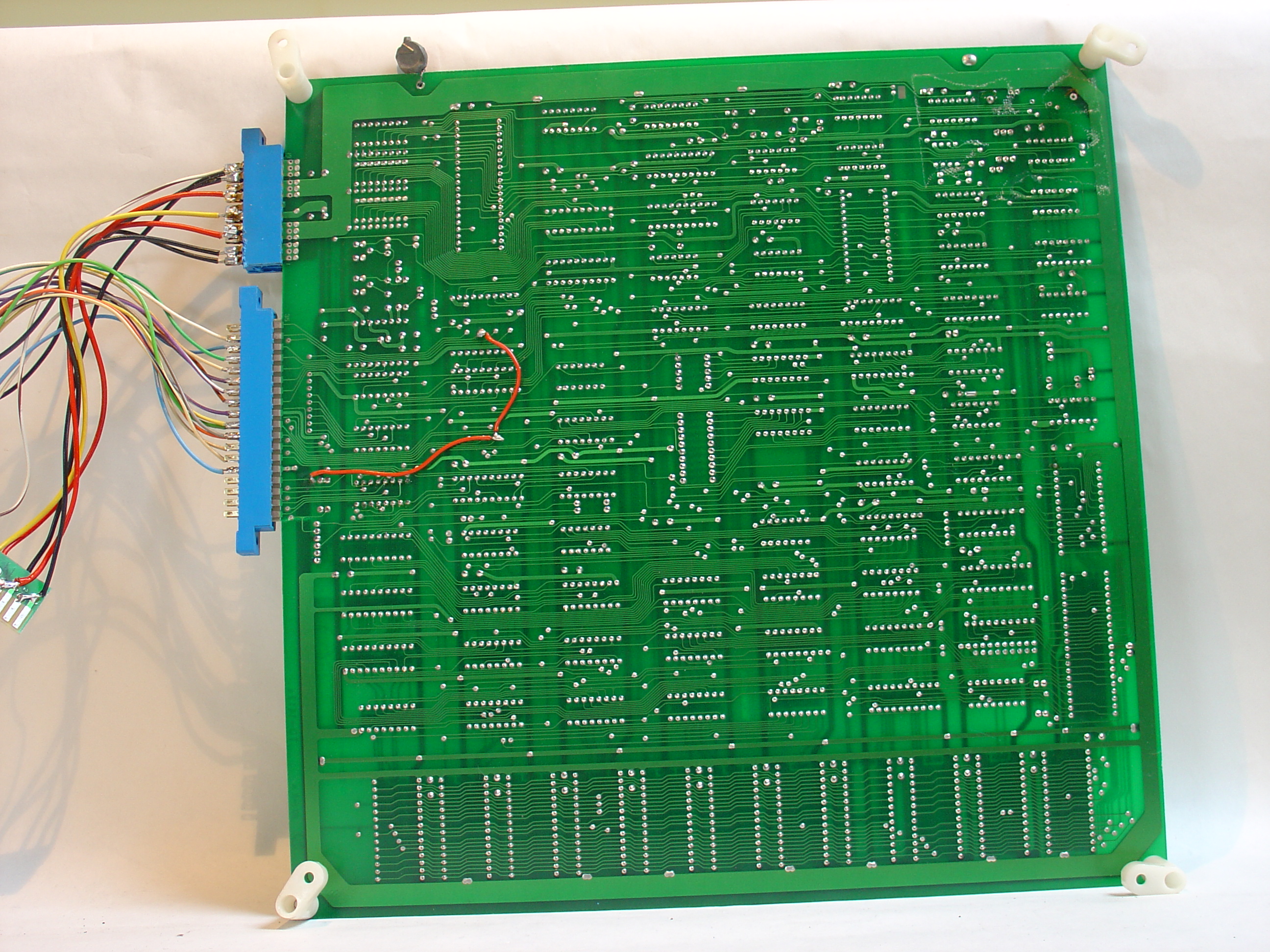

PCB solder side
