| dumper | |
| date | 15/04/2010 |
| emulator | |
| dev |
| name | 908 |
| description | The X-Files (alt) |
| year | 1999 |
| manufacturer | dgPIX Entertainment |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hyperstone E1-32N | main PCB | 32-bit Microprocessor - main | |
| 1x | dgPIX-PR1 | ROMs board | 8bit CMOS Microcontroller - main (internal ROM not dumped) | |
| 1x | SEC 749B KS0164 | main PCB | SPEECH SYNTHESIZER | |
| 1x | IL4558N | main PCB | Dual Operational Amplifier | |
| 1x | TDA1545A | main PCB | Stereo continuous calibration DAC | |
| 1x | oscillator | 14.31818MHz | close to main | |
| 1x | oscillator | 14.31818MHz | close to PLD | |
| 1x | oscillator | 169NDK19 | Y1 close to sound? |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | DA28F320J5 | ROMs PCB | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | KM416C1204AJ-6 | main PCB |
| 4x | KM6161002J-15 | main PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCS05 | main PCB | not dumped |
Others
1x JAMMA edge connector
1x 60 pins connector from main board to ROMs board
2x 28 pins connector from main board to ROMs board
3x pushbutton (TEST SERVICE RESET)
2x trimmer (volume)
1x green LED
Notes
main PCB is marked: "dgPIX Entertainment Inc. 1999, VRender0Minus rev3" on component side
main PCB is labeled: "6-99 BA" on solder side
ROMs PCB is marked: "Flash Module Type-A REV2 dgPIX Entertainment Inc. 1999" on component side
ROMs PCB is labeled: "8282" on solder side
Files
-

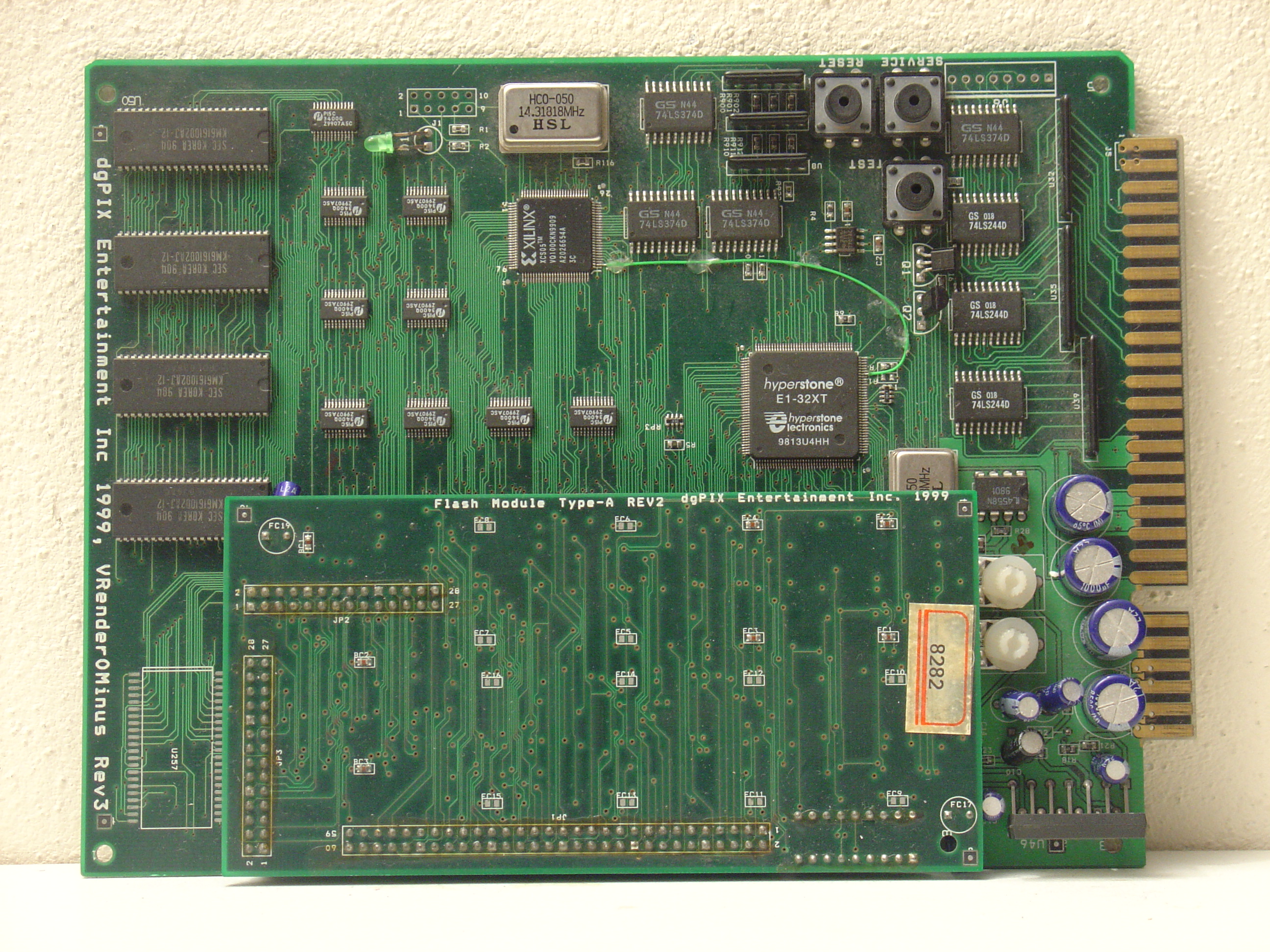

assembled PCB
-

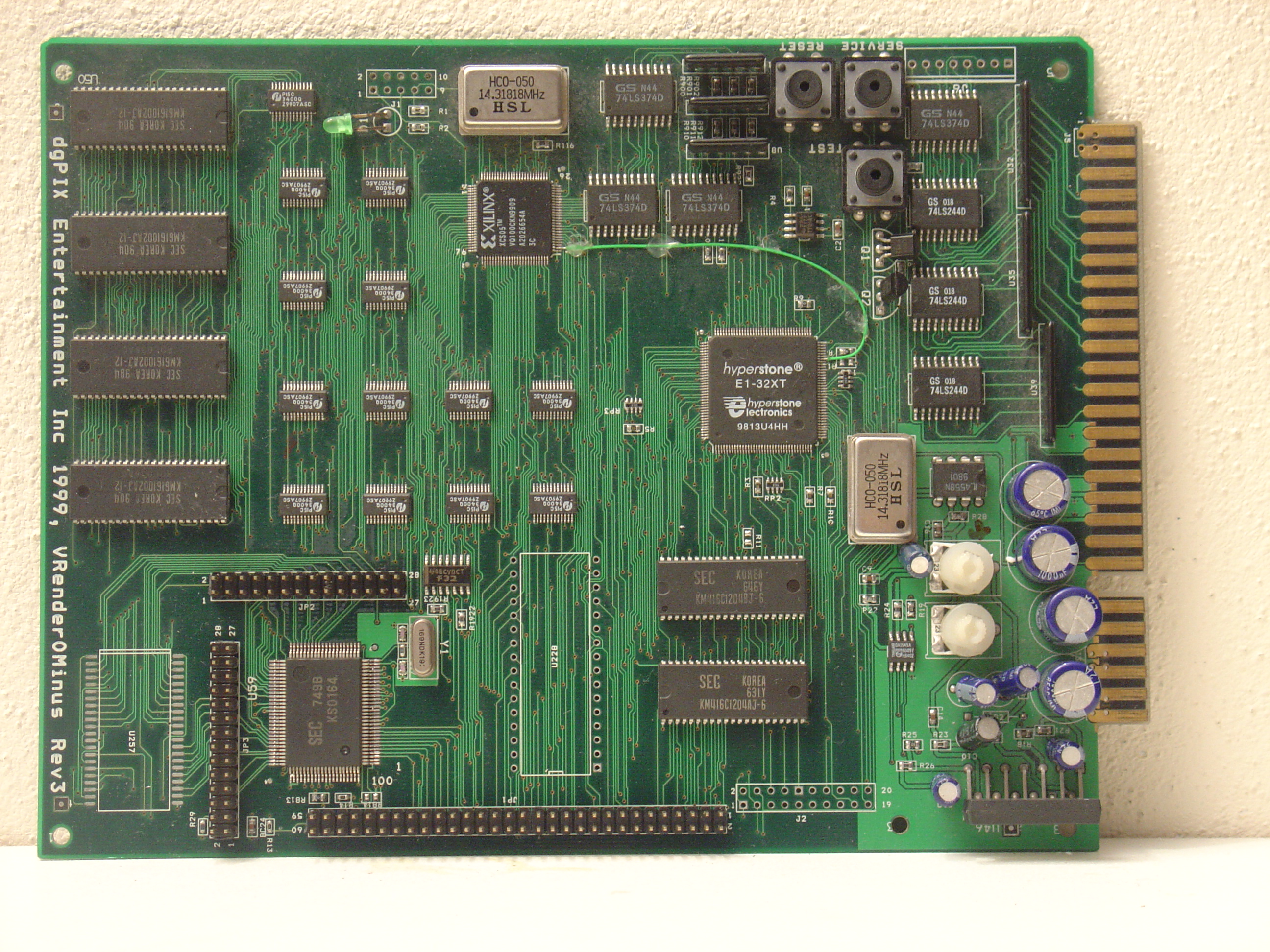

main PCB component side
-

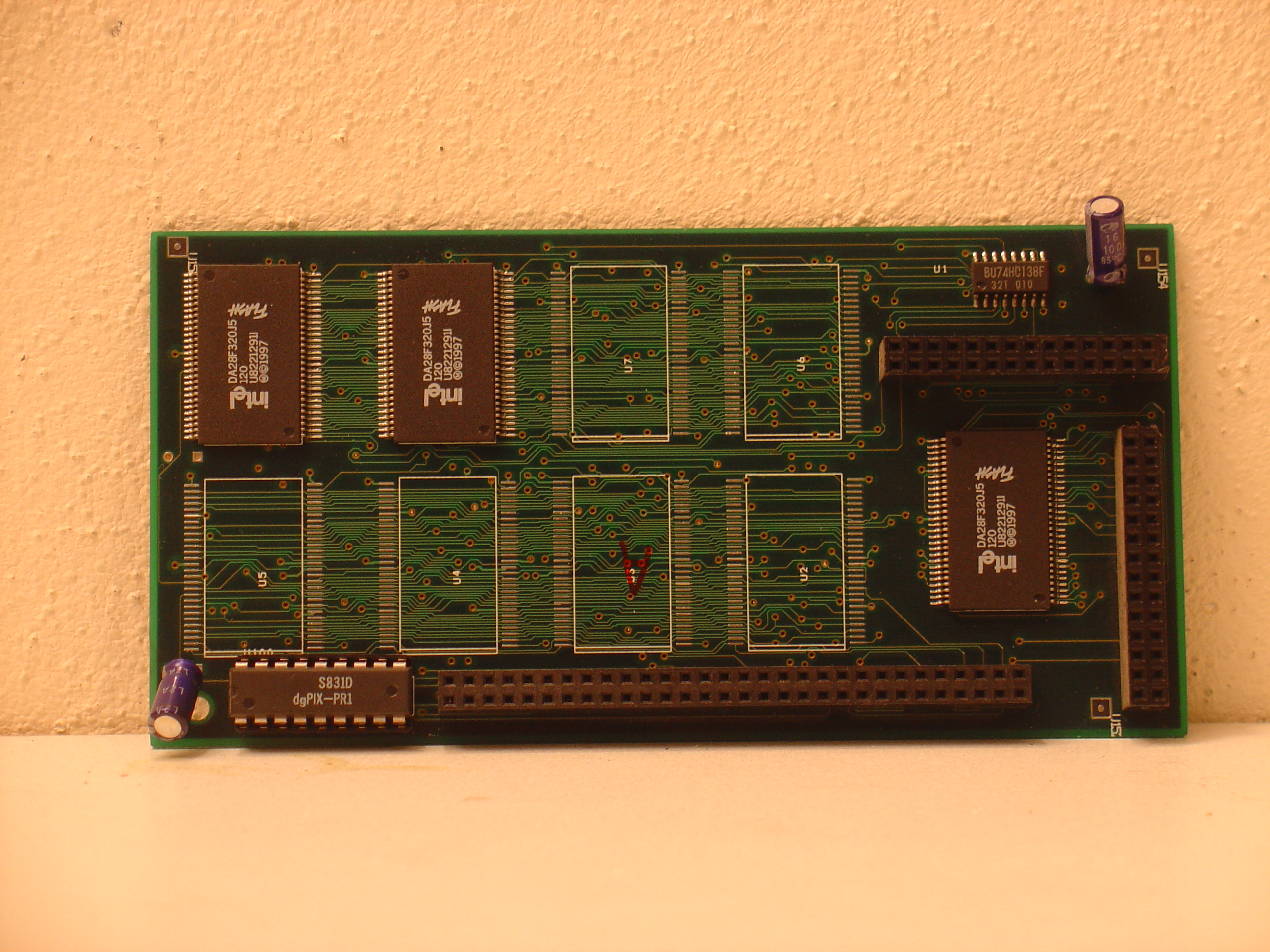

ROMs PCB component side
-

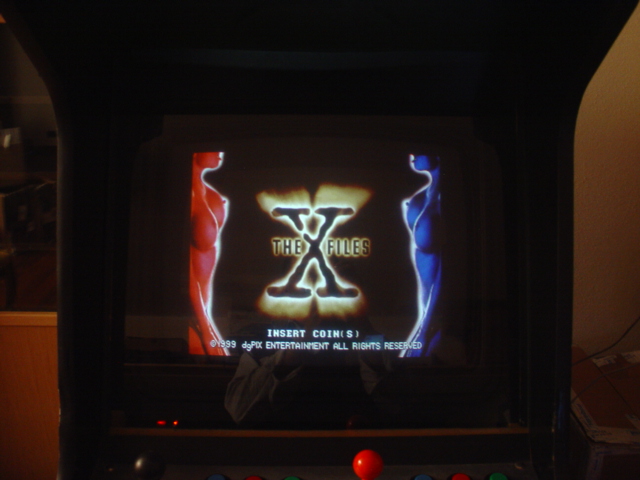

Title 1
-

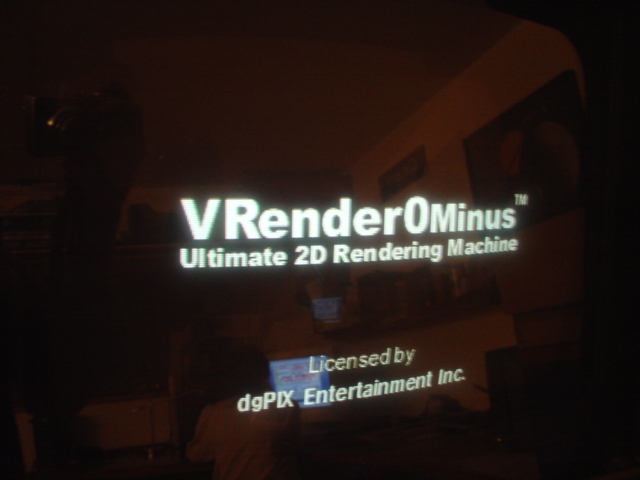

Title 2
-

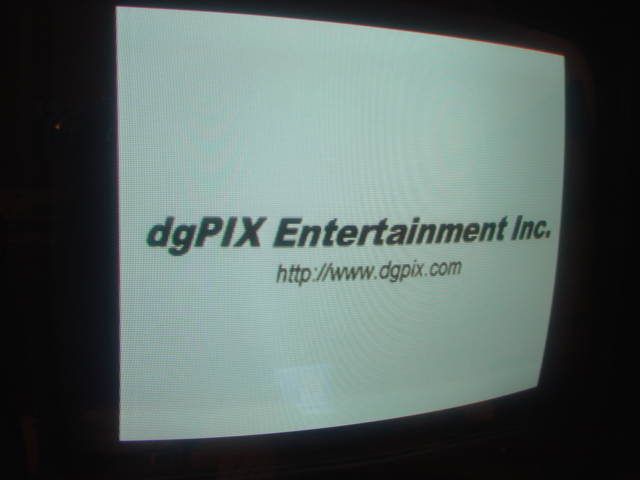

Title 3
-

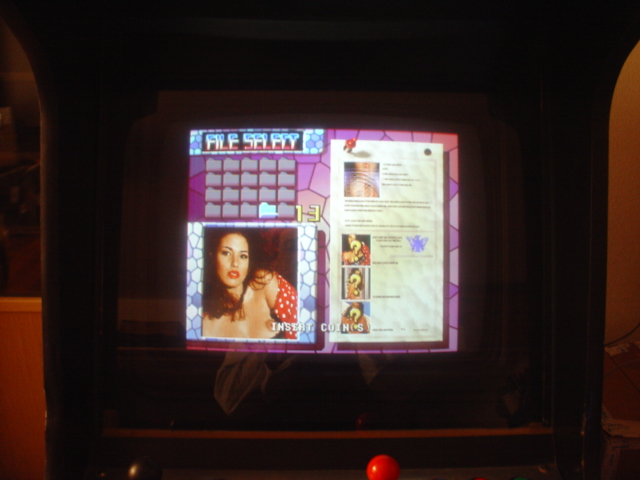

Attract mode 1
-

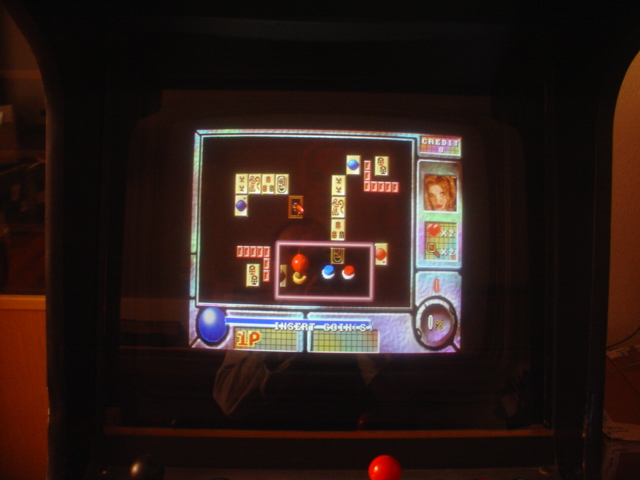

Attract mode 2
-

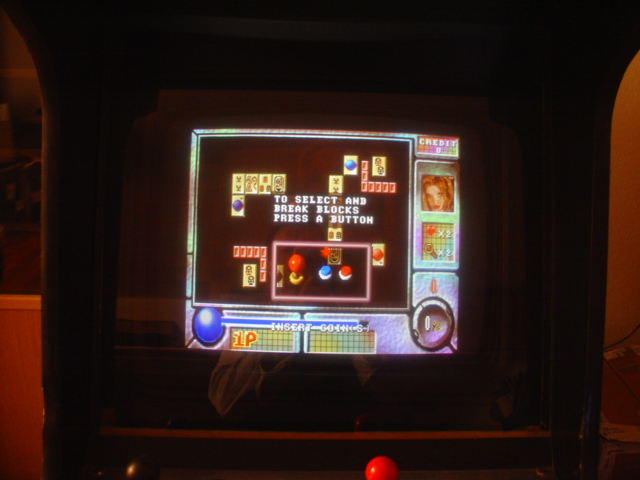

Attract mode 3
-

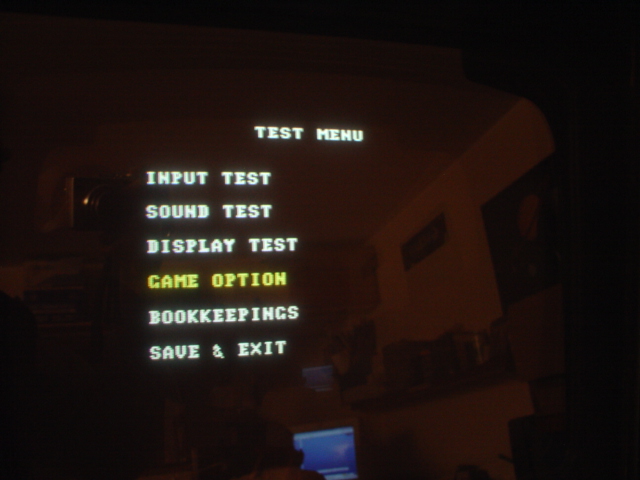

Test 1
-

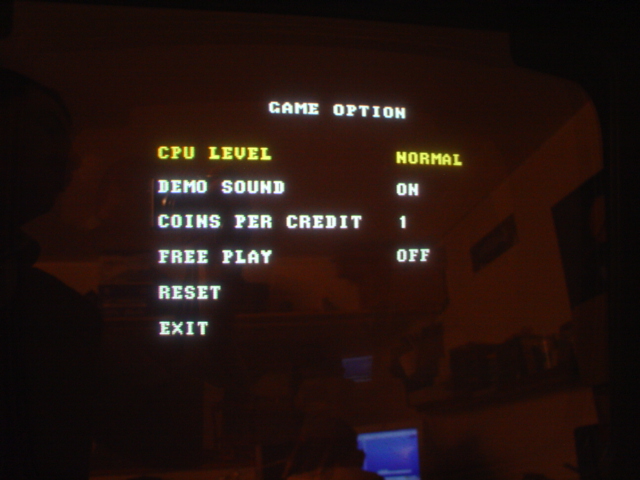

Test 2
