The Tin Star (A10, 4 PCB version)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 14/06/2007 |
| emulator | MAME 0.116u3 |
| dev | David Haywood |
| name | tinstar on ProgettoEMMA tinstar on Arcade Database |
| description | The Tin Star (A10, 4 PCB version) |
| year | 1983 |
| manufacturer | Taito |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 8-bit Microprocessor - main | ||
| 1x | Z80 | 8-bit Microprocessor - sound | ||
| 1x | 68705 | 8-bit Microcomputer Unit - main (internal ROM not dumped) | ||
| 4x | AY-3-8910 | Programmable Sound Generator - sound | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 8.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 2732 | 10 | dumped |
| 9x | 2764 | 1,2,3,4,5,6,7,8,29 | dumped |
| 1x | PROM | not dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
Notes
This romset comes from an original Taito pcb. Gameplay difference are none. This game runs on the Taito SJ System.
Files
-

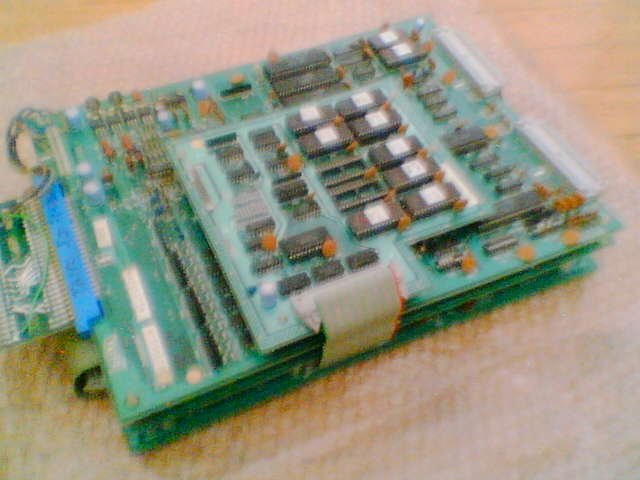

assembled PCBs
-
