The King of Route 66 (prototype)
From Citylan
Jump to navigationJump to search
| dumper | CoolMod |
| date | 10/02/2019 |
| emulator | MAME 0.207 |
| dev | MetalliC |
| name | kingrt66p on ProgettoEMMA kingrt66p on Arcade Database |
| description | The King of Route 66 (prototype) |
| year | 2002.01.02 – 16:22:10 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | 23819A.ic22 | dumped |
| 21x | DA28F640J5 | ic1s - ic21s | not dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY7C199-15VC | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI 2 cart.
Cart type: 171-7885A
Cart N°: no cart
Protection IC: not present
Key: no key
this game really uses only 20 64Mbit ROMs
Files
-

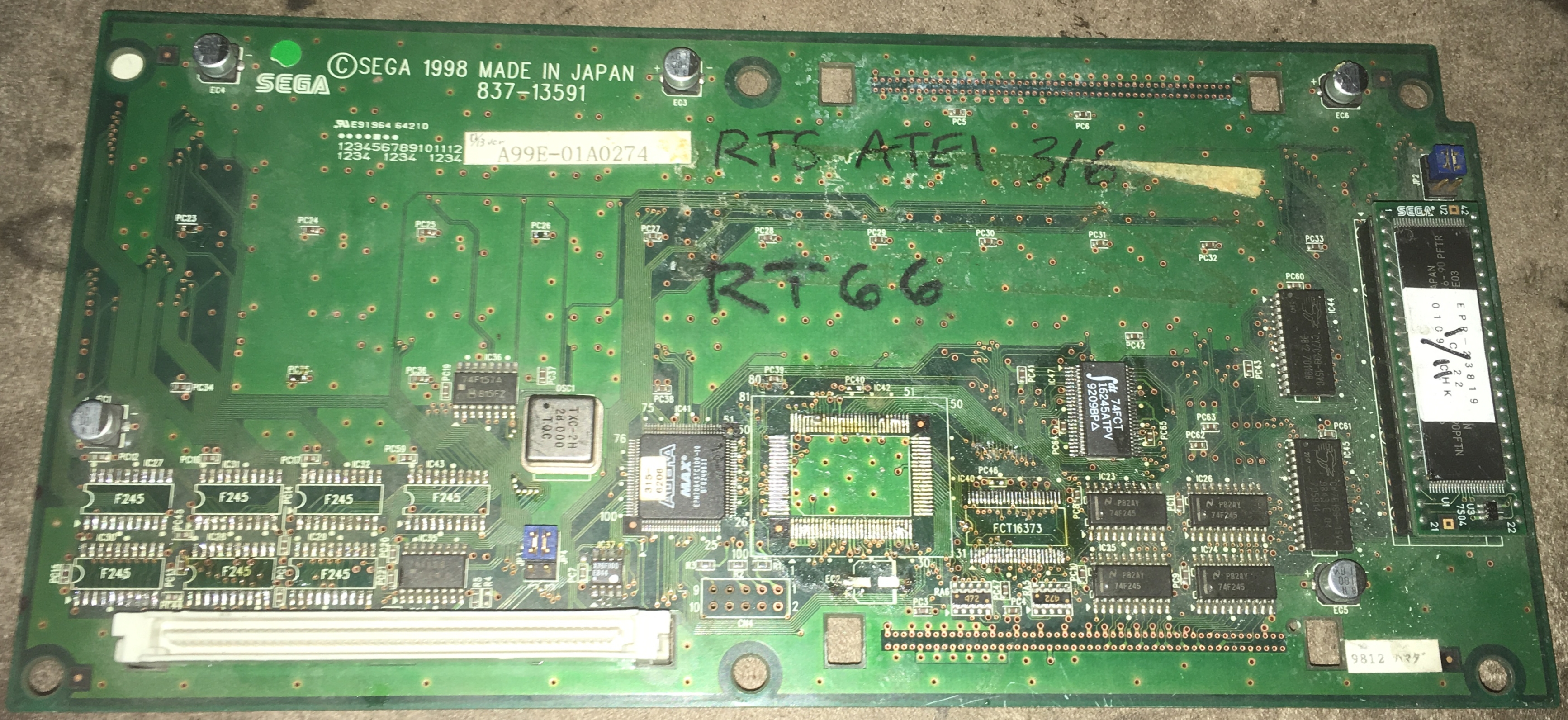

PCB component side
-
PCB solder side
