The King of Route 66 (Rev A)
From Citylan
Jump to navigationJump to search
| dumper | Someone |
| date | 13/11/2010 |
| emulator | MAME 0.140u2 |
| dev | R. Belmont |
| name | kingrt66 on ProgettoEMMA kingrt66 on Arcade Database |
| description | The King of Route 66 (Rev A) |
| year | 2002.01.02 – 16:22:10 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | 23819A.ic22 | dumped |
| 20x | M27W064 | ic1s - ic20s (only 171-7885A) | dumped |
| 10x | 28F128 | 23808.ic1 - 23817.ic10 (only 171-8132B) | dumped |
| 1x | X76F100 | ic37 (only 171-7885A) | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 (only 171-7885A) | read protected |
| 1x | EPM7032 315-6206 | ic41 (only 171-8132B) | read protected |
| 1x | 315-6213 | ic41 (only 171-8132B) | read protected |
Others
Notes
It's a NAOMI 2 cart.
Cart type: both 171-7885A development board and 171-8132B regular board exist
Cart N°: 840-0087C
Protection IC: not present
Key: no key
Files
-

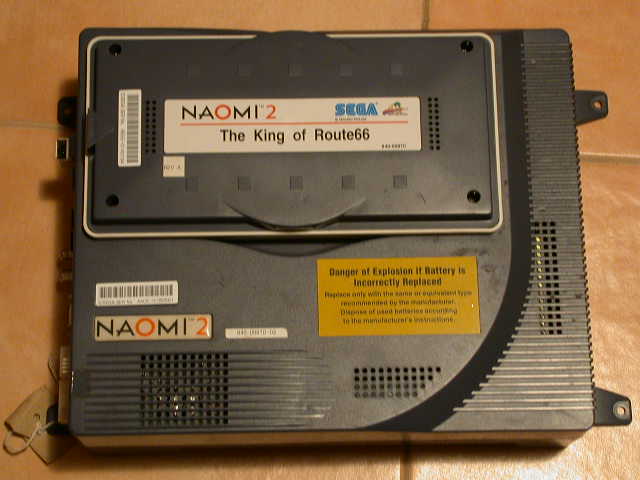

Cart
-

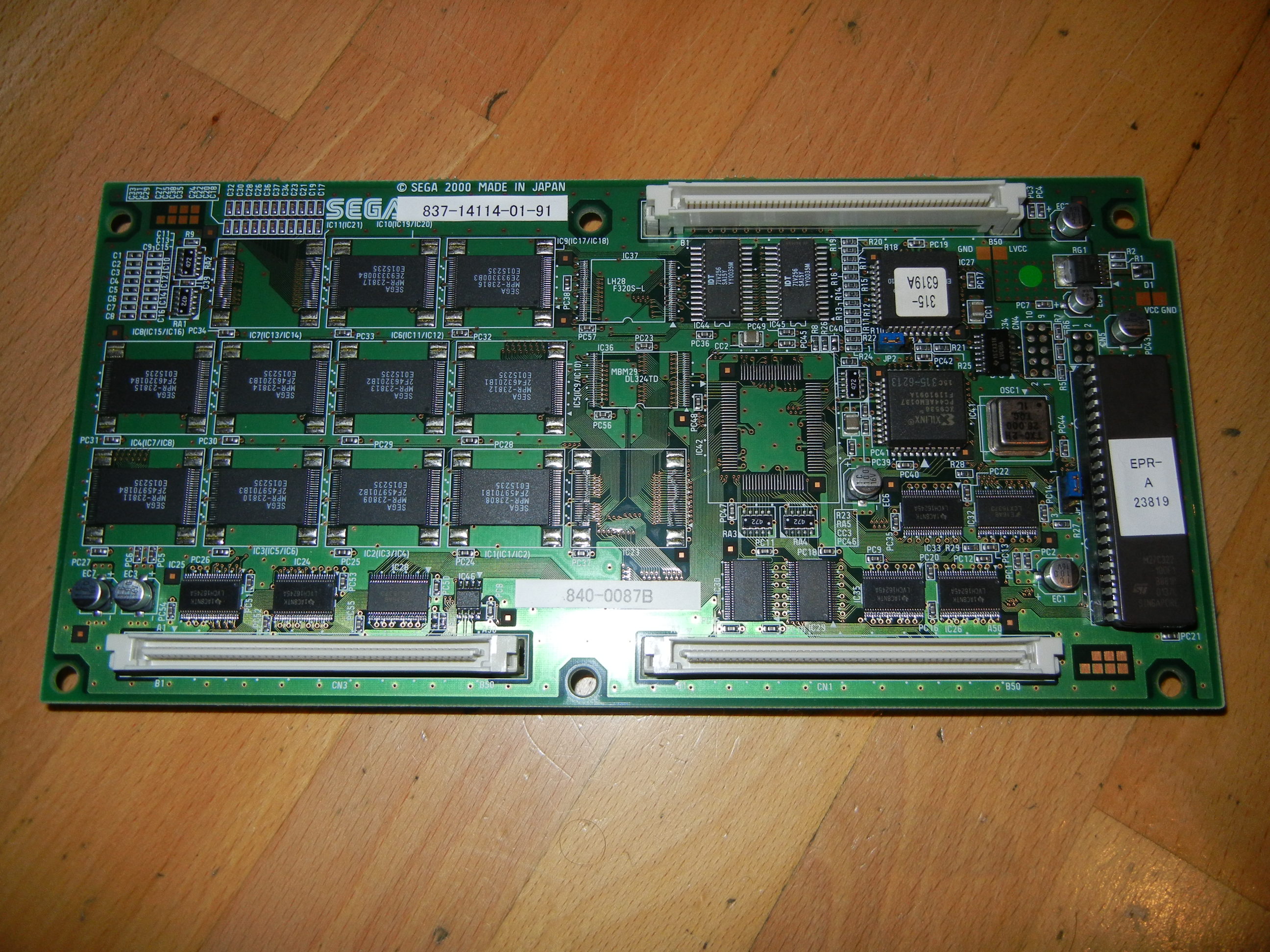

PCB component side (171-8132B)
-

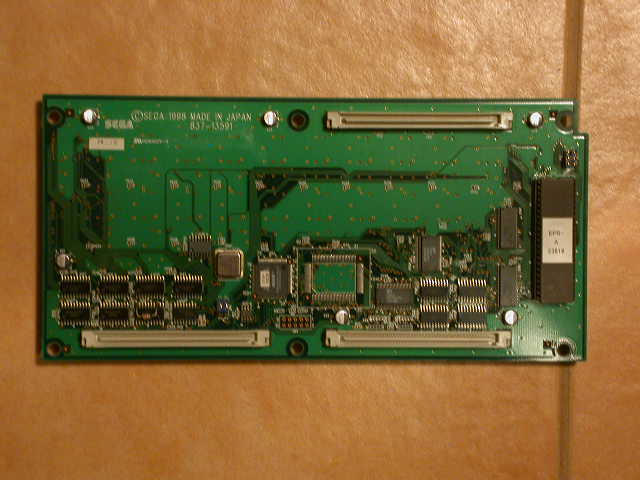

PCB component side (171-7885A)
-

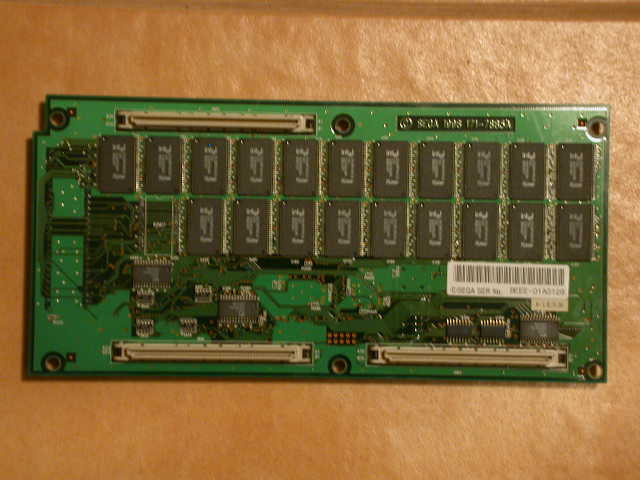

PCB solder side (171-7885A)
