The King of Dragons (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 11/11/2006 |
| emulator | MAME 0.126 |
| dev | David Haywood |
| name | kodb on ProgettoEMMA kodb on Arcade Database |
| description | The King of Dragons (bootleg) |
| year | 1991 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000P12 | 16/32-bit Microprocessor - main | ||
| 1x | Z8400BB1-Z80CPU | 8-bit Microprocessor - sound | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012A | D/A Converter (DAC) - sound | ||
| 2x | LM324N | - | Quad Operational Amplifier - sound | |
| 1x | TDA2003 | - | Audio Amplifier - sound | |
| 1x | oscillator | 10.000MHz | ||
| 1x | oscillator | 22.1184 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM275C12 | 1 sound | dumped |
| 1x | AM27C020 | 2 sound | dumped |
| 2x | AM27C040 | 3,4 main | dumped |
| 1x | AM27C040 | bp gfx | dumped |
| 7x | MASKROM | ai,bi,ci,di,ap,cp,dp gfx | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 9x | SY6116L-35TP | |
| 4x | KM62256ALP-10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 1x | GAL20V8A | read protected | |
| 3x | GAL16V8A | read protected | |
| 1x | PALCE20V8H | read protected | |
| 1x | GAL20V8S | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
3x 8 DIP switches banks
Notes
PCB is marked: "4380/1" and "COMP" on component side
update 20231127: better description
Files
-

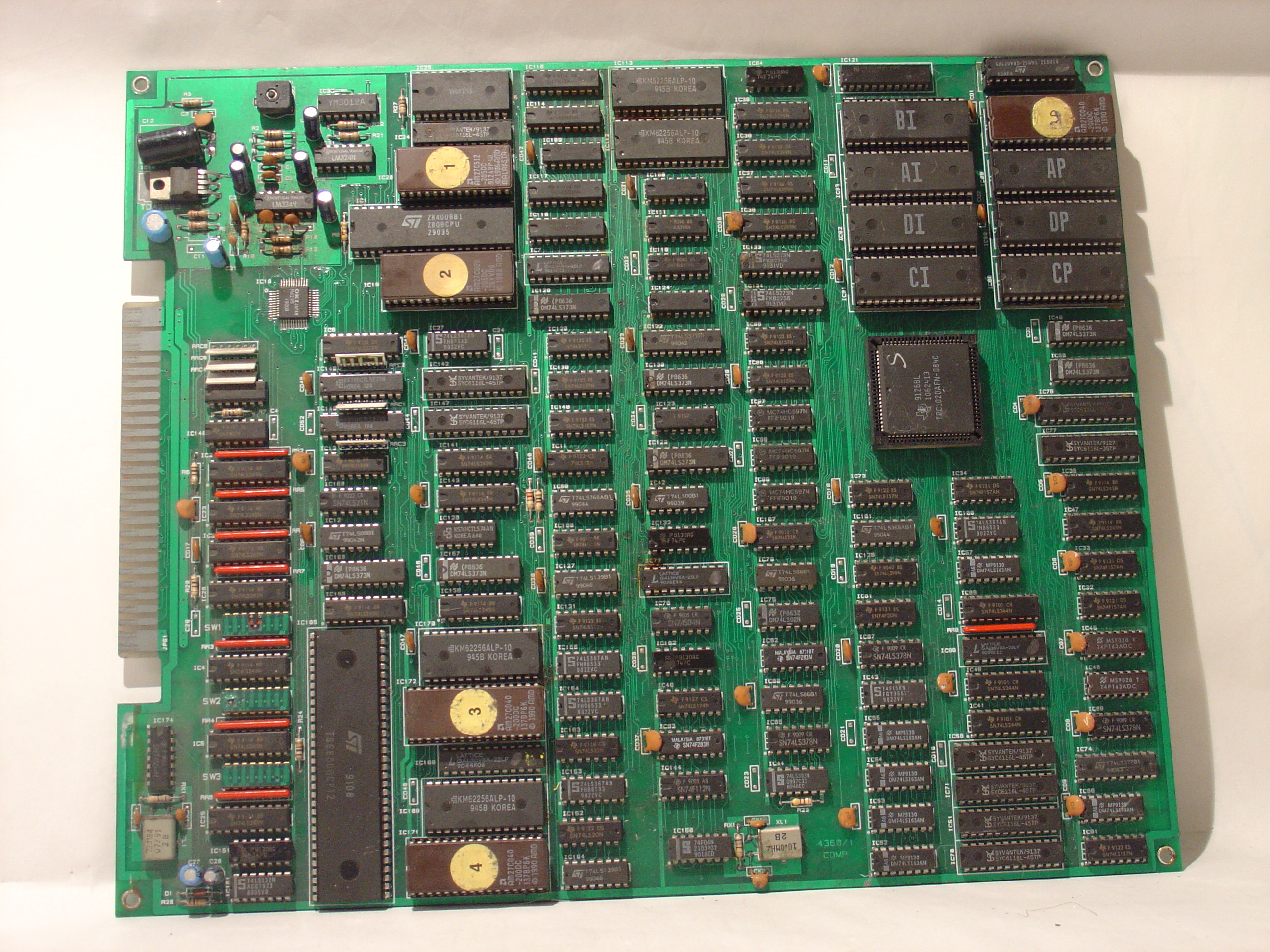

PCB component side
-

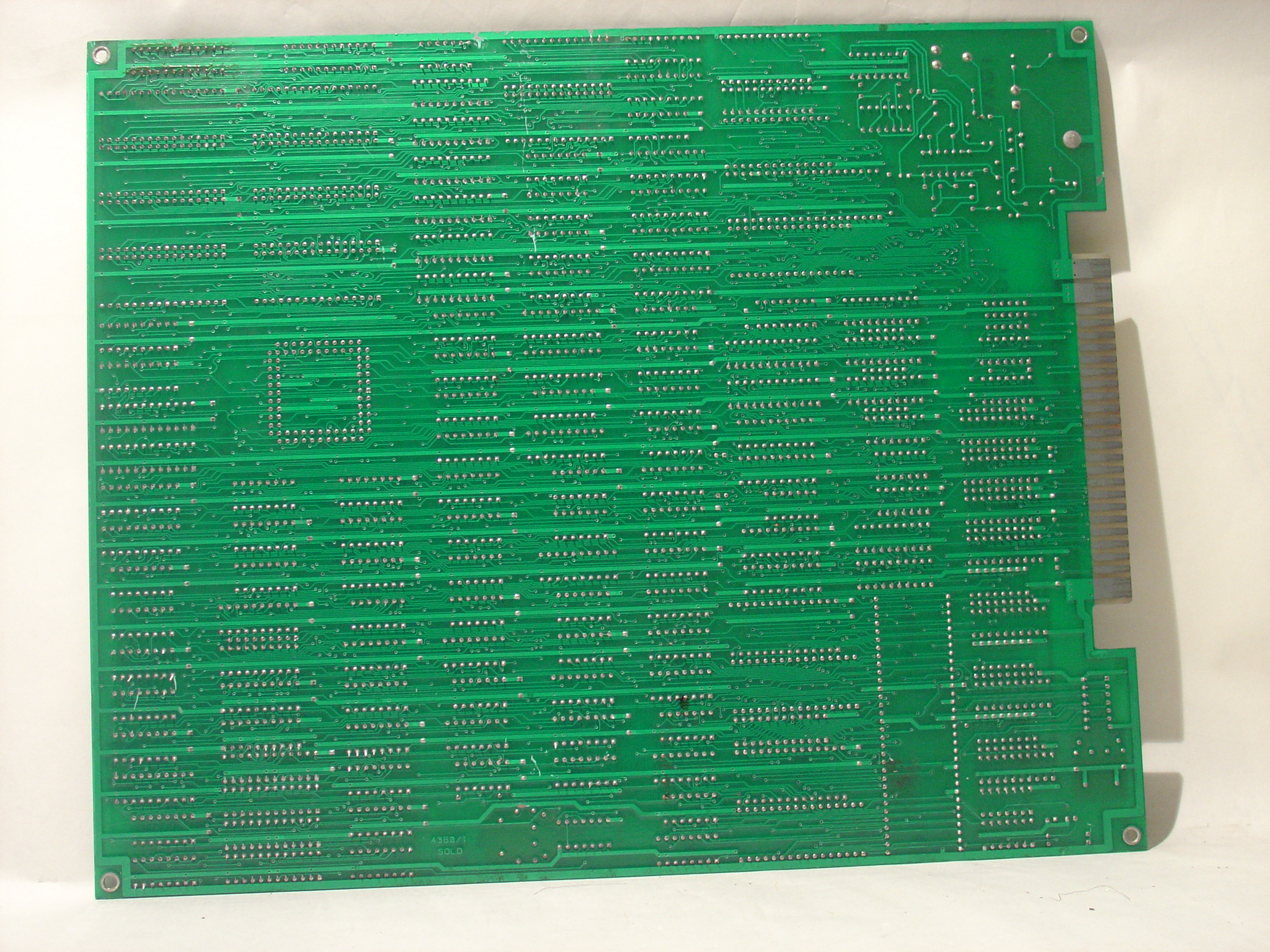

PCB solder side
