The Couples (set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 05/03/2005 |
| emulator | MAME 0.96u3 |
| dev | Angelo Salese |
| name | couplep on Arcade Database |
| description | The Couples (set 2) |
| year | 1986 |
| manufacturer | Merit |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8400BB1-Z80BCPU | 1A | 8-bit Microprocessor - main | |
| 1x | MC6845P | 6E | CRT Controller (CRTC) - Video | |
| 1x | AY-3-8910A | 3K | Programmable Sound Generator - sound | |
| 2x | D8255AC-2 | - | 2M 2N | Programmable Peripheral Interface |
| 1x | LM380N | - | 1N | Audio Amplifier - sound |
| 1x | oscillator | 10.000MHz | o113 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 2716 | 7A | dumped |
| 6x | 27256 | 1D 1E 9C 9D 10C 10D | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | Am2148-10PC | 10J |
| 1x | TC5517Ap-2 | 9F 9G |
| 1x | HM6264LP-15 | 1G |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(PT85)
1x 8 DIP switches bank
1x unknown IC (scratched out) DIP20-300mil marked O1
Notes
PCB is marked: "230188" and "LC" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
Files
-

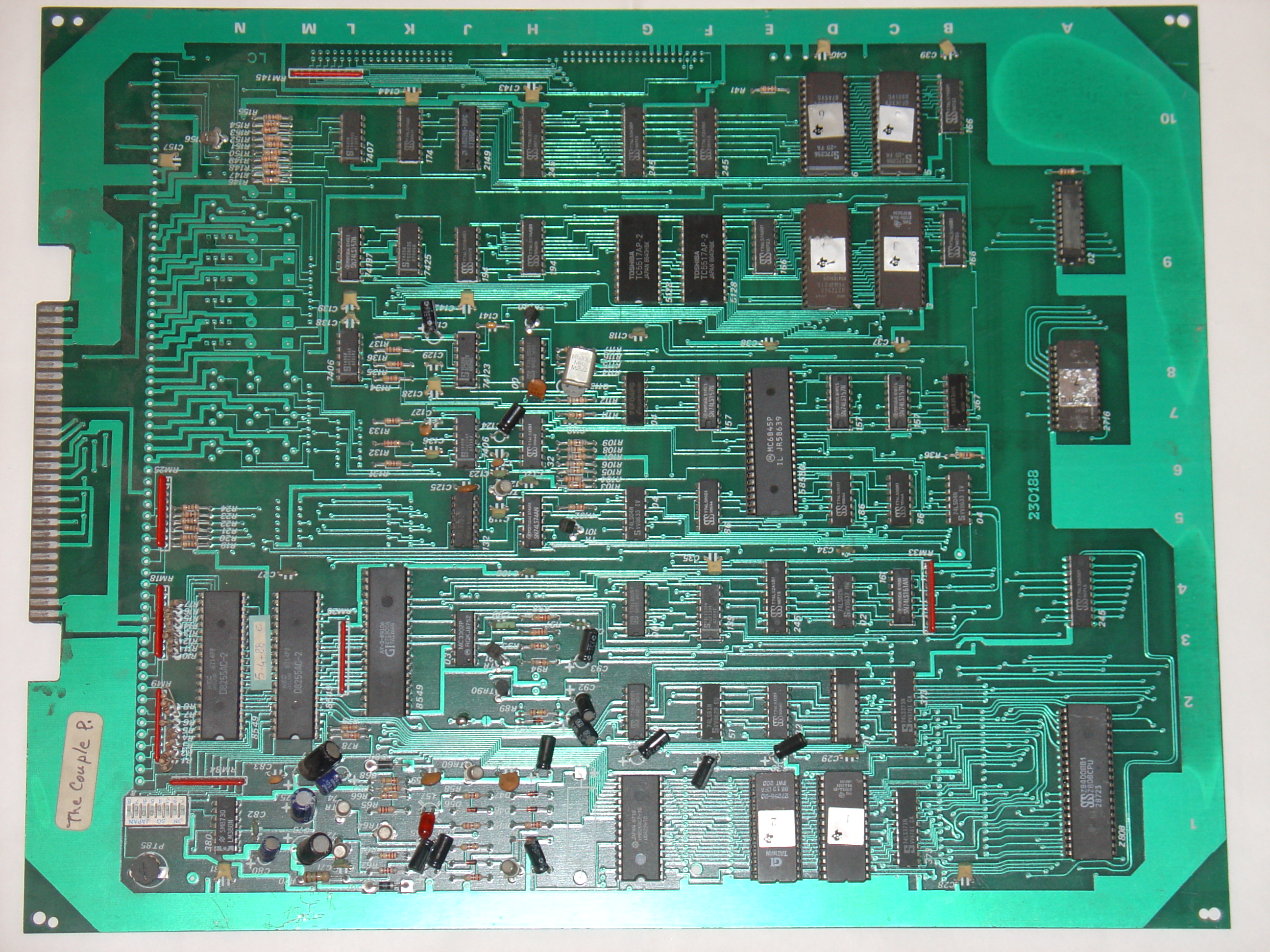

PCB component side
102
