The Combatribes (bootleg set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 15/02/2008 |
| emulator | MAME 0.125u6 |
| dev | Sonikos |
| name | ctribeb2 on Arcade Database |
| description | The Combatribes (bootleg set 2) |
| year | 1990 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | SCN680000CAN64 | 16/32-bit Microprocessor - main | ||
| 1x | Z8400BB1 | 8-bit Microprocessor - sound | ||
| 1x | OKI M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM324N | Quad Operational Amplifier - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012 | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 10.000MHz | close to main | |
| 1x | oscillator | 20.000MHz | close to sound | |
| 1x | oscillator | 3.579545 | close to sound | |
| 1x | oscillator | 14.7456 | far from CPUs |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 19x | TMS27C010 | 1,3,4,5,9,10,13,14,16,17,18,19,21,22,23,24,26,27,28 | dumped |
| 6x | AM27C512 | 2,6,15,20,25,30 | dumped |
| 4x | AM27C020 | 7,8,11,12 | dumped |
| 5x | D27C010 | 29,31,32,33,34 | dumped |
| 1x | MMI63S141 | not dumped yet |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 5C032 | dumped | |
| 6x | GAL16V8 | 1 is dumped, 5 are not dumped |
Others
1x 28x2 JAMMA edge connector
1x 9 legs connectr
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Files
-

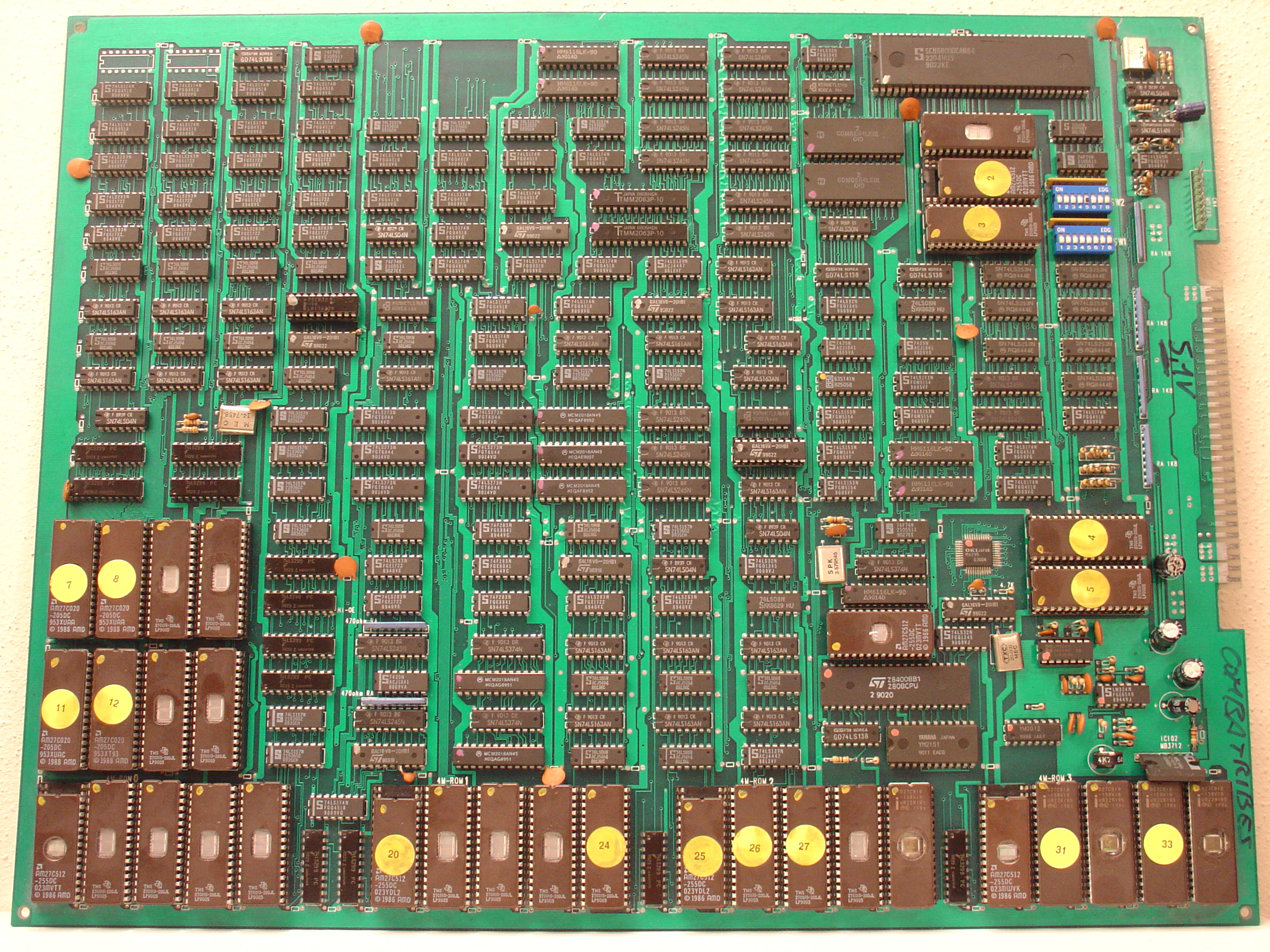

PCB component side
-

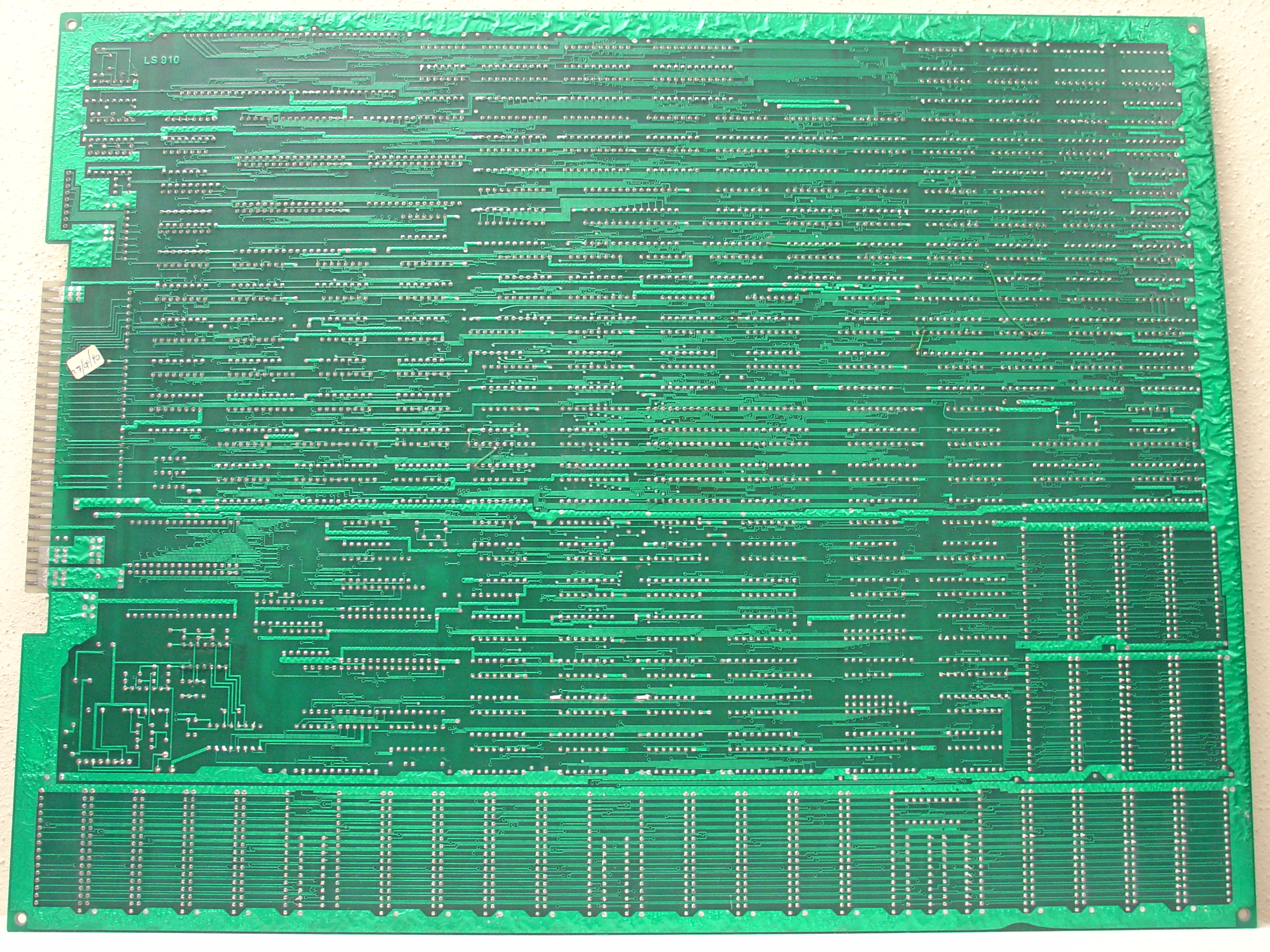

PCB solder side
