Tekken 3 (US, TET3/VER.D)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Smitdogg, The Dumping Union |
| date | 15/04/2010 |
| emulator | MAME 0.142u2 |
| dev | smf |
| name | tekken3ud on ProgettoEMMA tekken3ud on Arcade Database |
| description | Tekken 3 (US, TET3/VER.D) |
| year | 1996 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MBM29F016A | 2e,2j | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Namco System 12
Files
-

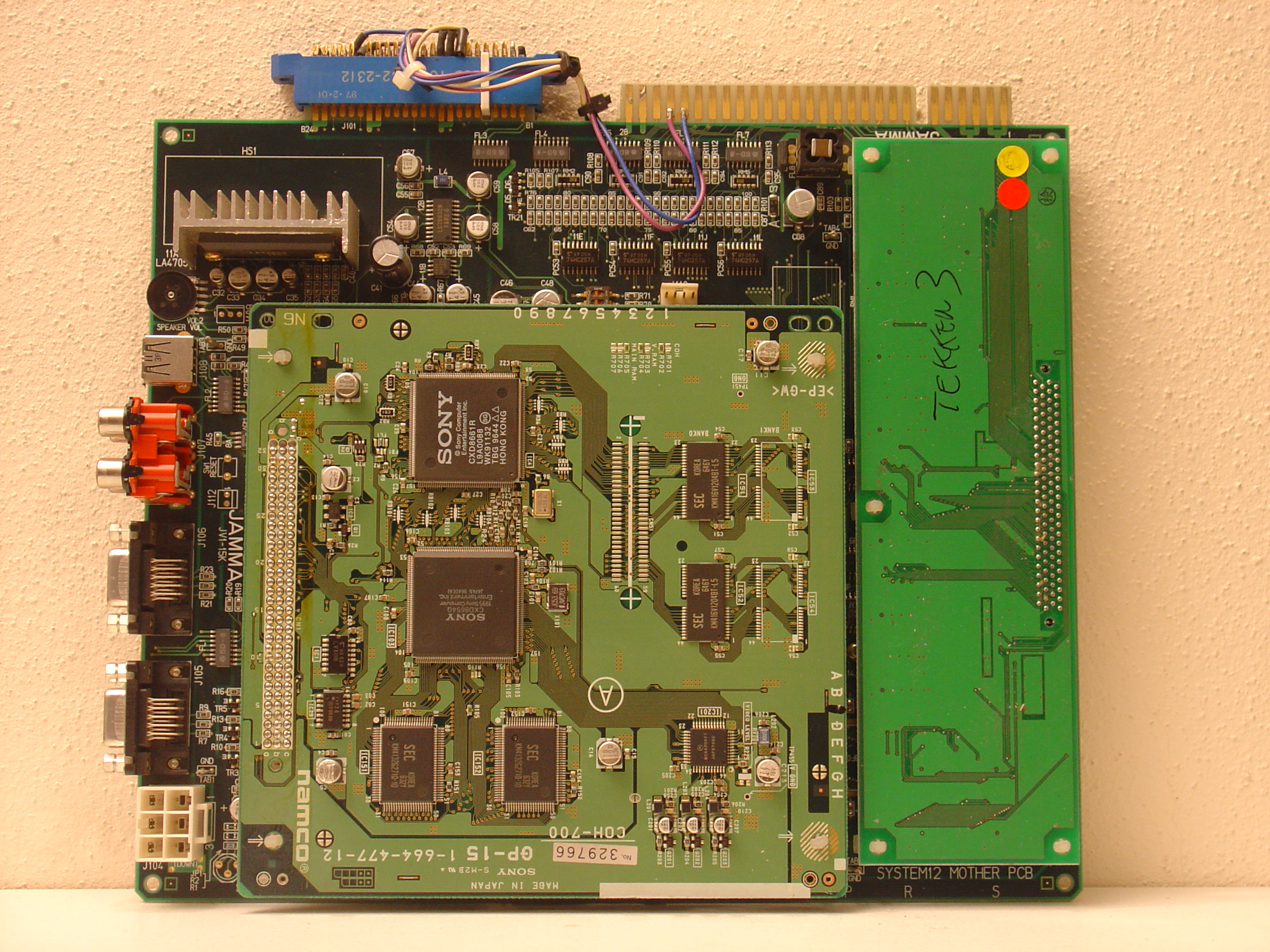

assembled PCB
-

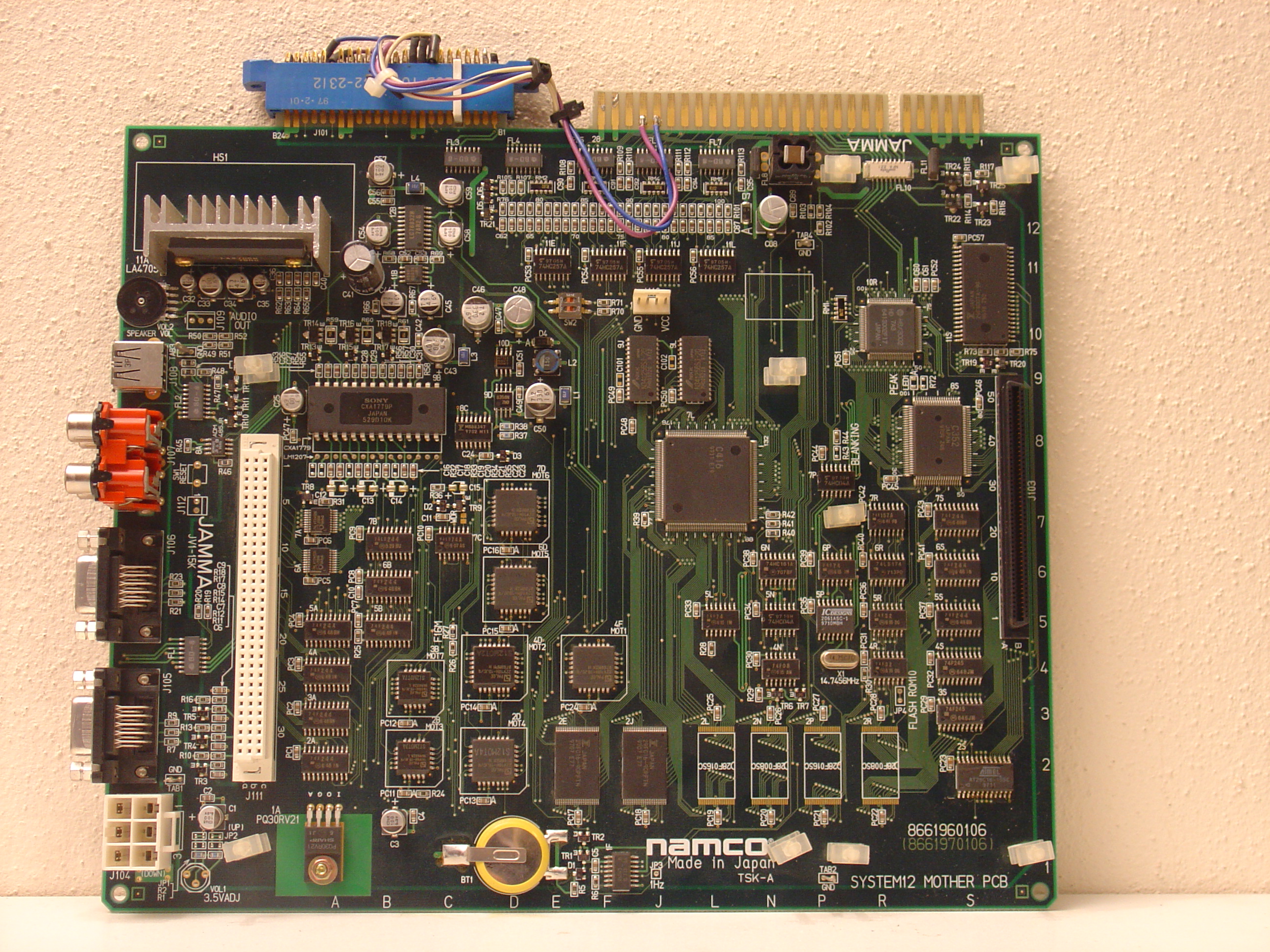

main PCB component side
-

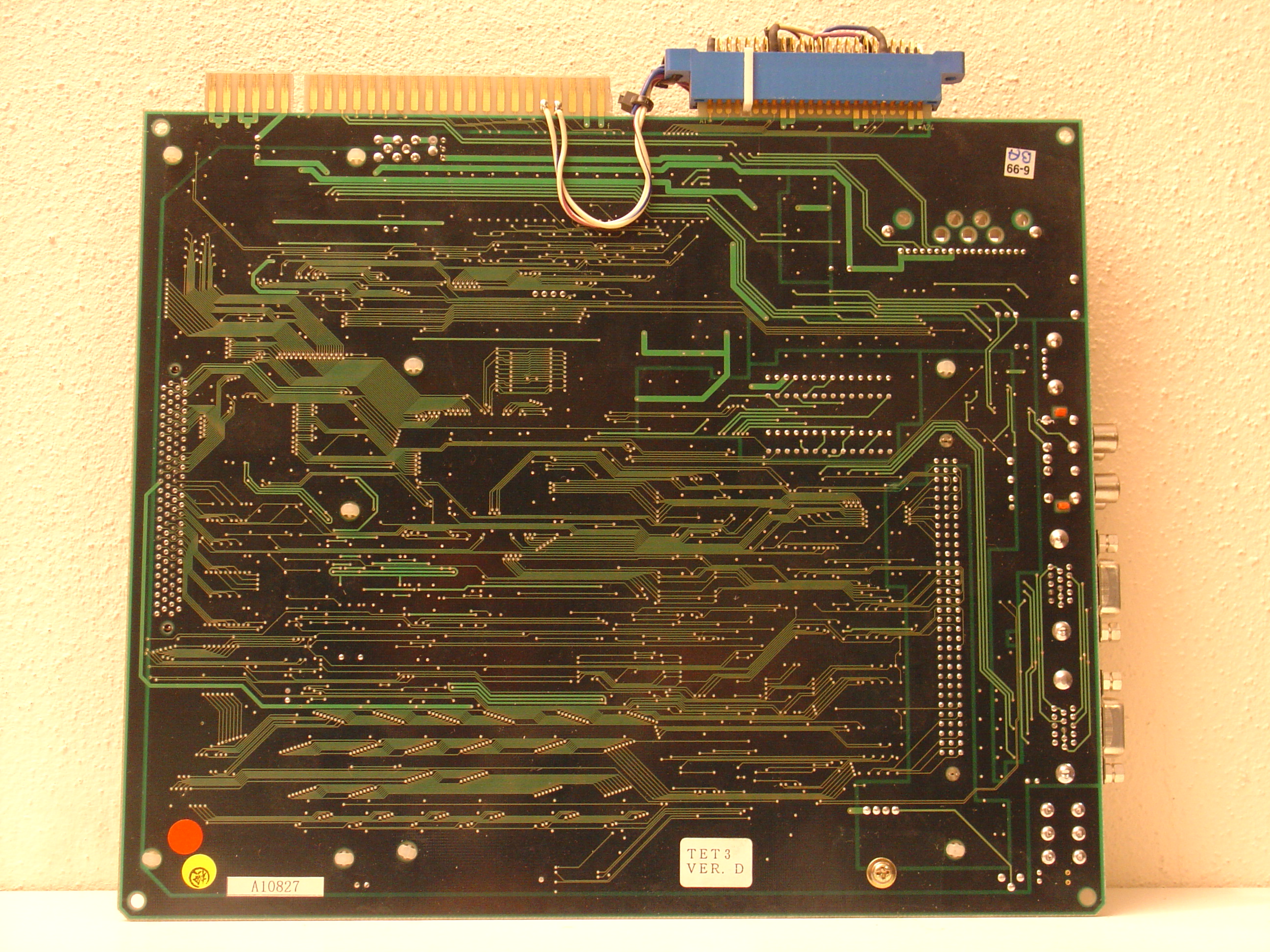

main PCB solder side
-

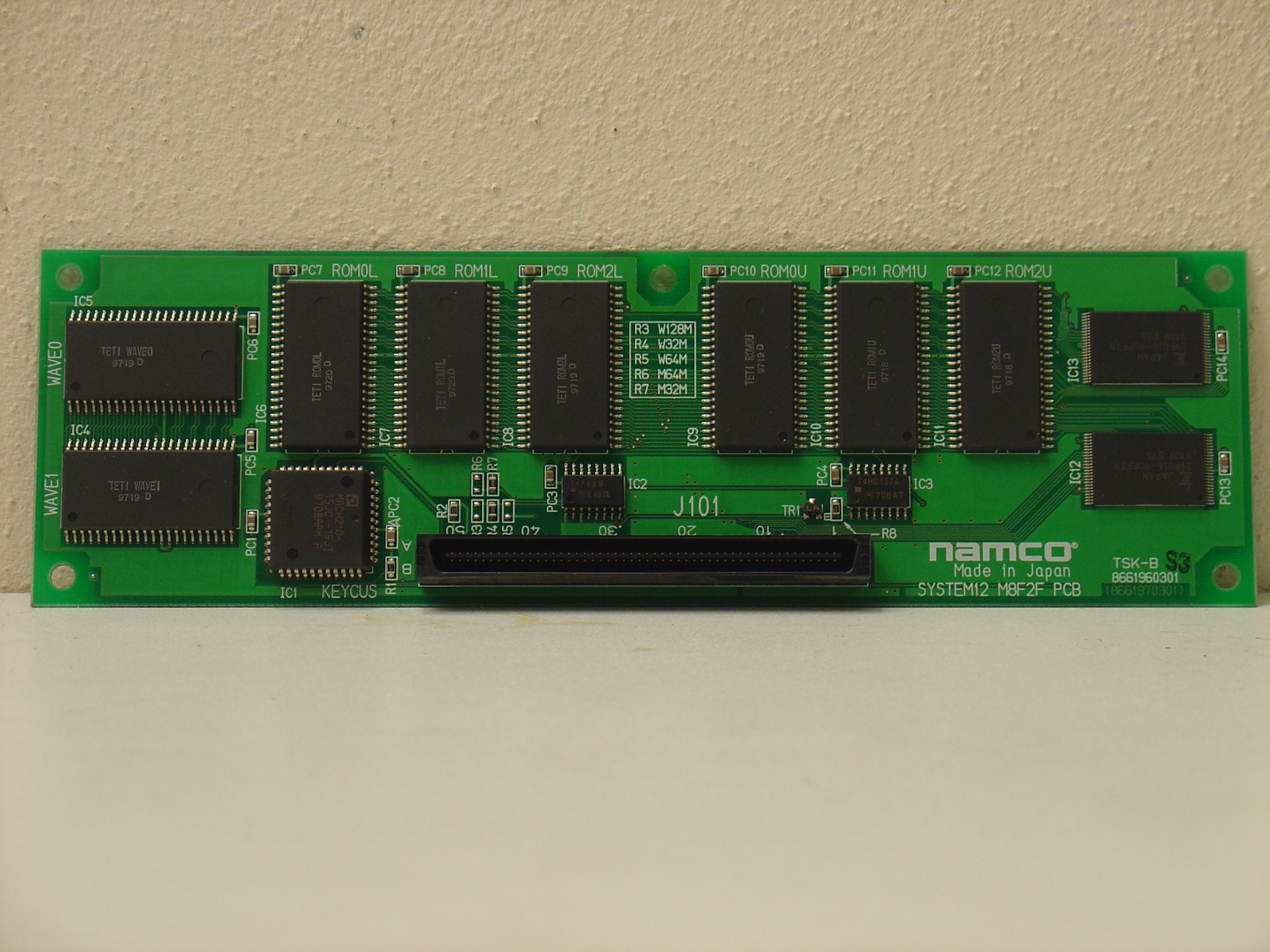

ROMs PCB component side
-

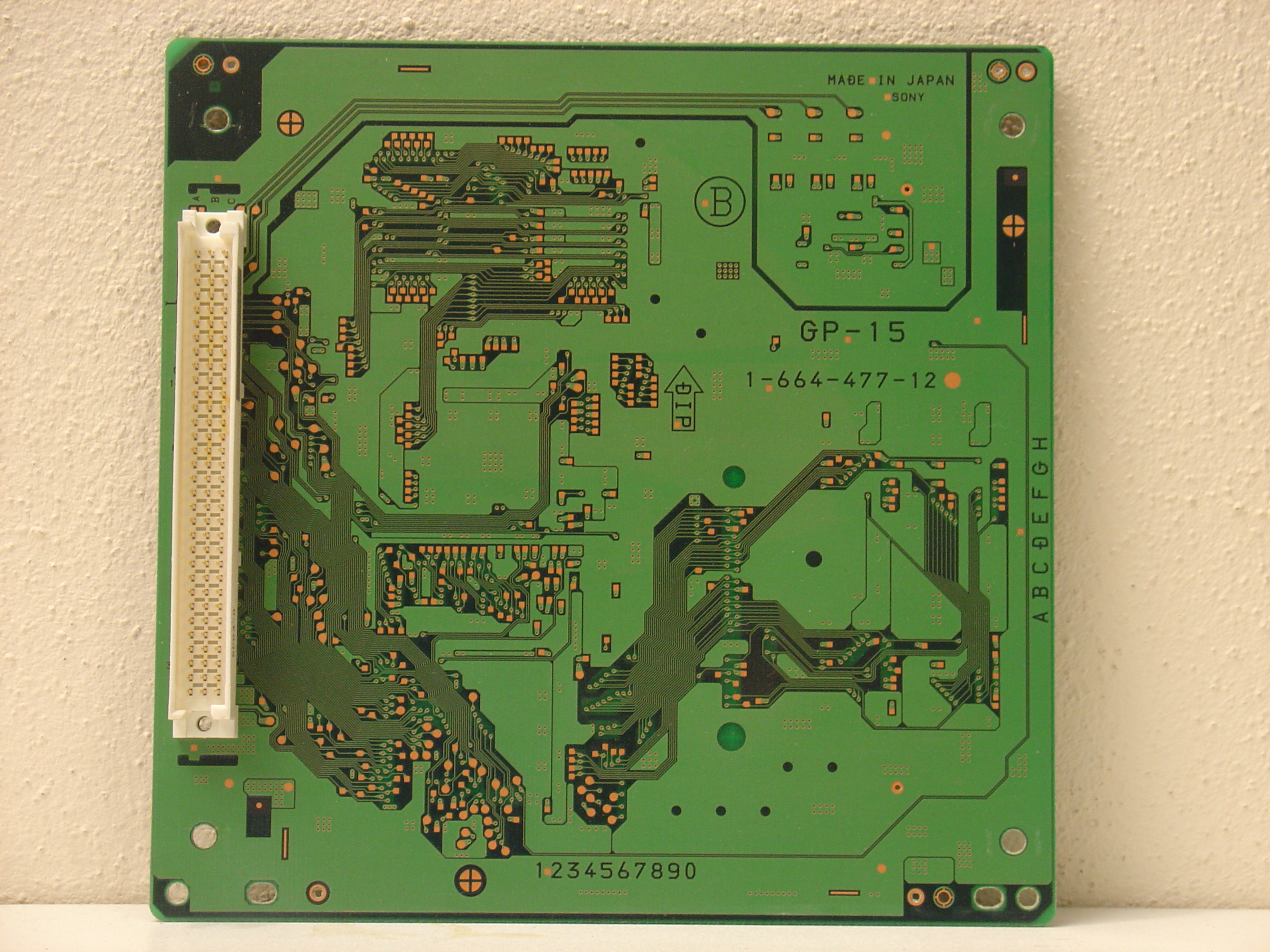

CPUs PCB solder side
-

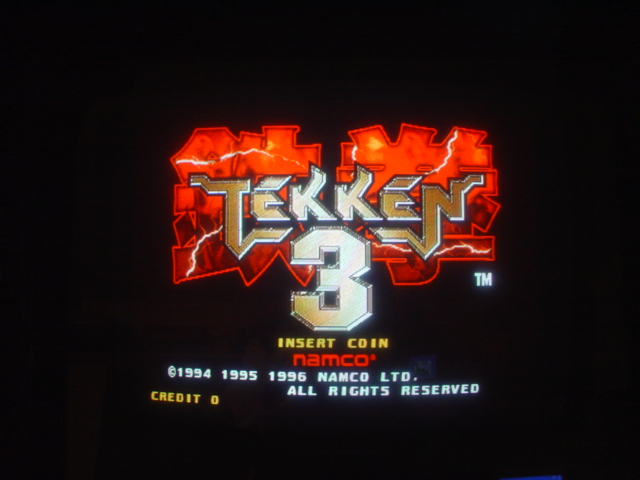

Title
-
Attract mode 1
-

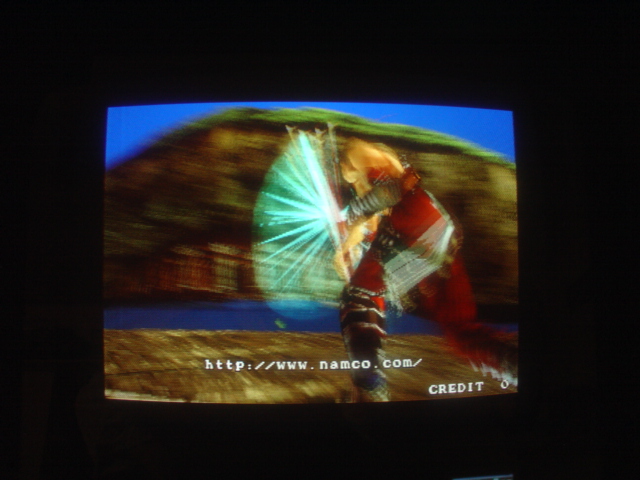

Attract mode 2
-

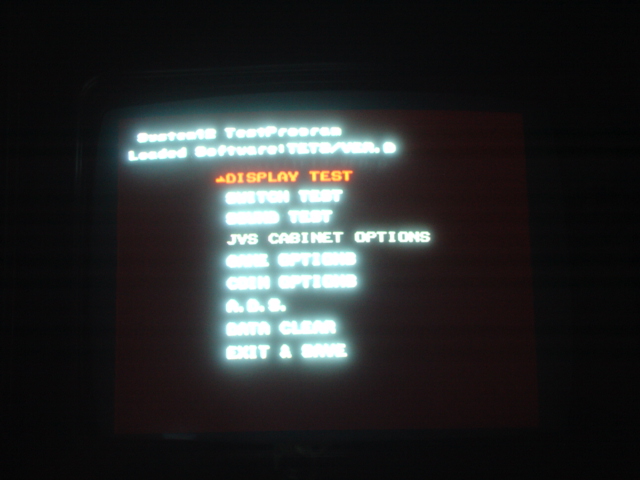

Test
