Take Off (bootleg of The End)
From Citylan
Jump to navigationJump to search
| dumper | f205v, robotype |
| date | 26/07/2011 |
| emulator | MAME 0.143u4 |
| dev | f205v, robotype |
| name | takeoff on ProgettoEMMA takeoff on Arcade Database |
| description | Take Off (bootleg of The End) |
| year | 1980 |
| manufacturer | Sidam |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 2x | Z80CPUB1 | 3a,10k | 8-bit Microprocessor - main & sound | |
| 1x | AY-3-8910 | 6a | Programmable Sound Generator - sound | |
| 1x | oscillator | 12h |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MM2716 | 3h,5h | dumped |
| 4x | TMS2532 | 3b,8l,9l,10l | dumped |
| 1x | SN74S288N | 1k | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | MM2114N-3L | 6j,7j,5k,6k,3l,4l,5l,6l |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
2x 4x2 switches DIP (1,2)
1x 8x2 switches DIP (3)
Notes
manufactured in Italy
Files
-

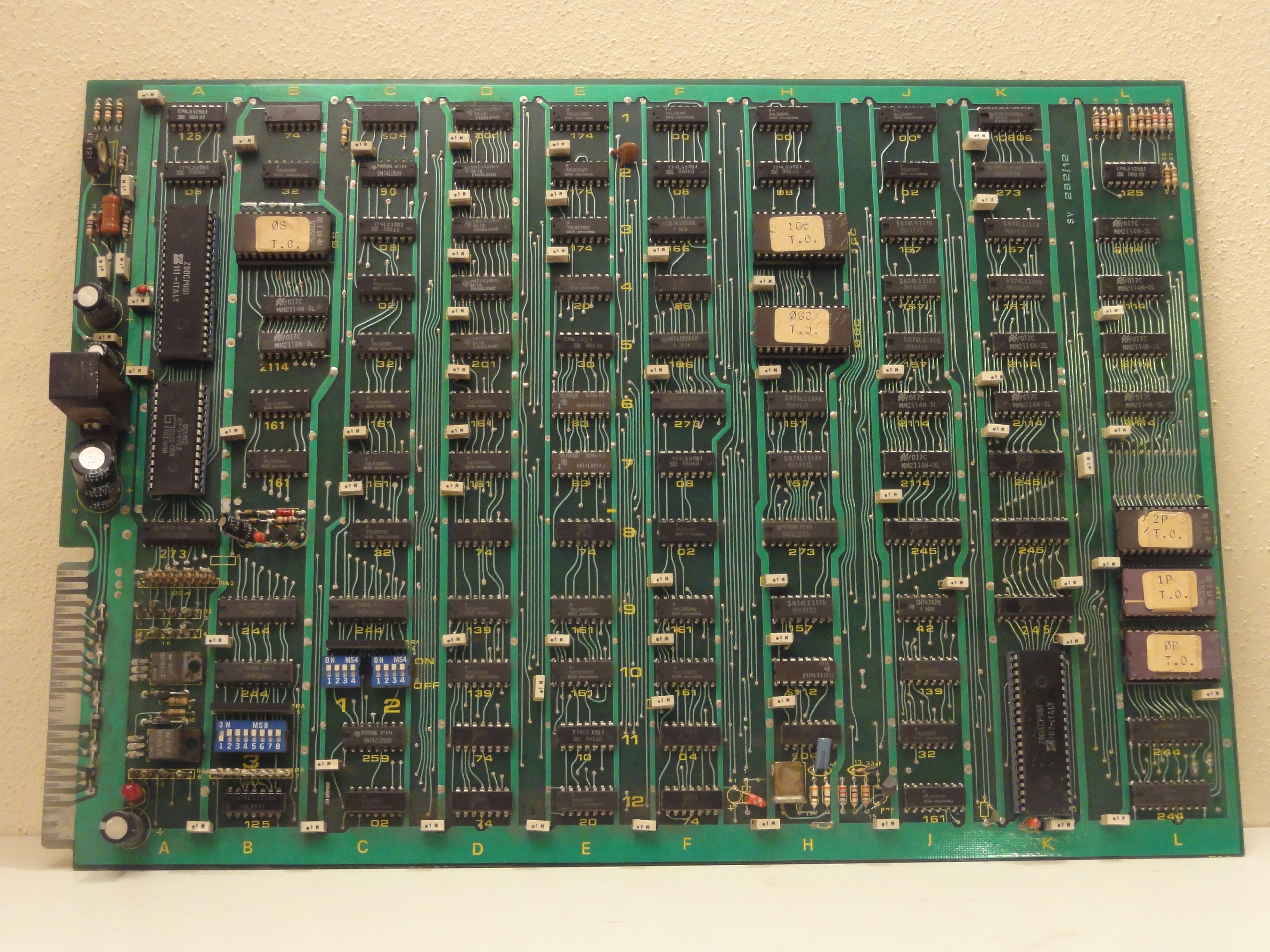

PCB component side
-

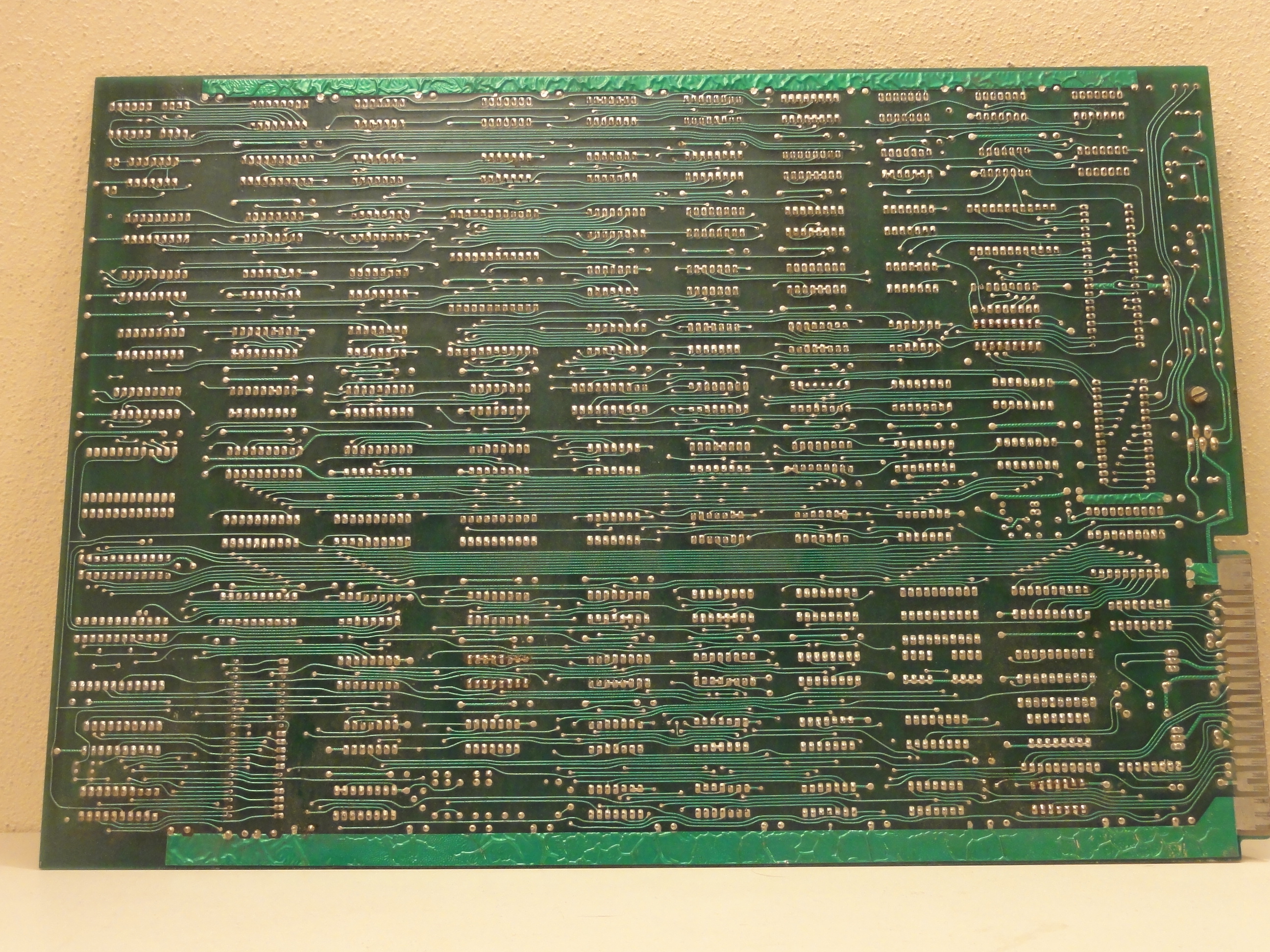

PCB solder side
