Taisen Hot Gimmick (Japan)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 25/04/2021 |
| emulator | MAME 0.61 |
| dev | David Haywood |
| name | hotgmck on ProgettoEMMA hotgmck on Arcade Database |
| description | Taisen Hot Gimmick (Japan) |
| year | 1997 |
| manufacturer | Psikyo |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | SH-2 HD6417604F28 | MHz(@114) - MHz(@116) | u46 | 32-bit Single-Chip Microcomputer - main |
| 1x | custom Psykio PS6807 QFP200 | u31 | ? | |
| 1x | YMF268-F CT1724 | FM Operator Type-L 4 + wave Table Synthesizer (OPL4) - sound | ||
| 1x | YAC513-M | MHz(@5) - MHz(@6) - MHz(@7) | u36 | 2-Channel Floating D/A Converter - sound |
| 1x | JRC4741 | - | u37 | Quad Operational Amplifier - sound |
| 2x | HA13118 | - | u48,u55 | Audio Power Amplifier - sound |
| 1x | oscillator | 57.27272MHz | u30 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MX27C4096C-12 | 3.u22 4.u23 | dumped |
| 1x | 93LC56 | u32 | not dumped |
| 6x | MaskROM Sharp SOIC44-525mil | LH537NYK.PROG.u1 LH535KR4.SND0.u10 LH535KR4.SND1.u19 LH535KR6.2L.u4 LH535KR8.3L.u5 LH535KR9.3H.u14 |
not dumped |
| 5x | MaskROM Oki SOIC44-525mil | M533202E-17.0H.u11 M533202E-18.0L.u2 M533202E-19.1H.u12 M533202E-20.1L.u3 M533202E-21.2H.u13 |
not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HY514260BJC-60 | u24,u25 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 JAMMA edge connector (CN10)
1x 28x2 MAHJONG edge connector (CN11)
1x 16 pins flat cable connector (CN7)
1x 26 pins flat cable connector JAMMA 2 (MAHJONG 2) (CN8)
2x trimmer (volume) (VOL1,VOL2)
Notes
PCB is marked: "PS4 MADE IN JAPAN" on component side
PCB is labelled: "PSYKIO (plus long Janese description)", "No. 062949", "OK" and "PSYKIO 16822" on component side
Working
Files
-

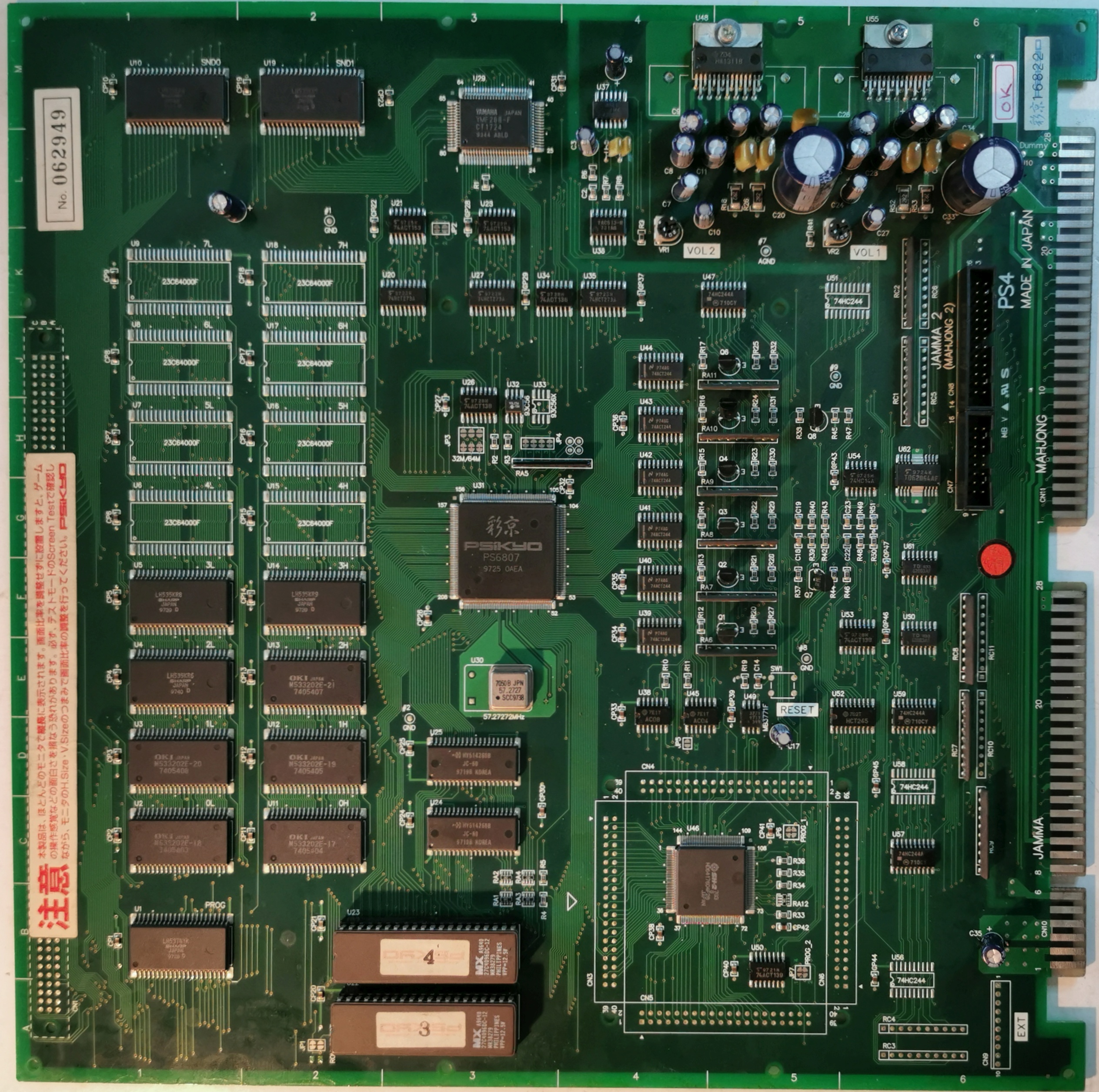

PCB component side
-

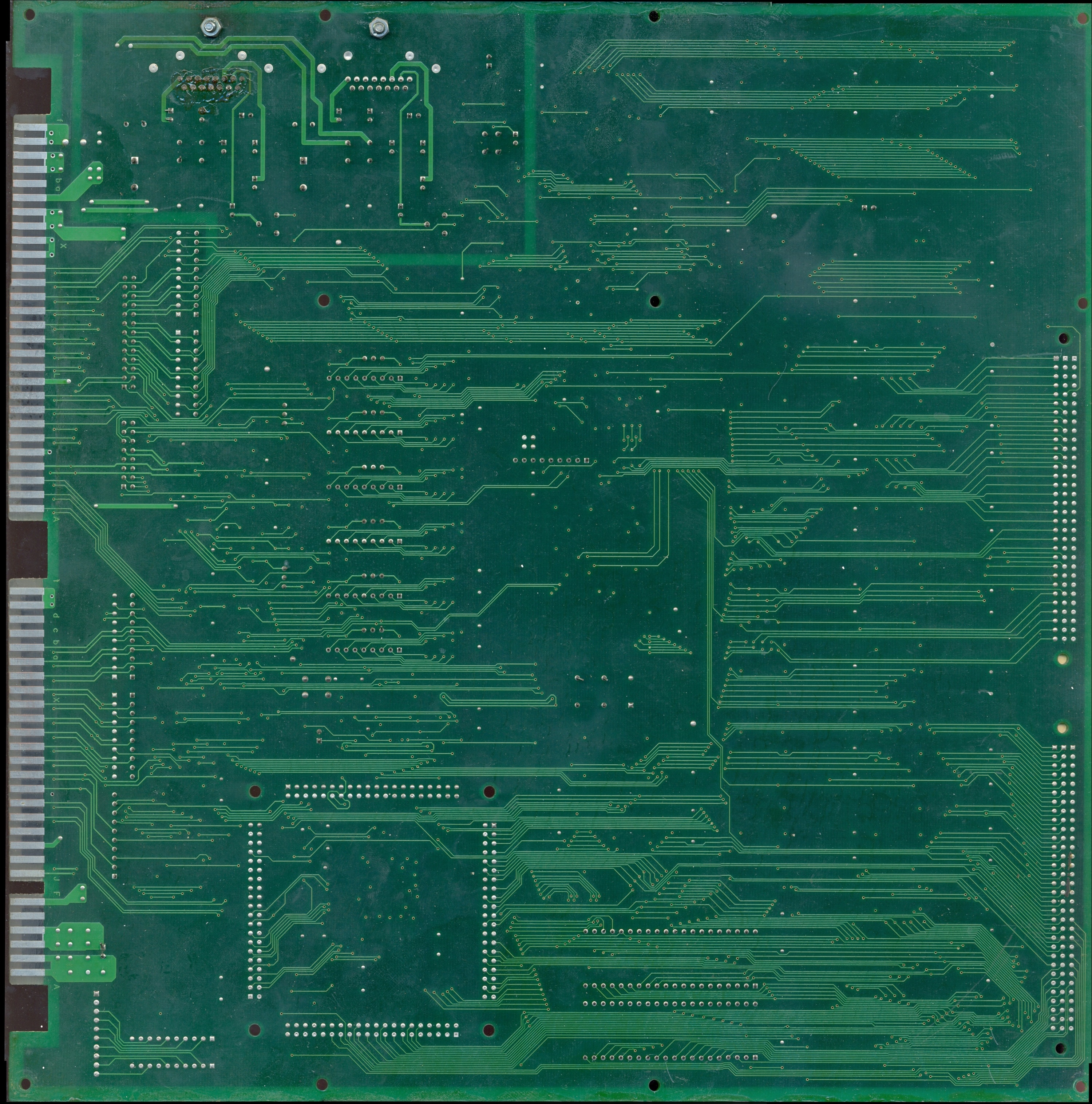

PCB solder side
