TWINAX ISA card PRO51A
From Citylan
Jump to navigationJump to search
| dumper | f205v, Team Europe |
| date | 11/02/2017 |
| emulator | |
| dev |
| name | 1465 |
| description | TWINAX ISA card PRO51A |
| year | 1993 |
| manufacturer | PRAIM |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | unknown d 750000-01 9308KVC42 | u4 | Microprocessor - main | |
| 1x | oscillator | 16.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | UM6264A-10L | u1 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x ISA 8bit edge connector (P2)
1x 15 pin side connector (P1)
1x 8 DIP switches bank
Notes
PCB is marked on component side: "PRO51A"
PCB is etched on solder side: "ITACA9310"
PCB is labeled: "TEST PASSED SETT.-1993", "LOTTO 2271"
It' an IBM 5250 terminal emulator card.
Software is in 3"1/2 diskette (dumped).
Files
-

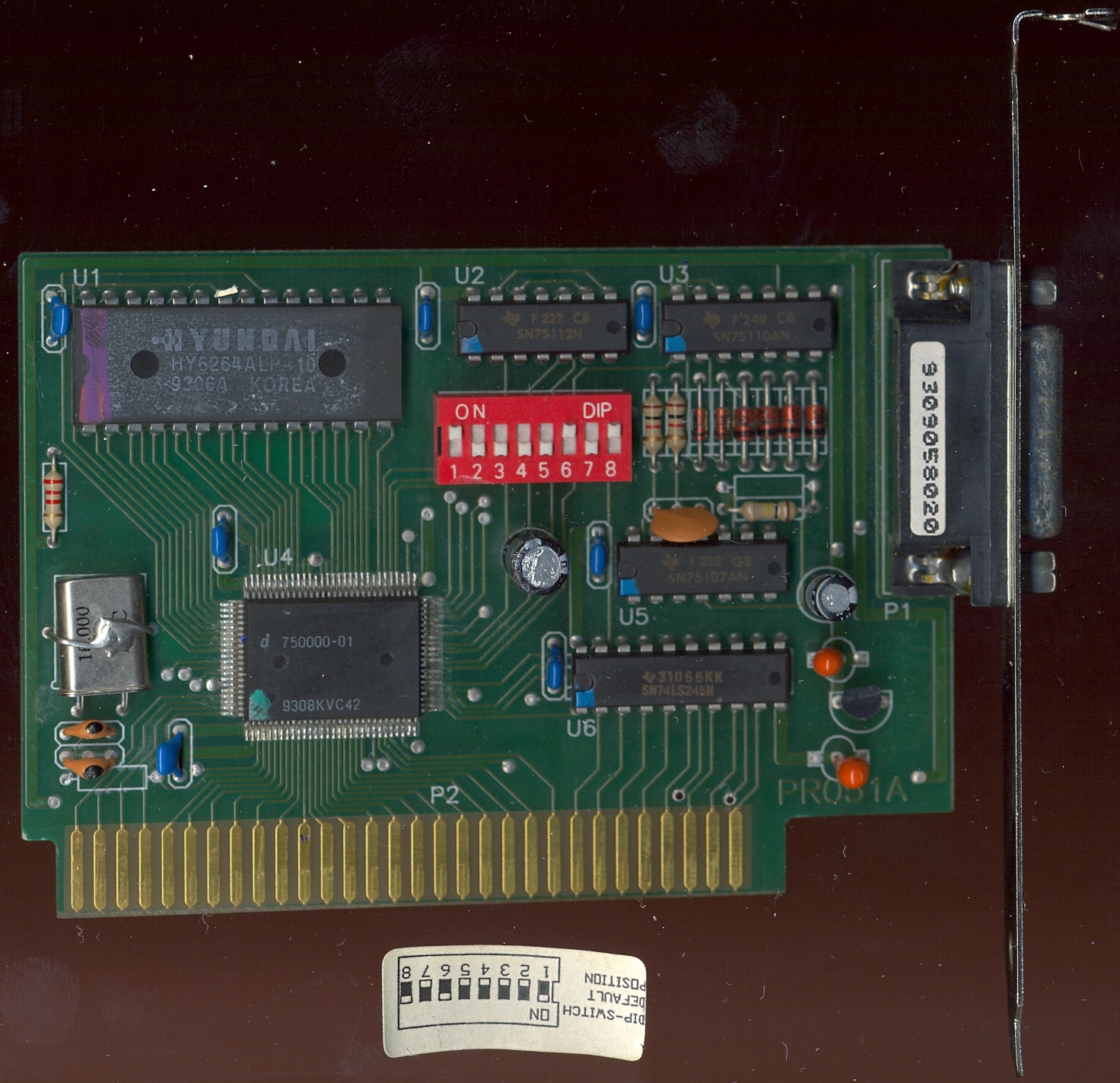

PCB component side
-

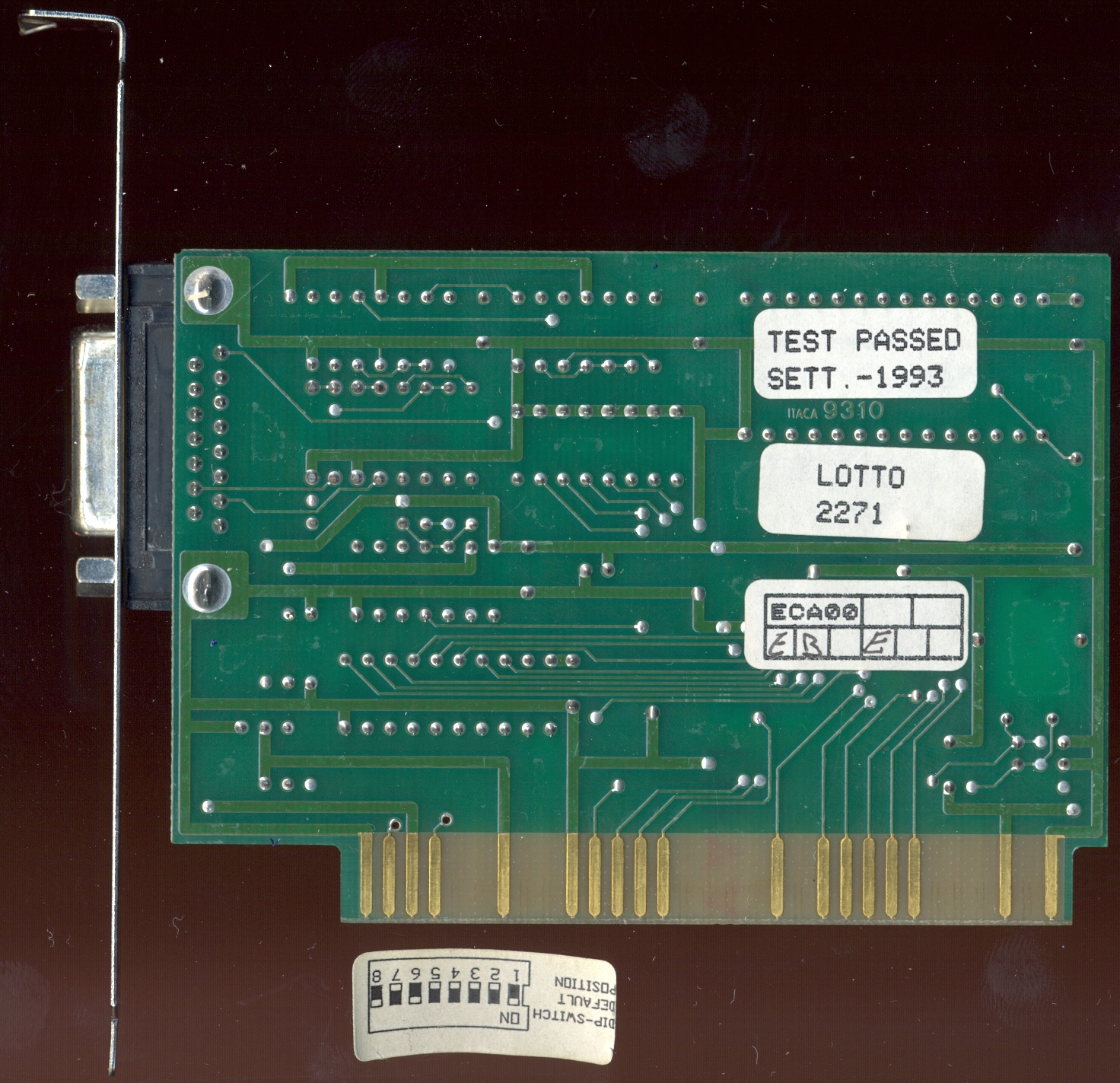

PCB solder side
-

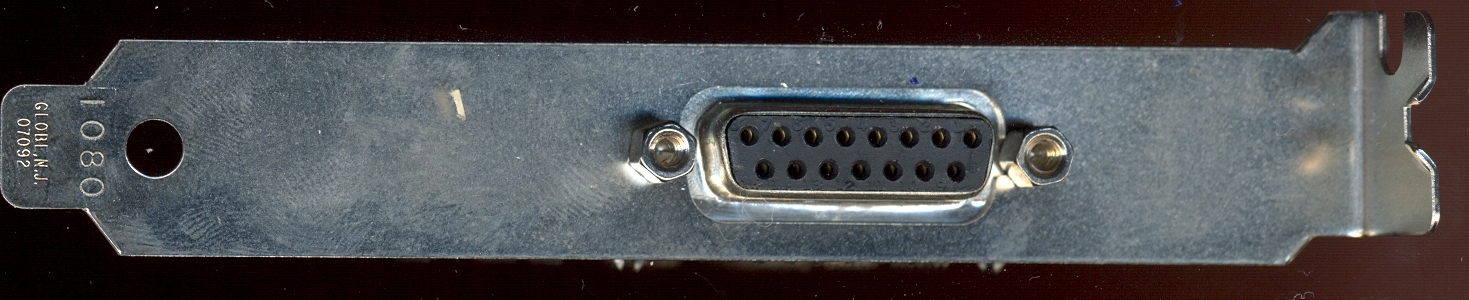

connector
-

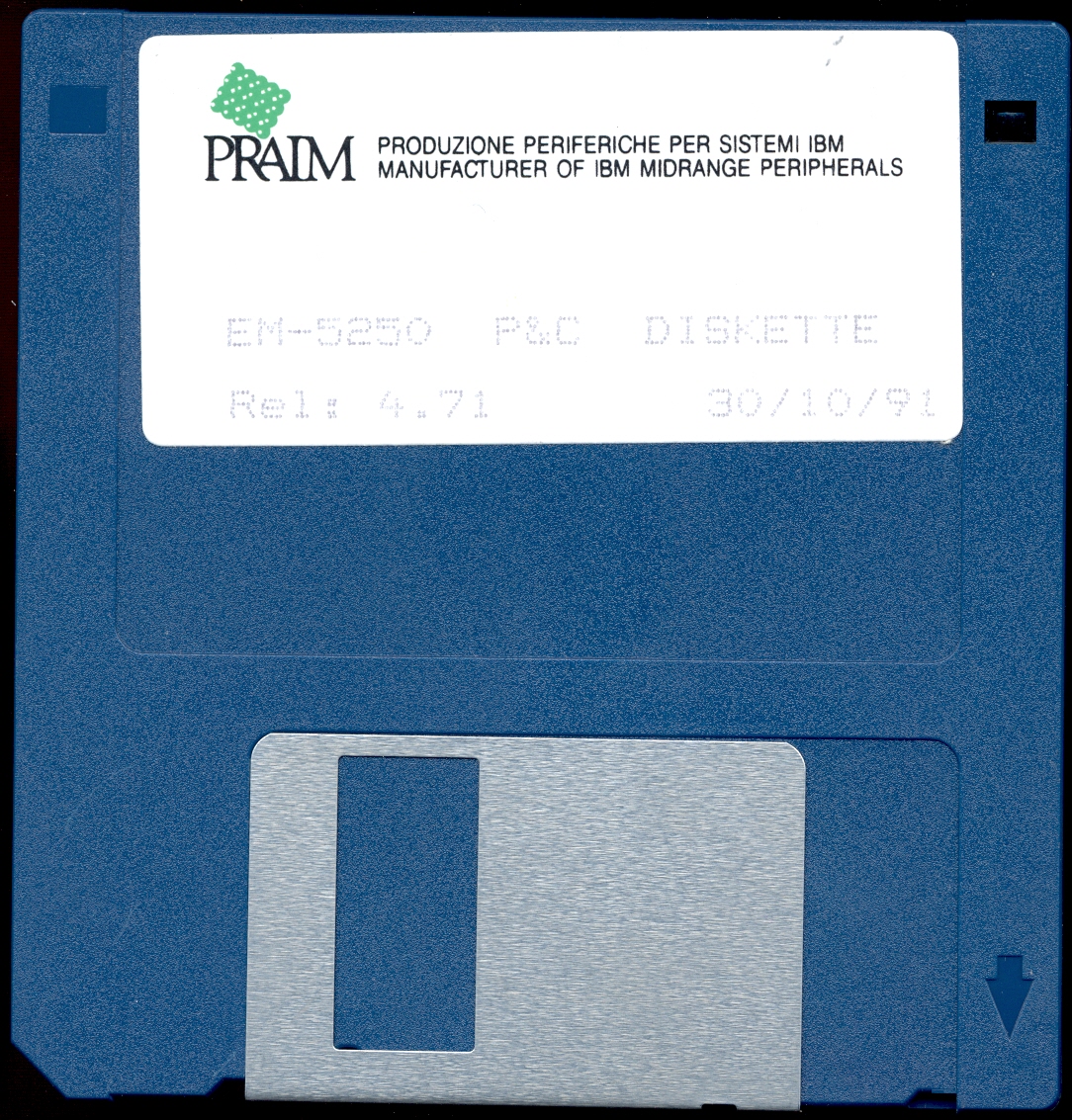

Disk
