TWINAX ISA card PRO43D
From Citylan
Jump to navigationJump to search
| dumper | f205v, Team Europe |
| date | 11/02/2017 |
| emulator | |
| dev |
| name | 1464 |
| description | TWINAX ISA card PRO43D |
| year | 1991 |
| manufacturer | PRAIM |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02PE-4 | 4Mhz | u9 | 8-bit Microprocessor - main |
| 1x | COM52C50 | u10 | TWINAX Interface Circuit (TIC) | |
| 1x | oscillator | 16.0MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | UM6264A-10L | u7 |
| 1x | D43256AC-10L | u18 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | GAL16V8-25LNC | EMEU6A.u6 EMEU17A.u17 | read protected |
Others
1x ISA 8bit edge connector (P1A)
1x 15 pin side connector
1x 8 DIP switches bank
Notes
PCB is marked on component side: "PRO43D" and "4991"
PCB is etched on solder side: "AG2" and "266"
PCB is labeled: "TEST PASSED FEBB.-1992"
It' an IBM 5250 terminal emulator card.
Software is in 5"1/4 diskette (dumped).
Files
-
PCB component side
-
PCB solder side
-
connector
-
Disk

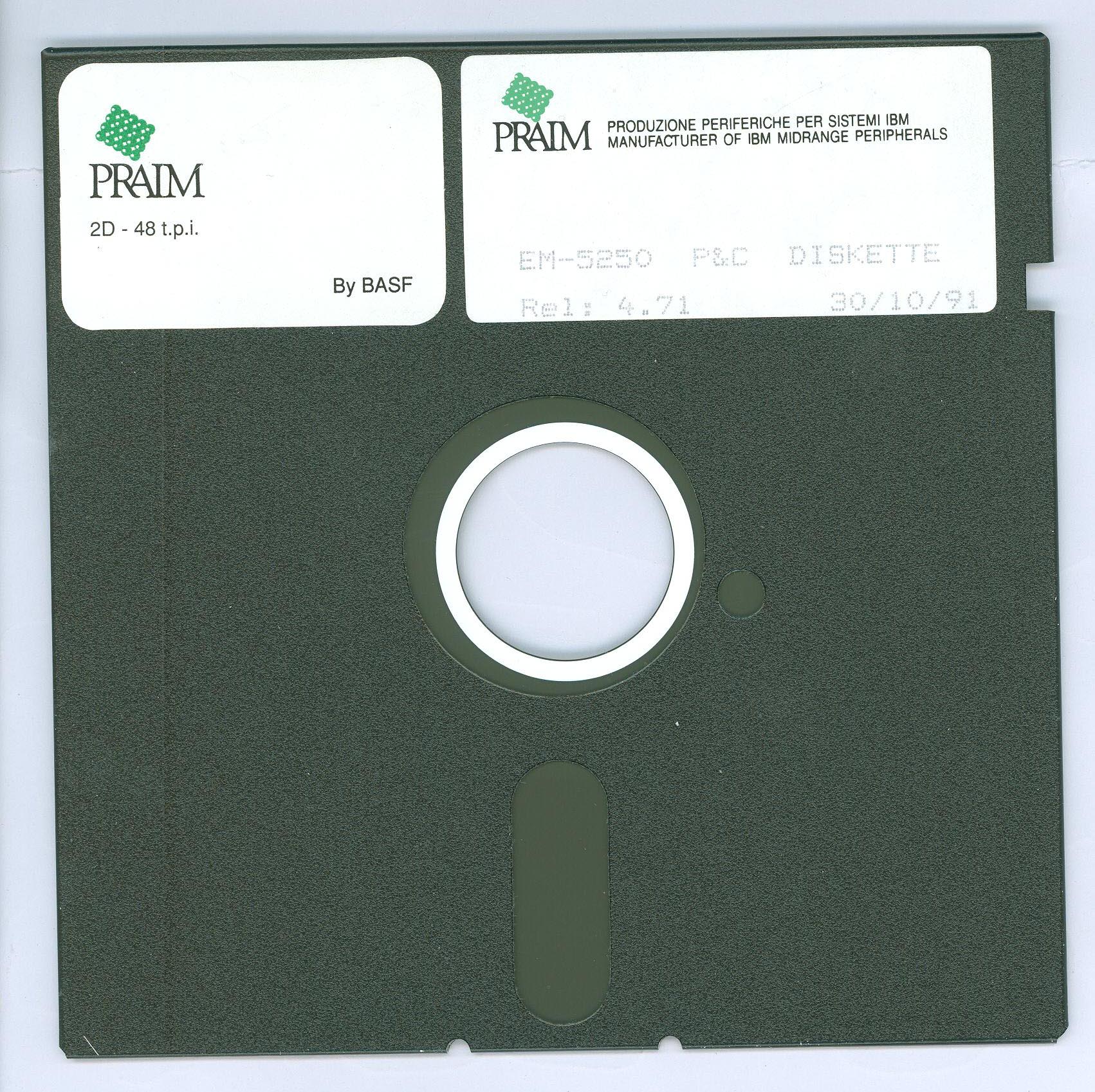

Software Driver

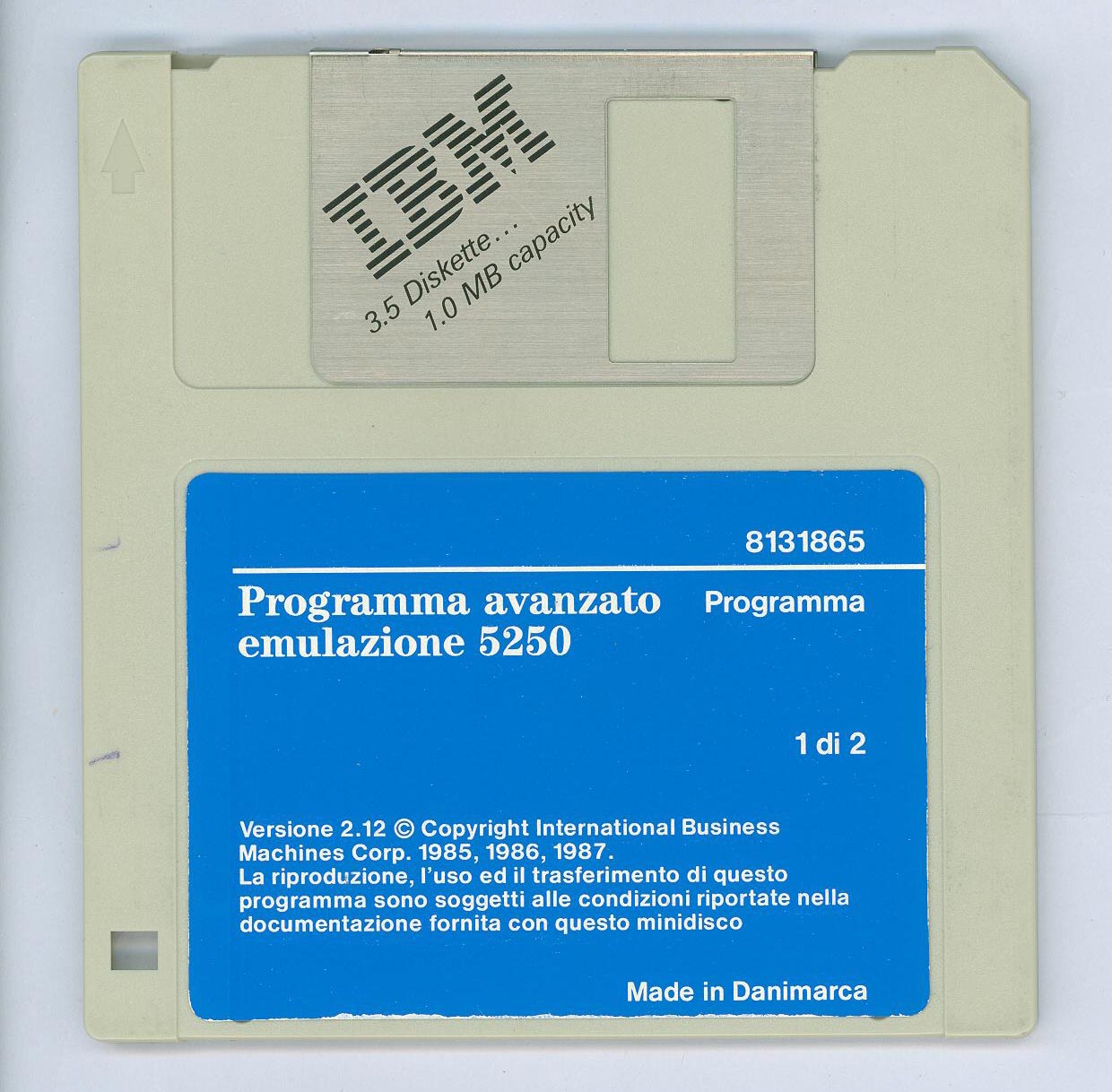

Software Disk 1

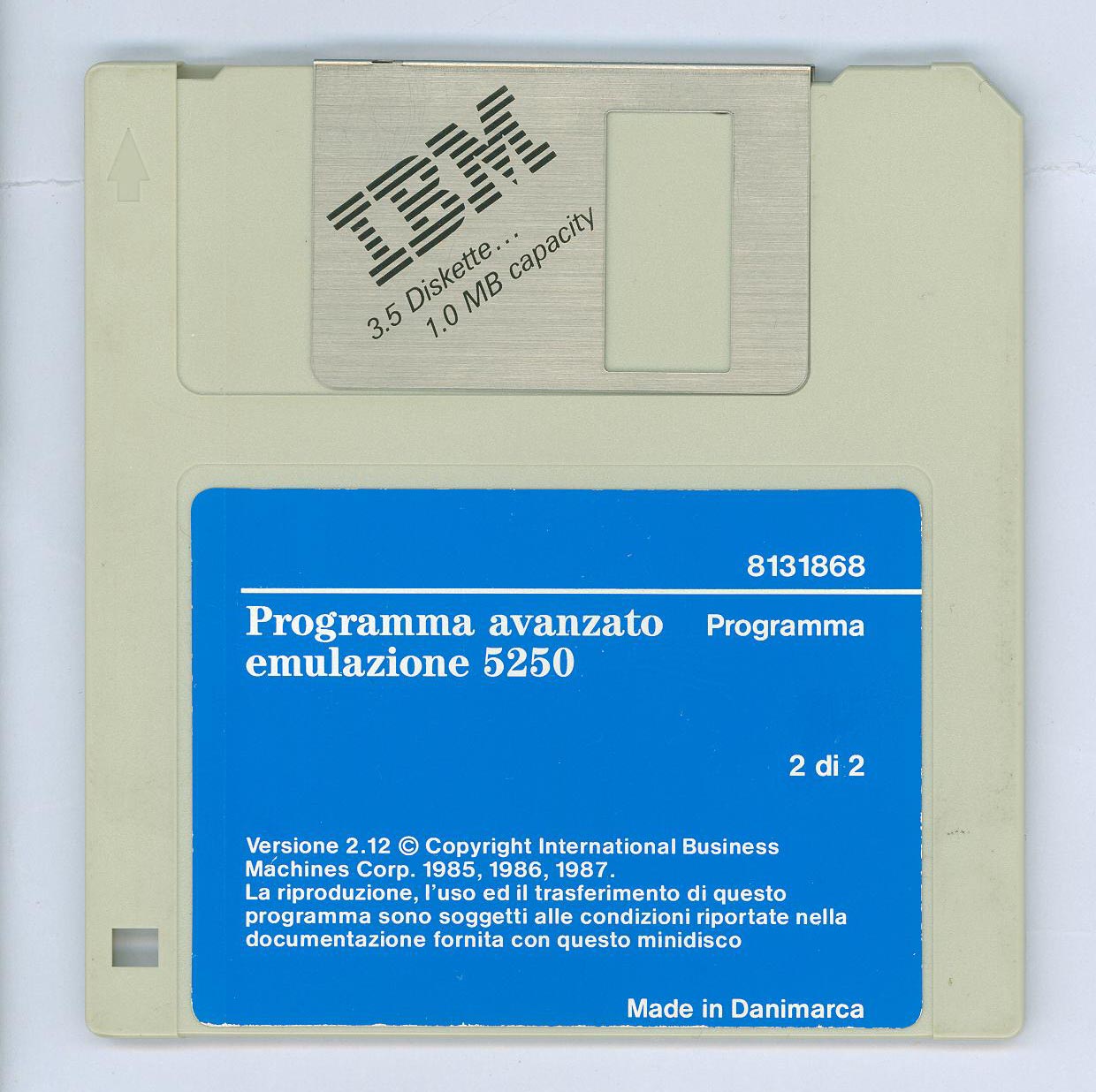

Software Disk 2
