Super Tarzan (Italy, V100I)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Mirko Buffoni |
| dump date | 14/02/2009 |
| emulator | MAME 0.135u1 |
| dev | f205v, Mirko Buffoni, iq_132 |
| name | starzan on ProgettoEMMA starzan on Arcade Database |
| description | Super Tarzan (Italy, V100I) |
| year | 2000 |
| manufacturer | IGS / G.F. Gioca |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | IGS custom 025 | u4 | main | |
| 1x | IGS custom 031 | u12 | Video GFX | |
| 1x | Z8018008PSC | u16 | 8-bit Microprocessor - sound | |
| 1x | K668 | u17 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | oscillator | 16.000 | x1 | main |
| 1x | oscillator | 22.000 | u14 | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MX28F200P | u9 | dumped |
| 1x | IGS S2102 | u8 | not dumped |
| 1x | TB27C4096 | u2 | dumped |
| 1x | MASKROM DIP42-600mil | u3 | not dumped |
| 1x | IGS T2105 | u11 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | LP61256GS | u13 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE22V10H | u10,u20 | read protected |
Others
1x 36x2 edge connector
1x 10x2 edge connector
1x trimmer (volume)
1x pushbutton
3x 8x2 switches dip
1x battery 3.6V
Notes
Working
Files
-

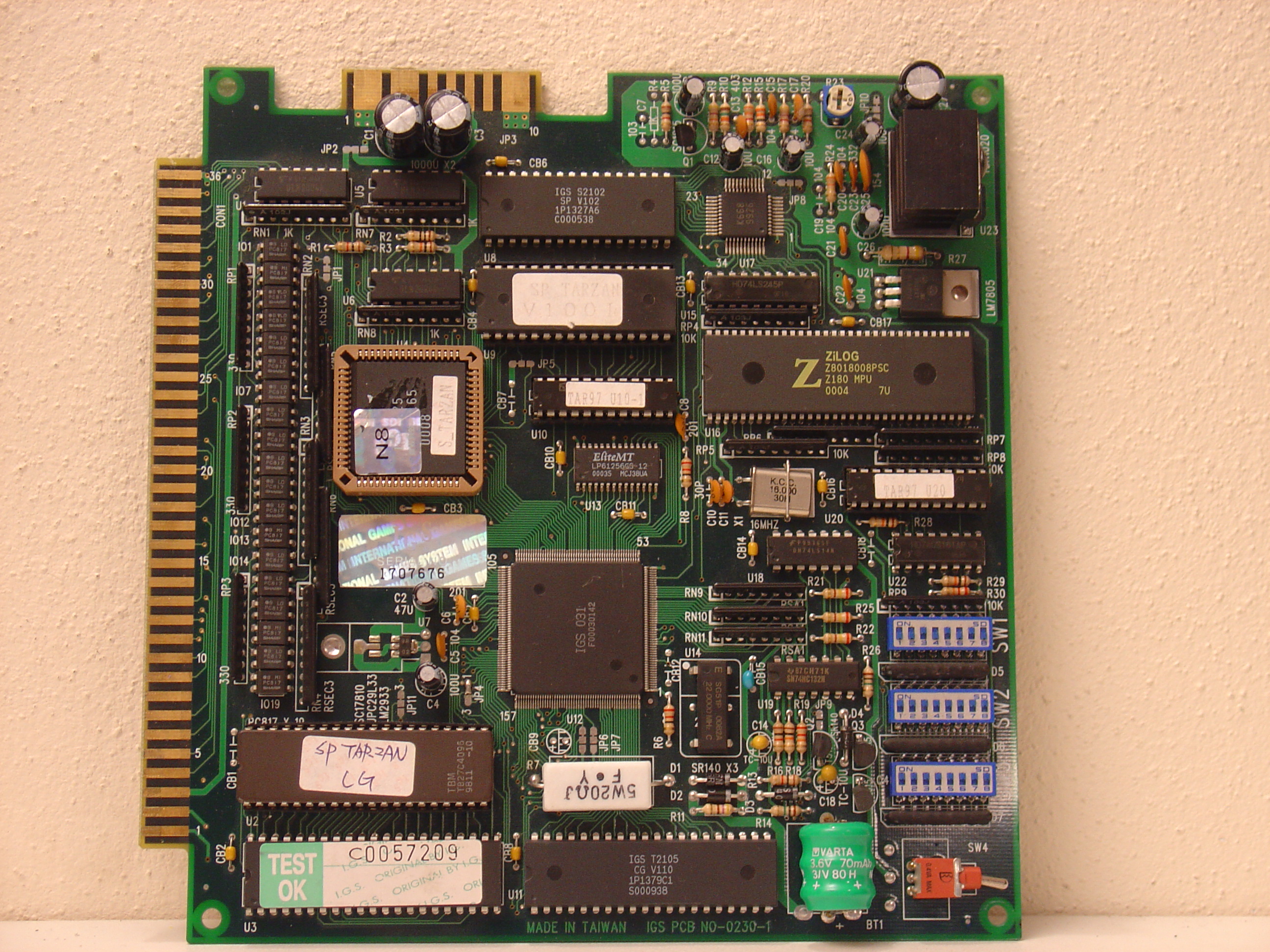

PCB component side
-

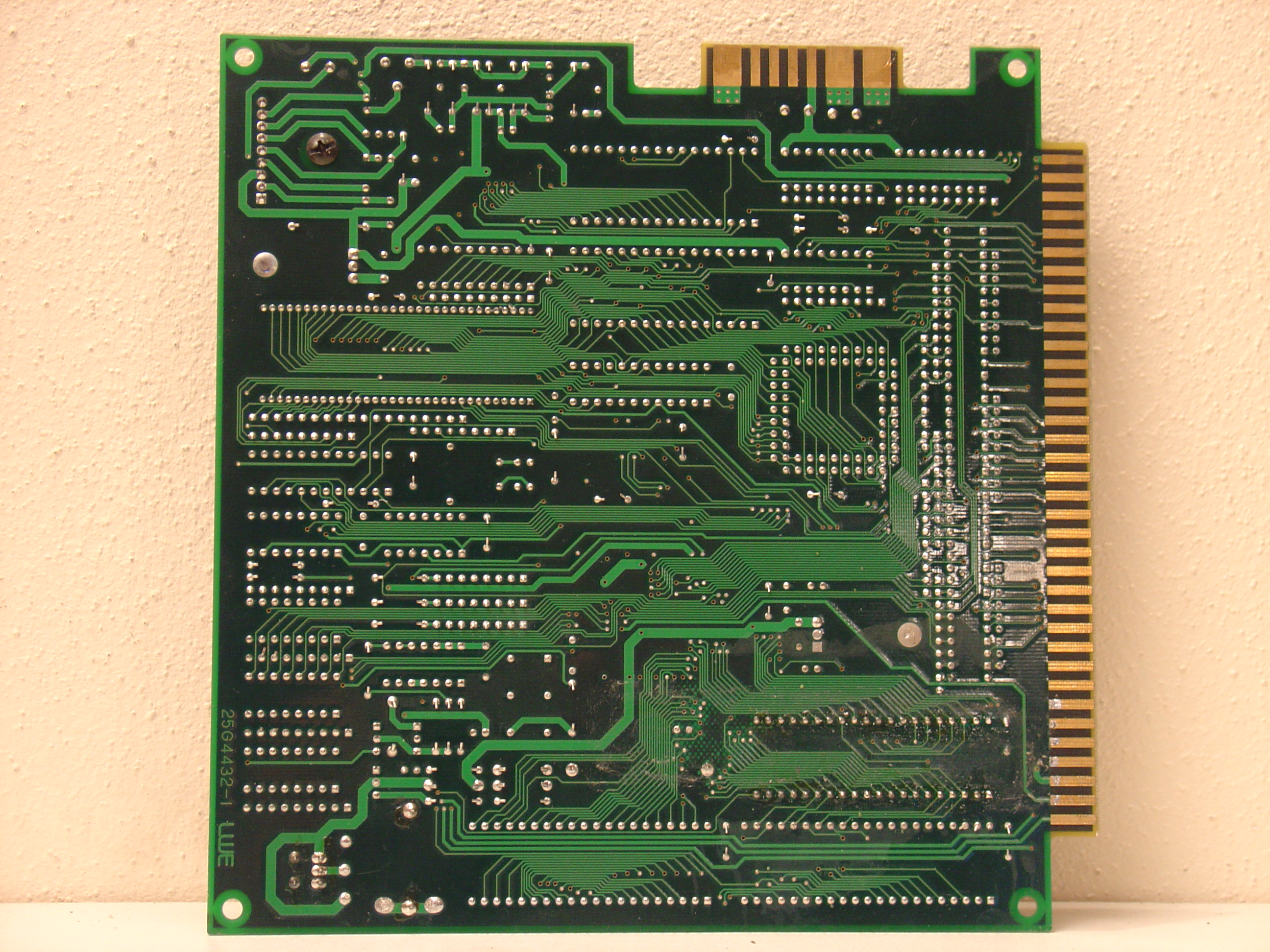

PCB solder side
-

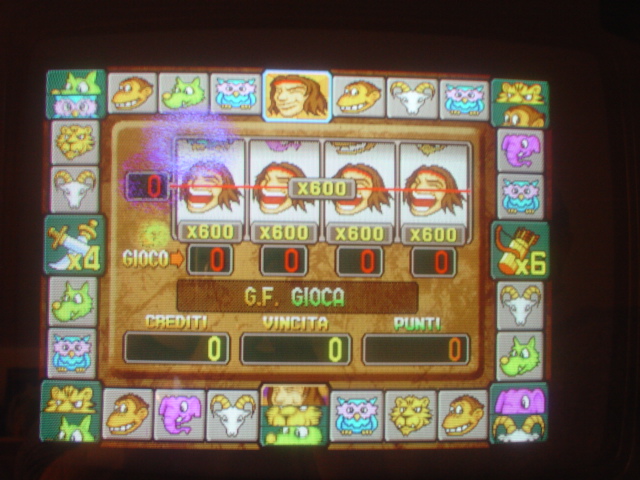

In game 1
-

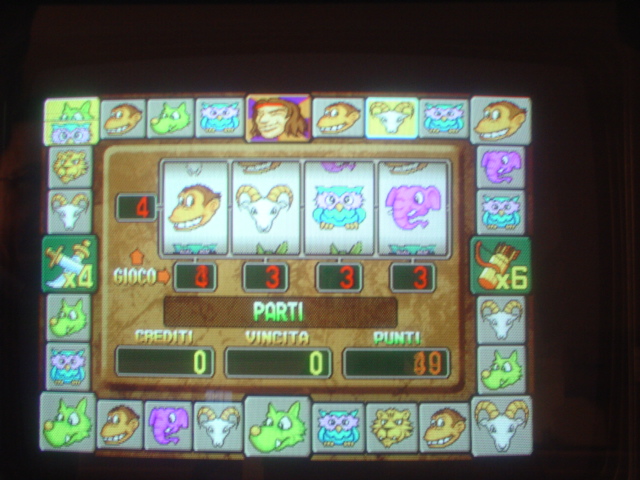

In game 2
-

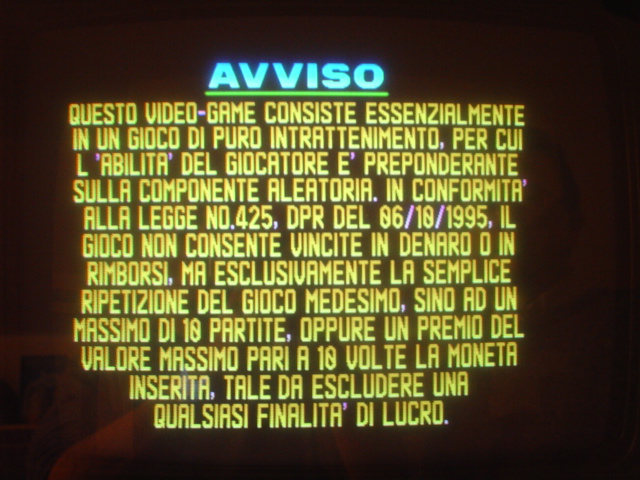

Disclaimer
-

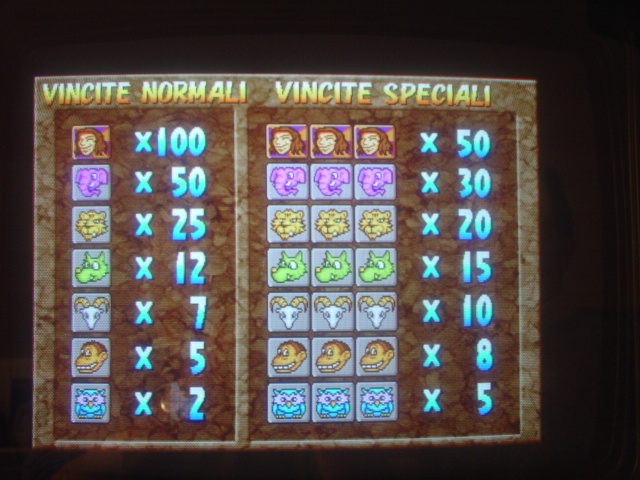

Attract mode 1
-

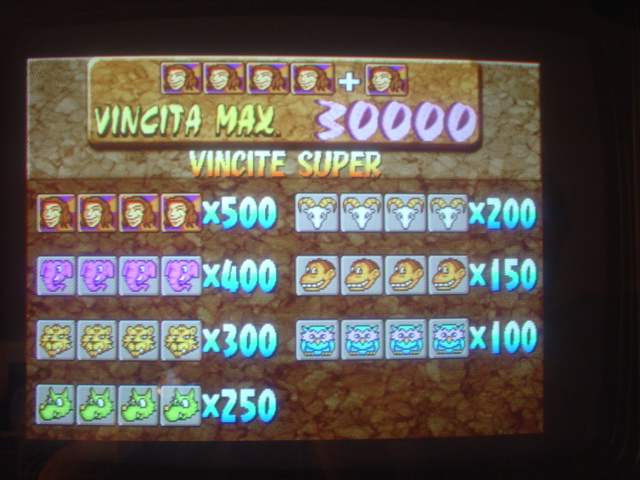

Attract mode 2
-

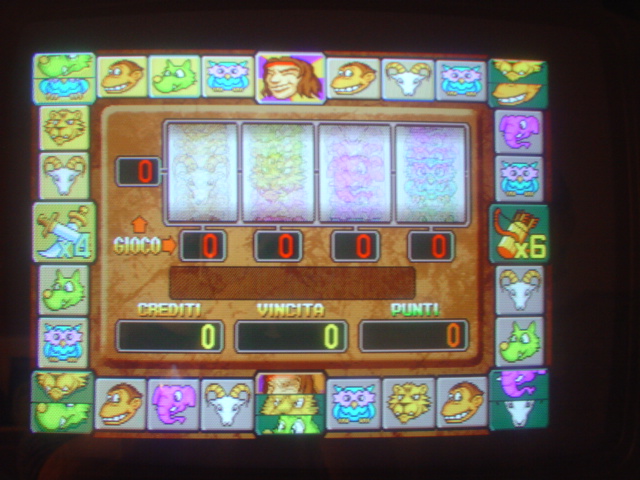

Attract mode 3
-

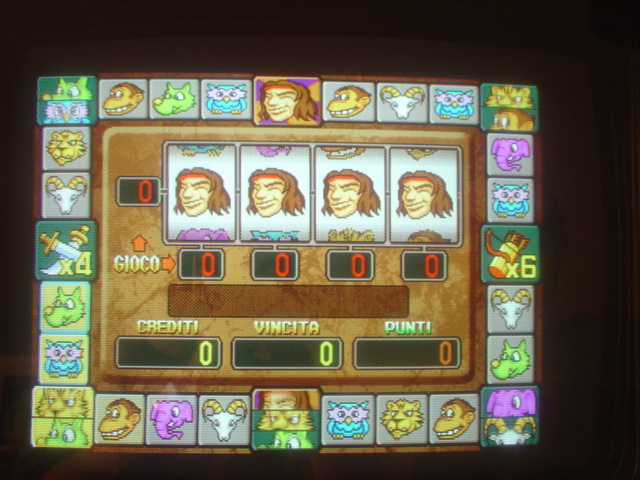

Attract mode 4
-

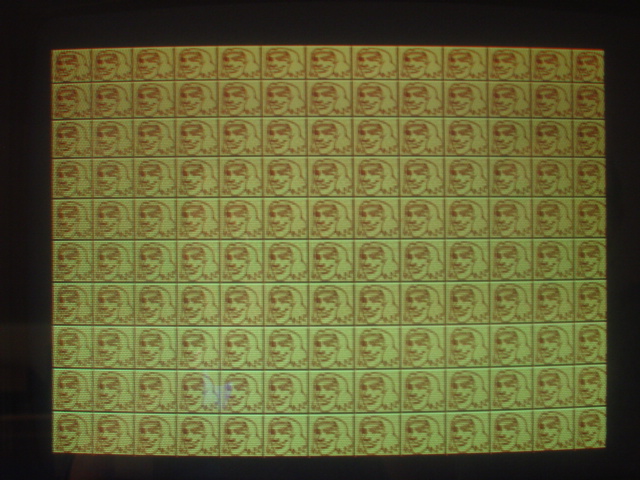

Attract mode 5
-

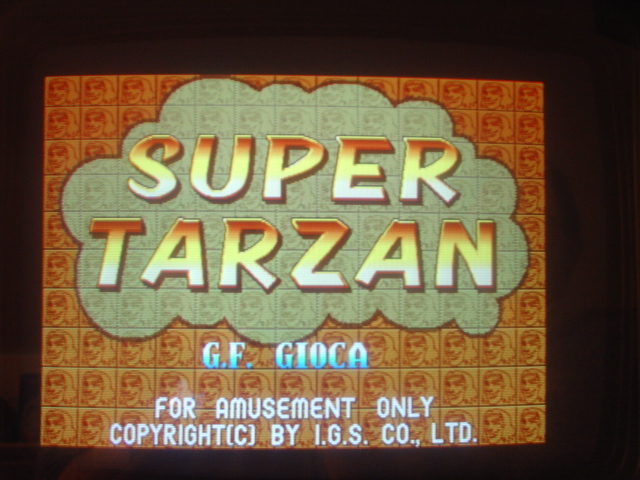

Title
-
Read me
