Super Slam (set 3)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 17/11/2015 |
| emulator | MAME 0.169 |
| dev | David Haywood |
| name | sslamb on ProgettoEMMA sslamb on Arcade Database |
| description | Super Slam (set 3) |
| year | 1993 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000Cp12 | 16/32-bit Microprocessor - main | ||
| 1x | OKI M6295 | IO12 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | S87C751 | MHz | u16 | 8-bit Microcontroller - sound (internal ROM not dumped) |
| 1x | LM358-KA358 | u16 | Dual Operational Amplifier - sound | |
| 1x | blu resonator | 1000J | Y1 | |
| 1x | oscillator | 12.000 | Y2 | |
| 1x | oscillator | 26.000 | Y3 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | AM27C040 | 20-24 | dumped |
| 6x | M27C4001 | 25-30 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | HM3-65728BK-5 | |
| 2x | KM62256BLP-7L |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 4x | GAL22V10B-25LP | read protected | |
| 1x | GAL16V8-20LNC | read protected |
Others
1x 28x2 JAMMA edge connector
2x 10 legs connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Files
-

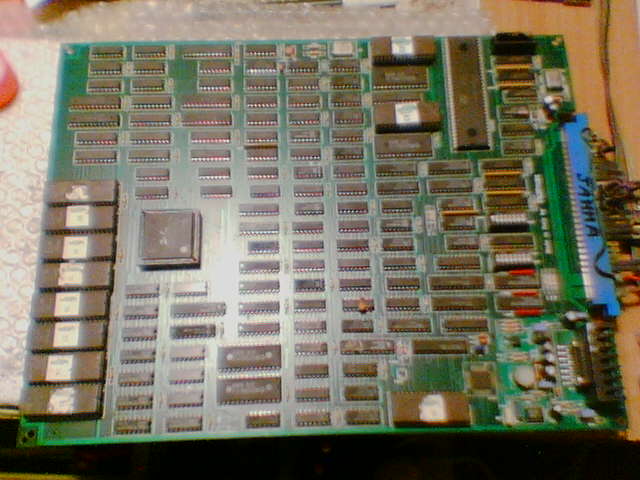

PCB component side 1
-

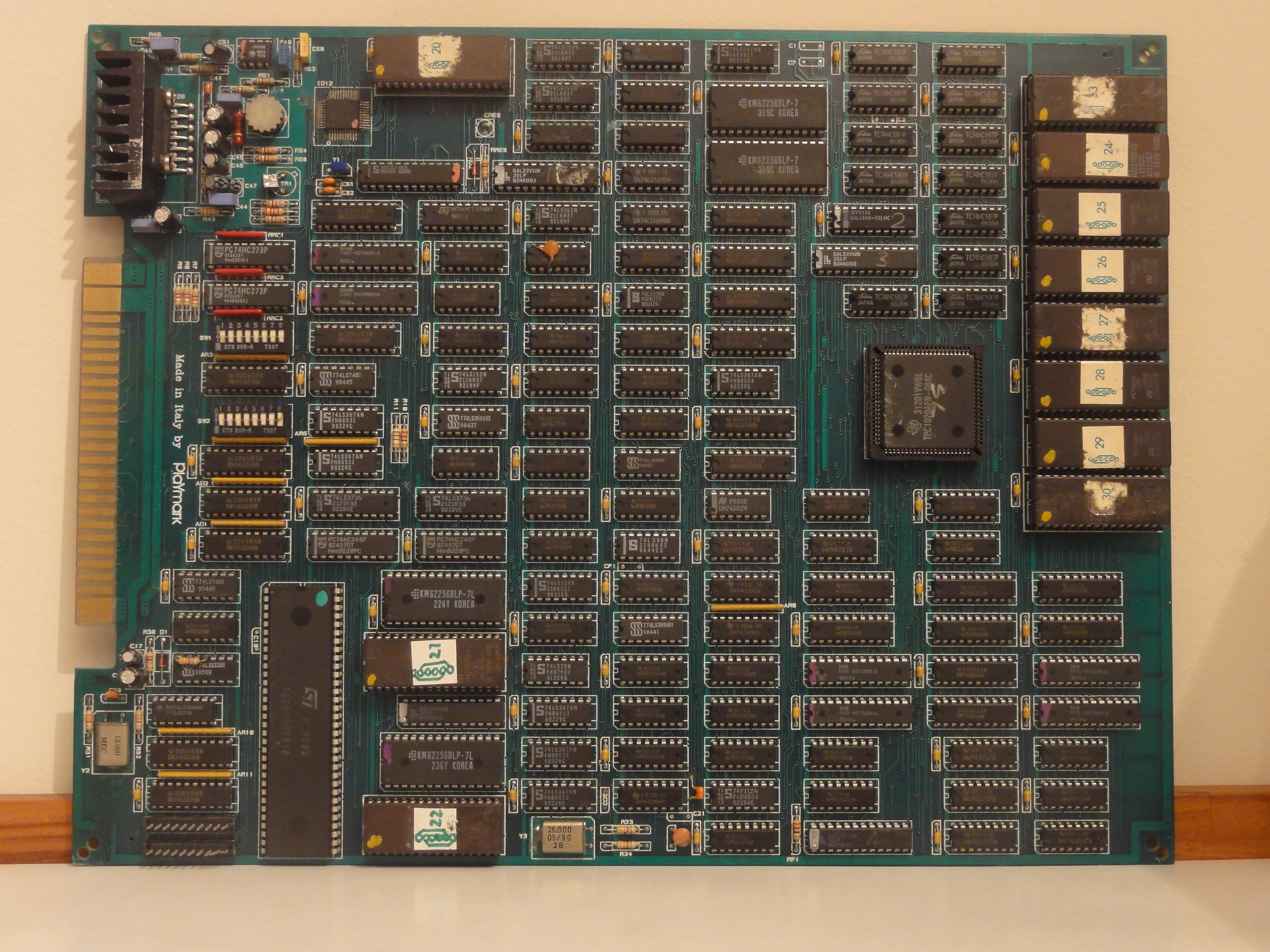

PCB component side 2
-

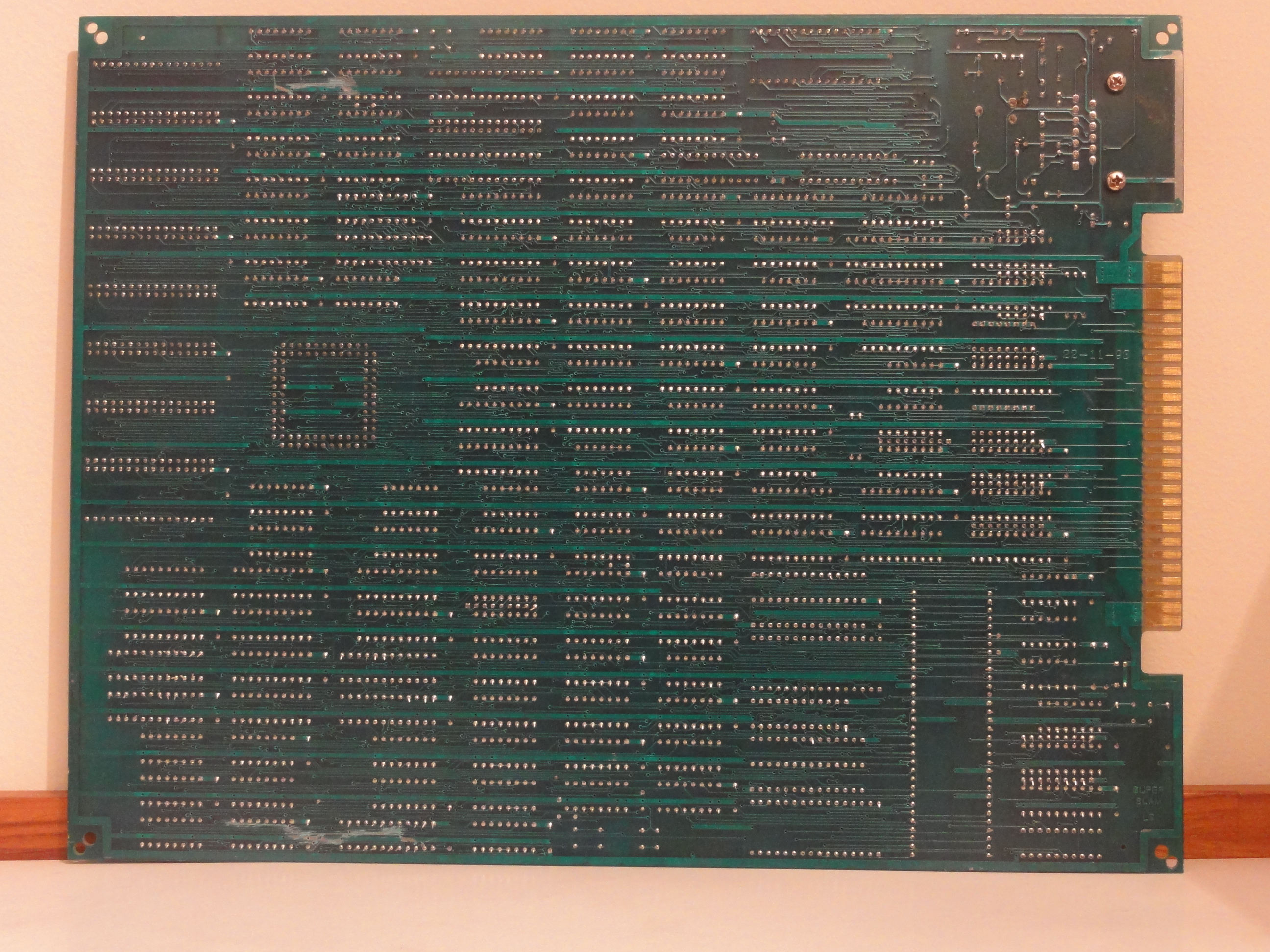

PCB solder side
-

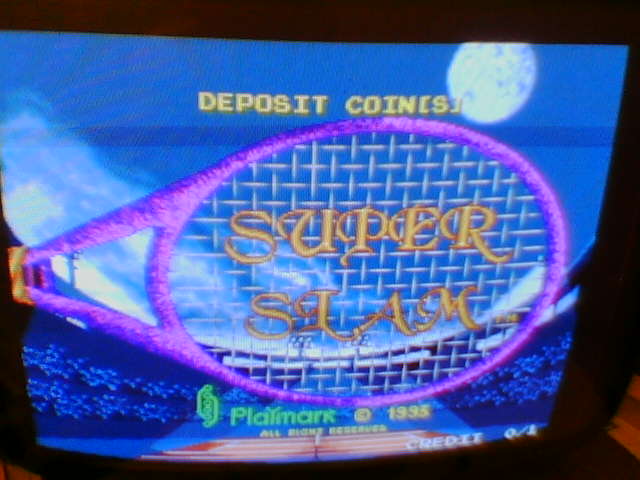

Title
-

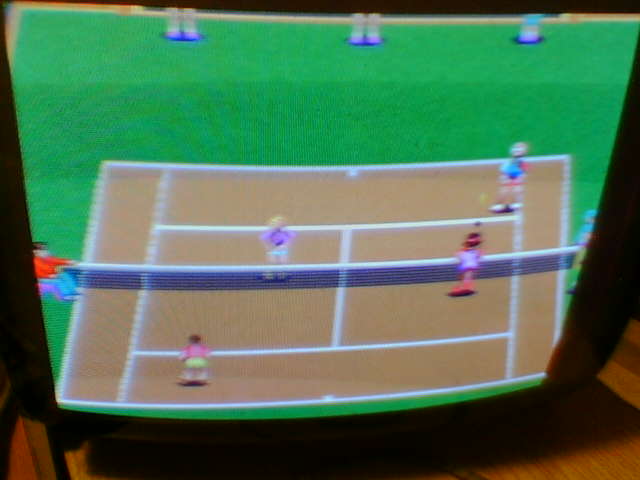

In game
