Super Pool 99 (Version 0.36)
From Citylan
Jump to navigationJump to search
| dumper | F205V |
| date | 18/04/2008 |
| emulator | MAME 0.128u6 |
| dev | David Haywood,Angelo Salese |
| name | spool99 on ProgettoEMMA spool99 on Arcade Database |
| description | Super Pool 99 (Version 0.36) |
| year | 1998 |
| manufacturer | Electronic Projects |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z84C00BC6 | 7.155MHz(@7) | u1 | 8-bit Microprocessor - main |
| 1x | U6295 | 997kHz(@5) - 999kHz(@6) PIN 3 HI | u30 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound |
| 1x | LM358 | - | u31 | Dual Operational Amplifier - sound |
| 1x | TDA2003 | - | u33 | Audio Amplifier - sound |
| 1x | oscillator | 14.318180 | ||
| 1x | green resonator | 1000 | X1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C512 | u2 | dumped - main |
| 1x | W27E02 | u32 | dumped - sound |
| 1x | W27E040 | u15 | dumped - GFX |
| 1x | ST93C46 | u39 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | D43256BGU-70LL | u20,u21,u29,u37 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI1032E-70LJ | u25 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 8 legs connector (JP2)
1x pushbutton
1x trimmer (volume)
1x red LED (D3)
1x battery 3.6V
Notes
PCB is marked: "10/01/1999", "Z80-CPU2", "CE" and "COMP" on component side
PCB is marked: "SALD" on solder side ("SALD" is the Italian for "Solder")
update 20210220: new pics, better description, verified clocks
Files
-

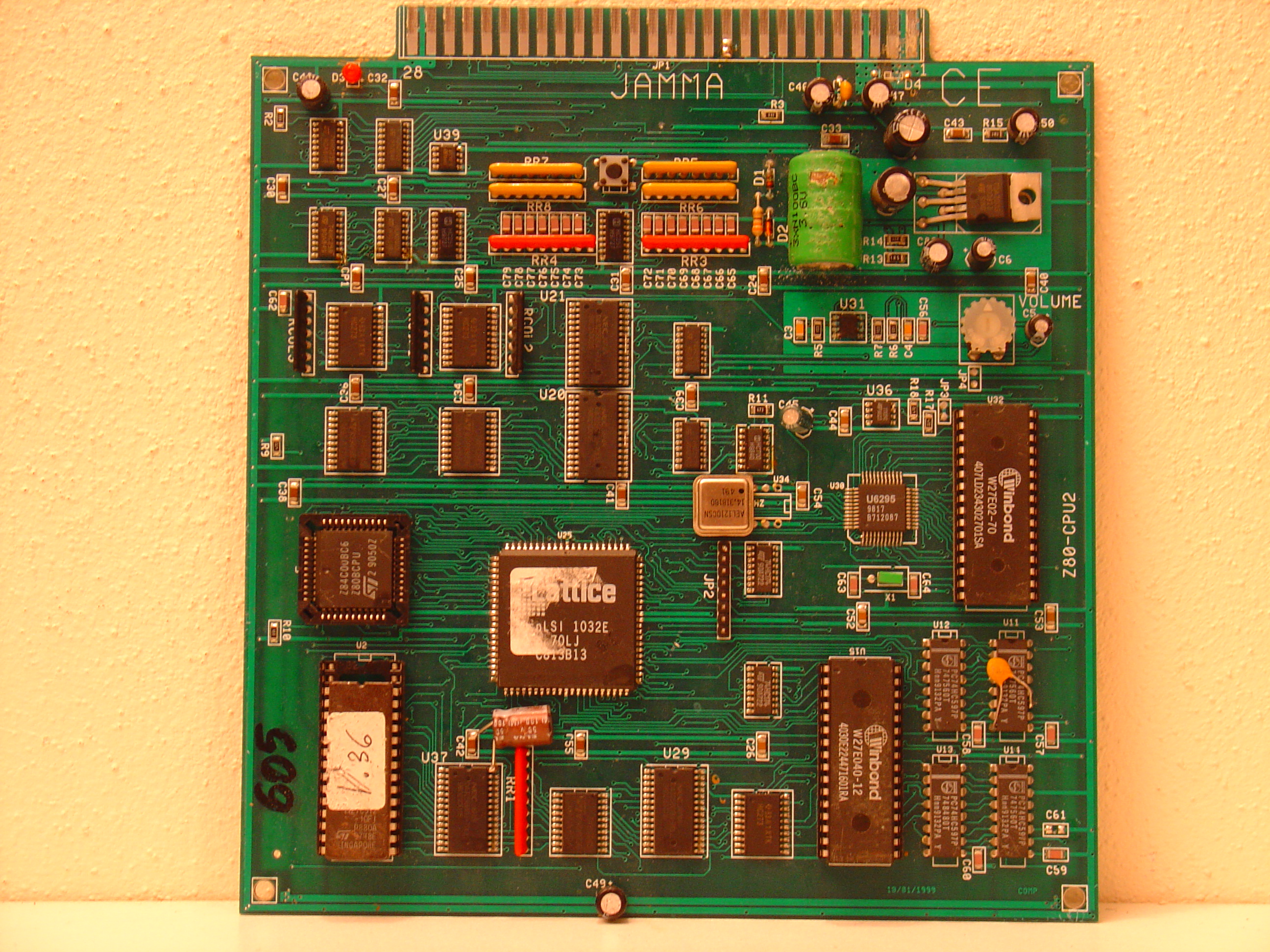

PCB component side 1
-

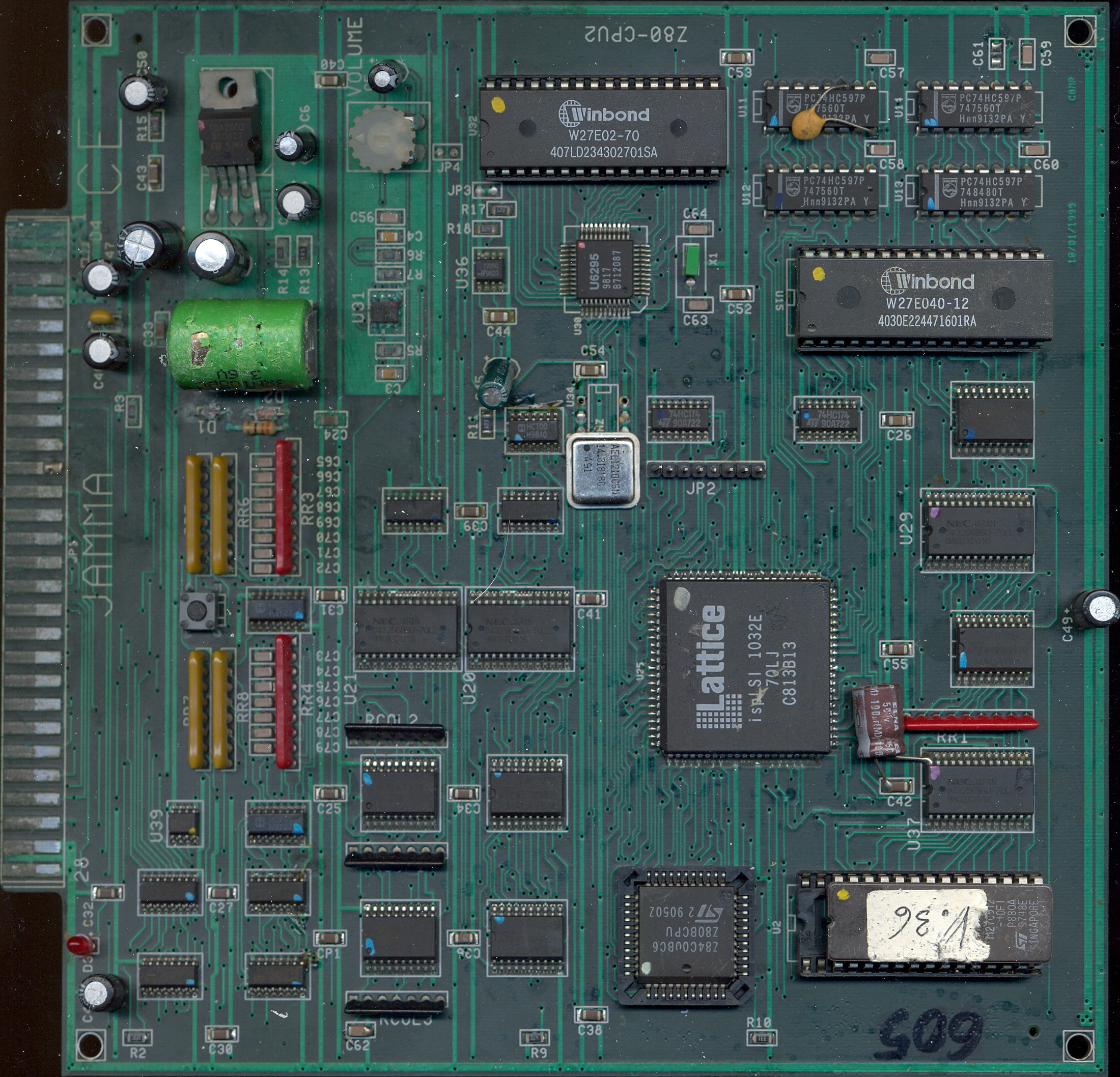

PCB component side 2
-
PCB solder side 1
-

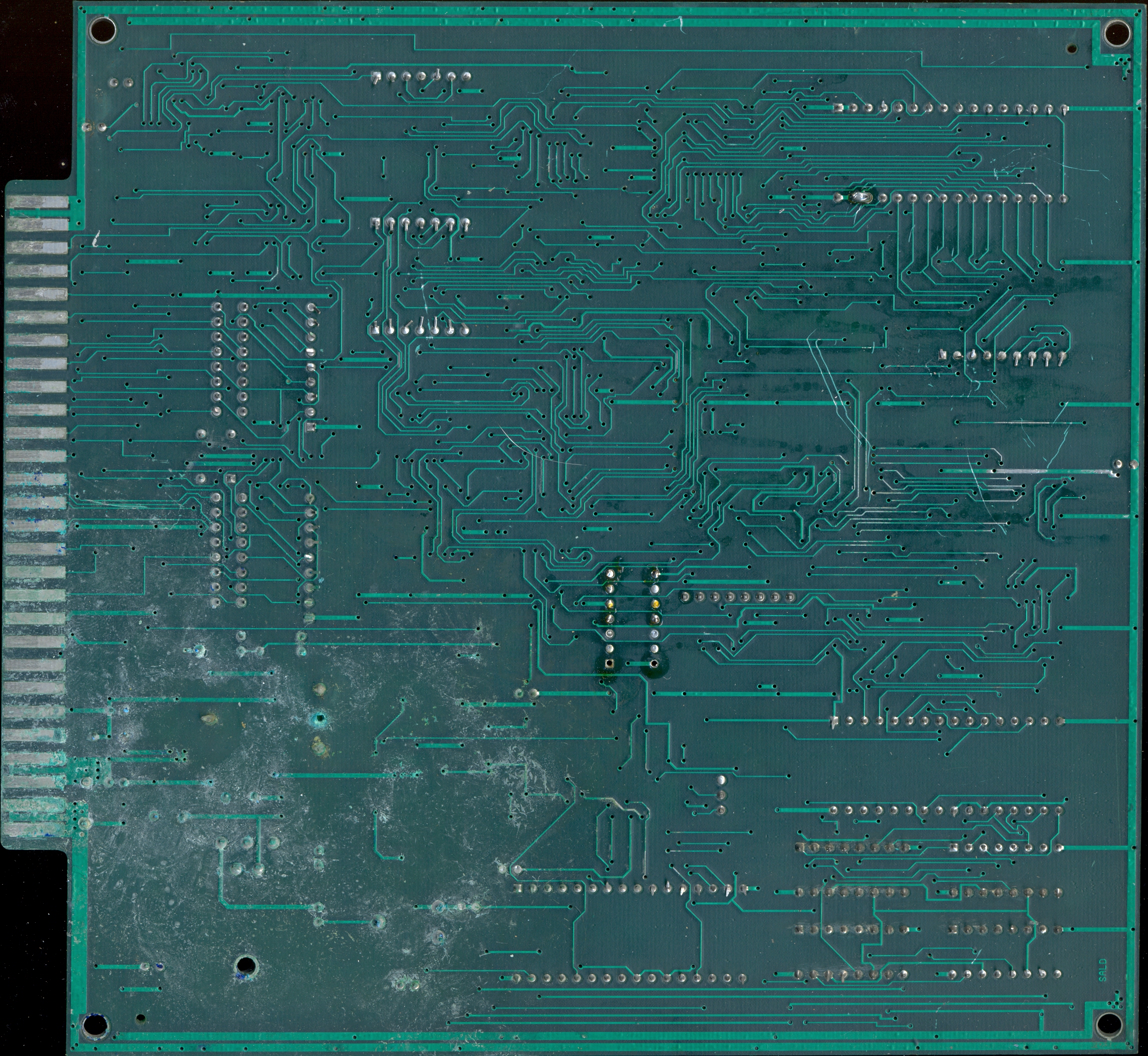

PCB solder side 2
