Super Pool 99 (Version 0.31)
From Citylan
Jump to navigationJump to search
| dumper | F205V |
| date | 06/09/2008 |
| emulator | MAME 0.128u6 |
| dev | David Haywood,Angelo Salese |
| name | spool99b on ProgettoEMMA spool99b on Arcade Database |
| description | Super Pool 99 (Version 0.31) |
| year | 1998 |
| manufacturer | Electronic Projects |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z84C00BC6 | u1 | 8-bit Microprocessor - main | |
| 1x | U6295 | u30 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358 | u31 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u33 | Audio Amplifier - sound | |
| 1x | oscillator | 3.18180 | ||
| 1x | resonator | 1000 | green | X1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | NM27C010Q | u2 | dumped - main |
| 1x | 27C020 | u32 | dumped - sound |
| 1x | 27C040 | u15 | dumped - GFX |
| 1x | 93C46 | u39 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | D43256BGU-70LL | u20,u21,u29,u37 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI1032E-70LJ | u25 | read protected |
Others
1x 28x2 JAMMA edge connector
1x pushbutton
1x trimmer (volume)
1x red LED
1x battery
Notes
Files
-

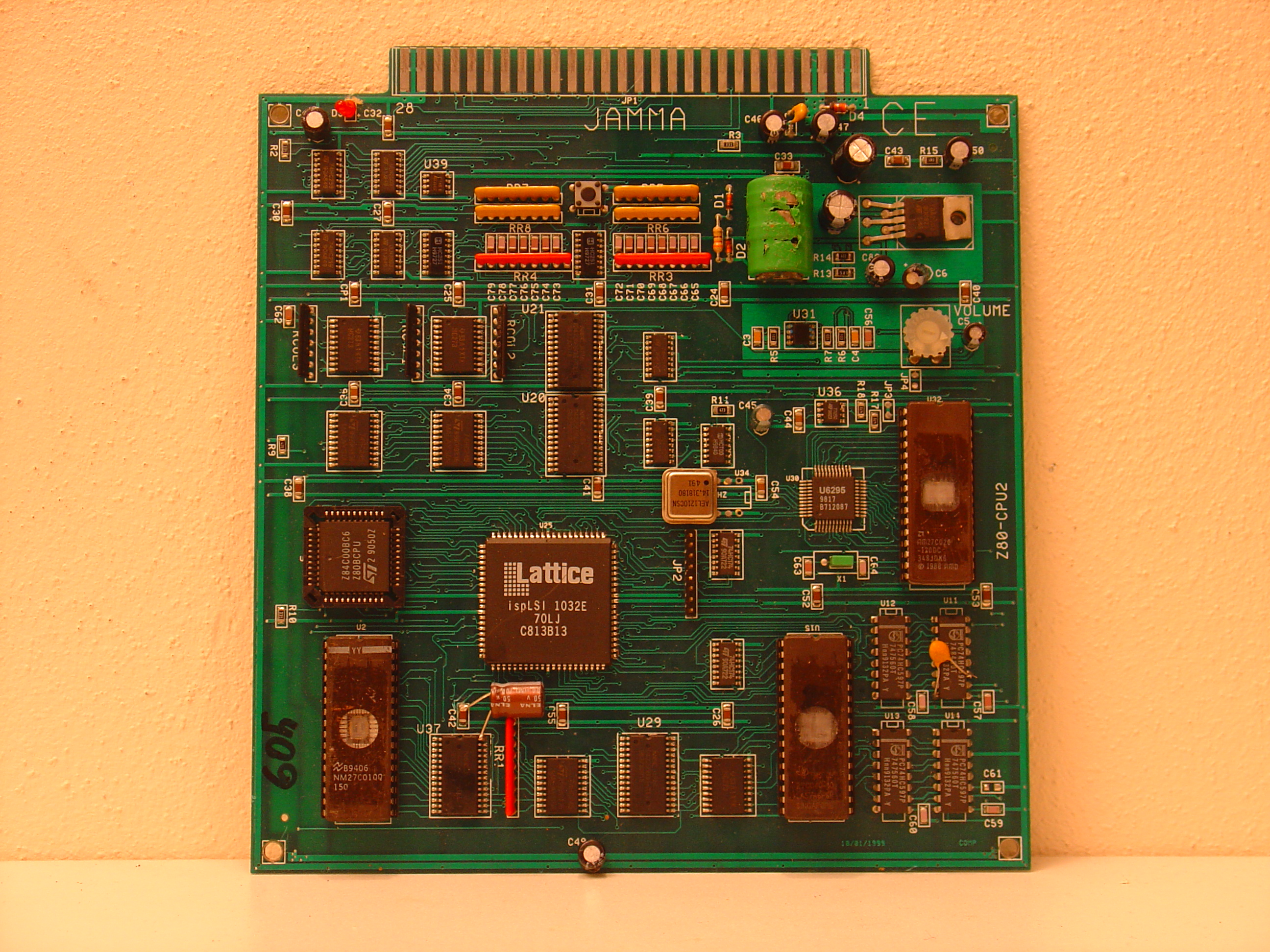

PCB component side
-

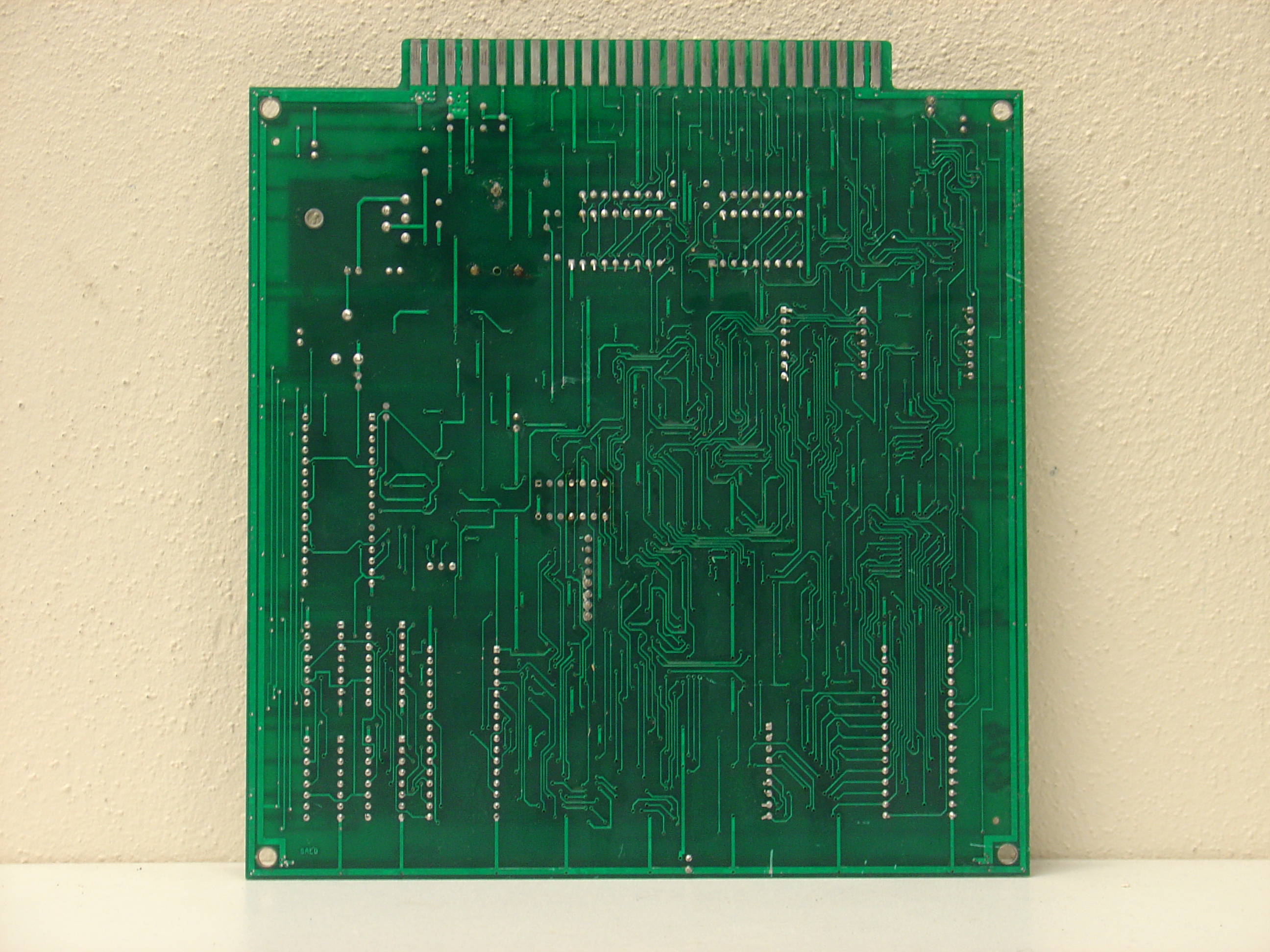

PCB solder side
