Super Pool (ver. 1.2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 23/03/2007 |
| emulator | MAME 0.117 |
| dev | Roberto Fresca |
| name | |
| description | Super Pool (ver. 1.2) |
| year | 1998.07.09 |
| manufacturer | ABM Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000P10 | u1 | 16/32-bit Microprocessor - main | |
| 1x | HD6473308CP10 | u24 label: version 1.2 | 16-bit Single-Chip Microcomputer - main - NOT DUMPED | |
| 1x | U6295 | u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358 | u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u34 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | osc1 | |
| 1x | oscillator | 30.000MHz | osc2 | |
| 1x | blu resonator | 1000J | xtal1 close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C1001A | 2,3 main | dumped |
| 4x | TMS27C010A | 4,5,6,7 gfx | dumped |
| 1x | M27C2001 | 1 snd | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | W2465-10L | u4,u5,u43,u44 |
| 1x | 6116 | u6 |
| 2x | HM3-65728BK-5 | u61,u62 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ACTEL A1020B-PL84C | u50 | read protected |
| 1x | PALCE22V10H | u22 | read protected |
| 1x | PALCE16V8H | u54 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (J1)
1x trimmer (volume)(P1)
1x 8 DIP switches bank (DIP1)
1x battery 3V
Notes
PCB is marked: "OC ABM - 9743 Rev.01" and "lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "ls" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "CAUTION! DO NOT REMOVE THIS CHIP - ATTENZIONE! NON RIMUOVERE GAME:____ VERSION:_1.2_", "SUPER POOL GIULIA TI AMO" and "09/07/98" on component side
Update 20181104: found a second PCB for the same game. Confirmed dump and hardware description.
Files
-

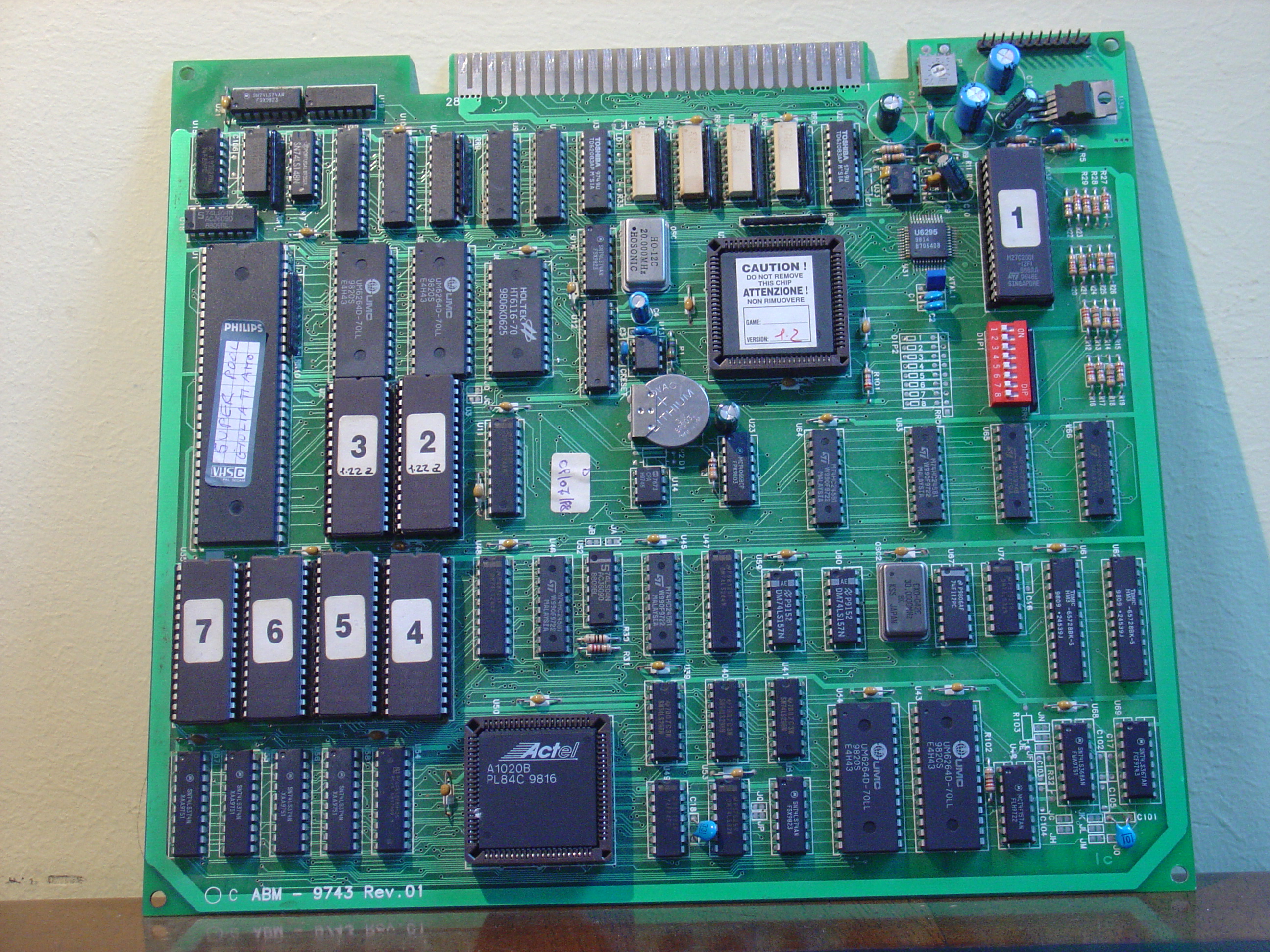

PCB component side
-

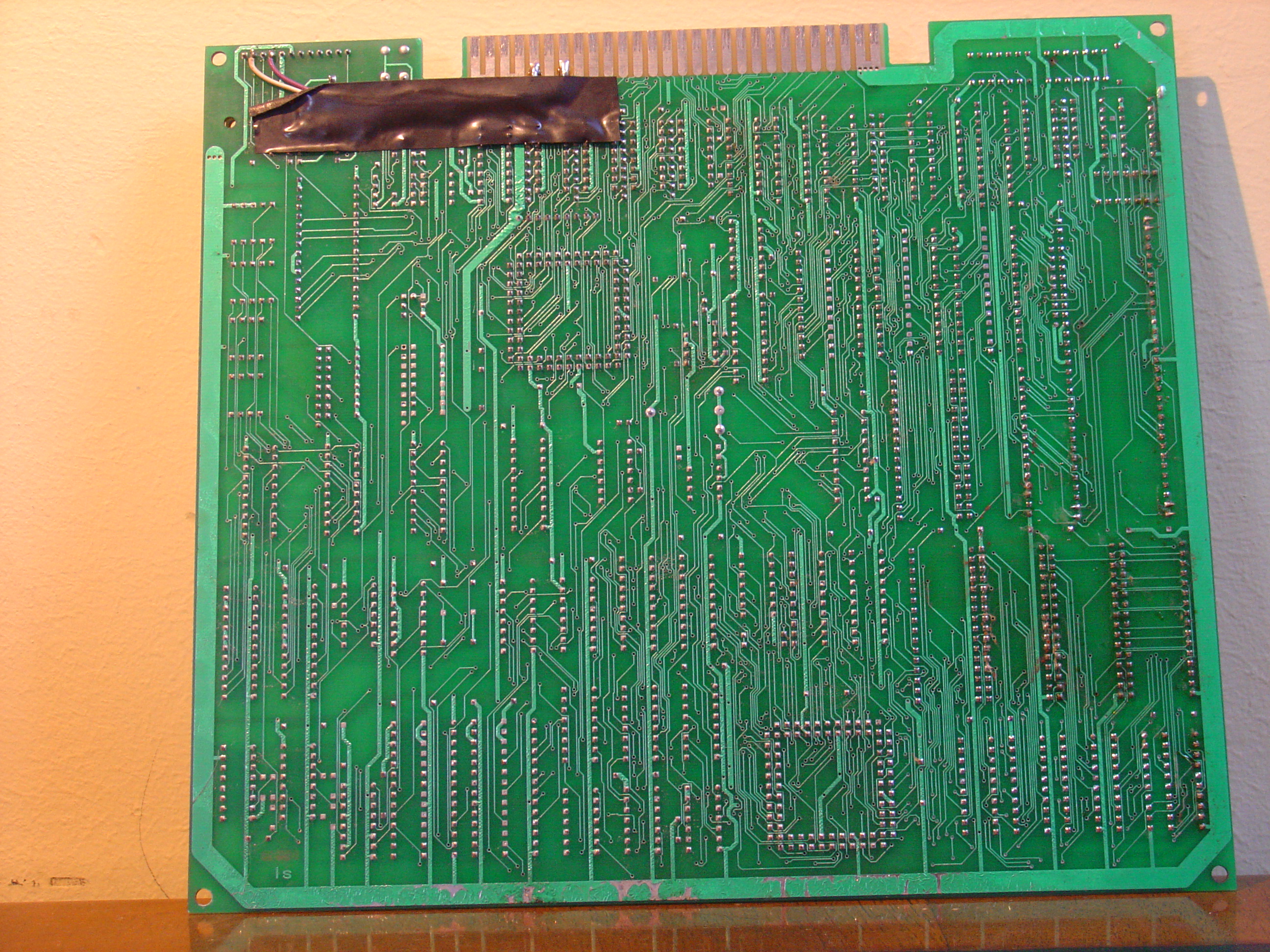

PCB solder side
-

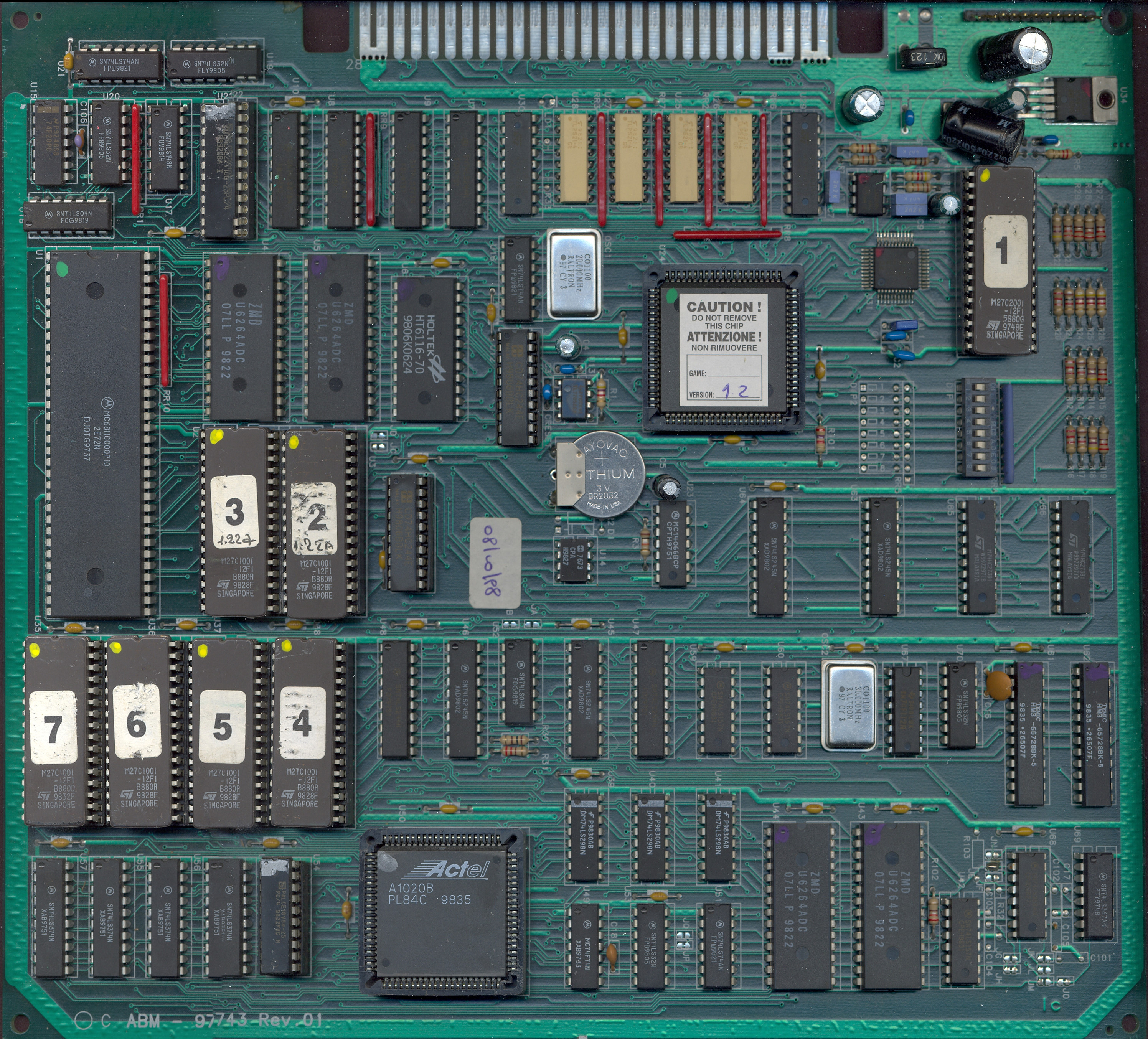

PCB 2 component side
-

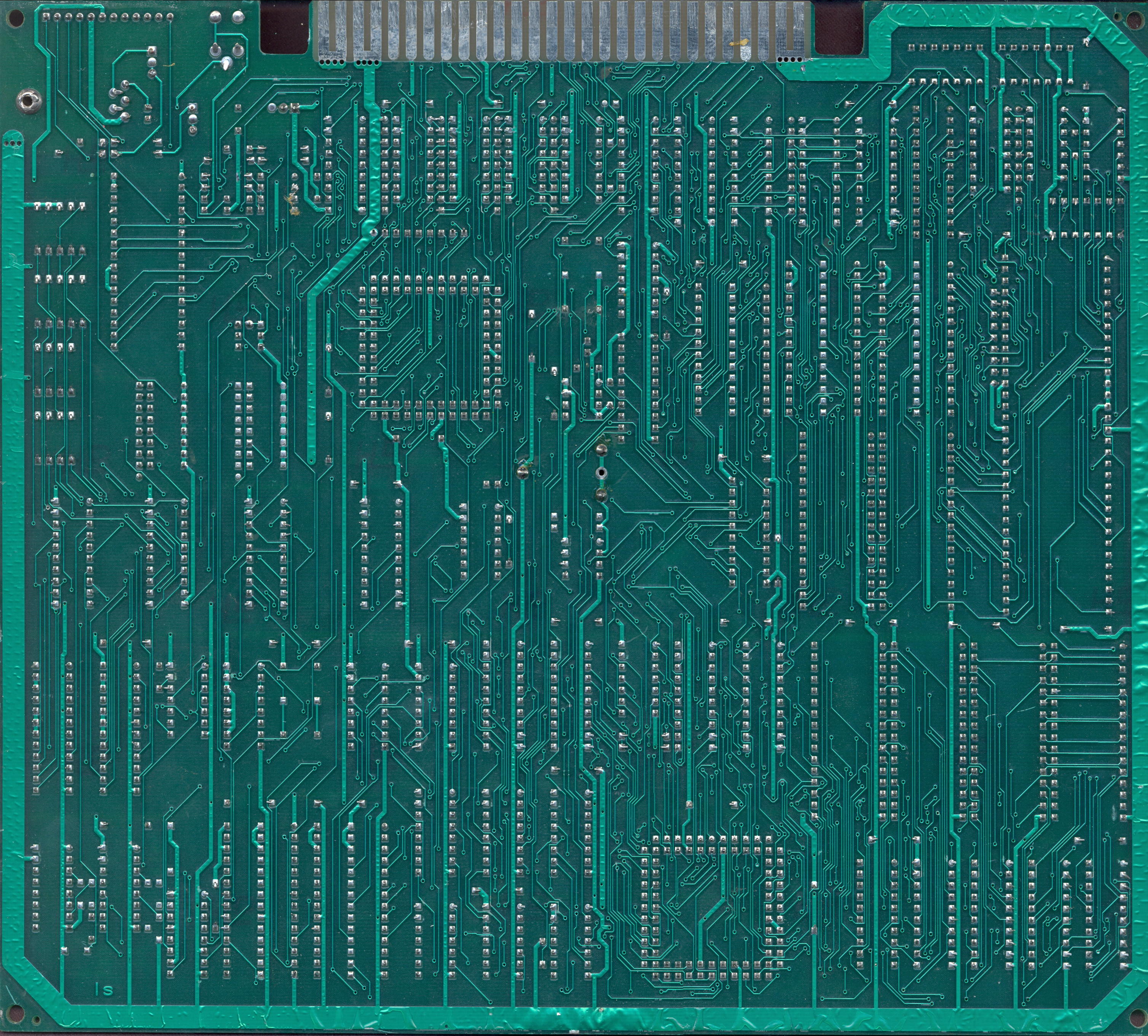

PCB 2 solder side
