Super Pang (World 900914, bootleg, set 1)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 11/09/2005 |
| emulator | MAME 0.119u3 |
| dev | David Haywood |
| name | spangbl on ProgettoEMMA spangbl on Arcade Database |
| description | Super Pang (World 900914, bootleg, set 1) |
| year | 1990 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840006PSC | 8-bit Microprocessor - main | ||
| 1x | Z0840006PSC | 8-bit Microprocessor - sound | ||
| 1x | M5205 | ADPCM Speech Syntesis IC - sound | ||
| 1x | YM2413 | FM Operator Type-LL - sound | ||
| 1x | LM324 | - | Quad Operational Amplifier - sound | |
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 29.700 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 16x | AM27C512 | 1,3-17 | dumped |
| 1x | AM27C020 | 2 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | GAL16V8A | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
1x 8 DIP switches bank
Notes
Files
-

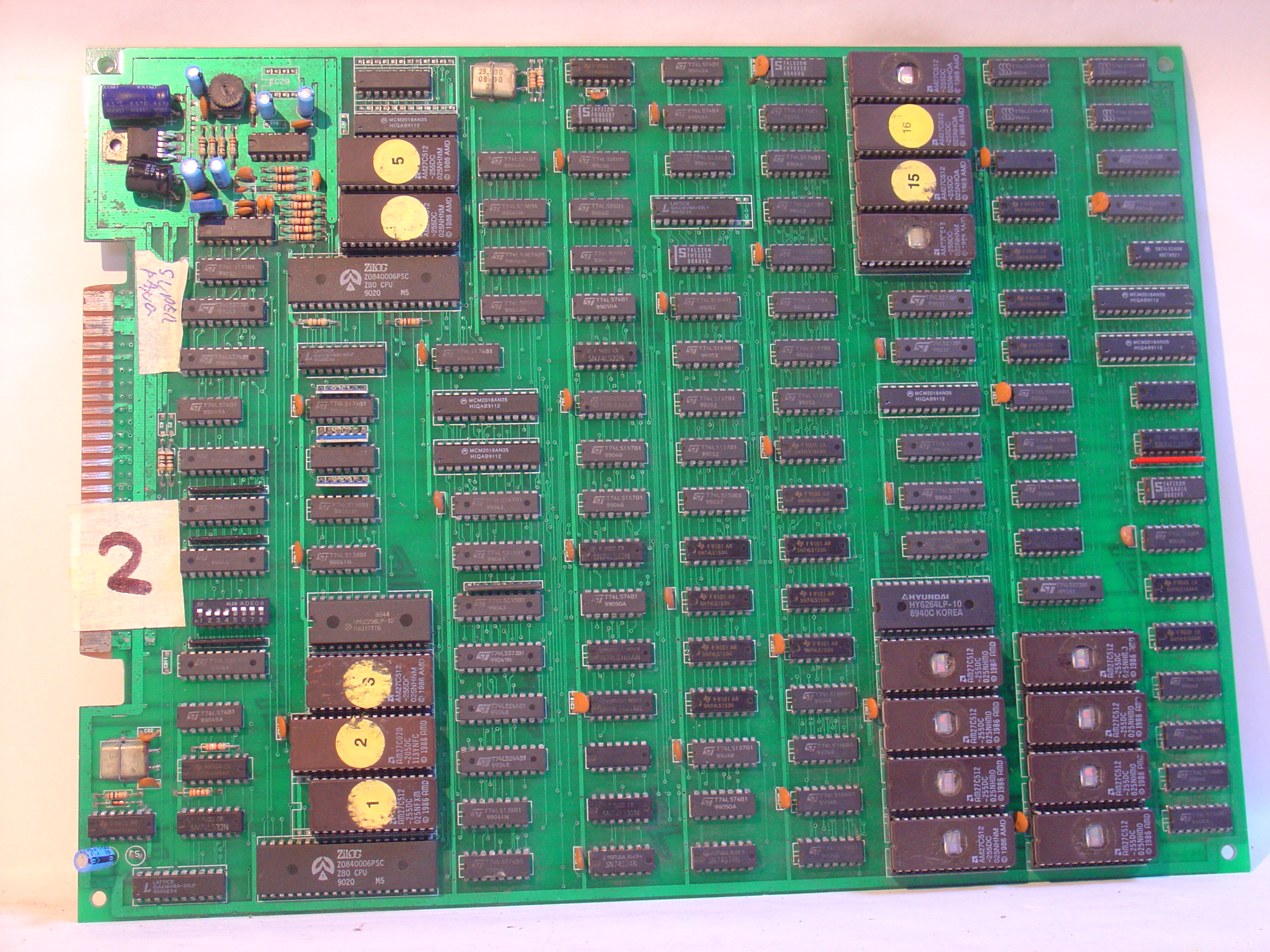

PCB component side
-

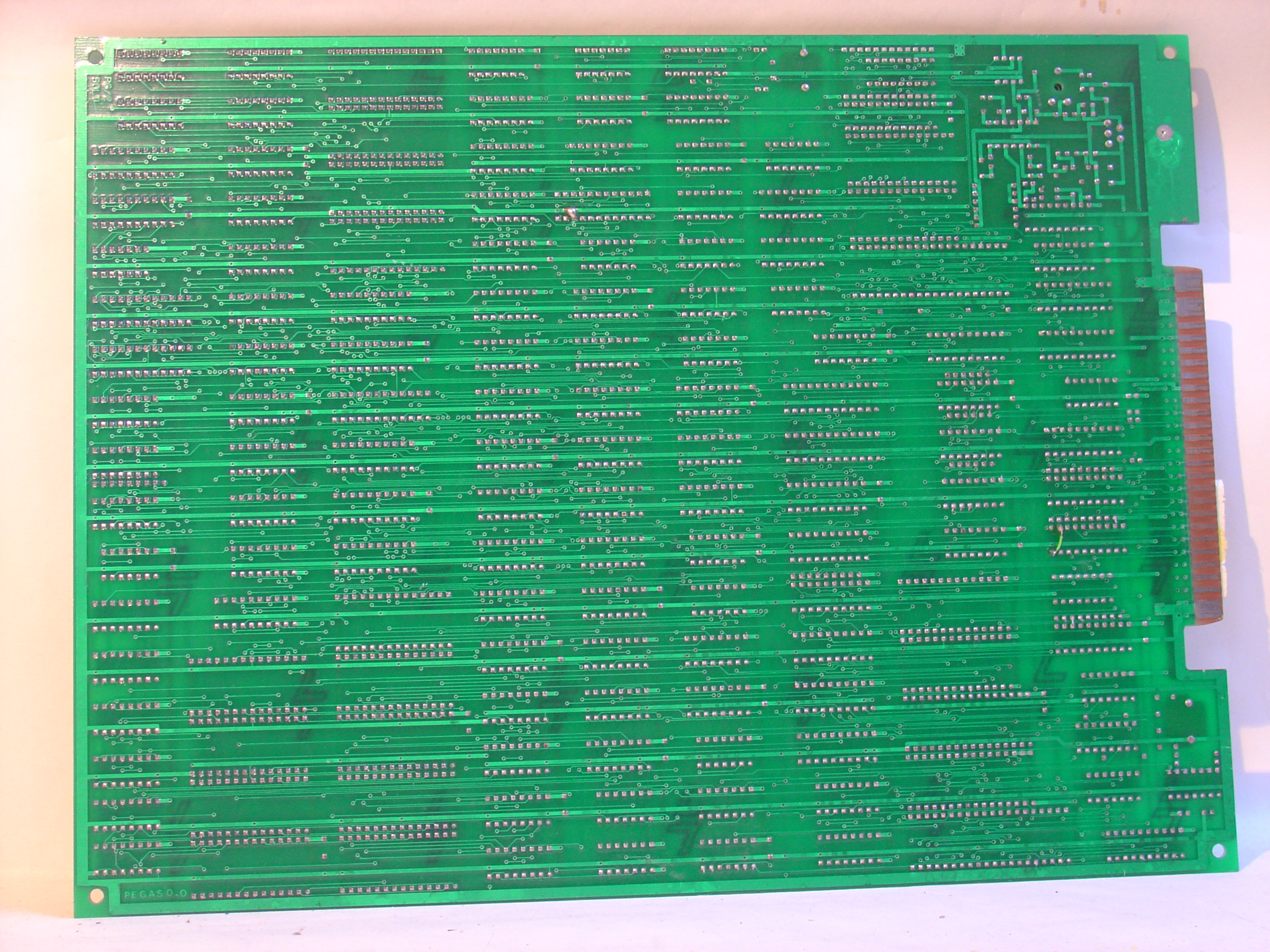

PCB solder side
-
