Super Gran Safari (ver 3.11)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 01/09/2008 |
| emulator | MAME 0.127u3 |
| dev | Roberto Fresca |
| name | sgsafari on ProgettoEMMA sgsafari on Arcade Database |
| description | Super Gran Safari (ver 3.11) |
| year | 1996 |
| manufacturer | New Impeuropex Corp. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 16/32-bit Microprocessor - main | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | TDA2002 | Audio Amplifier - sound | ||
| 1x | GL324 | Quad Operational Amplifier - sound | ||
| 1x | oscillator | 30.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C512 | 1,2 | dumped |
| 4x | M27C1001 | 4,5,6,7 | dumped |
| 1x | M27C2001 | 3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | GM76C88AL-15 | |
| 1x | M48Z02 | u37 dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | A1020B-PL84C | read protected |
Others
1x 28x2 JAMMA edge connector (J1)
1x 12 legs connector (J2)
1x 4 legs connector (J3)
1x 2 legs connector (J4)
1x trimmer (volume)
1x 8 DIP switches bank
Notes
PCB is marked: "COMP01" and "ALL.01A" on component side
PCB is labelled: "GRAN SAFARI ORIGINALE NEW IMPEUROPEX CORP. COPYRIGHT 1996 No. 9603125" and "SUPER GRAN SAFARI SPC46" on component side
Files
-

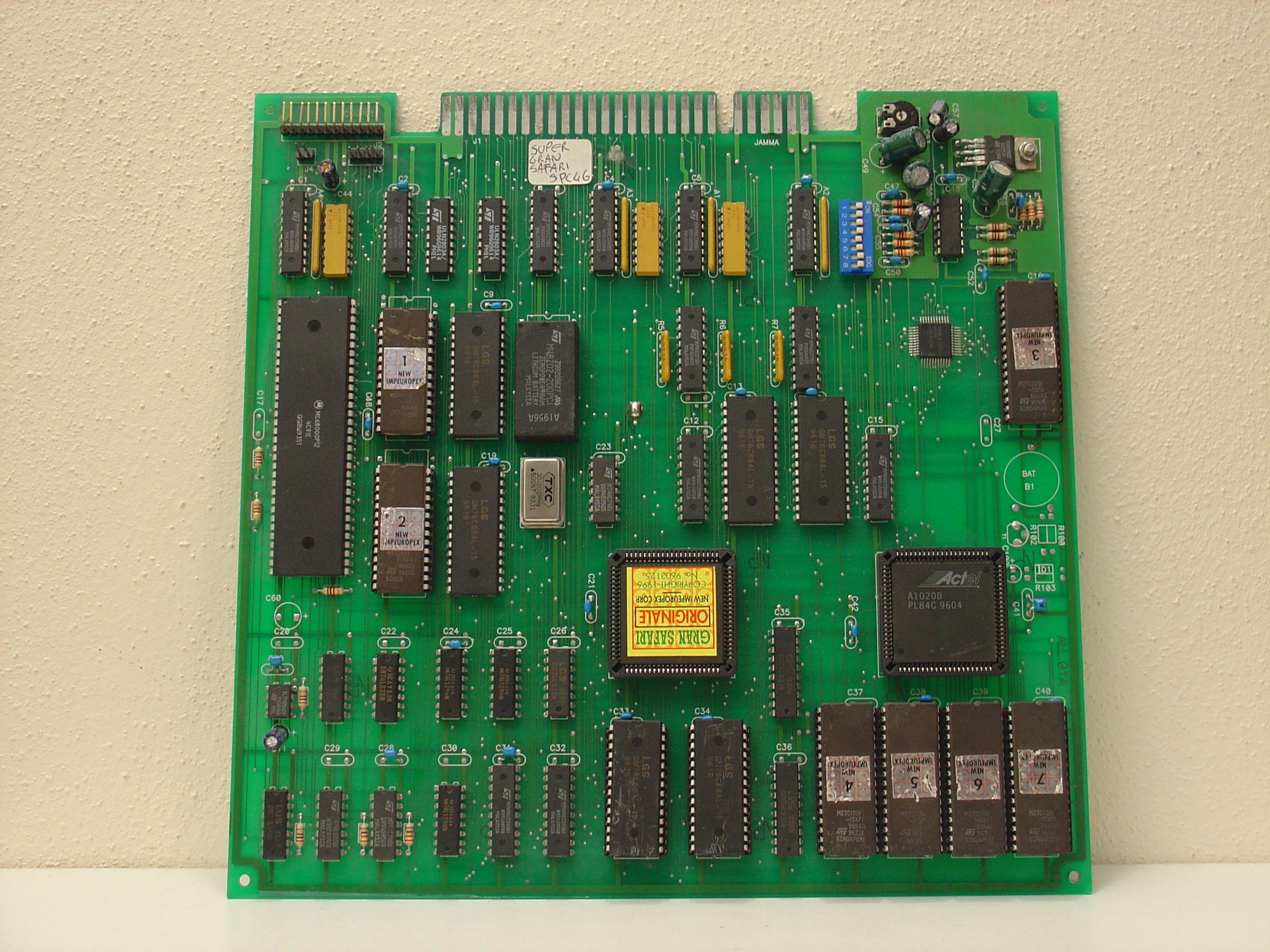

PCB component side
-

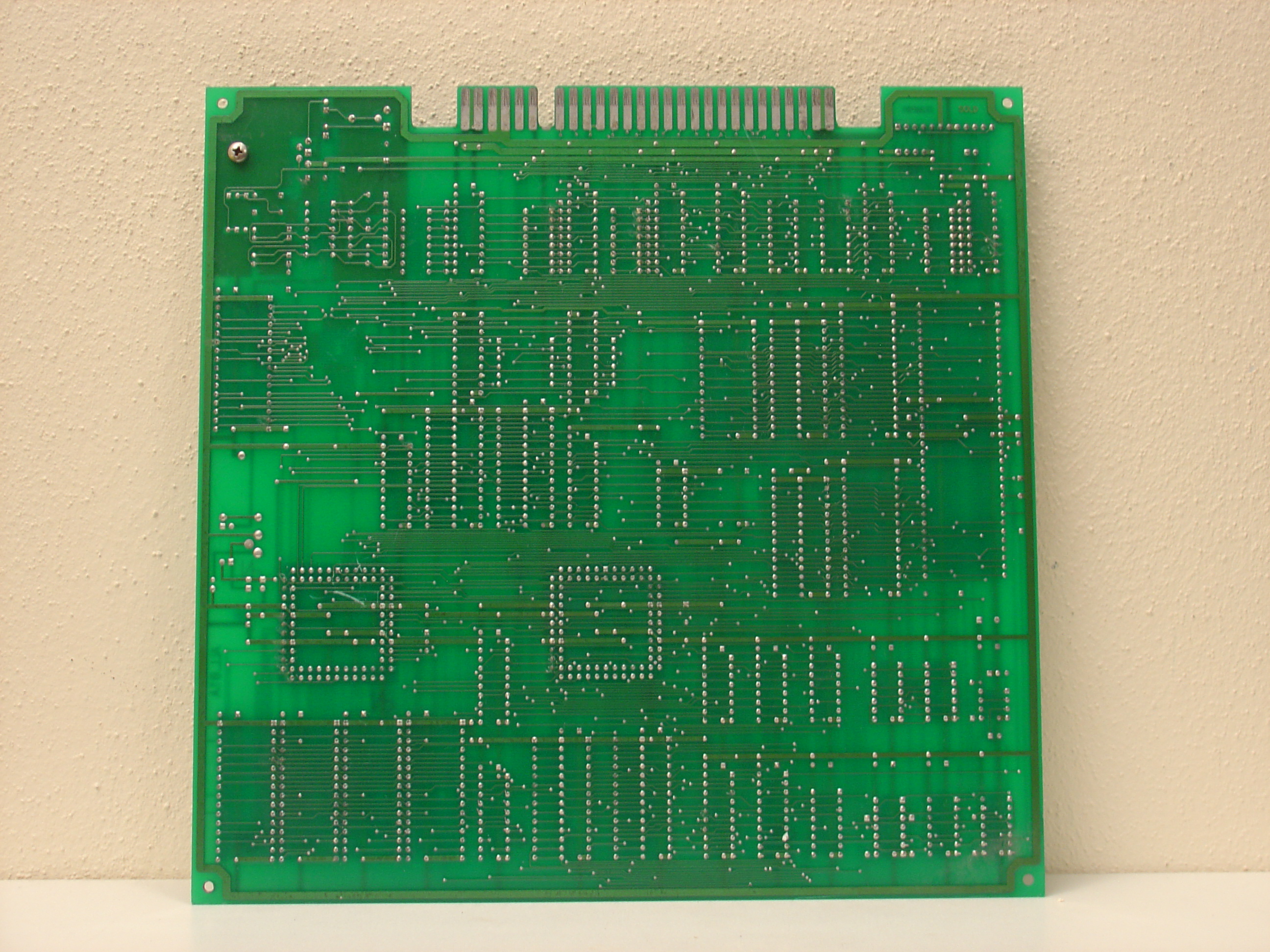

PCB solder side
-

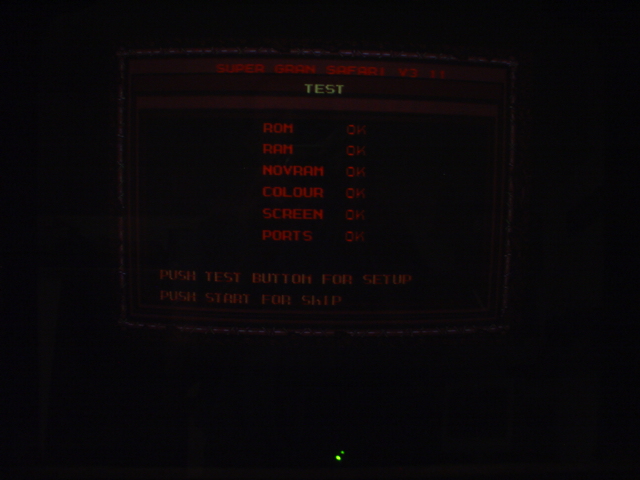

Boot screen
-

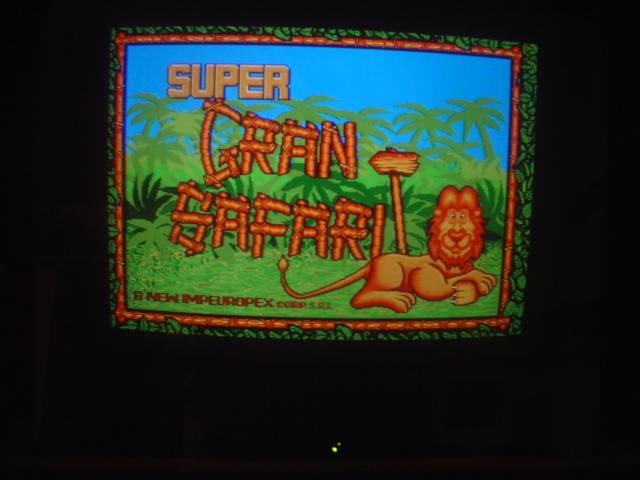

Title 1
-

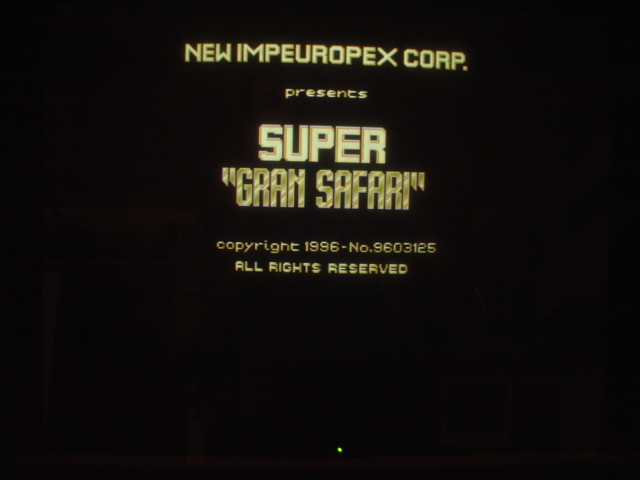

Title 2
-

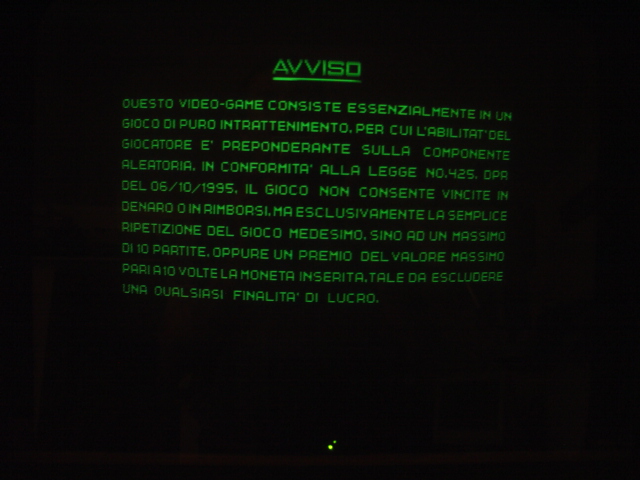

Disclaimer
-

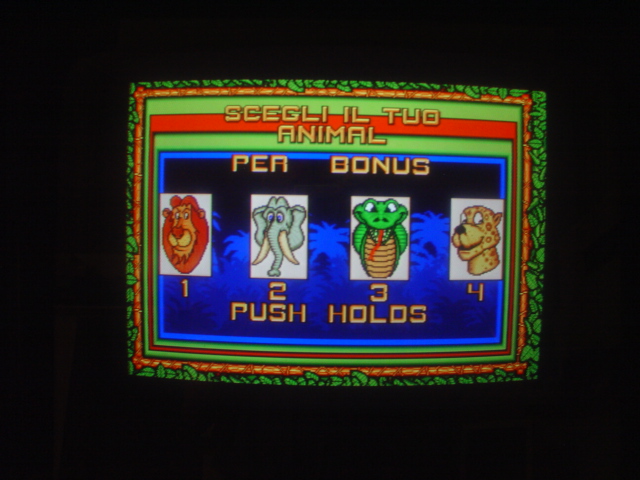

In game 1
-

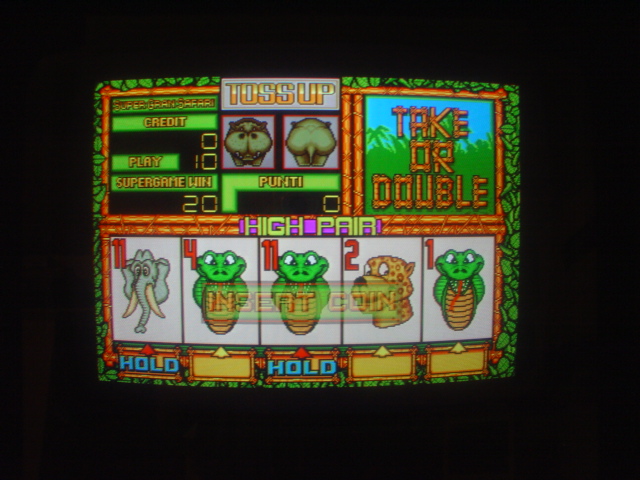

In game 2
-

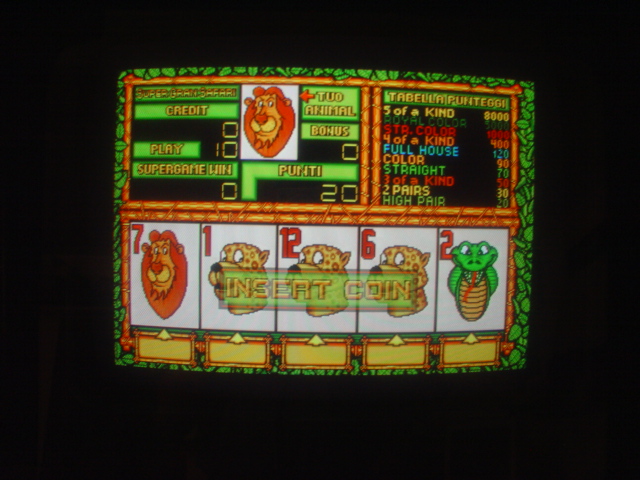

In game 3
