Super Bubble 2003 (Asia, Ver 1.0)
From Citylan
Jump to navigationJump to search
dumper | Corrado Tomaselli |
date | 09/06/2006 |
emulator | MAME 0.107 |
dev | Pierpaolo Prazzoli |
name | sb2003a on ProgettoEMMA sb2003a on Arcade Database |
description | Super Bubble 2003 (Asia, Ver 1.0) |
year | 2003 |
manufacturer | Limenko |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | GMS30C2232 | main PCB u1 | 32-bit Microprocessor - main | |
1x | SYS L2D_HYP Ver 1.0 ASIC XPRESS | main PCB u3 | ||
1x | QS1003 | main PCB u4 | sound | |
1x | QS1000 | main PCB u58 | sound | |
1x | DA1311A | main PCB u64 | 11-Bit Digital-to-Analog Converter - sound | |
1x | TL084 | - | main PCB u65 | Operational Amplifier - sound |
1x | TL082 | - | main PCB u68 | Operational Amplifier - sound |
1x | KIA6280H | - | main PCB u66 | Audio Power Amplifier - sound |
1x | oscillator | 20.000MHz | main PCB osc1 | |
1x | oscillator | 32.000MHz | main PCB osc2 | |
1x | oscillator | 24.000MHz | main PCB osc3 |
ROMs
QTY | Type | position | status |
---|---|---|---|
6x | M27C160 | ROMs PCB component side 01,02,03,04,05,u6 | dumped |
1x | 27C010A | ROMs PCB component side 07 | dumped |
1x | 93C46 | main PCB component side u54 | dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | IS41C16256 | main PCB u15,u16 |
2x | IS41C16105 | main PCB u38,u39 |
1x | KM62H256DJ | main PCB u23 |
1x | K6R1016C1C | main PCB u14 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | PALCE16V8Q-25/4 | u55 | read protected |
Others
1x 28x2 JAMMA edge connector (main PCB CON6)
1x 22x2 edge connector (main PCB CON5)
2x 96 pins flat cable connector from main PCB to ROMs PCB (CON1, CON2)
2x pushbutton (main PCB TEST, RESET)
1x trimmer (volume)(main PCB VR1)
1x red LED (main PCB POWER)
1x green LED (main PCB RUN)
Notes
main PCB is marked: "LIMENKO (R)", "REV : LM-003B / SEL : B3-06-00" and "MAIN BOARD SYSTEM / MODEL : LMSYS MADE IN KOREA" on component side
ROMs PCB is marked: "LIMENKO (R)", "REV : LMSYS_A2 / SEL : A2-12-02", "http:// www.limenko.com" and "MADE IN KOREA" on component side
label format is: ------------- | 01 | -> ROM number | LIMENKO | -> manufacturer -------------
Files
-

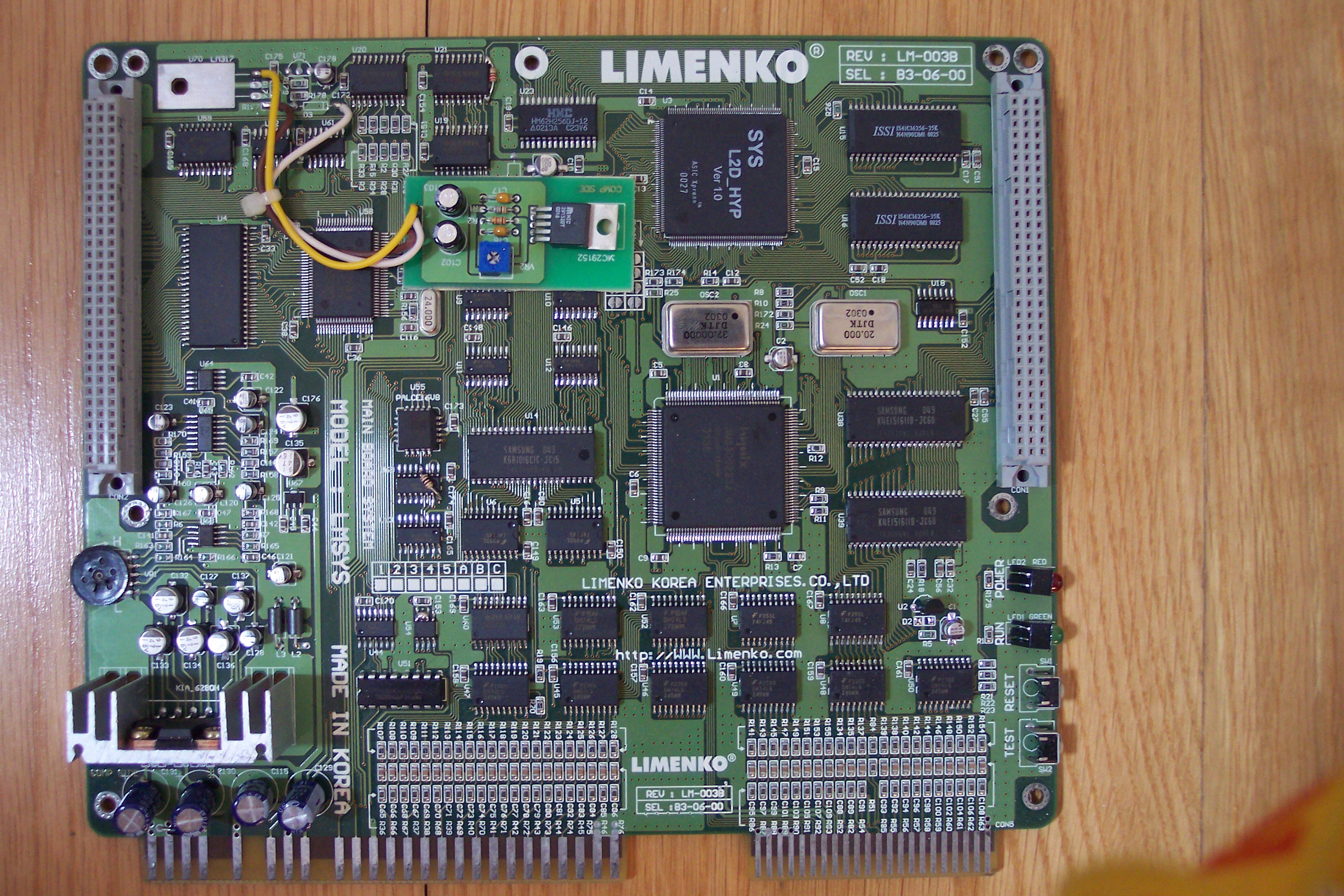

main PCB component side
-

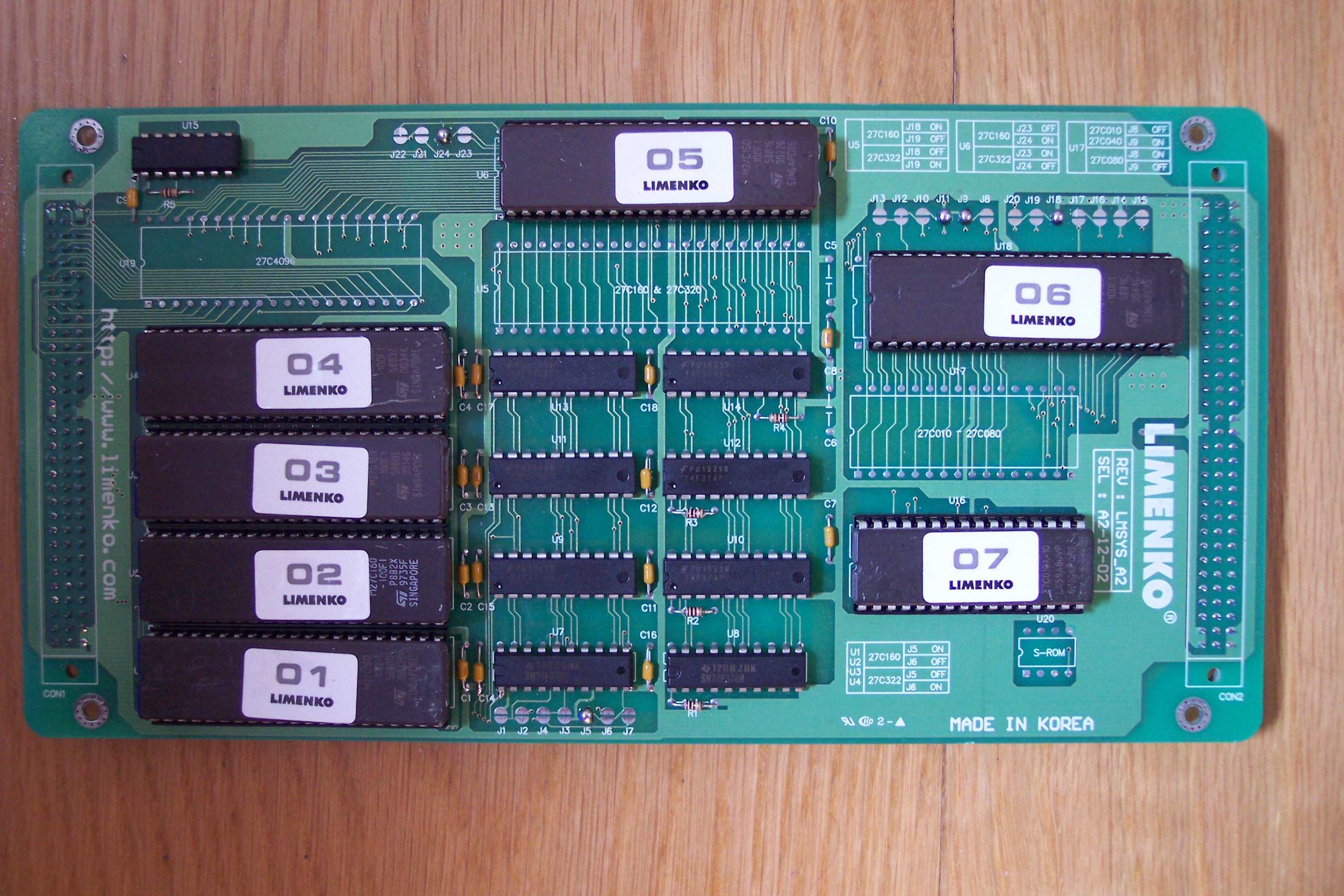

ROMs PCB component side
-

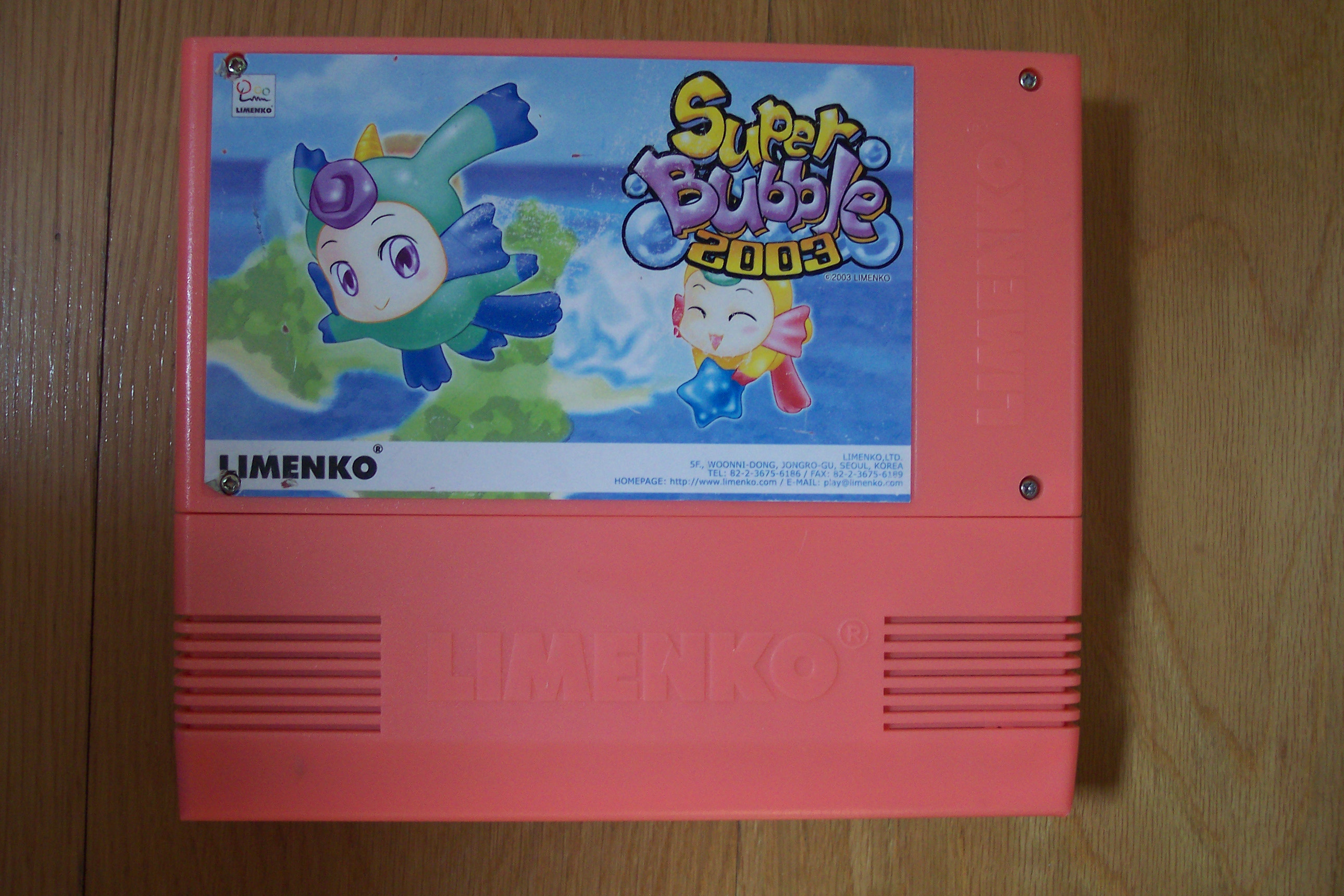

Cart
