Super Breakout (rev 03, bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 28/08/2006 |
| emulator | MAME 0.135 |
| dev | Andy Welburn, Lord Nightmare |
| name | sbrkout3 on ProgettoEMMA sbrkout3 on Arcade Database |
| description | Super Breakout (rev 03, bootleg) |
| year | 1978 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6502 | 8-bit Microprocessor - main | ||
| 1x | TDA1004 | Audio Amplifier - sound | ||
| 1x | oscillator | 12098 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | 82s136 | 0l,0n,0p,1k,1l,1m,1n,1p | dumped |
| 1x | 82s136 | 0k | not dumped (missing) |
| 1x | 82s136 | 0m | not dumped (broken) |
| 2x | 74s288 | 2e,6k | dumped |
| 2x | 82s131 | 4p,4r | dumped |
| 1x | 74s287 | 2m | not dumped (broken) |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 8 DIP switches bank
Notes
update 20080211: dumped
update 20180404: this bootleg is identical to Super Breakout (rev 03)
Files
-

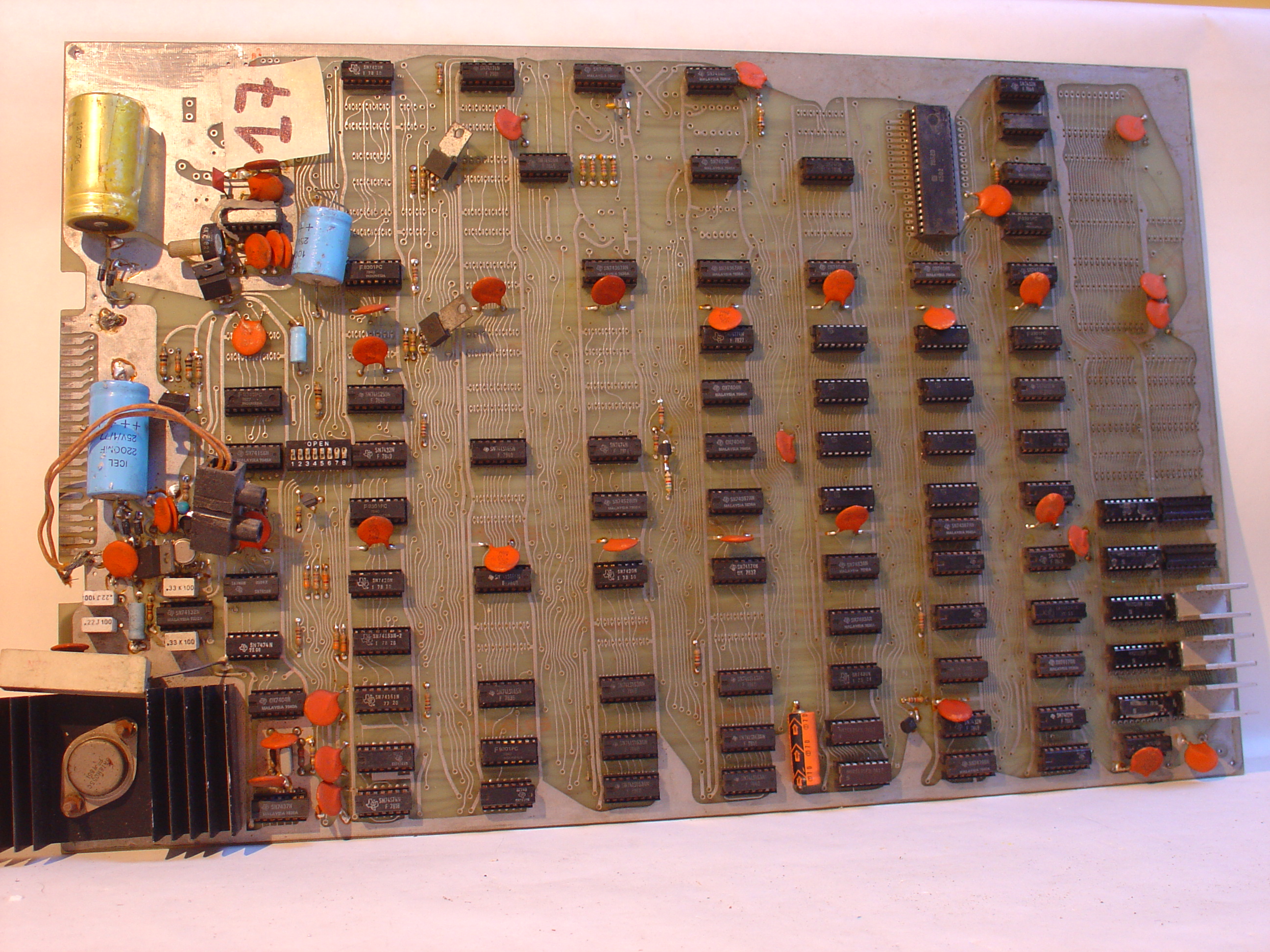

PCB component side
-
PCB solder side
