Strip Teaser (Italy, Ver. 1.22)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli |
| date | 09/06/2005 |
| emulator | MAME 0.111u4 |
| dev | David Haywood |
| name | steaser on ProgettoEMMA steaser on Arcade Database |
| description | Strip Teaser (Italy, Ver. 1.22) |
| year | 1993 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000CP12 | lower PCB | 16/32-bit Microprocessor - main | |
| 1x | MC68HC705C8P | lower PCB | 8-bit Microcomputer Unit - main (internal ROM not dumped) | |
| 1x | UM6845RA | lower PCB | CRT Controller (CRTC) - Video | |
| 1x | MC68HC705C8P | upper PCB | 8-bit Microcomputer Unit - main (internal ROM not dumped) | |
| 1x | TDA2003 | - | upper PCB | Audio Amplifier - sound |
| 1x | oscillator | 11.0592MHz | lower PCB | |
| 1x | oscillator | 4.0000MHz | upper PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AT27C010 | lower PCB 1 | dumped |
| 1x | AM27C010 | lower PCB 6 | dumped |
| 5x | M27C4001 | lower PCB 2,3,4,5,7 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | PALCE22V10H | read protected |
Others
1x 36x2 edge connector (upper PCB)
1x 10x2 edge connector (upper PCB)
1x 3 legs power connector (upper PCB)
1x 10 legs connector (BUTTONS)(upper PCB)
2x trimmer (AUDIO VOLUME, RATIO) (upper PCB)
1x 4 DIP switches bank (upper PCB)
1x battery 3.6V (lower PCB)
Notes
PCB is marked: "8L74" on component side
Files
-

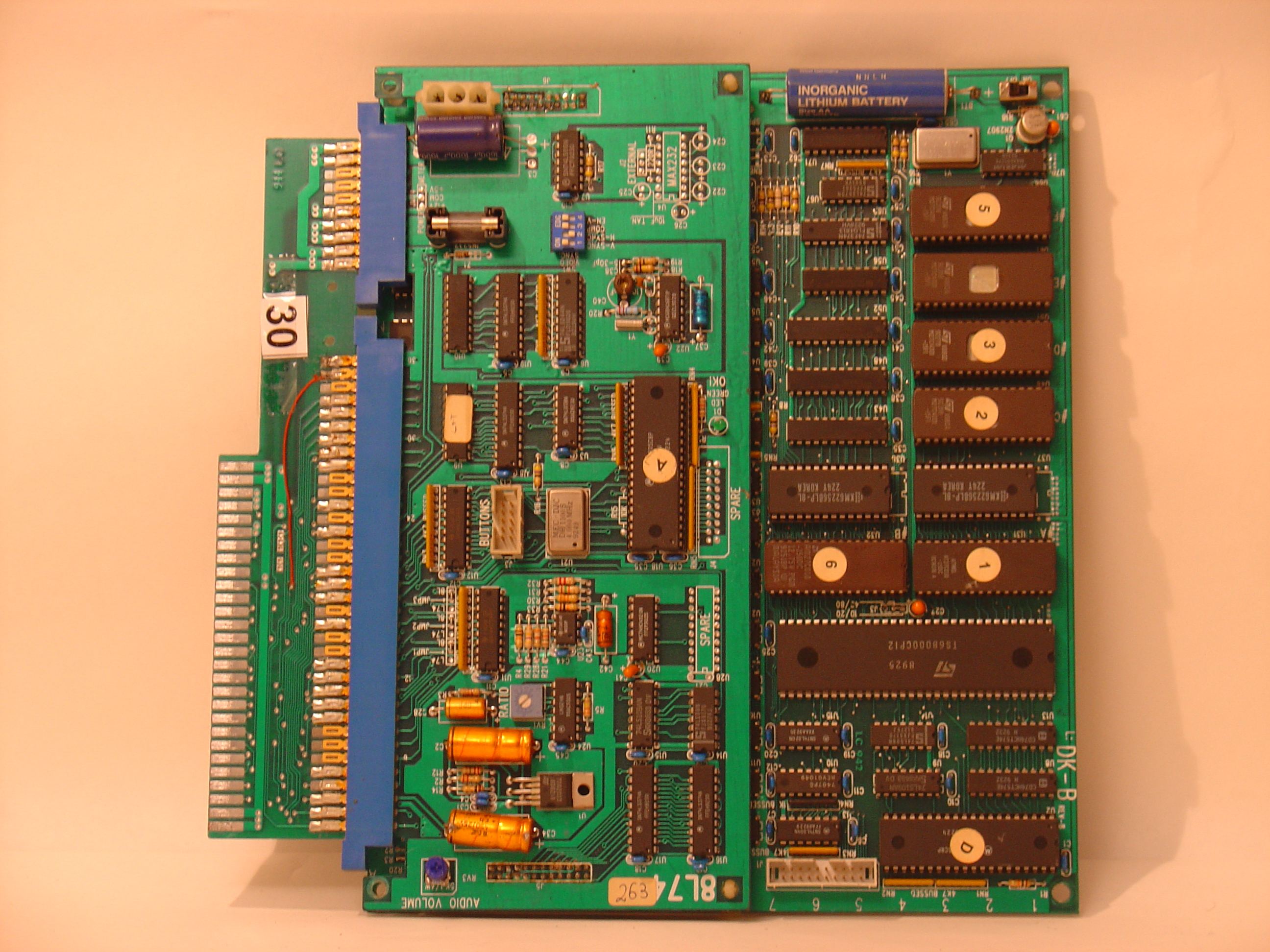

assembled PCBs
-

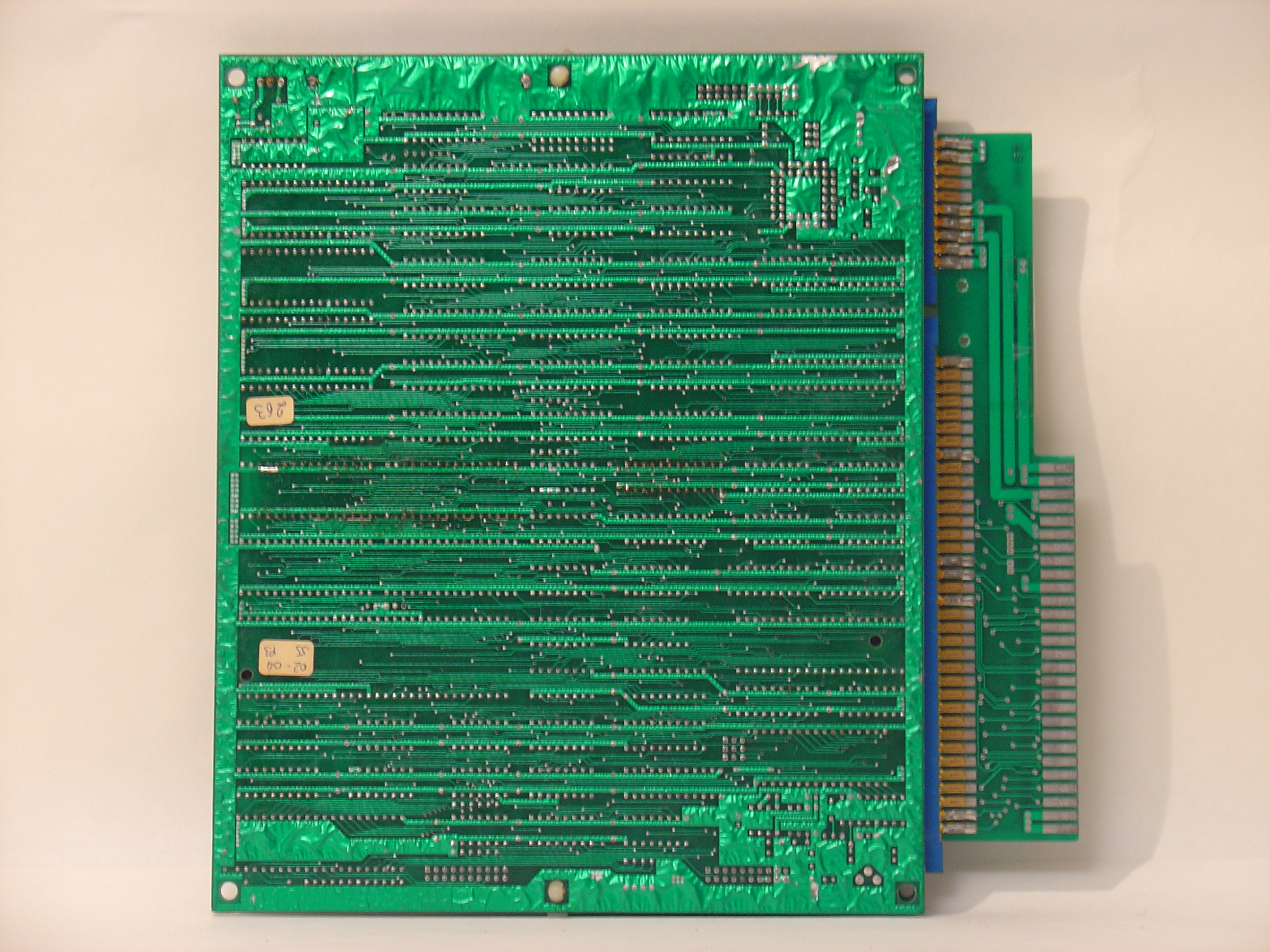

lower PCB solder side
-

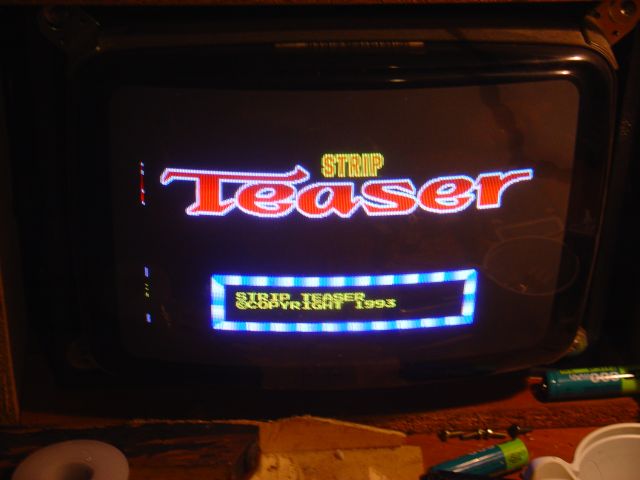

Title
-

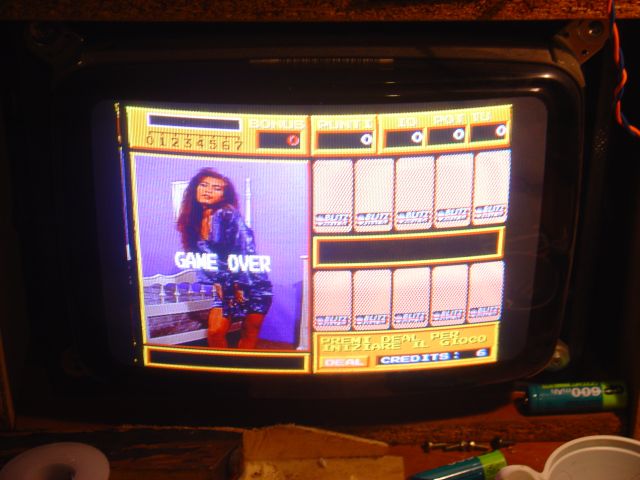

In game 1
-

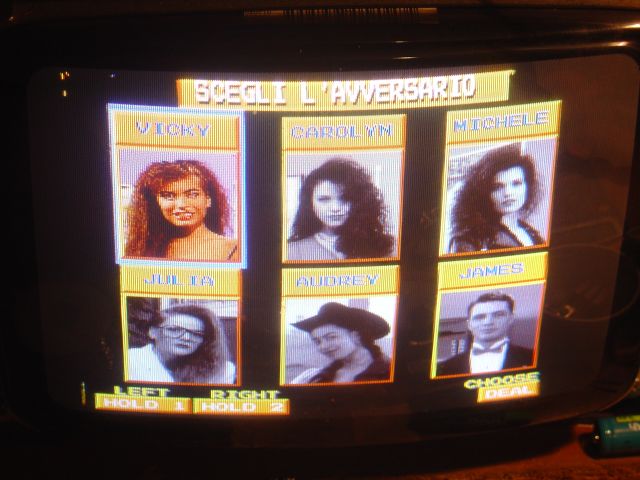

In game 2
-

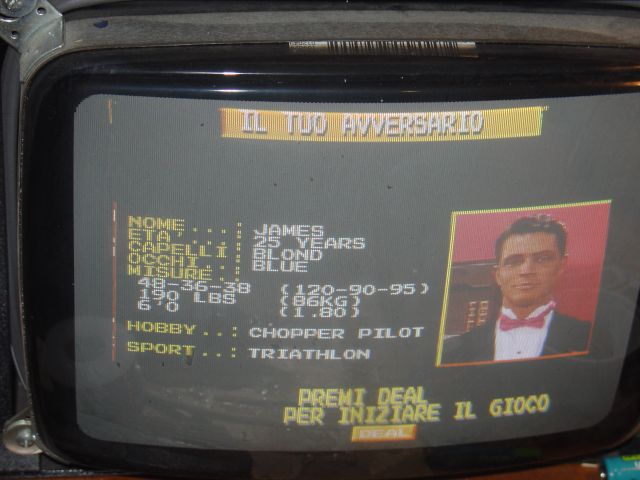

In game 3
-
Readme
