Street Fighter II: The World Warrior (bootleg, set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Maru79 |
| date | 03/02/2018 |
| emulator | MAME 0.195 |
| dev | Osso |
| name | sf2b2 on Arcade Database |
| description | Street Fighter II: The World Warrior (bootleg, set 2) |
| year | 1992 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 16/32-bit Microprocessor - main | ||
| 1x | Z8400BB1-Z80BCPU | 8-bit Microprocessor - sound | ||
| 2x | M5205 | ADPCM Speech Syntesis IC - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012 | D/A Converter (DAC) - sound | ||
| 2x | LM324 | Quad Operational Amplifier - sound | ||
| 1x | TDA2003 | ic14 | Audio Amplifier - sound | |
| 1x | oscillator | 22.1184 | xl1 | |
| 1x | oscillator | 9.8304 | xl2 | |
| 1x | blu resonator | CSB 384 P |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C010 | 3 | dumped |
| 14x | 27040 | 1,2,4-15 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | MCM2018AN45 | |
| 1x | HM3-65728AM-5 | |
| 4x | KM62256ALP-10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 3x | GAL16V8-25LNC | read protected | |
| 3x | GAL20V8-25LNC | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
3x 8 DIP switches banks
Notes
PCB is marked: "CH35 COMP" on component side
PCB is marked: "CH35 SOLD" on solder side
Files
-
PCB component side
-

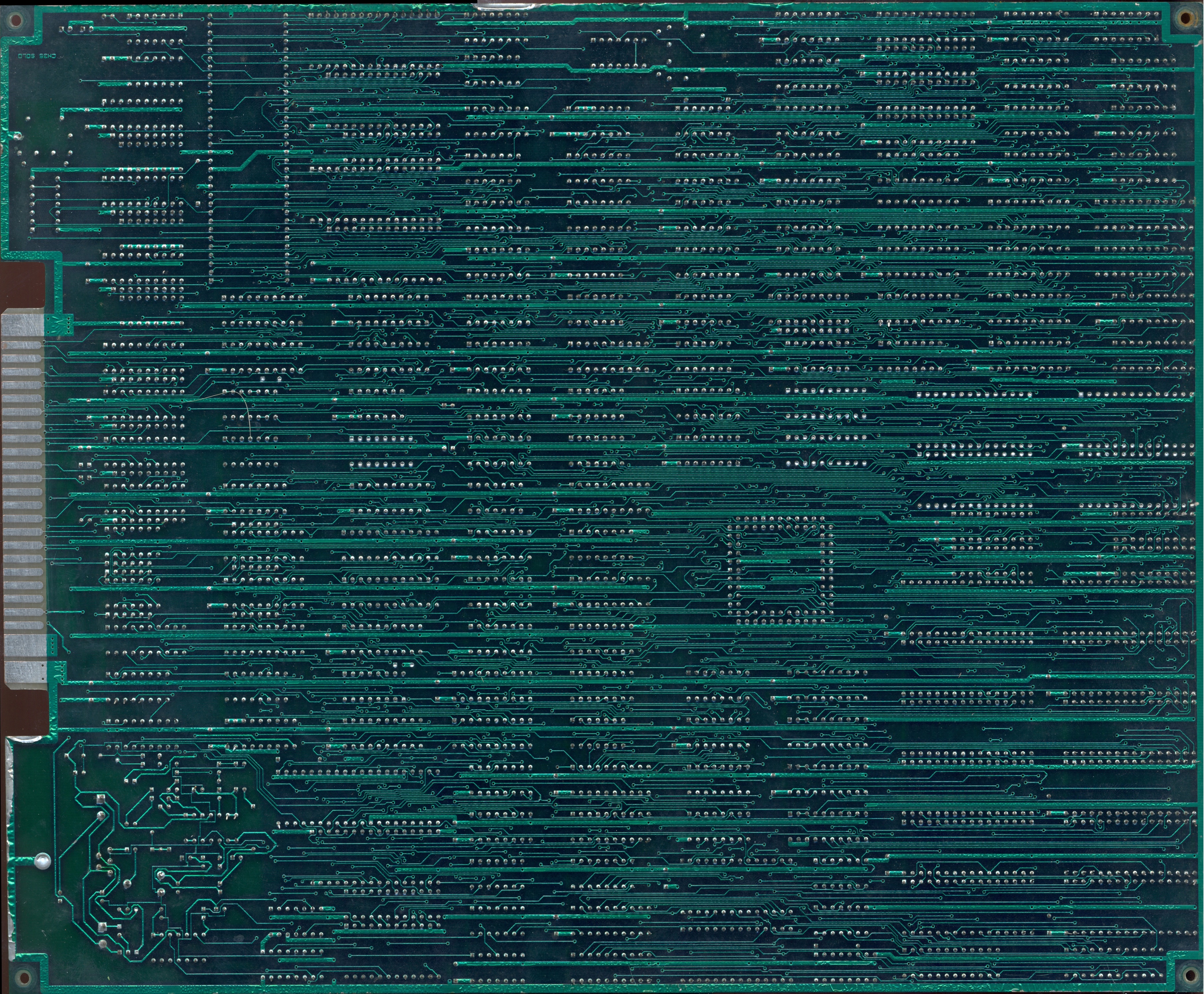

PCB solder side
