Street Fighter II' (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 15/10/2006 |
| emulator | |
| dev |
| name | 482 |
| description | Street Fighter II' (bootleg) |
| year | 1992 |
| manufacturer | GGI Corporation |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 16/32-bit Microprocessor - main | ||
| 1x | Z8400BPS | 8-bit Microprocessor - sound | ||
| 2x | M5205 | ADPCM Speech Syntesis IC - sound | ||
| 2x | LM324 | Quad Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012 | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 30.000000 | XTAL1 | |
| 1x | oscillator | 24.000000 | XTAL2 | |
| 1x | blu resonator | sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27010 | 1 | sound - missing |
| 2x | 27010 | 2,4 | program - missing |
| 2x | 27040 | 3,5 | program - missing |
| 12x | 27040 | 6-17 | gfx - missing |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | KM62256ALP-8 | ic168,ic170,ic108,ic113 |
| 9x | MCM2018AN45 | ic142,ic147,ic24,ic54,ic56,ic70,ic71,ic77,ic78 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 3x | PALCE16V8H | ic7,ic72, ic80 | read protected |
| 2x | GAL20V8 | ic120,ic121 | dumped |
| 1x | GAL20V8 | ic169 | read protected |
Others
1x JAMMA edge connector
1x trimmer (volume)
3x 8x2 switches DIP
Notes
This PCB is badly damaged, we can safely assume that nothing good can be recovered.
PCB's layout is identical to Street Fighter II': Magic Delta Turbo (bootleg, set 1)
Files
-

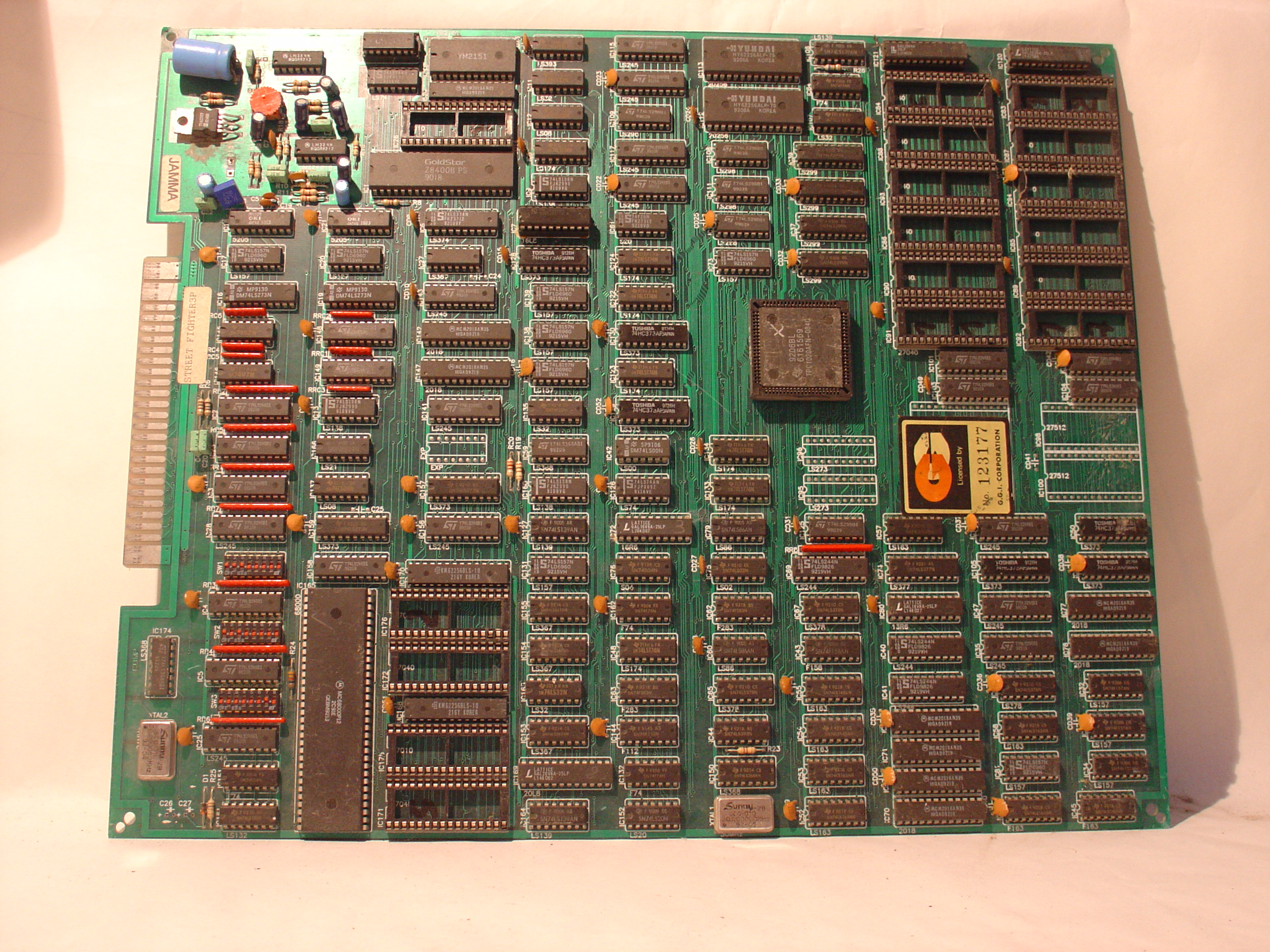

PCB component side
-

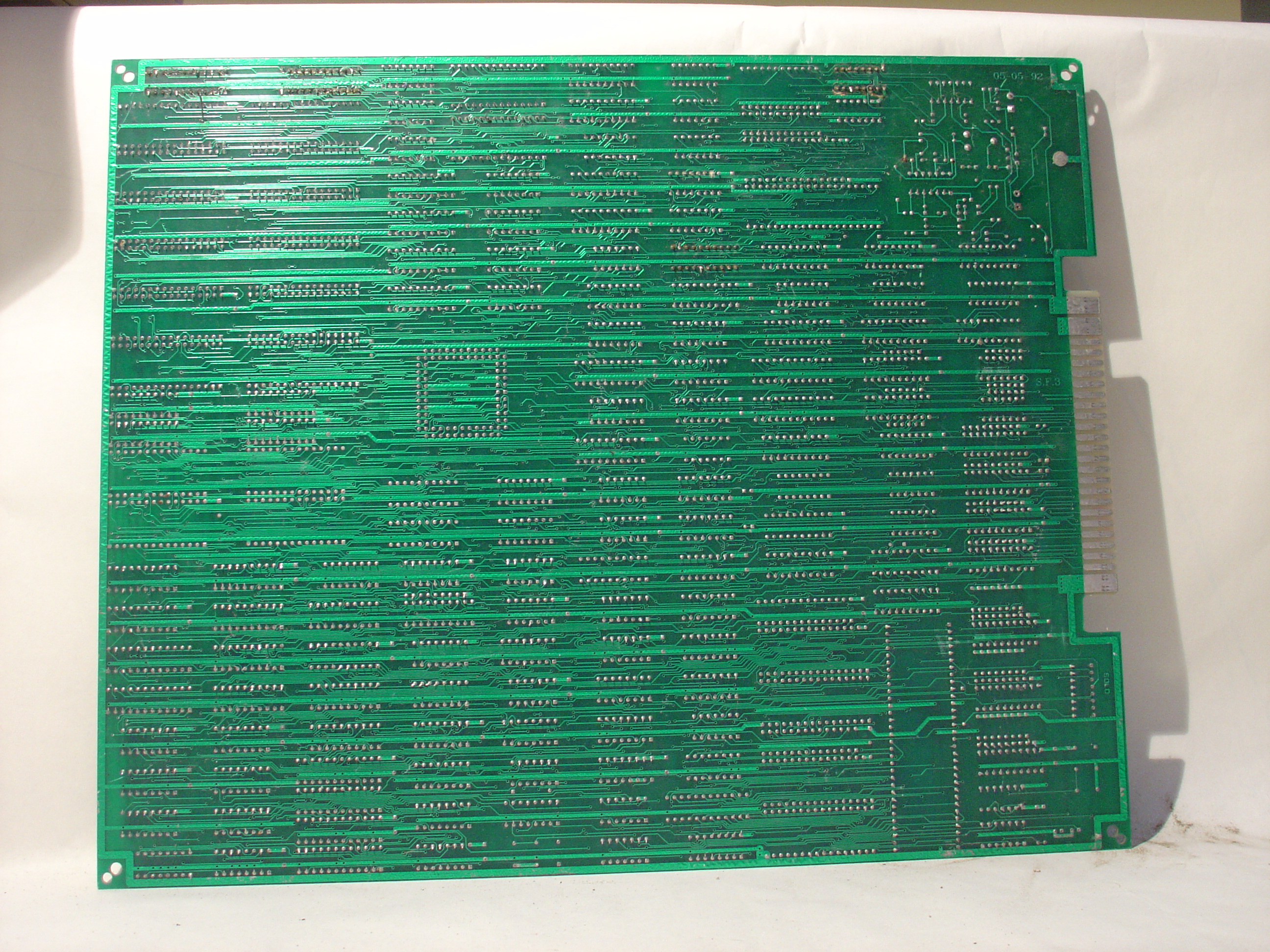

PCB solder side
-
