Street Fighter II': Champion Edition (bootleg, set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v, maru79 |
| date | 09/04/2016 |
| emulator | MAME 0.225 - FB Alpha 0.2.97.39 |
| dev | Osso, JacKc |
| name | sf2ceb3 on ProgettoEMMA sf2ceb3 on Arcade Database sf2ceeab4 on FB Neo |
| description | Street Fighter II': Champion Edition (bootleg, set 2) [MAME] Street Fighter II': Champion Edition (920313 etc bootleg set 4) [FB Alpha] |
| year | 1992 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 11.99 MHz | ic165 | 16/32-bit Microprocessor - main |
| 1x | Z8400BB1-Z80BCPU | 3.748MHz | ic1 | 8-bit Microprocessor - sound |
| 2x | M5205 | 384.6KHz (both pin 16 and 17) | ic18,ic21 | ADPCM Speech Syntesis IC - sound |
| 2x | LM324N | ic15,ic31 | Quad Operational Amplifier - sound | |
| 1x | TDA2003 | ic14 | Audio Amplifier - sound | |
| 1x | 3569_9146S_MA1768R | 1.874MHz (pin 23) and 3.748MHz (pin24) | ic29 | FM Operator Type-M (OPM) - sound |
| 1x | 7105_9145S_727810 | 1.874MHz | ic30 | D/A Converter (DAC) - sound |
| 1x | oscillator | 30.000MHz | xtal1 | |
| 1x | oscillator | 24.0000MHz | xtal2 | |
| 1x | blu resonator | xl1 | CSB384P |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | TMS27C010-15JL | 2,4,5 | dumped |
| 12x | TMS27C040-15 | 1,3,6,7,9,11,12,13,14,15,16,17 | dumped |
| 2x | AM27C040-200DC | 8,10 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 5x | MCM2018AN35 | ic24,ic57,ic77,ic78,ic147 |
| 4x | CY7C128-35PC | ic56,ic70,ic71,ic142 |
| 2x | KM62256BLP-10 | ic112,ic113 |
| 2x | KM62256BLS-10 | ic168,ic170 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | IC116 | read protected |
| 3x | GAL20V8S-20HB1 | ic120,ic121,ic169 | read protected |
| 3x | GAL16V8AS-20HB1 | ic7,ic72,ic80 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(P1)
3x 8x2 switches DIP (SW1,SW2,SW3)
Notes
Files
-

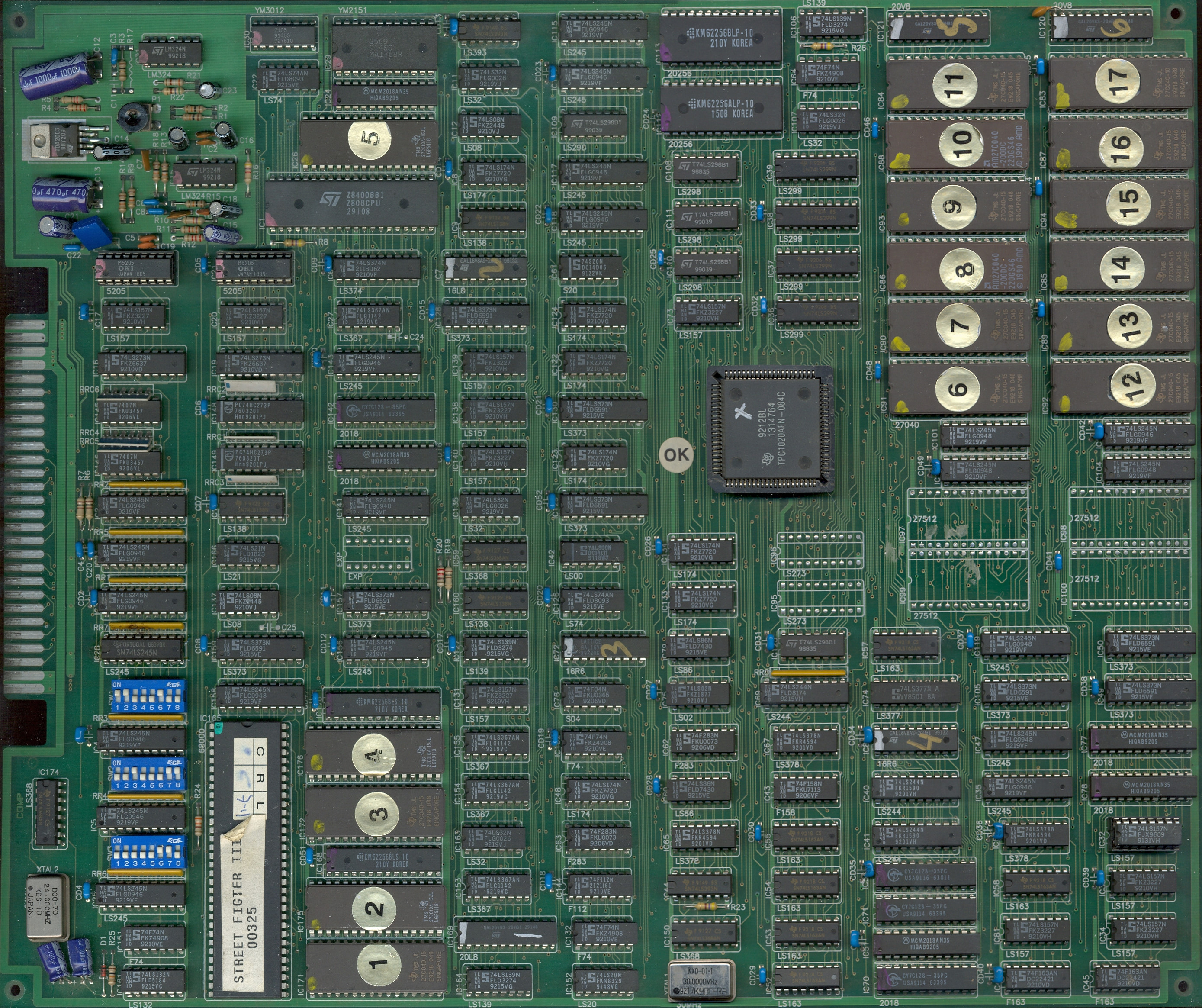

PCB component side
-

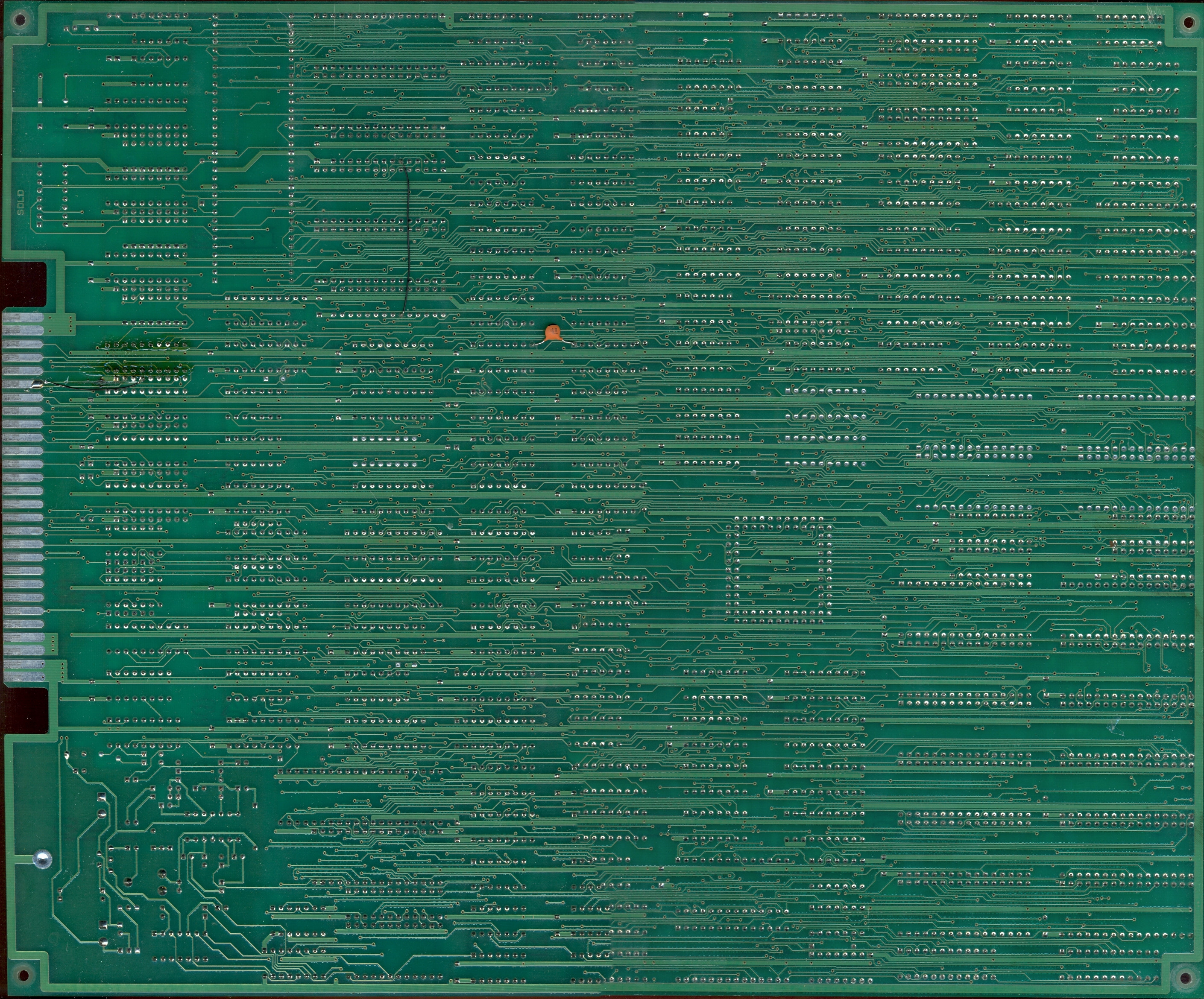

PCB solder side
