Star Horse Progress Returns (satellite)
From Citylan
Jump to navigationJump to search
| dumper | CaH4e3 |
| date | 13/12/2014 |
| emulator | MAME 0.157 |
| dev | CaH4e3 |
| name | shorsepr on ProgettoEMMA shorsepr on Arcade Database |
| description | Star Horse Progress Returns (satellite) |
| year | 2009.07.27 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 0x |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 2x | S29GL512N10T | FPR-24489.ic8, FPR-24490.ic9 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-8346C
Cart N°: 840-0186C
EPR.ic7: not present
no cart, only PCB
IC2# is labeled "VER.2", requires 837-13785 ARCNET&IO BD – ID# 837-14926 REV.A, SATL BD SHE PROG RET
Game code on solder side label is "BSX" while game code in EPROM is "BWA"
Files
-

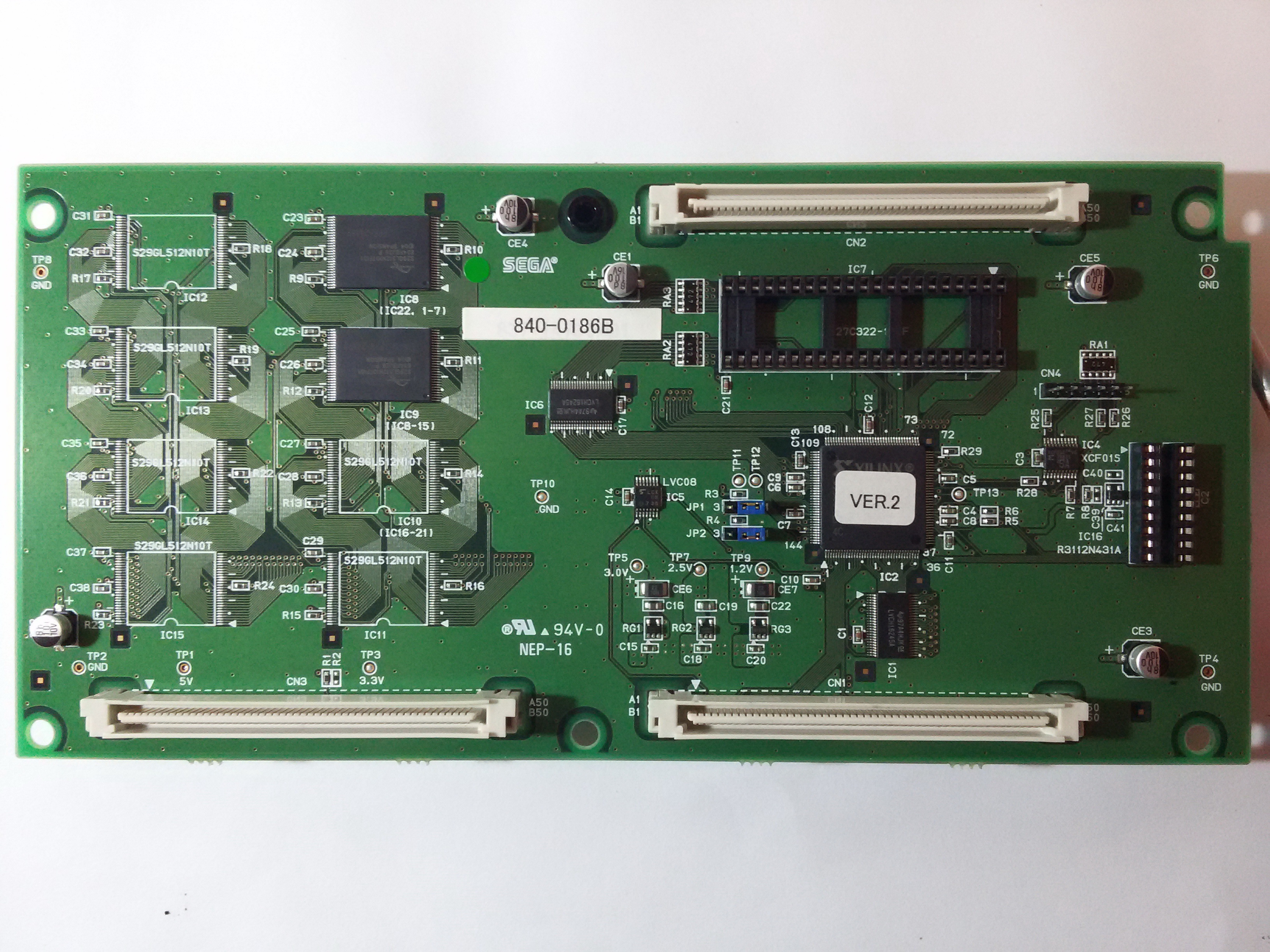

PCB component side
-

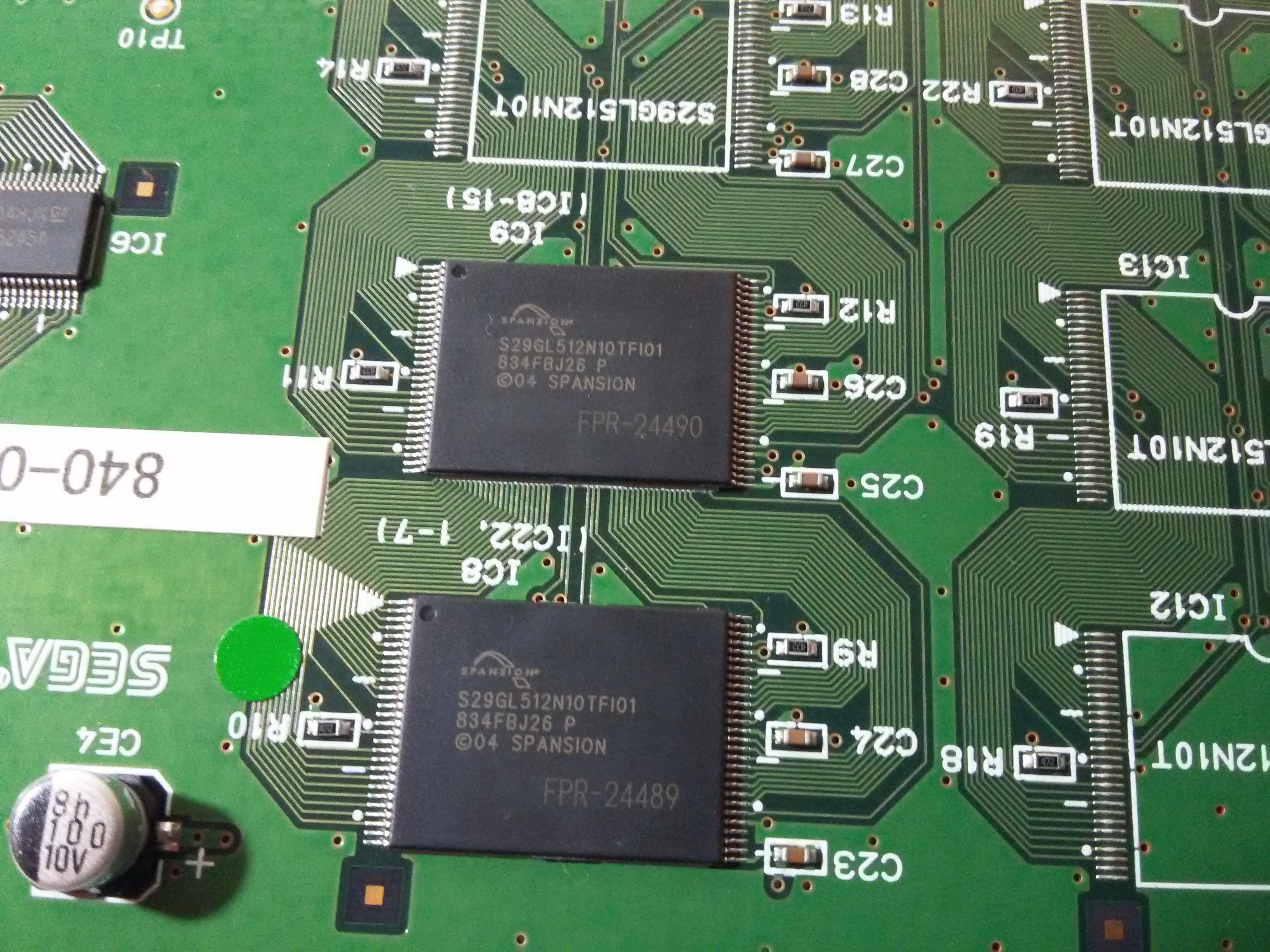

PCB component side detail
-

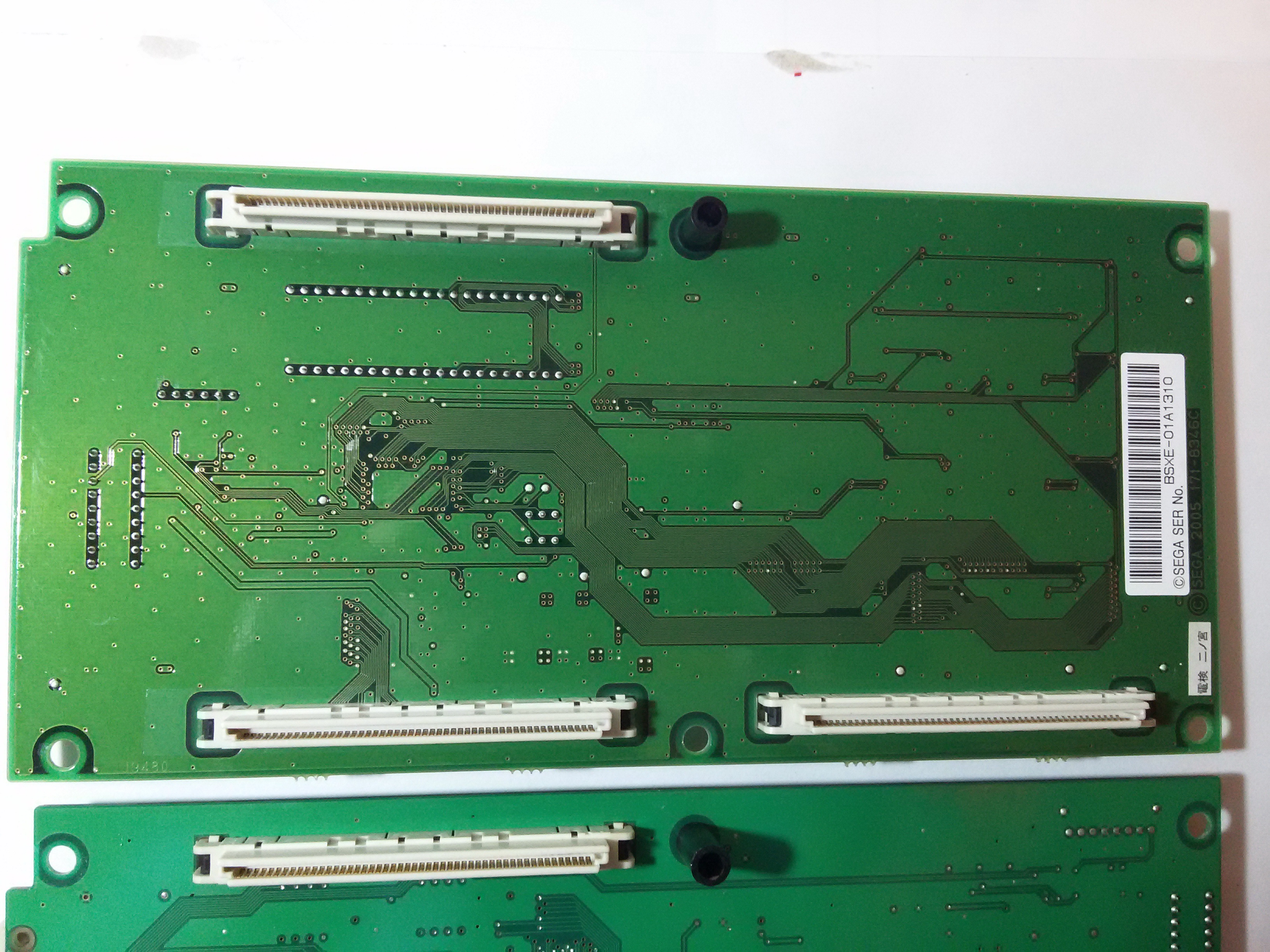

PCB solder side
-
ROM BOARD TEST
-
Readme
-
Readme 2
