Star Horse Progress (satellite, Rev A)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 19/02/2013 |
| emulator | MAME 0.153 |
| dev | R. Belmont |
| name | shorsep on Arcade Database |
| description | Star Horse Progress (satellite, Rev A) |
| year | 2003.12.01 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-24122A.ic22 | dumped |
| 7x | MaskROM 128Mb TSOP48 | MPR-24123.ic1 to MPR-24129.ic7 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-8132B
Cart N°: 840-0123C
Protection IC: not present
Key: no key
requires 837-13785 ARCNET&IO BD
Files
-
assembled PCBs
-
main PCB component side
-
PCB component side 1
-
PCB solder side
-
ROM BOARD TEST
-
Readme

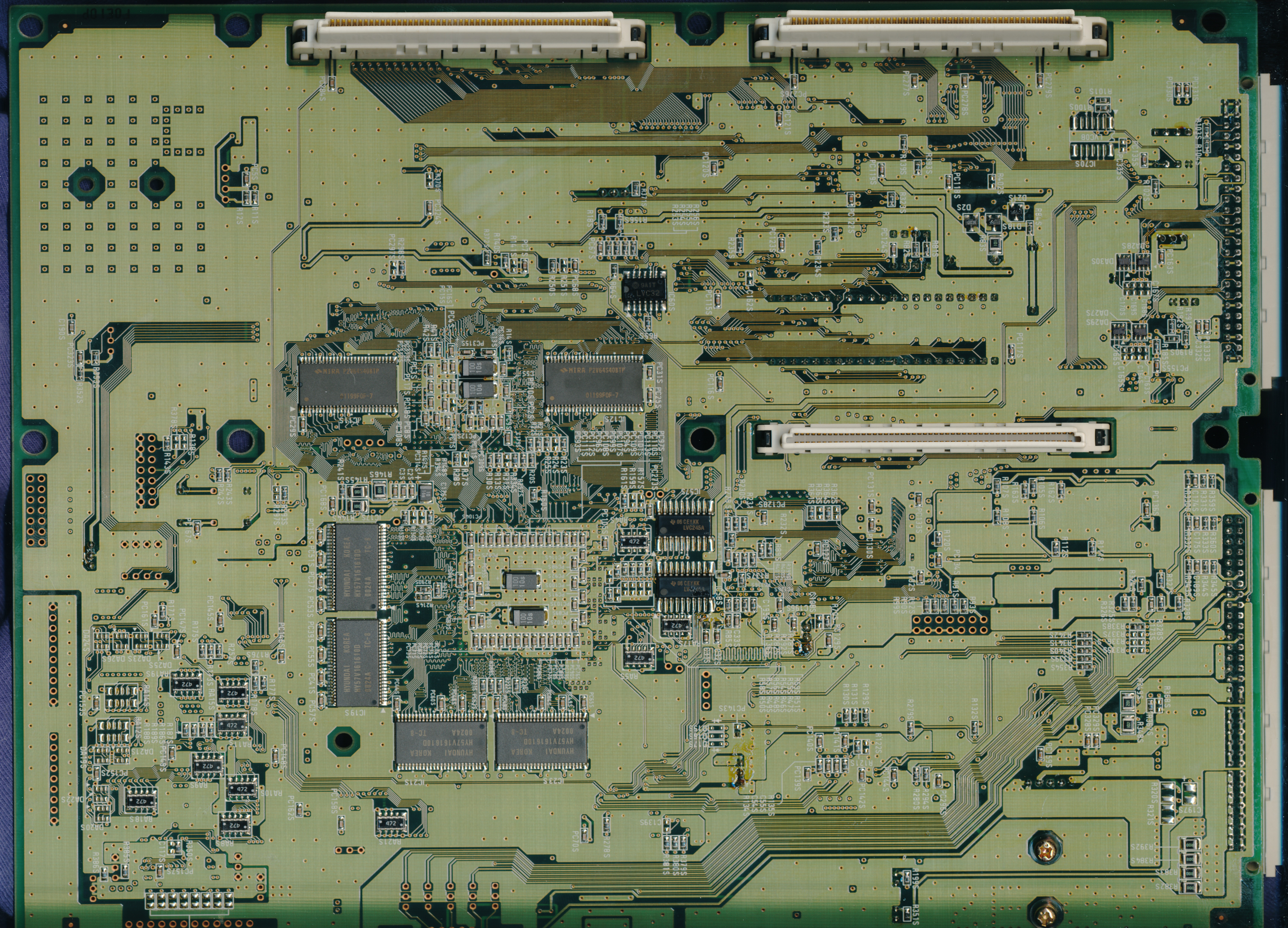

main PCB solder side

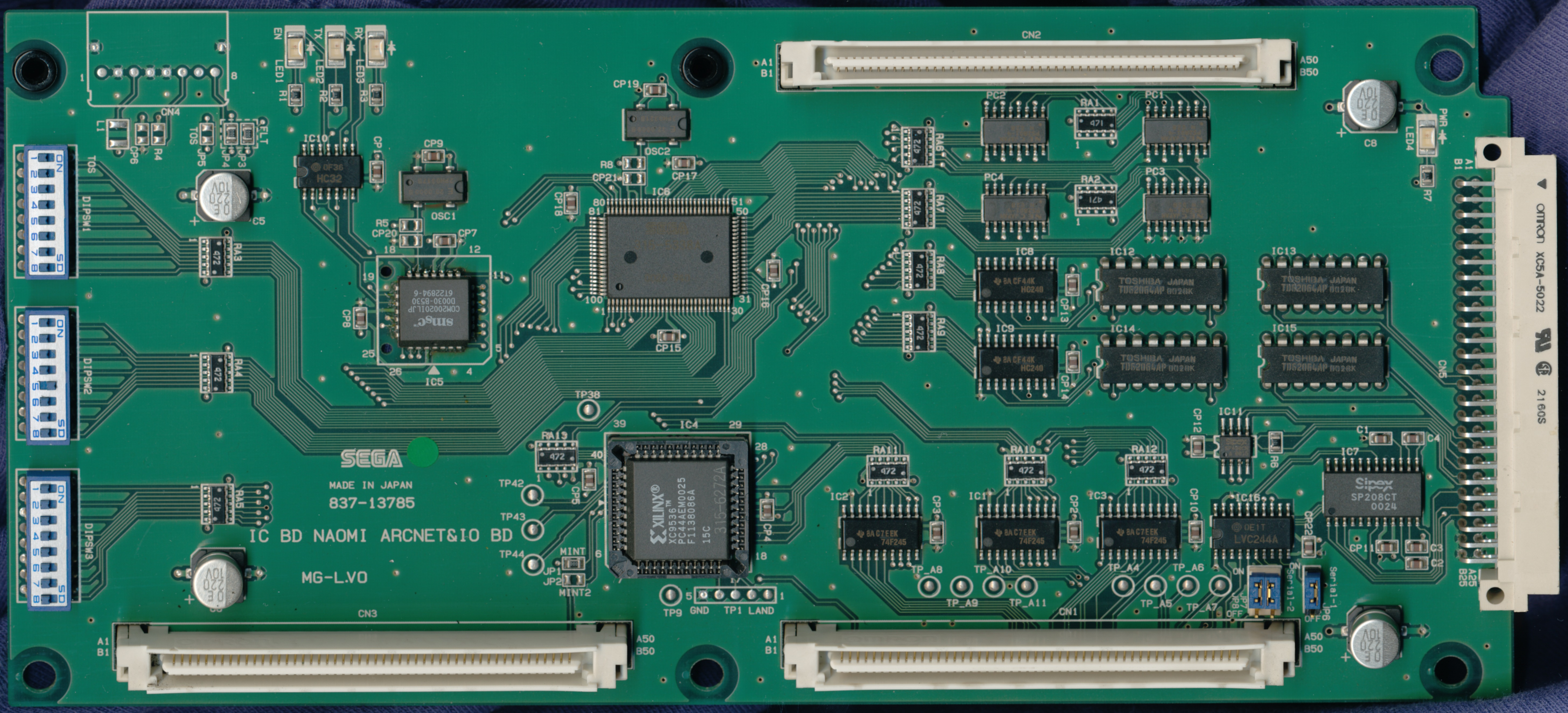

middle PCB component side

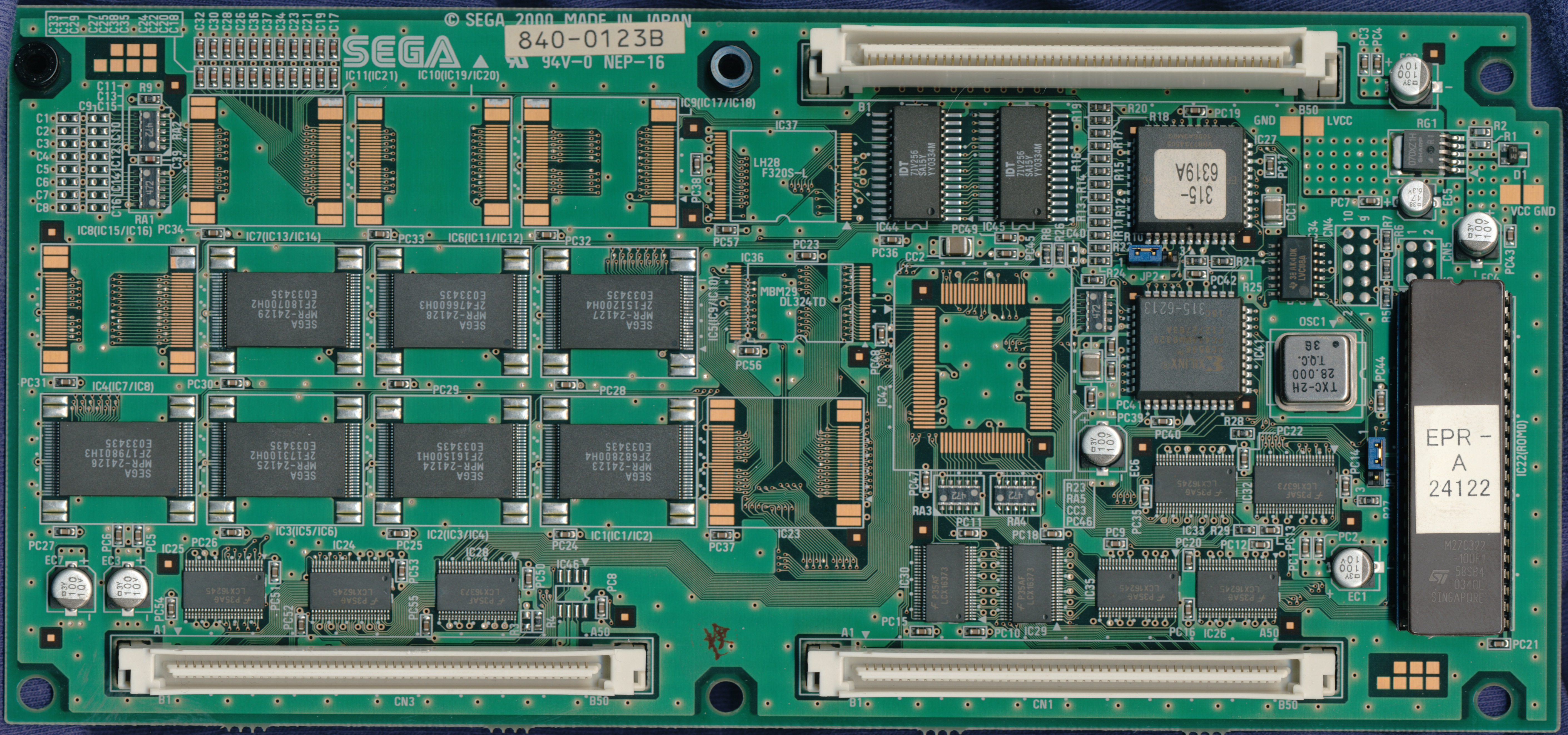

PCB component side 2
