Star Horse Progress (main screens, Rev B)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 20/01/2017 |
| emulator | MAME 0.182 |
| dev | MetalliC |
| name | shorsepm on ProgettoEMMA shorsepm on Arcade Database |
| description | Star Horse Progress (main screens, Rev B) |
| year | 2003.04.01 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-24087B.ic22 | dumped |
| 6x | MaskROM 128Mb TSOP48 | MPR-24088.ic1 - MPR-24093.ic6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-8132B
Cart N°: 840-0120C
Protection IC: not present
Key: no key
requires 837-13785 ARCNET&IO BD
Files
-

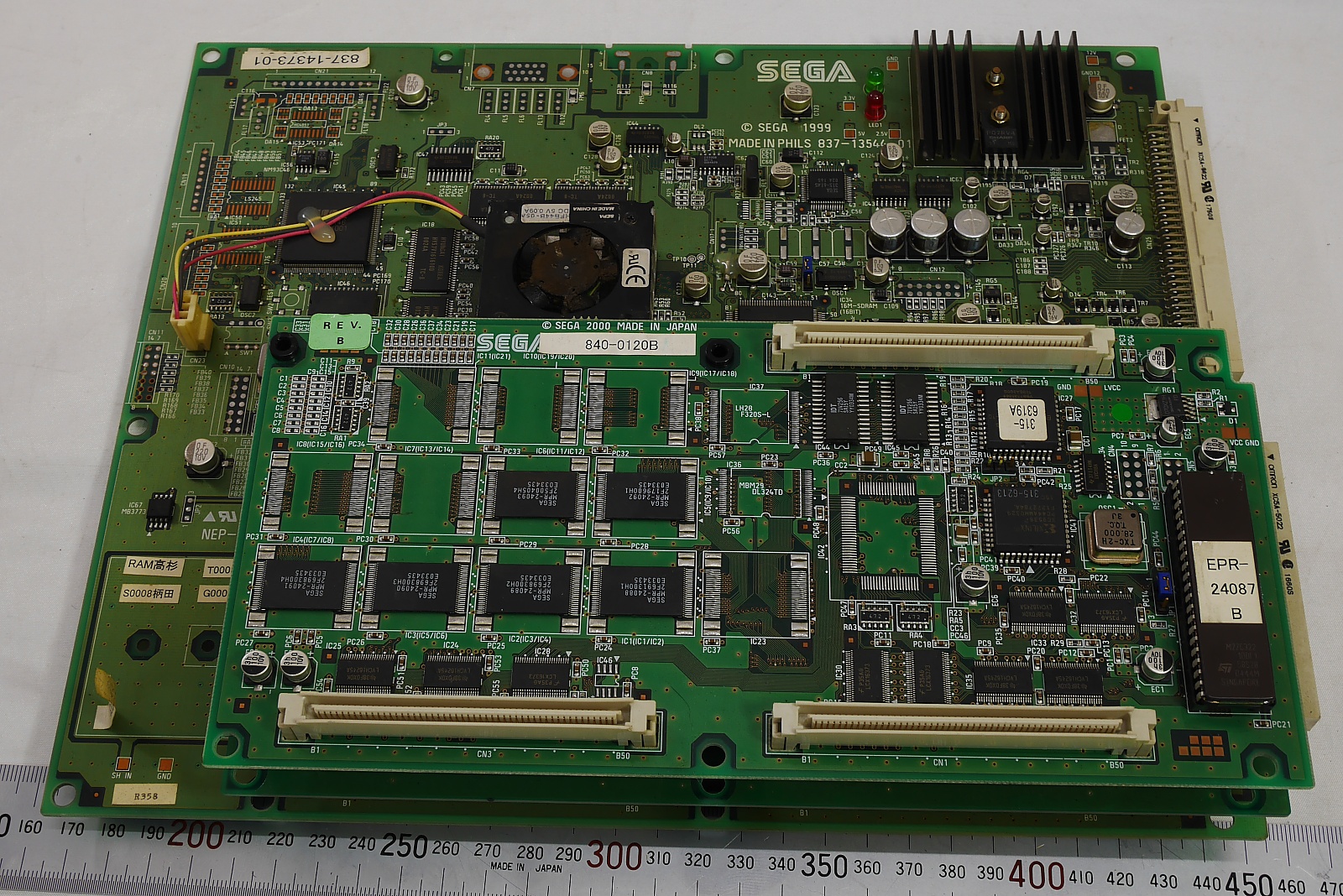

PCB component side 1
-

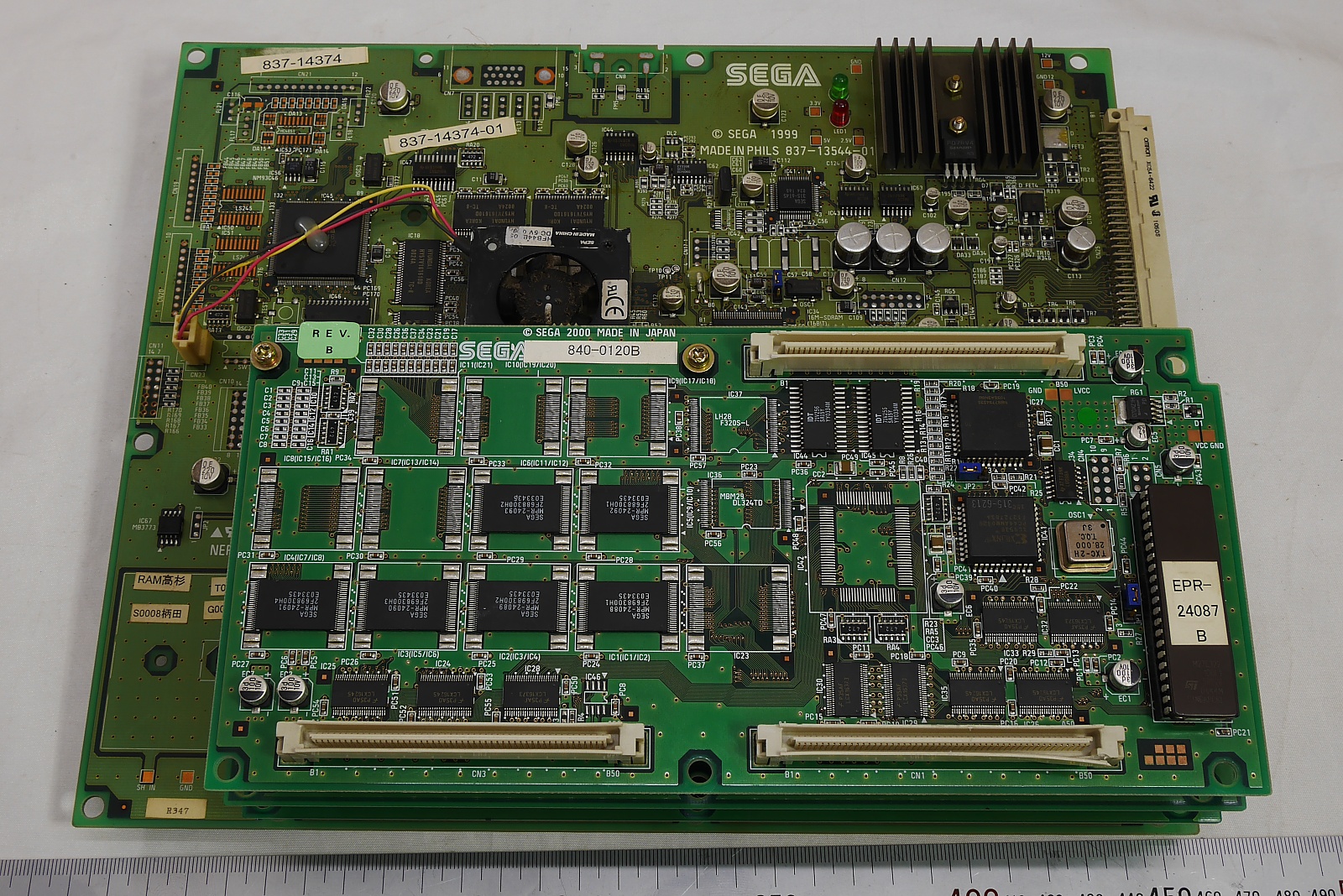

PCB component side 2
-

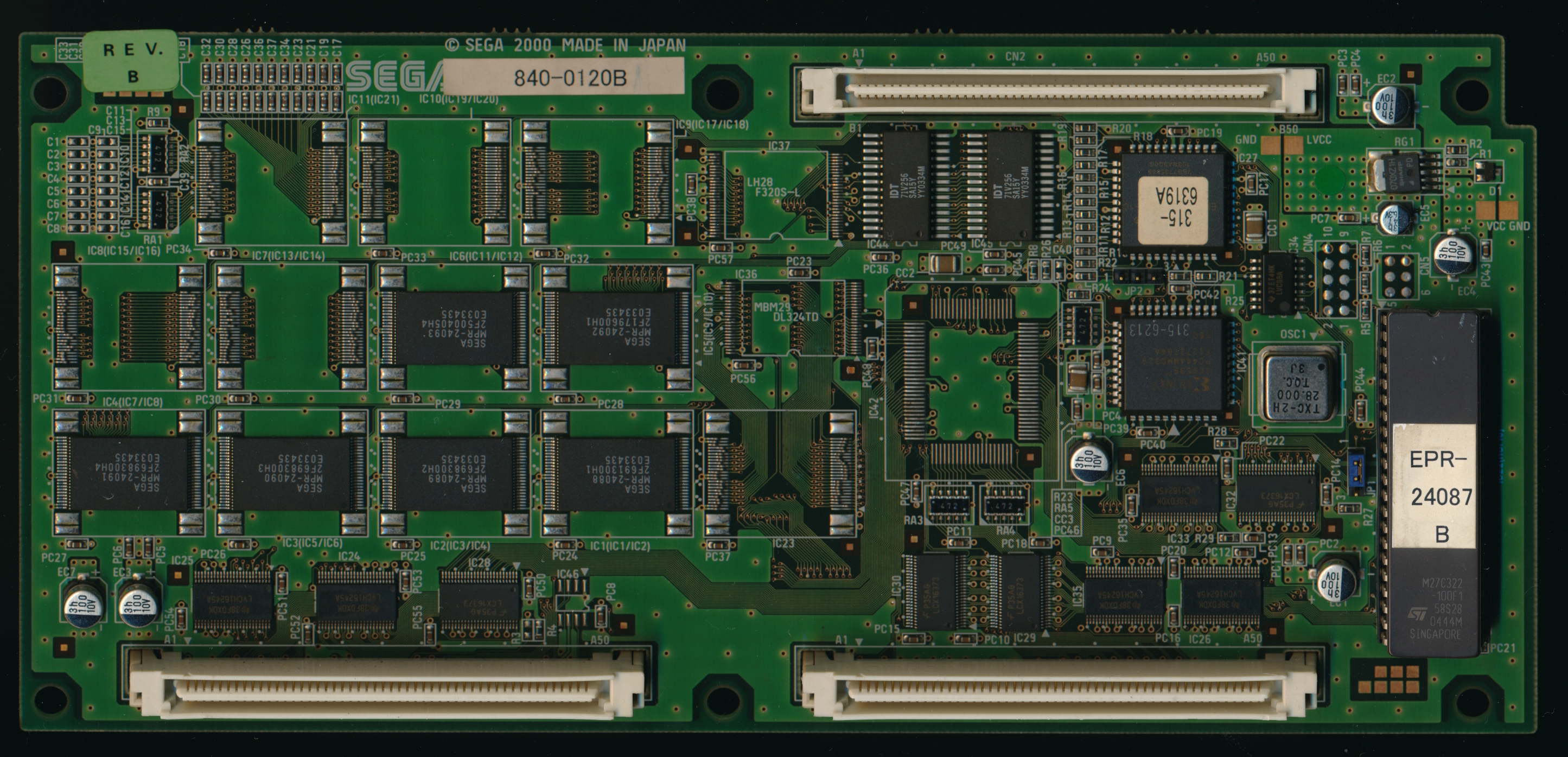

PCB component side 3
-

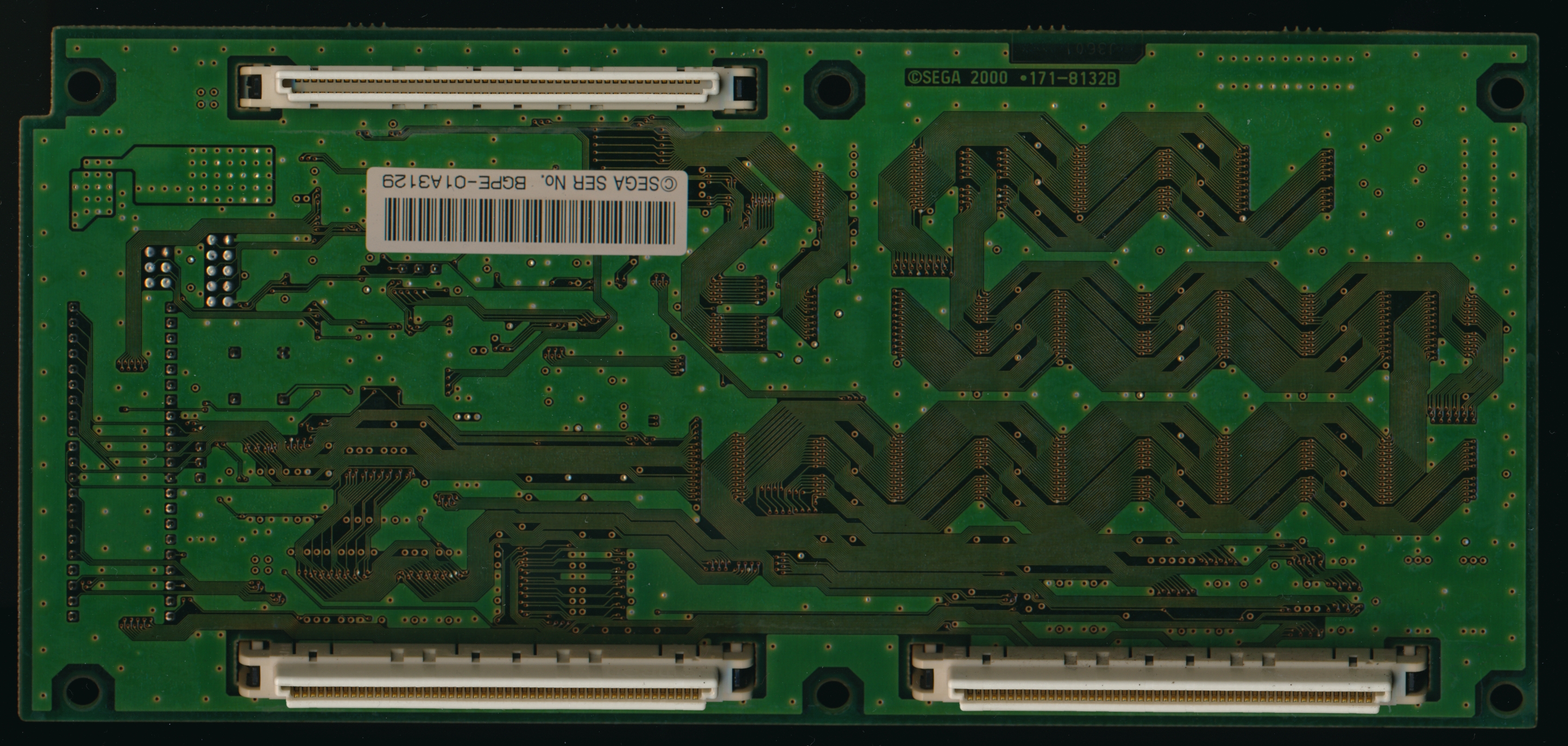

PCB solder side
-

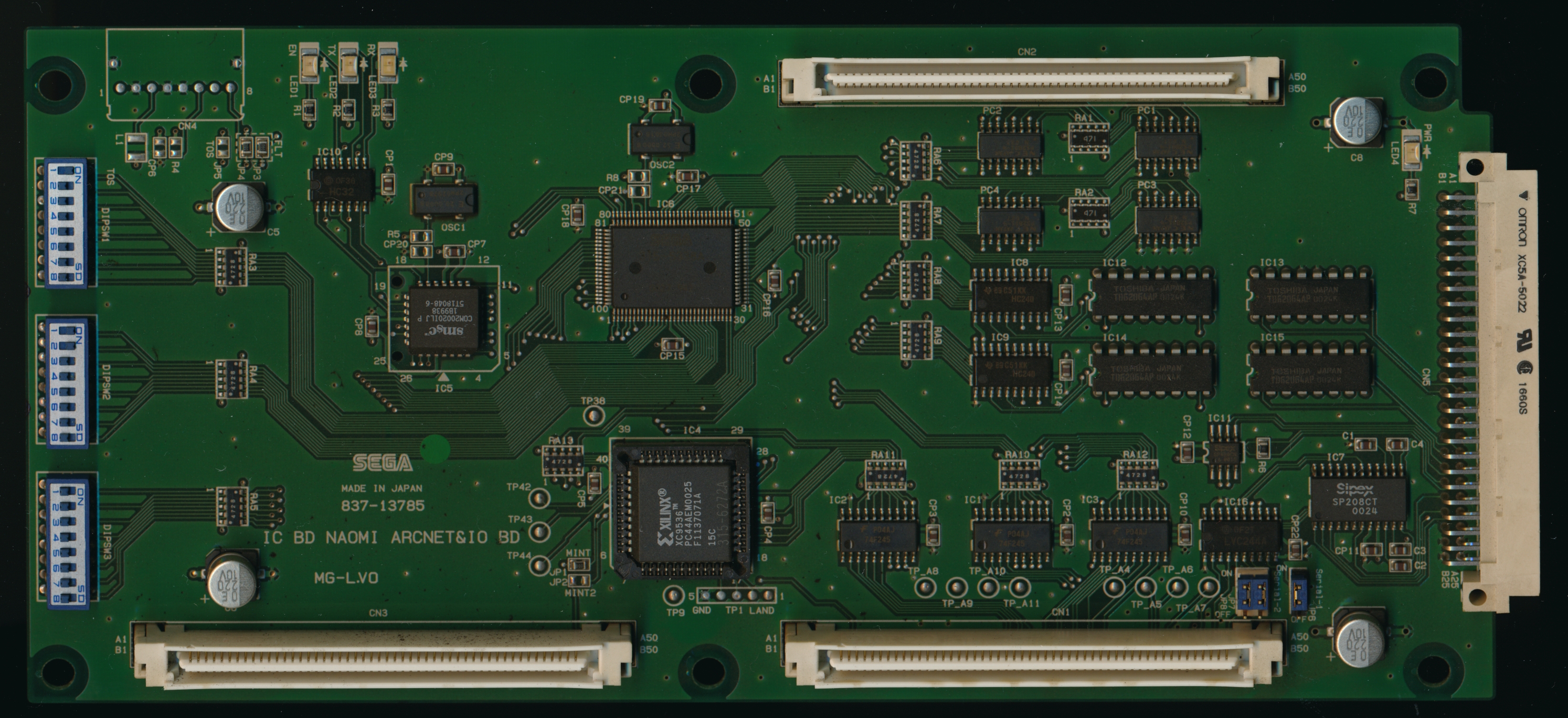

ARCNET&IO PCB component side
-

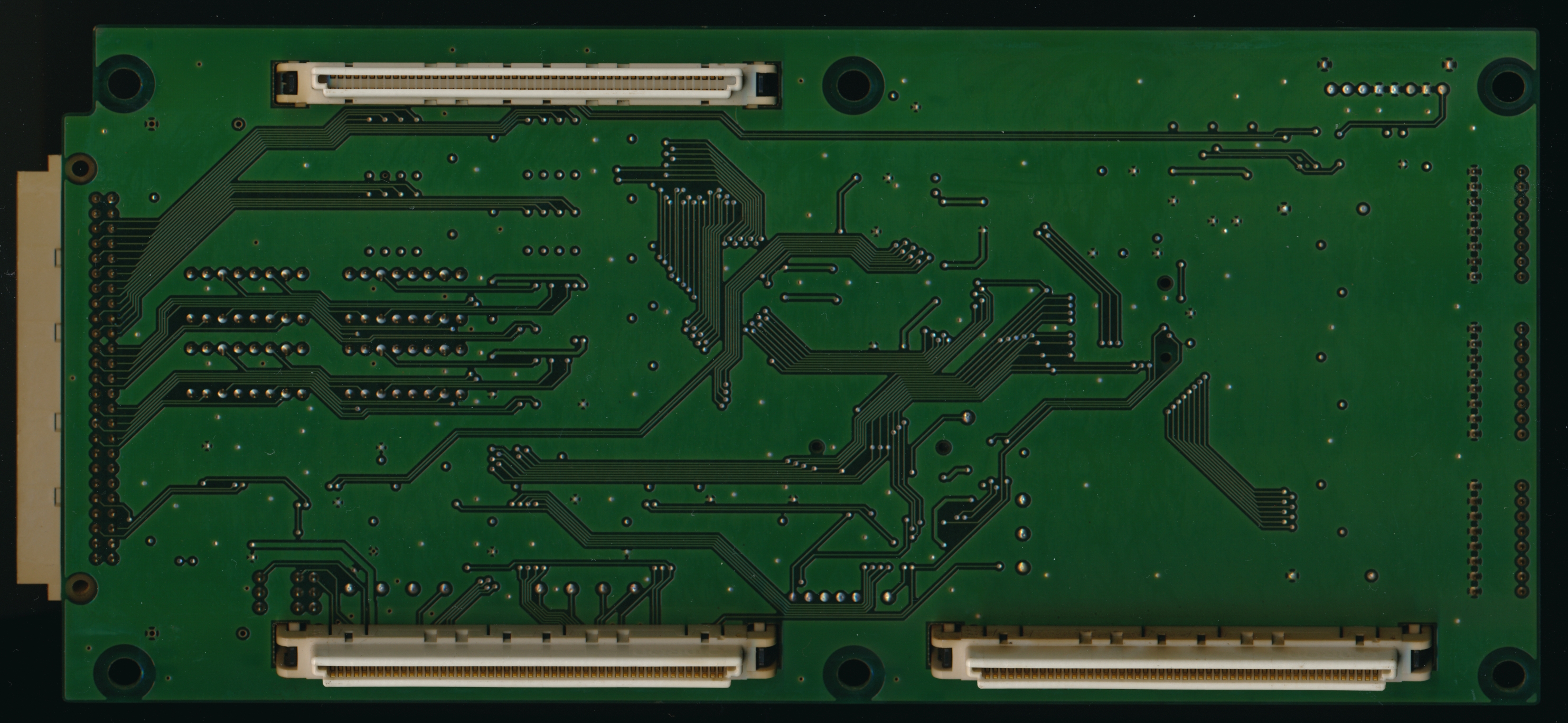

ARCNET&IO PCB solder side
-

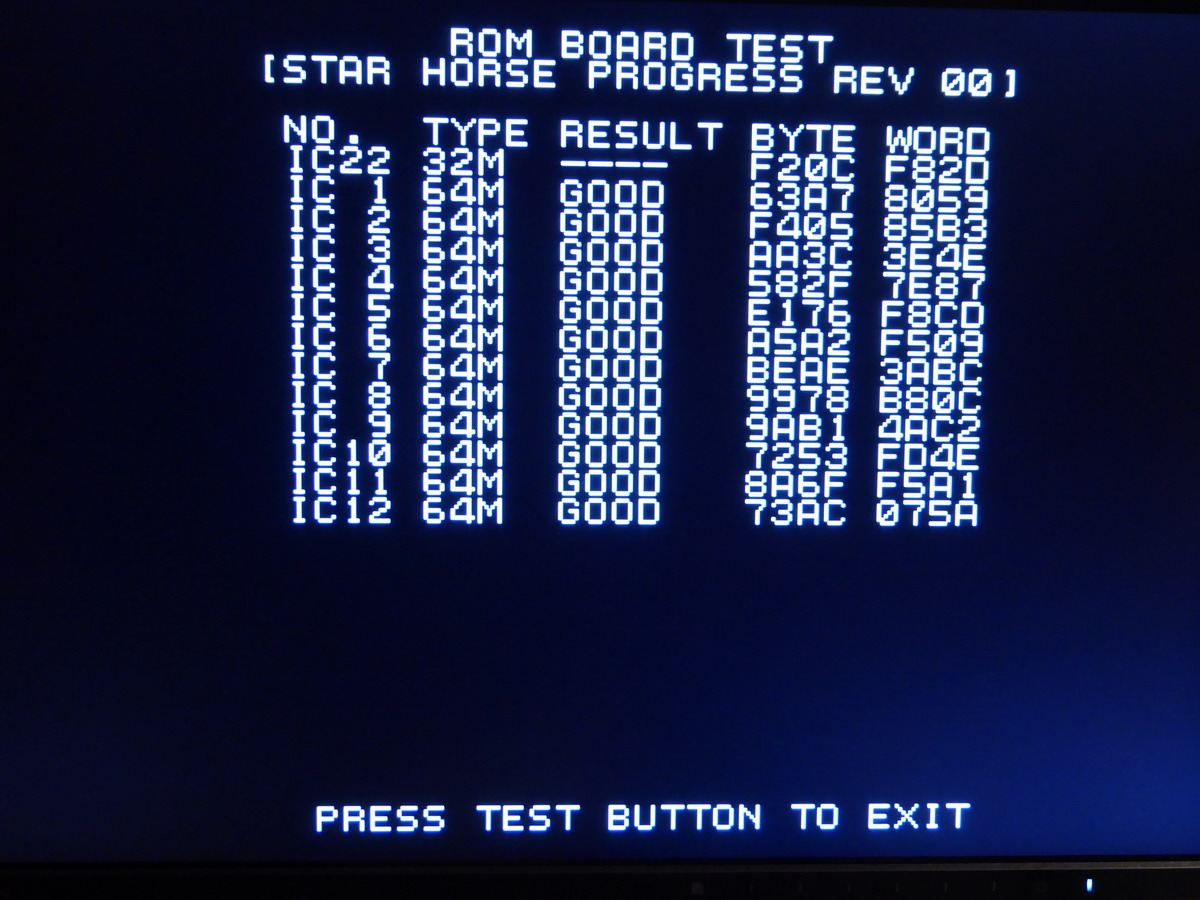

ROM board test
-
readme
