Star Horse 2001 (satellite, Rev B)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 20/01/2017 |
| emulator | MAME 0.182 |
| dev | MetalliC |
| name | shors2k1 on ProgettoEMMA shors2k1 on Arcade Database |
| description | Star Horse 2001 (satellite, Rev B) |
| year | 2002.01.09 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-23739B.ic22 | dumped |
| 7x | MaskROM 128Mb TSOP48 | MPR-23740.ic1 - MPR-23746.ic7 | dumped |
| 1x | X76F100 | ic46 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319A | ic27 | read protected |
Others
Notes
It's a NAOMI SATELLITE cart.
Cart type: 171-8132B
Cart N°: 840-0078C
Protection IC: not present
Key: no key
requires 837-13785 ARCNET&IO BD
Files
-

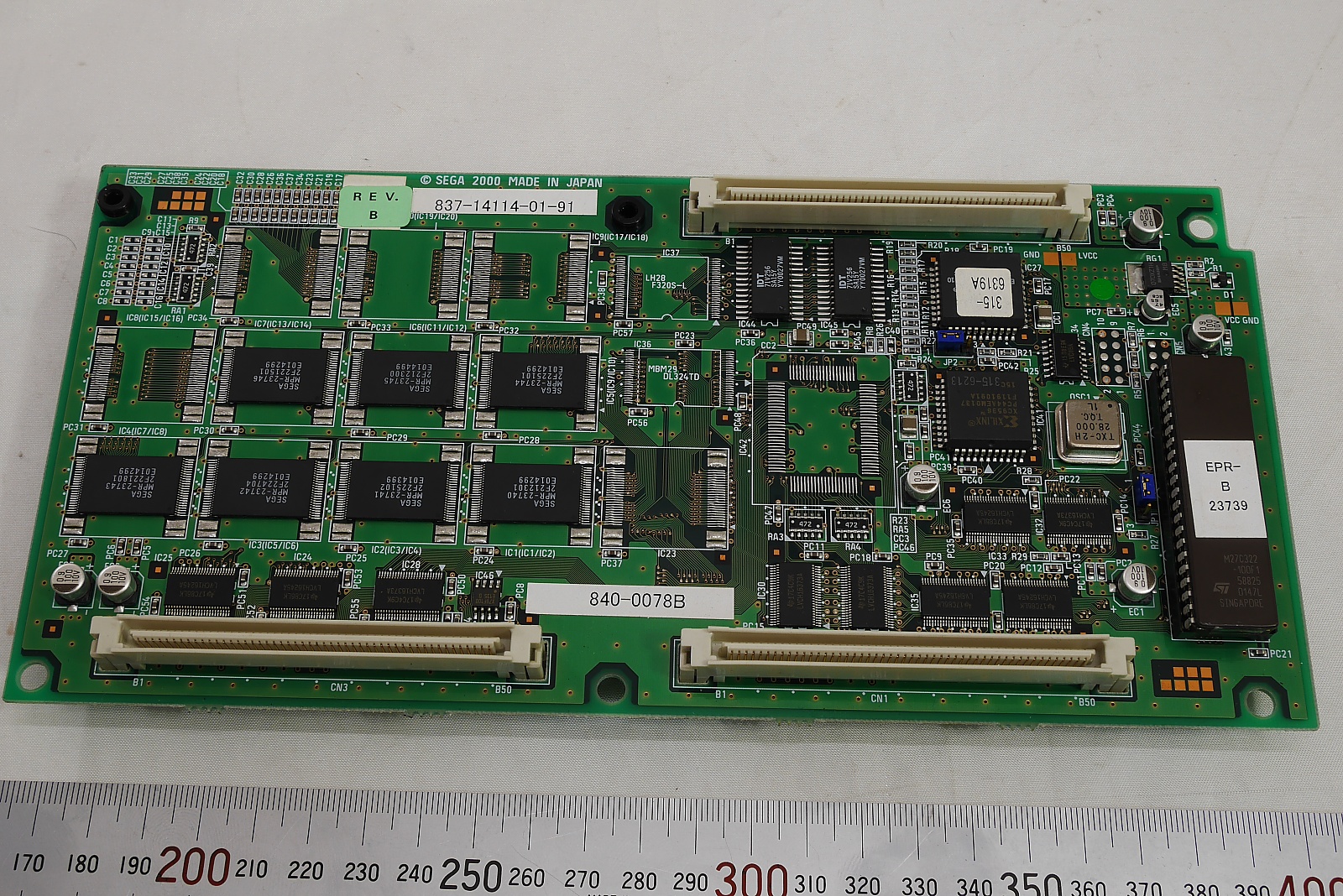

PCB component side
-

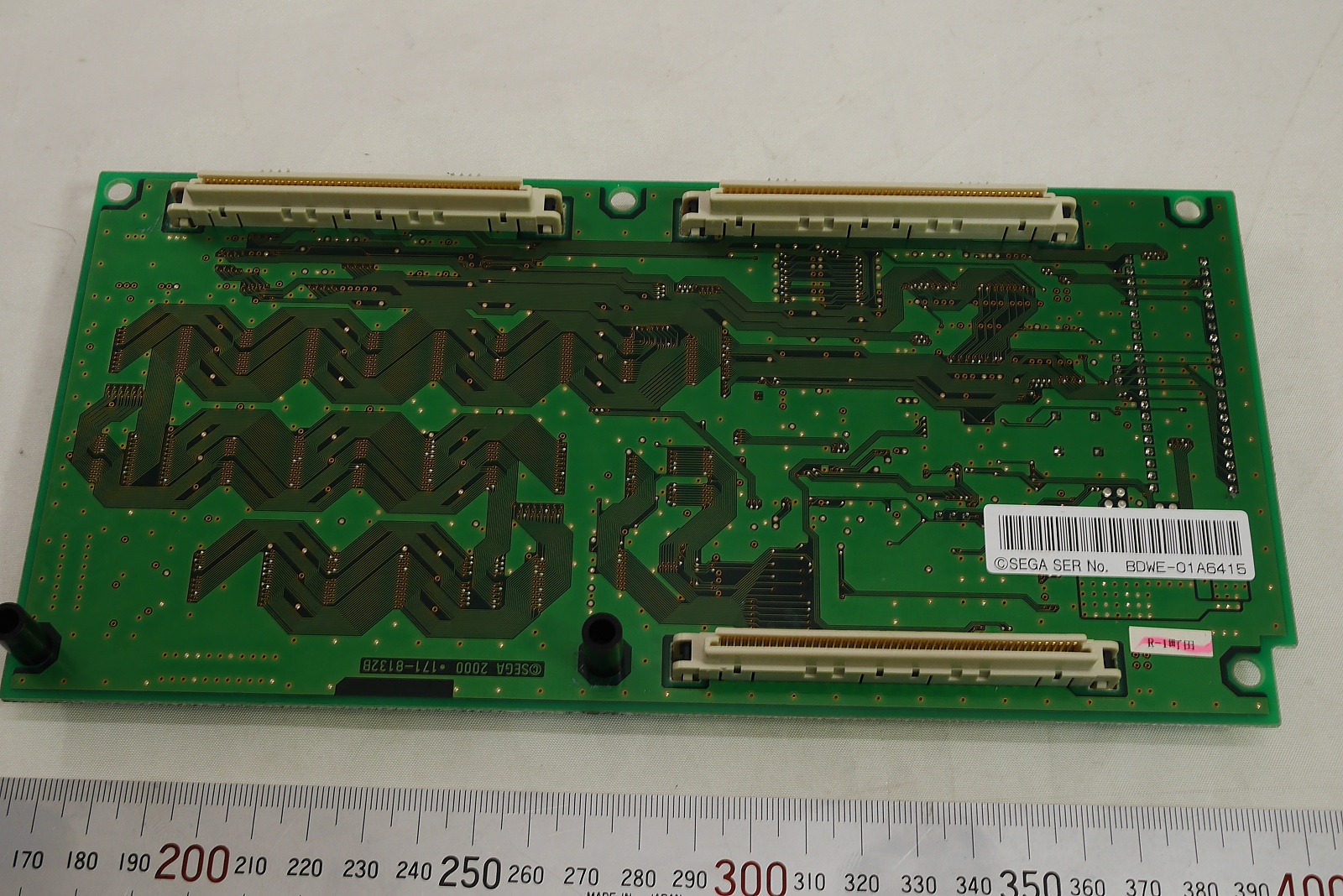

PCB solder side
-

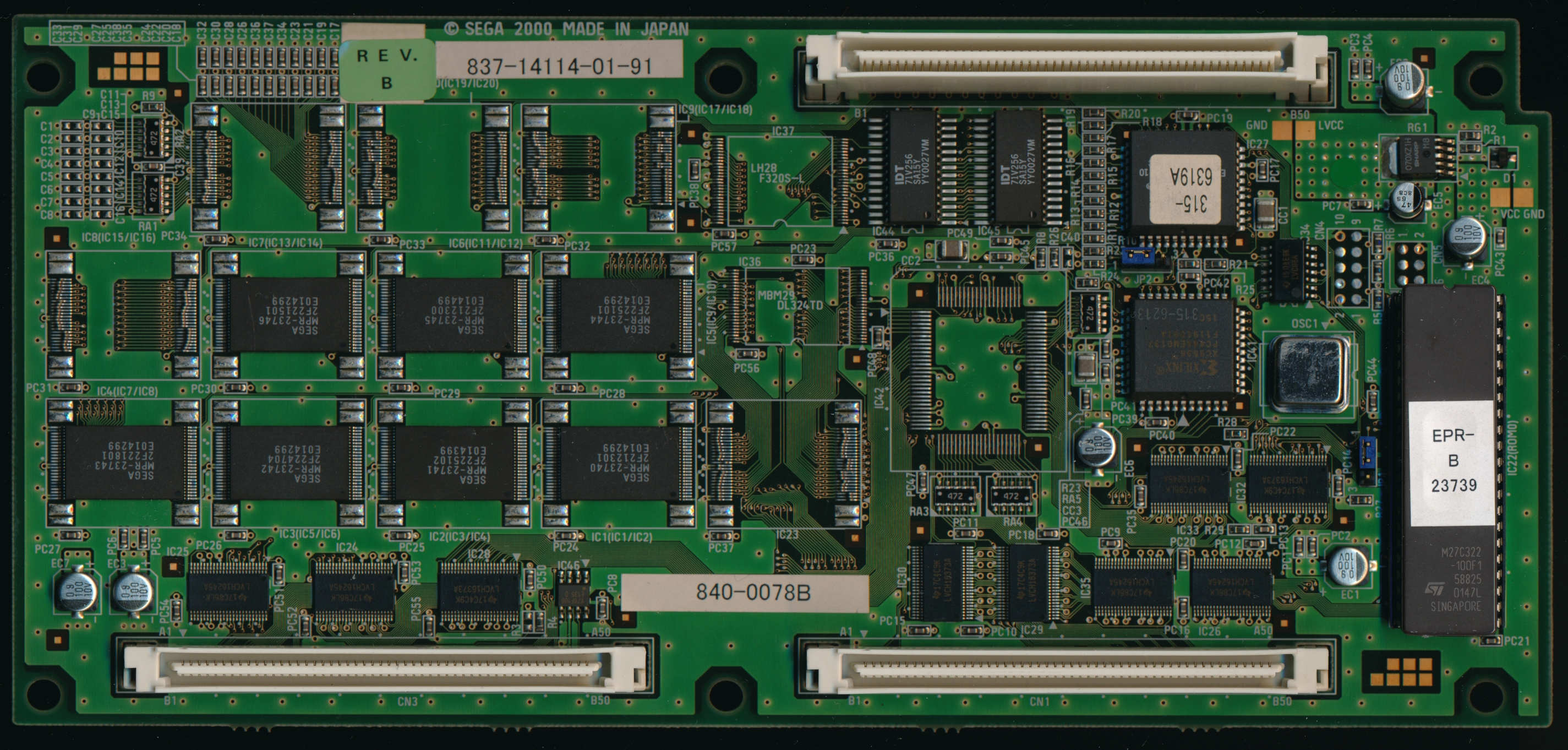

PCB component side 2
-

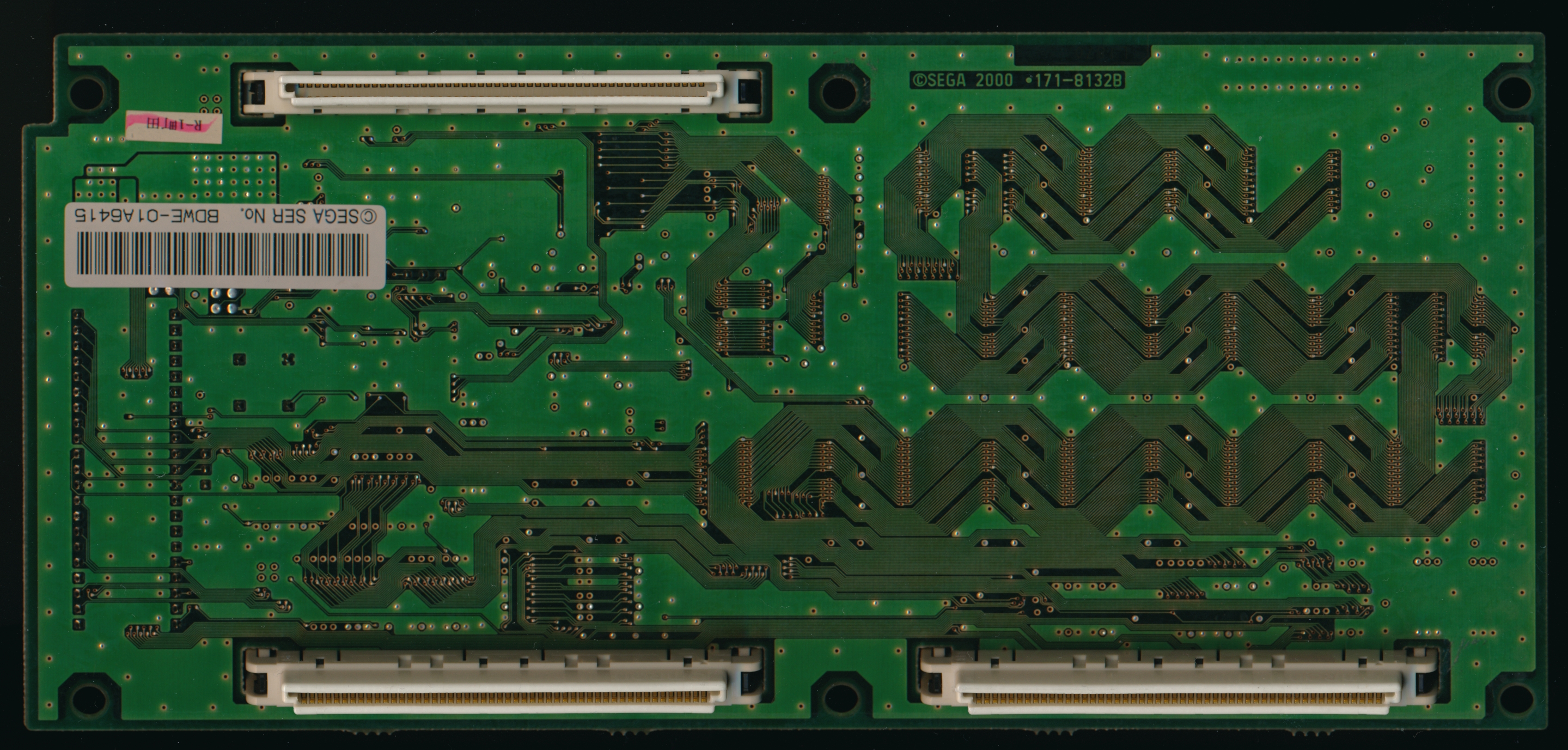

PCB solder side 2
-

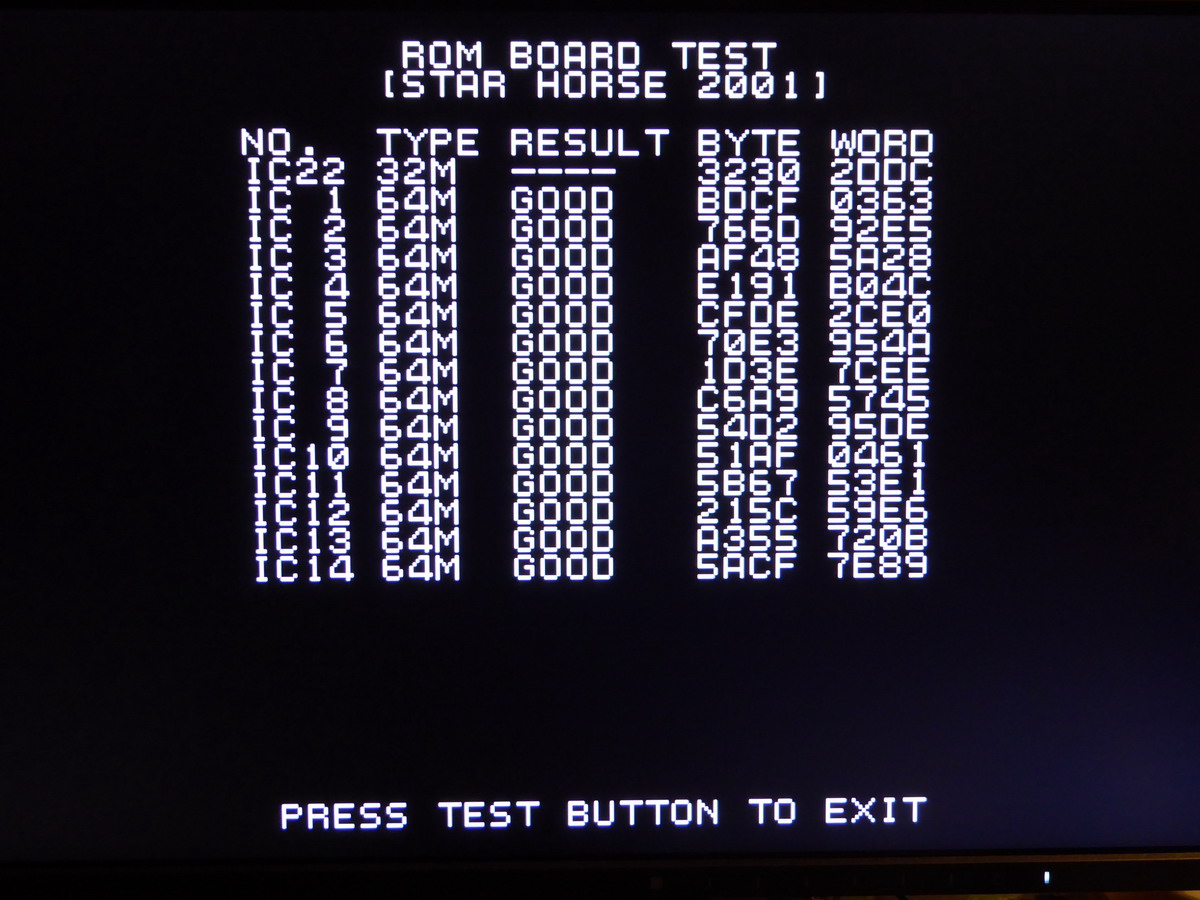

ROM BOARD TEST
-
Readme
