Spy Hunter (Playtronic license)
From Citylan
Jump to navigationJump to search
dumper | italiandoh |
date | 21/06/2008 |
emulator | MAME 0.125u9 |
dev | Stefanocsw |
name | spyhuntp |
description | Spy Hunter (Playtronic license) |
year | 1983 |
manufacturer | Playtronic - Bally Midway |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | Z80A | Super Sound I/O board 1096 | 8-bit Microprocessor - sound | |
2x | AY-3-8910 | Super Sound I/O board 1096 | Programmable Sound Generator - sound | |
1x | oscillator | 16.000MHz | Super Sound I/O board 1096 | |
1x | Z80B | Main CPU board 1094 | 8-bit Microprocessor - main | |
1x | Z80BCTC | Main CPU board 1094 | 8-bit Microprocessor - main | |
1x | oscillator | 20.000MHz | Main CPU board 1094 | |
5x | Unknown chips with scratched surface | Main CPU board 1094 | ||
1x | 68000 | Sound and lamp board 1095 | 16/32-bit Microprocessor - main | |
1x | 6821 | Sound and lamp board 1095 | Peripheral Interface Adapter | |
1x | oscillator | 8.000MHz | Sound and lamp board 1095 |
ROMs
QTY | Type | position | status |
---|---|---|---|
2x | 2532 | Super Sound I/O board 1096 | dumped |
1x | 2716 | Main CPU board 1094 | dumped |
9x | 2764 | Main CPU board 1094 | dumped |
1x | 27128 | Main CPU board 1094 | dumped |
8x | 27128 | Graphics board 1099 | dumped |
4x | 2764 | Sound and lamp board 1095 | dumped |
RAMs
QTY | Type | position |
---|---|---|
1x | 6116 | Super Sound I/O board 1096 |
1x | 6116 | Main CPU board 1094 |
2x | MSM5128 | Main CPU board 1094 |
1x | 93419PC | Main CPU board 1094 |
8x | MCM93422DC | Graphics board 1099 |
1x | 6116 | Graphics board 1099 |
2x | 6116 | Sound and lamp board 1095 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | PAL20L8ACNS | Sound and lamp board 1095 | read protected |
Others
1x AD7524JN Sound and lamp board 1095
1x ADC0804LCN Sound and lamp board 1095
1x MC3340P Sound and lamp board 1095
1x yellow LED Sound and lamp board 1095
2x trimmer (Volume) Sound and lamp board 1095
Notes
Files
-

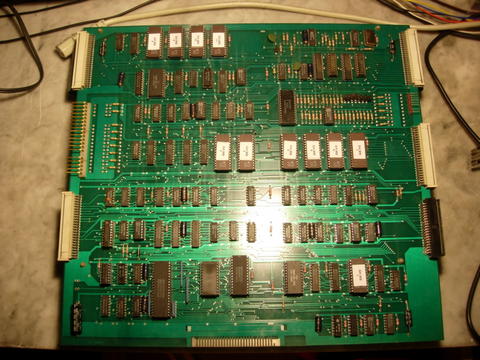

main PCB component side
-

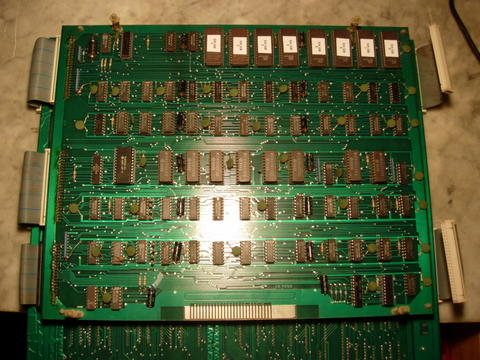

gfx PCB component side
-

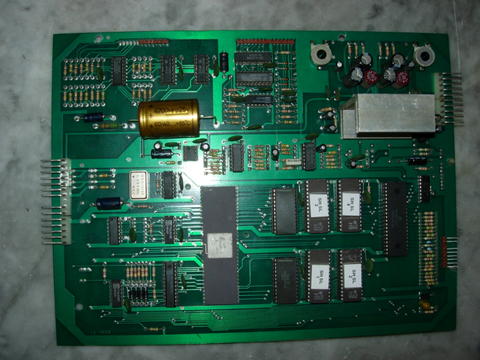

sound lamp PCB component side
-

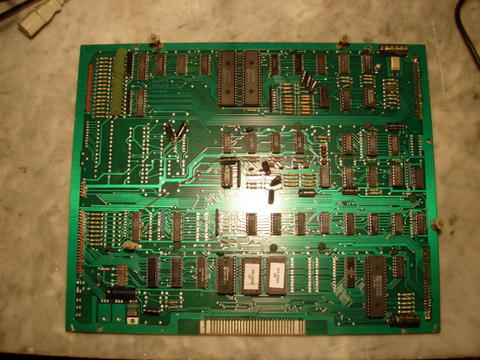

SSIO PCB component side
-
