Space Fortress (Zaccaria)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Piero Andreini |
| date | 22/04/2005 |
| emulator | MAME 0.95u6 |
| dev | Pierpaolo Prazzoli |
| name | spaceftr on ProgettoEMMA spaceftr on Arcade Database |
| description | Space Fortress (Zaccaria) |
| year | 1981 |
| manufacturer | Zaccaria |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | 2716 | p7,r7,t7,u7 | dumped |
| 5x | 6331-1 | c14,d14,e14,e8,j14 | dumped |
| 1x | N82S129N | f14 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | 2101A | L14,M14,N14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
Notes
Licensed version made by Zaccaria of "Star Castle" by Cinematronics.
It's a VECTOR game!
update 20140309: Piero dumped his board. It is identical to mine, and thanks to his dump we can confirm the following 2 things:
1) the EPROM 7P of my dump is bad. It is correct in Piero's dump, and it matches starcas1 dump. So the comment in the source code can be removed, and the rom marked as GOOD_DUMP
2) the PROM 8e in Piero's dump and in mine are the same, and they differ from the PROM in MAME. The source code should be updated consequently.
Files
-

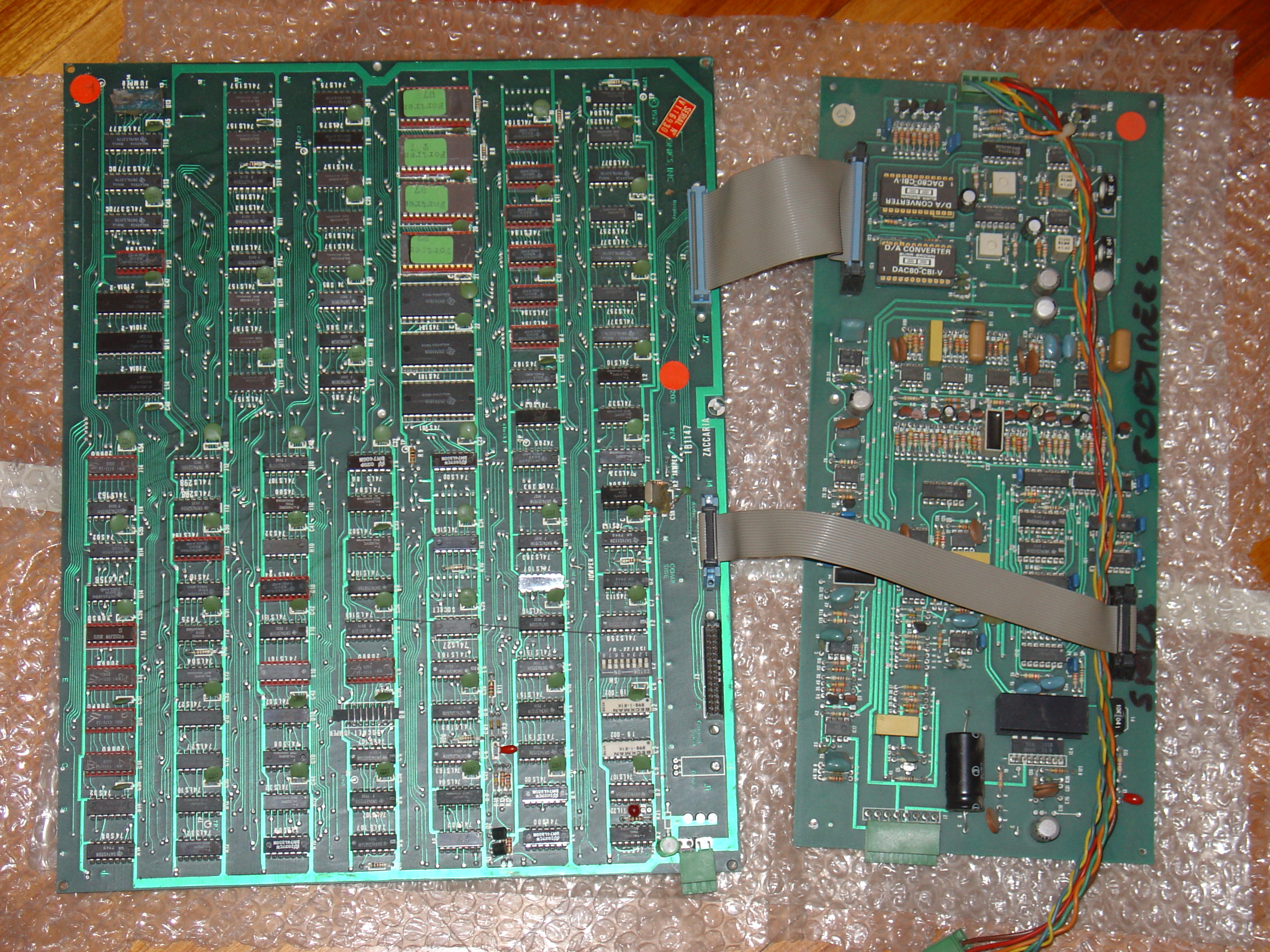

assembled PCB component side
-

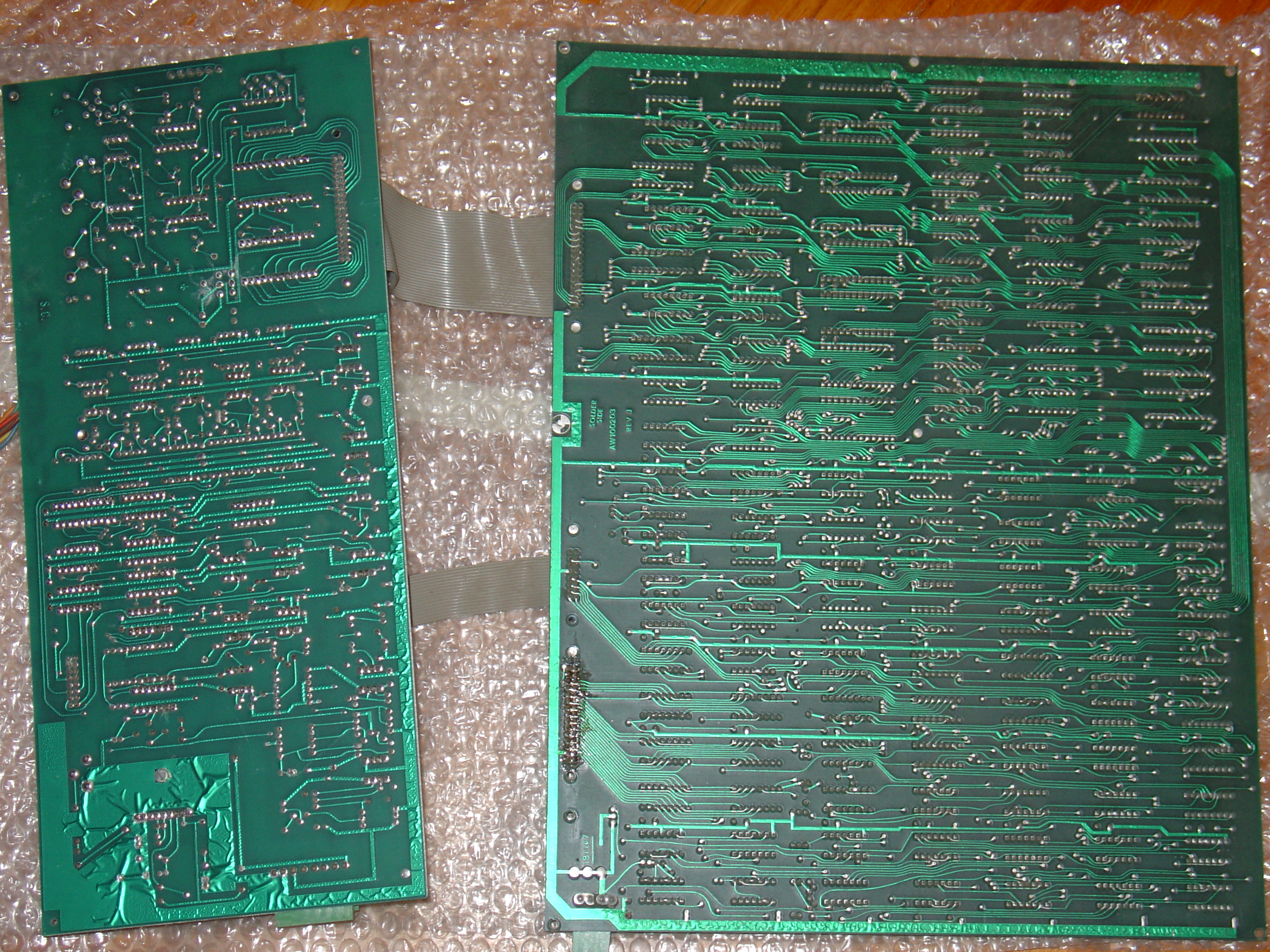

assembled PCB solder side
-

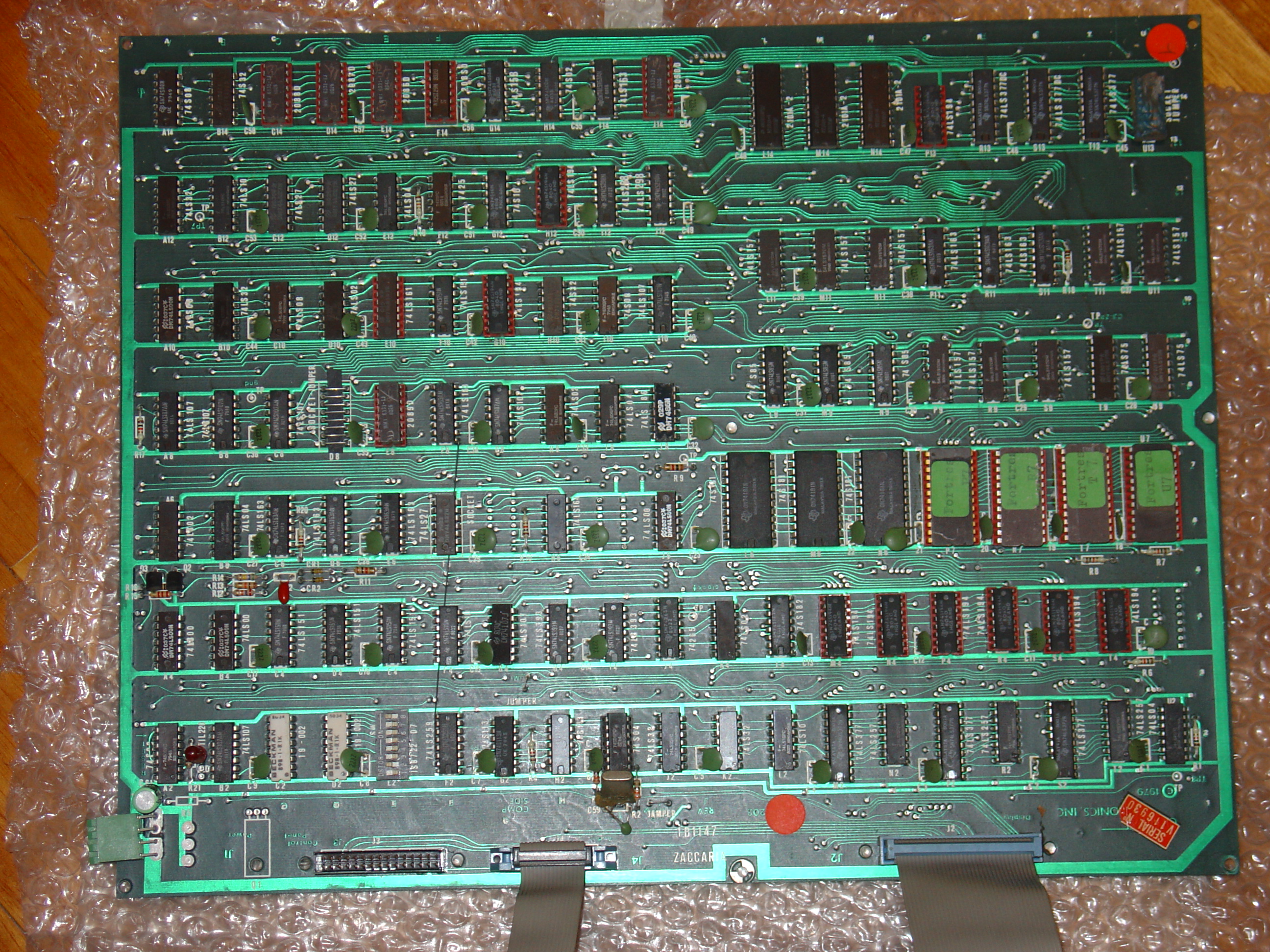

main PCB component side
-

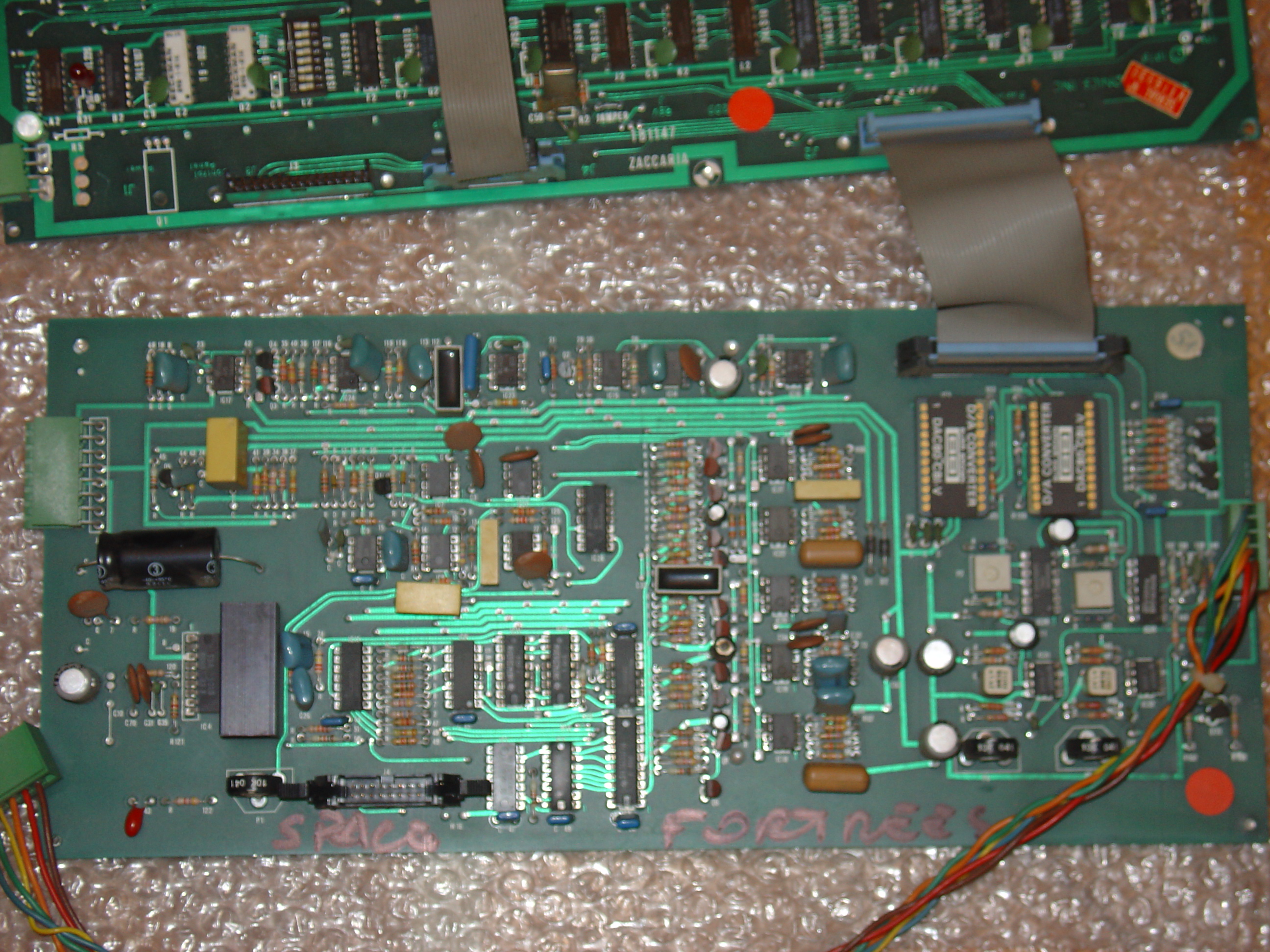

video-sound PCB component side
-
