Space Dragon (bootleg of Moon Cresta)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Gnoppi |
| date | 27/06/2005 |
| emulator | MAME 0.117u1 |
| dev | David Haywood |
| name | spcdrag on ProgettoEMMA spcdrag on Arcade Database |
| description | Space Dragon (bootleg of Moon Cresta) |
| year | 1980 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Mostek Z80 | 8-bit Microprocessor - main | ||
| 1x | oscillator | 18432 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | Mostek MK2716J | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
It's a clone of "Moon Cresta (Nichibutsu)"
I've got 2 identical boards.
Files
-

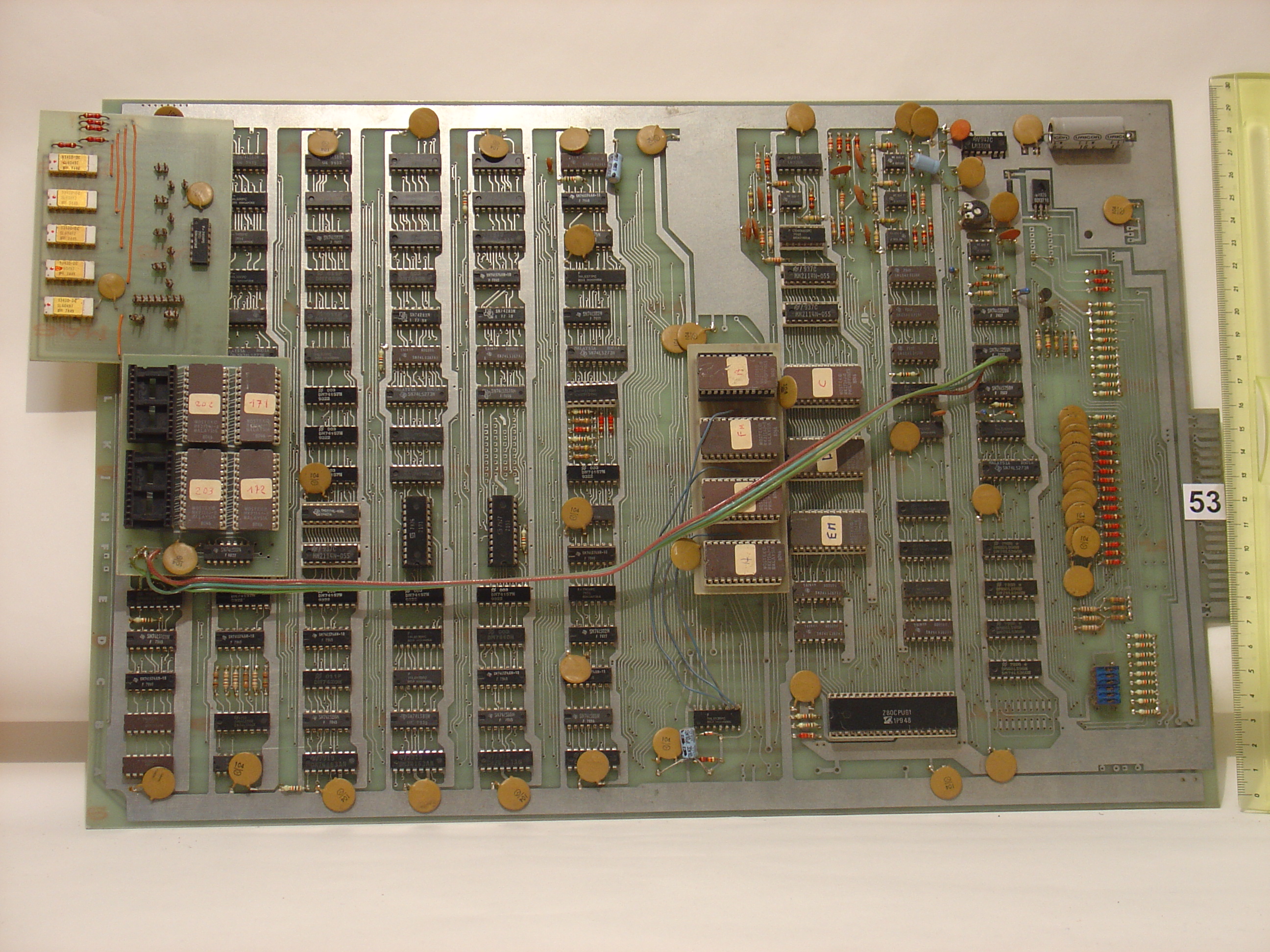

PCB component side
-

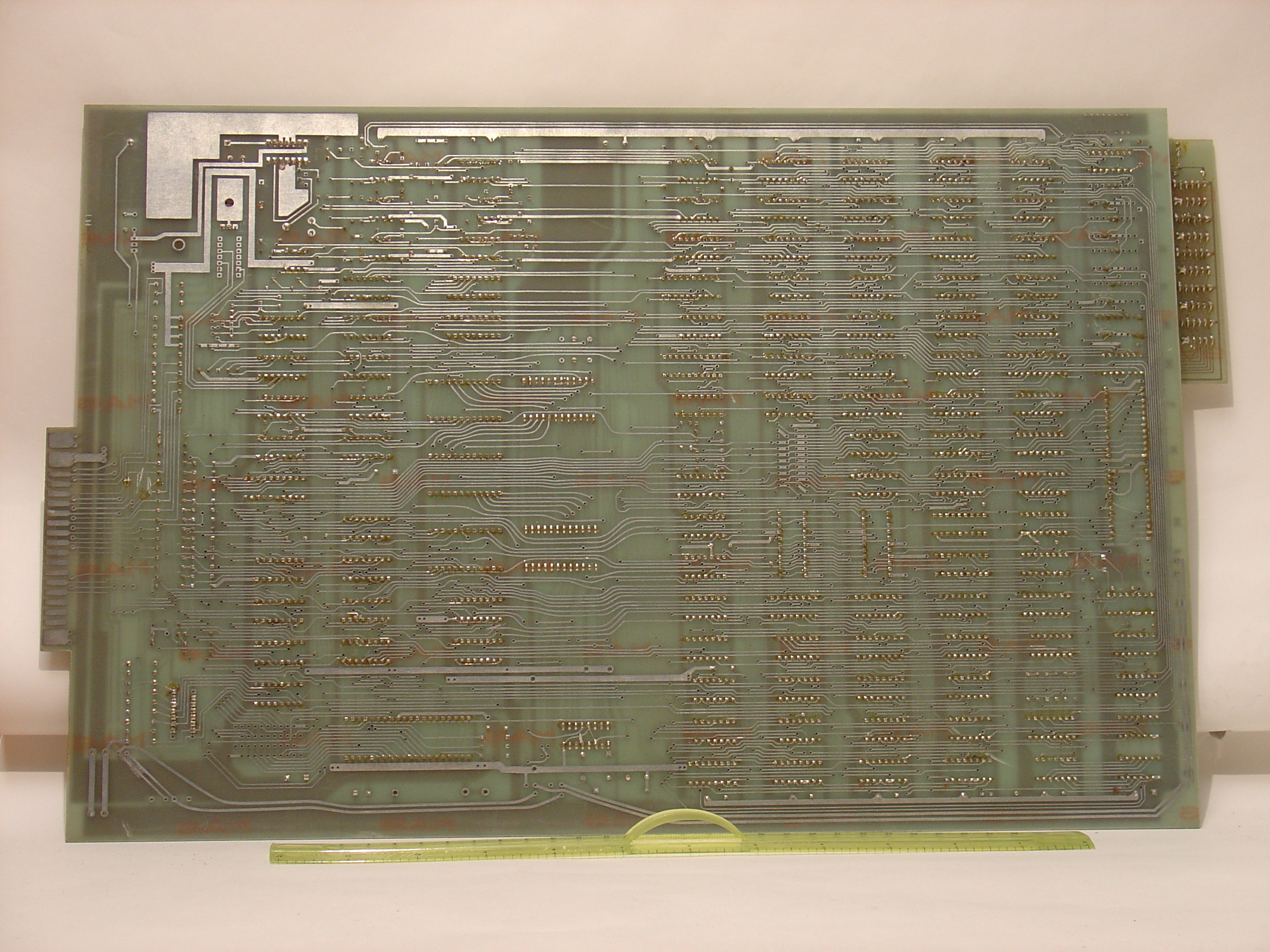

PCB solder side
