Snow Bros. - Nick & Tom (Dooyong license)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 14/08/2008 |
| emulator | MAME 0.127 |
| dev | Brian Troha, Tirino73, MAME Italia Forum |
| name | snowbrosd on ProgettoEMMA snowbrosd on Arcade Database |
| description | Snow Bros. - Nick & Tom (Dooyong license) |
| year | 1990 |
| manufacturer | Toaplan (Dooyong license) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000P8 | 16/32-bit Microprocessor - main | ||
| 1x | Z80A | 8-bit Microprocessor - sound | ||
| 1x | YM3014 | D/A Converter (DAC) - sound | ||
| 1x | YM3812 | FM Operator Type-L II (OPL II) - sound | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 16.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27010 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
other ic 160 pin flat-pack "pandora" GPU
Notes
This romset comes from an original pcb.Differences are:In title screen,copyright string added with "Licensed to Dooyong Ind. Co. Ltd."
Files
-

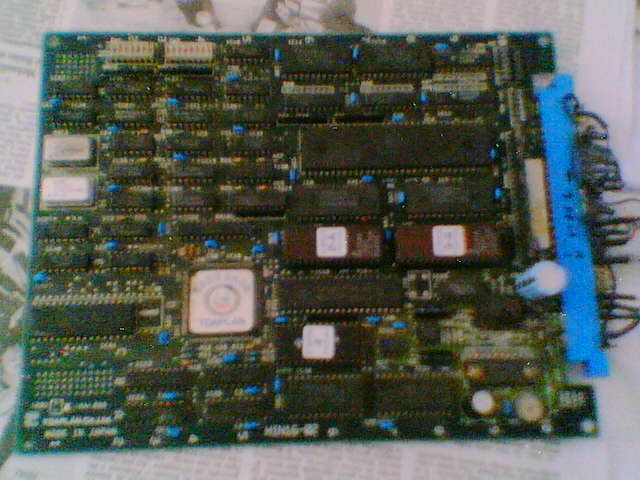

PCB component side
-
Readme
