Snooker 10 (Ver 1.11)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 23/12/2006 |
| emulator | MAME 0.113 |
| dev | Roberto Fresca |
| name | snookr10 on ProgettoEMMA snookr10 on Arcade Database |
| description | Snooker 10 (Ver 1.11) |
| year | 1998 |
| manufacturer | Sandii' |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-2 | both PCBs u16 | 8-bit Microprocessor - main | |
| 1x | AD-65 | both PCBs u19 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | both PCBs u17 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | 1st PCB u16 | Audio Amplifier - sound | |
| 1x | TDA2002 | 2nd PCB u16 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | both PCBs osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C256 | 1st PCB 1,2 | dumped |
| 2x | M27C256B | 1st PCB 3,5 | dumped |
| 1x | M27C2001 | 1st PCB 4 | dumped |
| 4x | TMS27C256 | 2nd PCB 1,2,3,5 | dumped |
| 1x | TMS27C020 | 2nd PCB 4 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | GM76C88AL-15 | 1st PCB U1,U24 |
| 2x | GM76C88AL-12 | 2nd PCB U1,U24 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MACH231-15-JC/1-18JI/1 (LCC84) | U14,U26 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 15 legs connector (J2)
1x trimmer (volume)
1x 8 DIP switches bank (SWDIP1)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "SNOOKER 10", "SANDII'" and "top" on component side
PCB is marked: "SANDII'" and "bottom" on solder side
update 20180826: I found a 2nd PCb for the same game, confirmed dump
Files
-

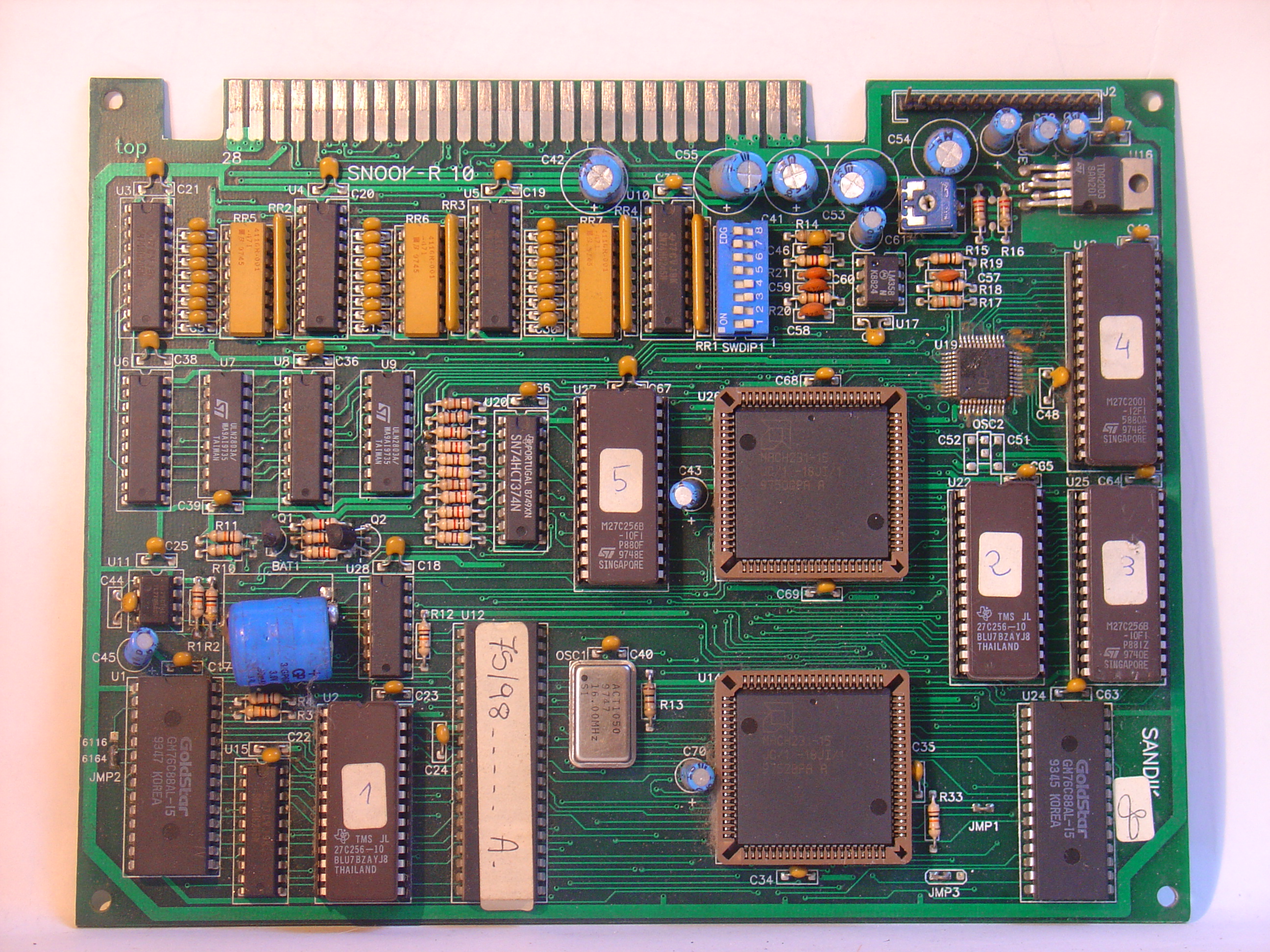

1st PCB component side
-

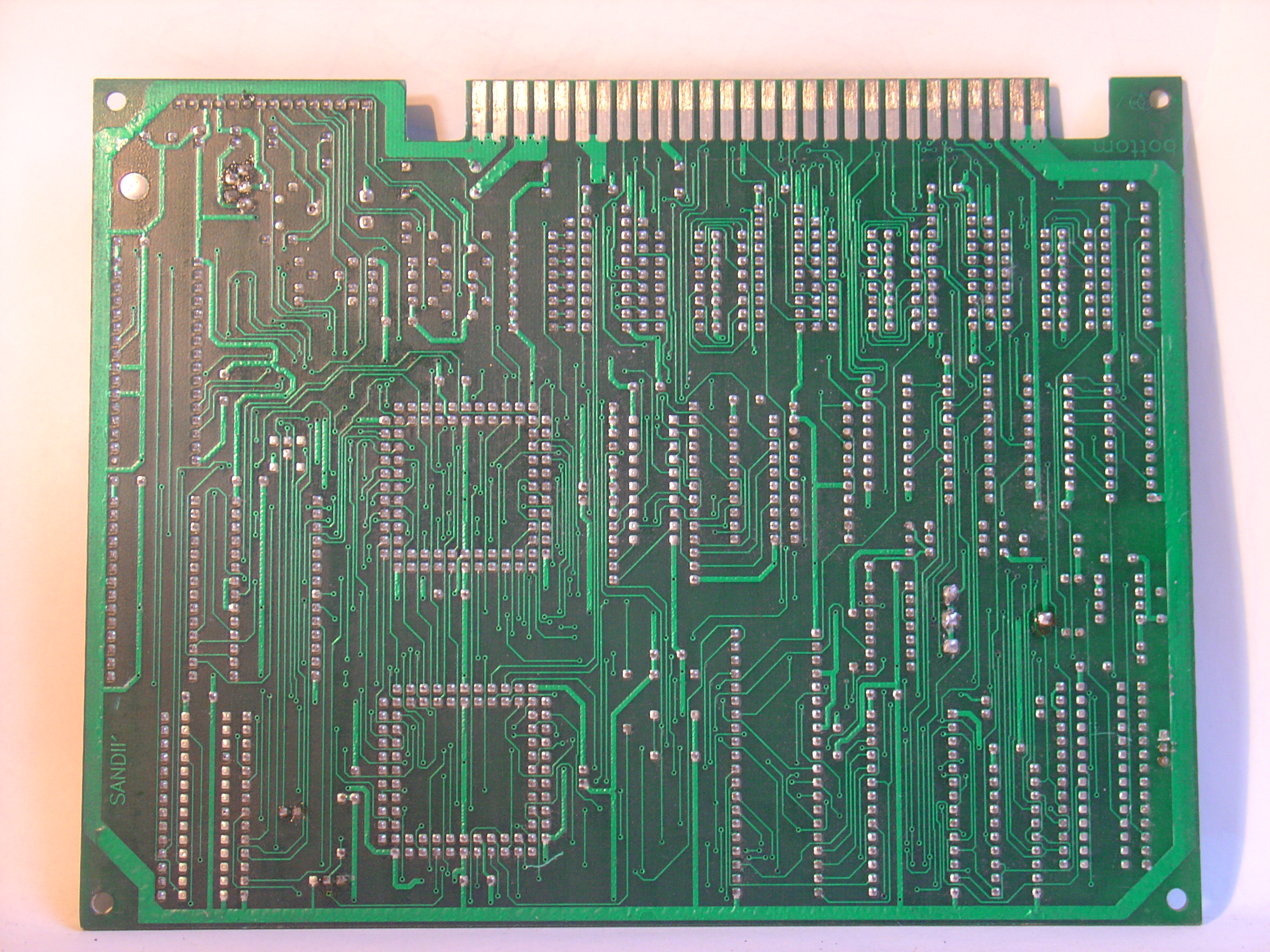

1st PCB solder side
-

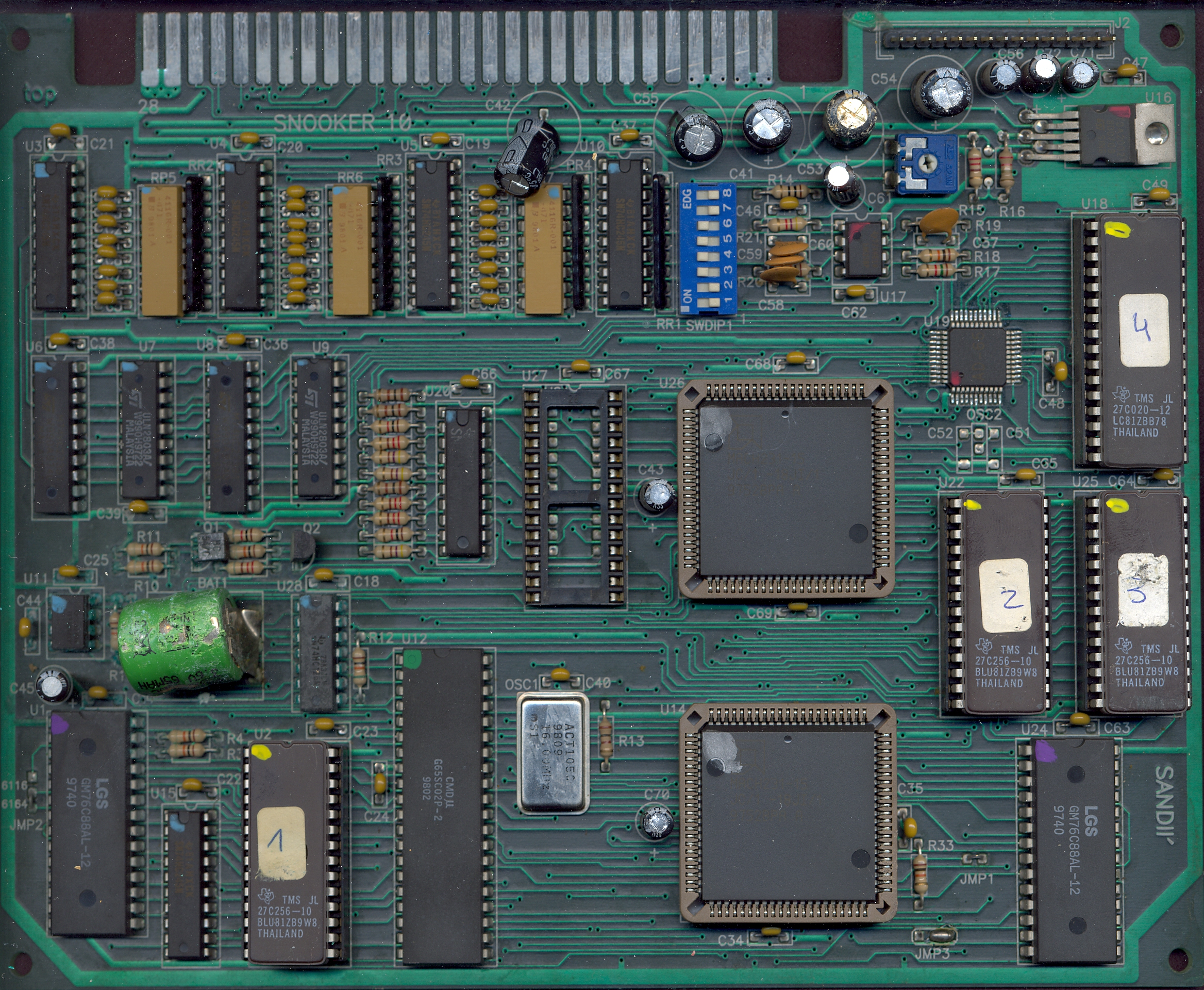

2nd PCB component side
-

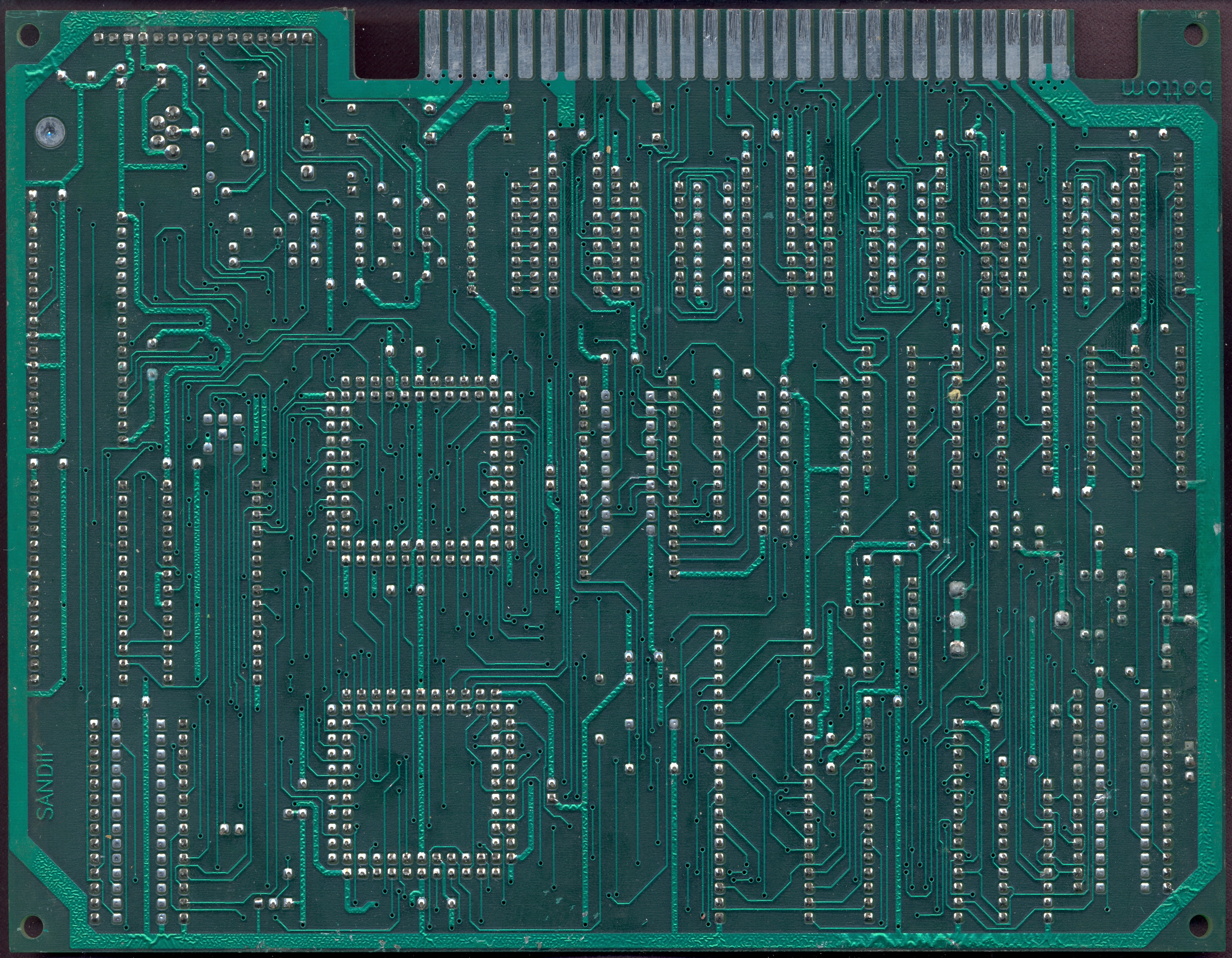

2nd PCB solder side
-

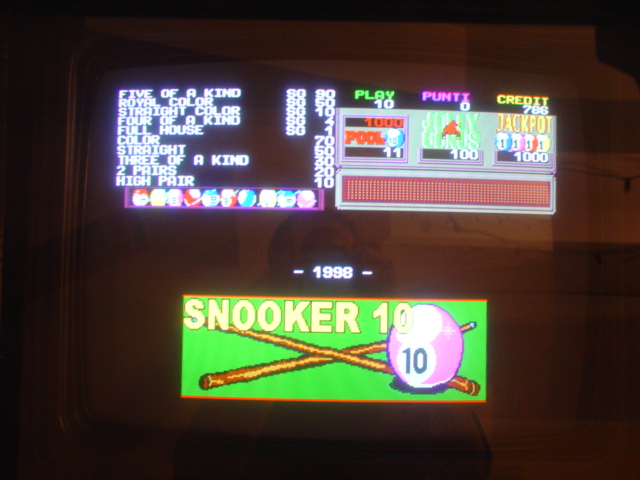

Title
-

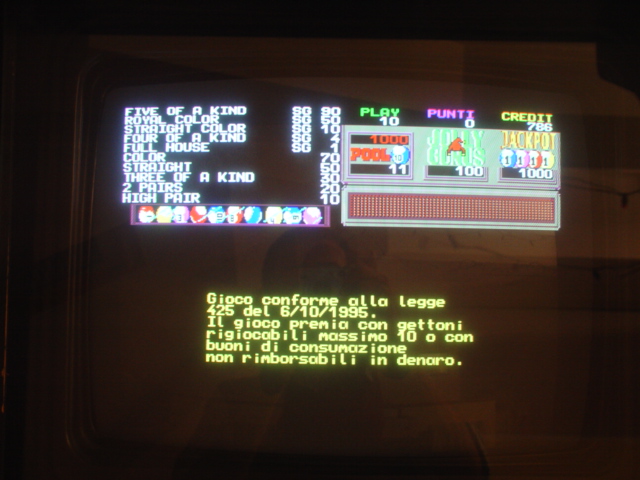

Attract mode
-

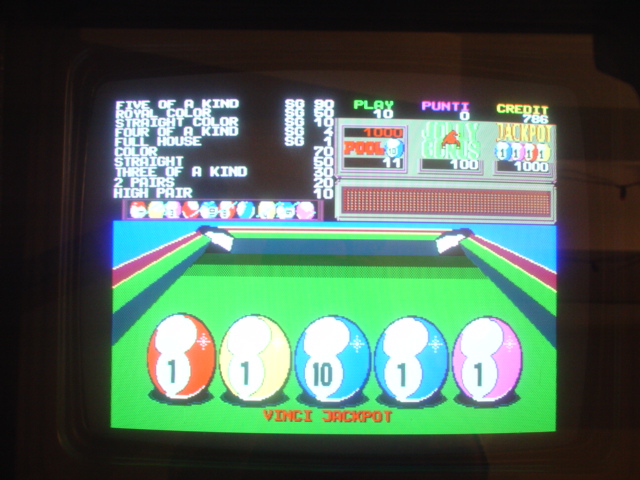

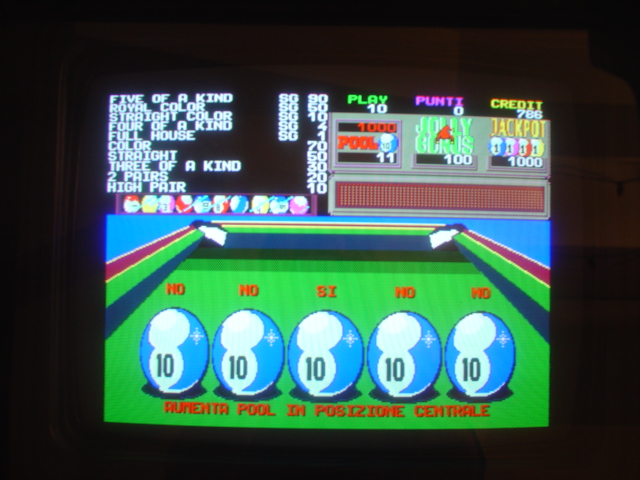

In game 1
-
