Slot (unknown bootleg?)
From Citylan
Jump to navigationJump to search
| dumper | Alessandro Ghirardi, Lorenzo Fongaro |
| date | 04/12/2017 |
| emulator | MAME 0.193 |
| dev | Robiza |
| name | slotunbl on ProgettoEMMA slotunbl on Arcade Database |
| description | Slot (unknown bootleg?) |
| year | 1982 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80CPUB1 | 9e | 8-bit Microprocessor - main | |
| 1x | TBA820 | 1a | Audio Amplifier - sound | |
| 1x | oscillator | unmarked | 7k |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TBP18S030N | 7b | not dumped yet |
| 2x | TMS2516JL | 3d,5d | dumped |
| 1x | TMS2532JL | 7f | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | P2114AL | 1c |
| 2x | SY2114-2 | 1d,4f |
| 1x | TMS2114L-20NL | 5f |
| 1x | MCM51L01P45 | 3f |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)(1a)
Notes
Files
-

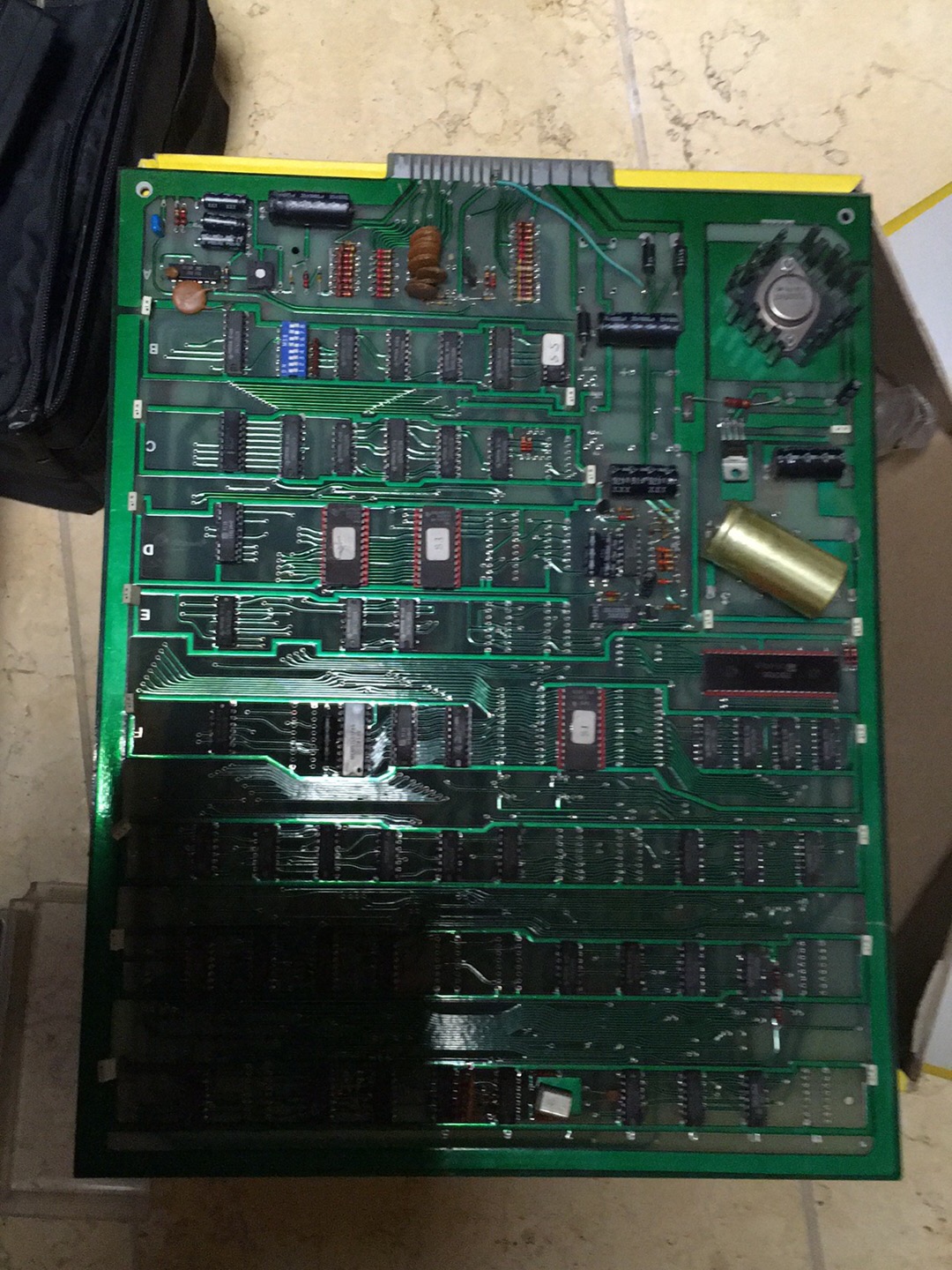

PCB component side
-

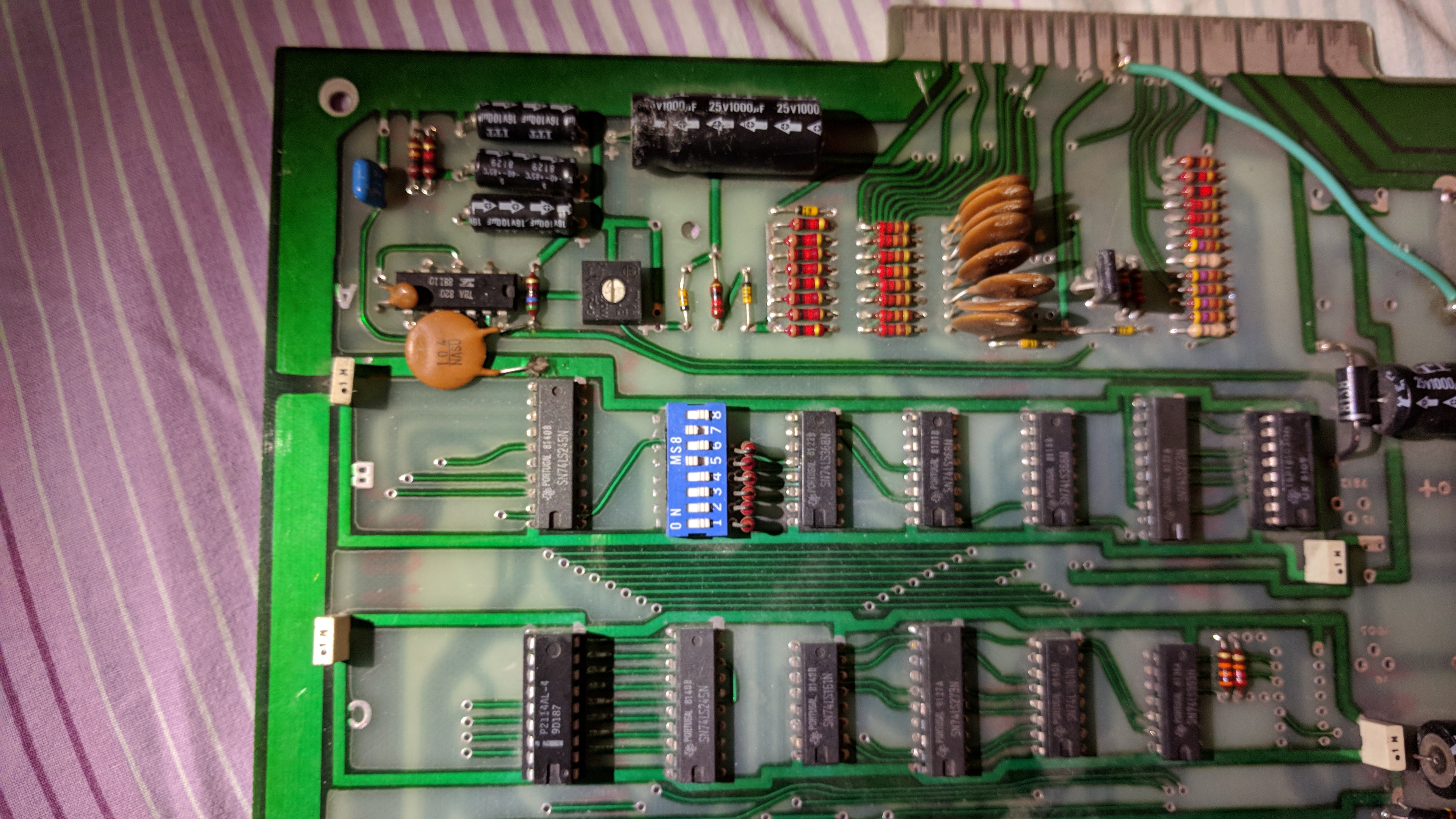

PCB component side detail 1
-
PCB component side detail 2
-
PCB component side detail 3
-

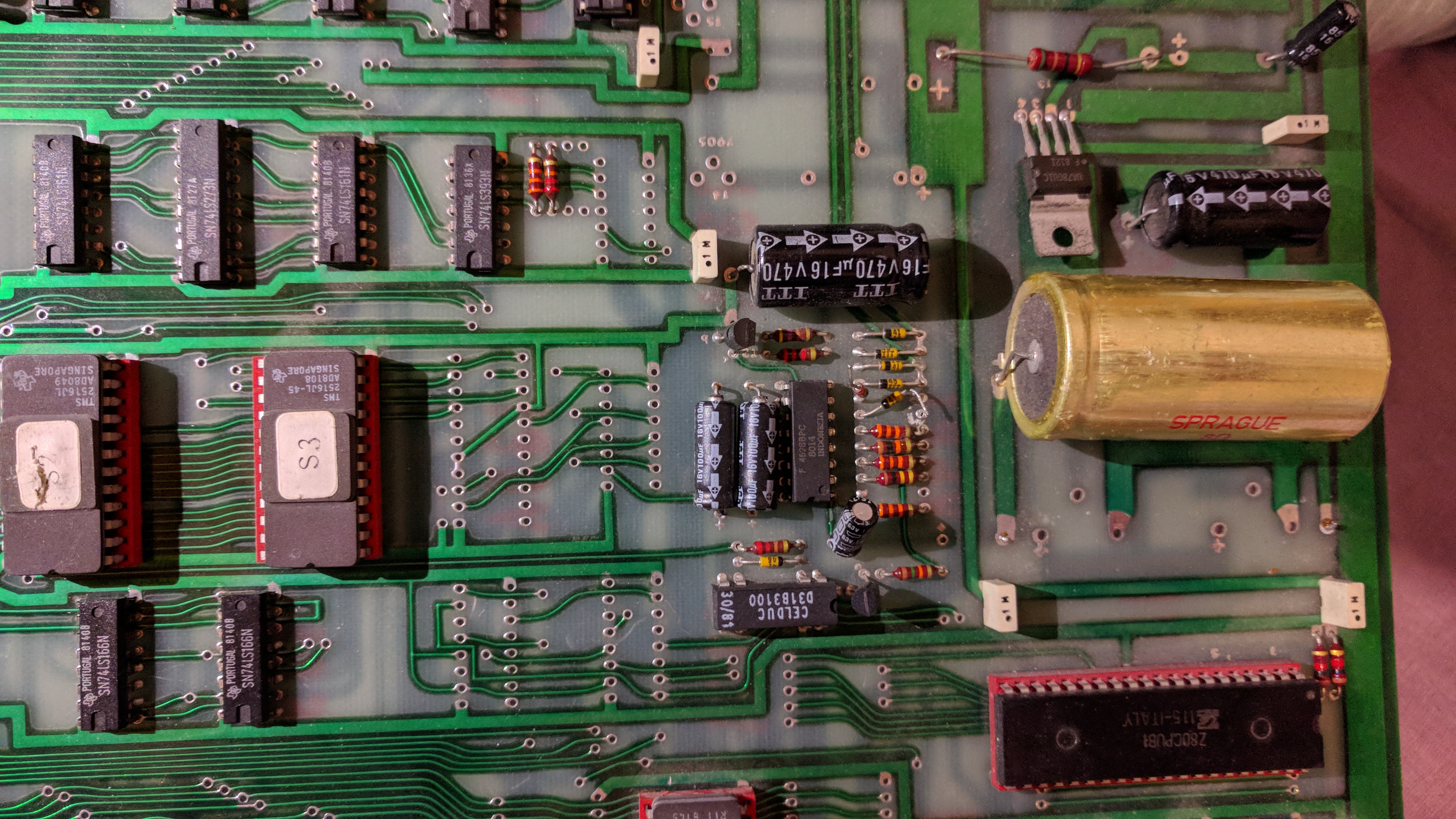

PCB component side detail 4
-

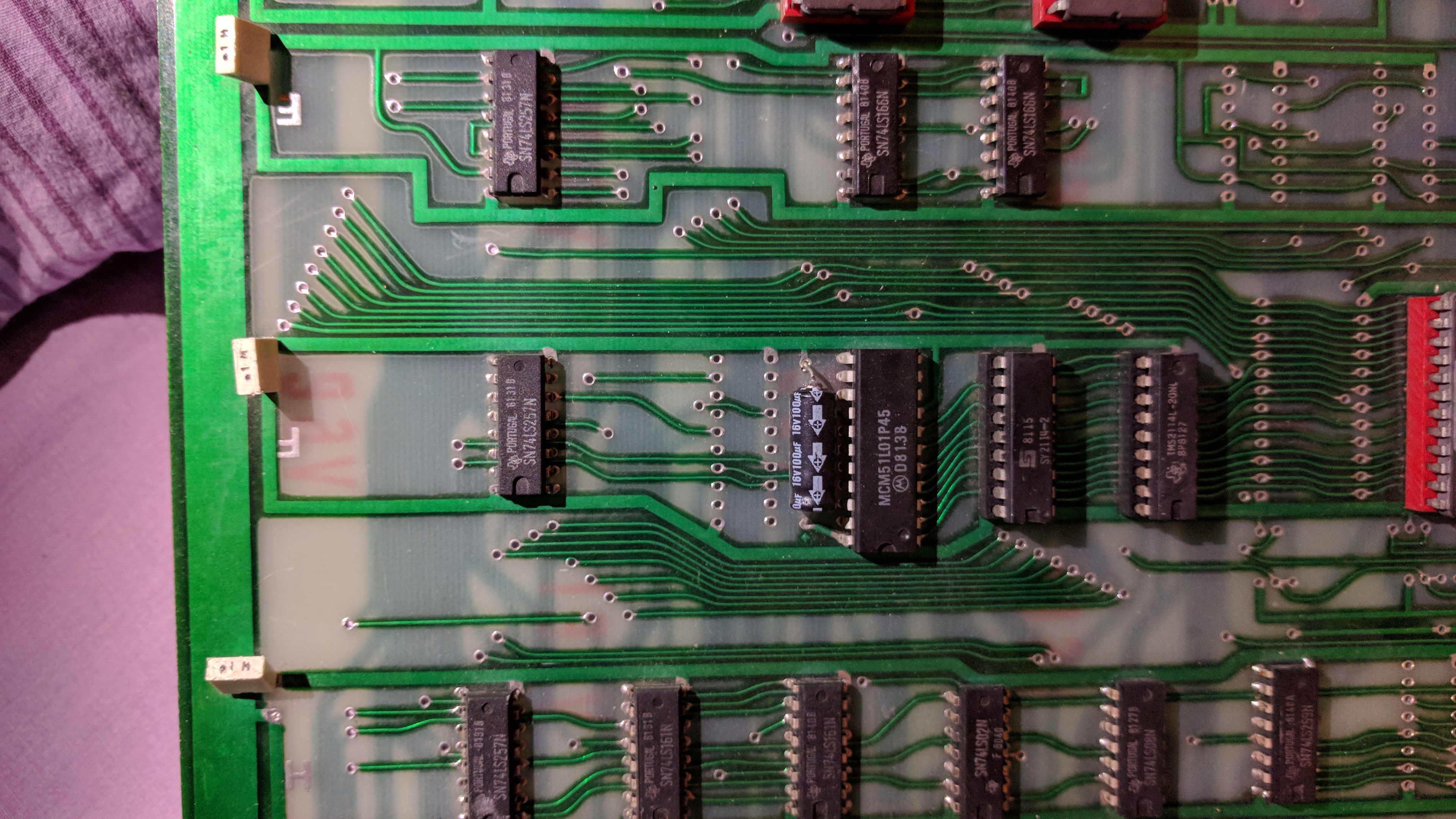

PCB component side detail 5
-
PCB component side detail 6
-
PCB component side detail 7
-
PCB component side detail 8
-
PCB component side detail 9
-

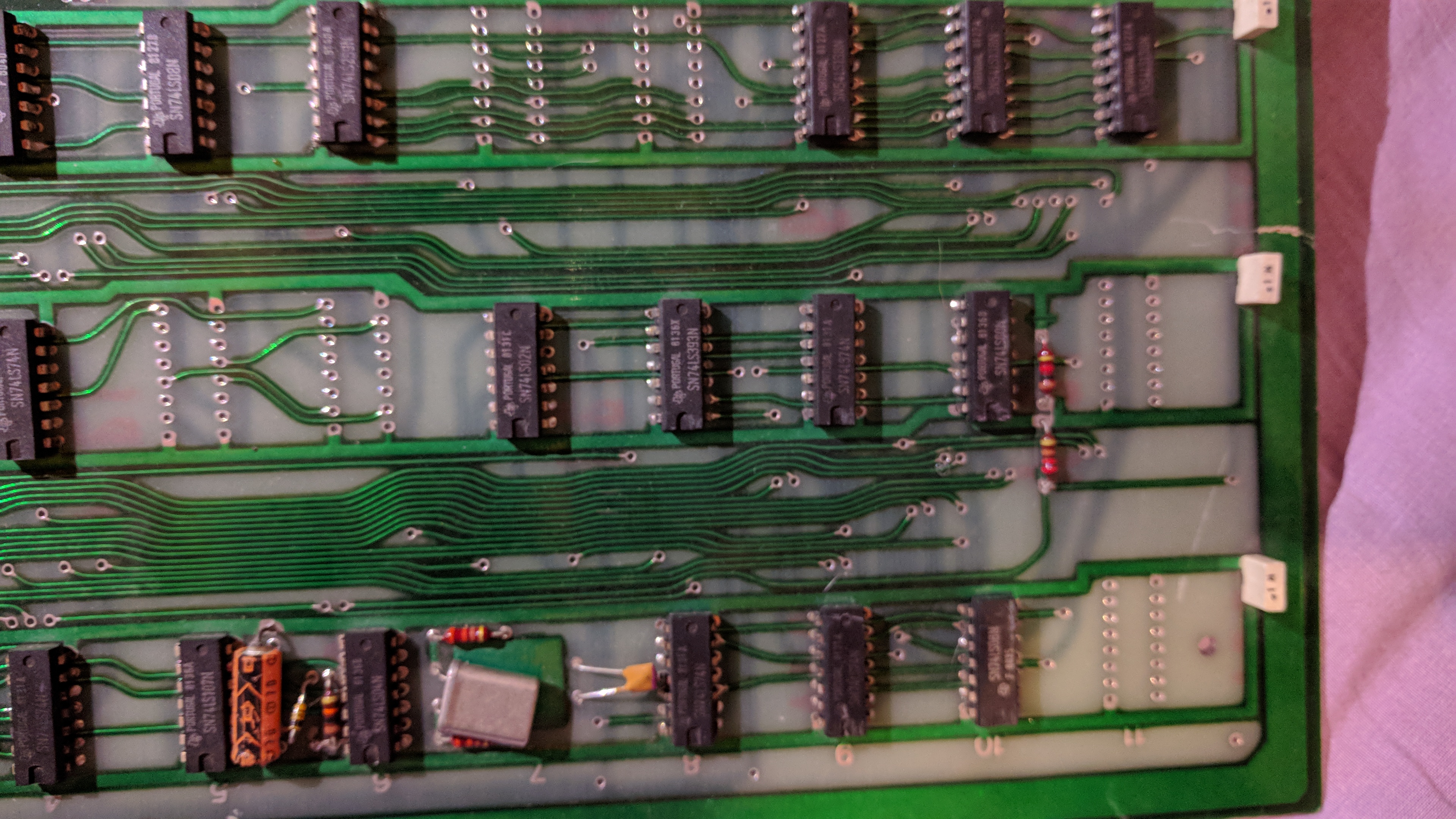

PCB component side detail 10
