Shootout Pool Prize (Export) / Shootout Pool The Medal (Japan, Rev A)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 08/07/2009 |
| emulator | MAME 0.132u5 |
| dev | Luca Elia |
| name | shootpl on ProgettoEMMA shootpl on Arcade Database |
| description | Shootout Pool Prize (Export) / Shootout Pool The Medal (Japan, Rev A) |
| year | 2003.06.04 - 22:11:16 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50.000 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | epr-24065a.ic11 | dumped |
| 4x | M27W064 | opr-24060.ic17s - opr-24061.ic18 - opr-24062.ic19s - opr-24063.ic20 | dumped |
| 1x | 25LC040 | ic13s | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32A 317-0367-COM | ic1 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0128C
Key: 0x9dbde9cd
update 20170604: dumped 25LC040, better scans
Files
-

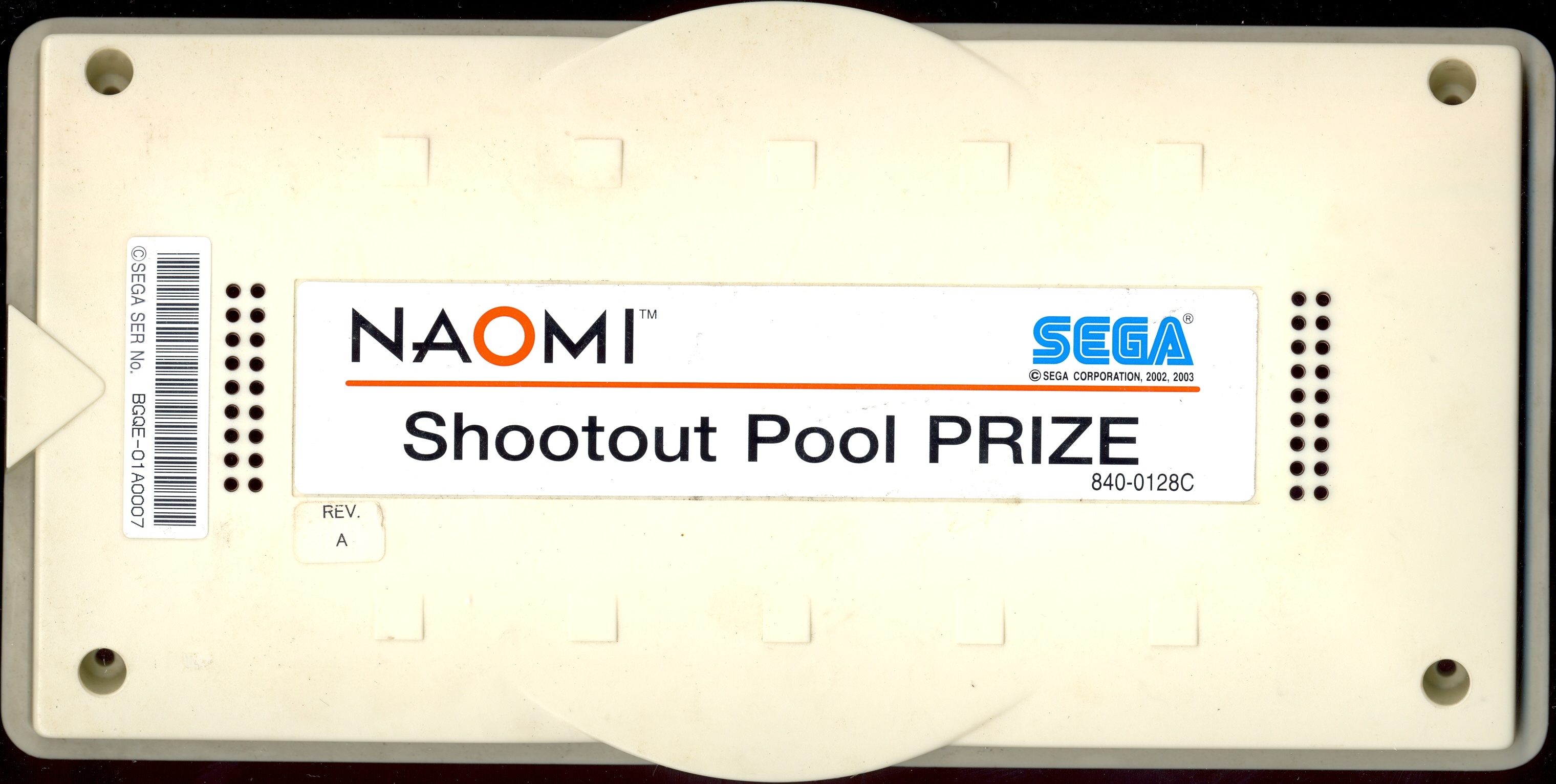

Cart 1
-
Cart 2
-

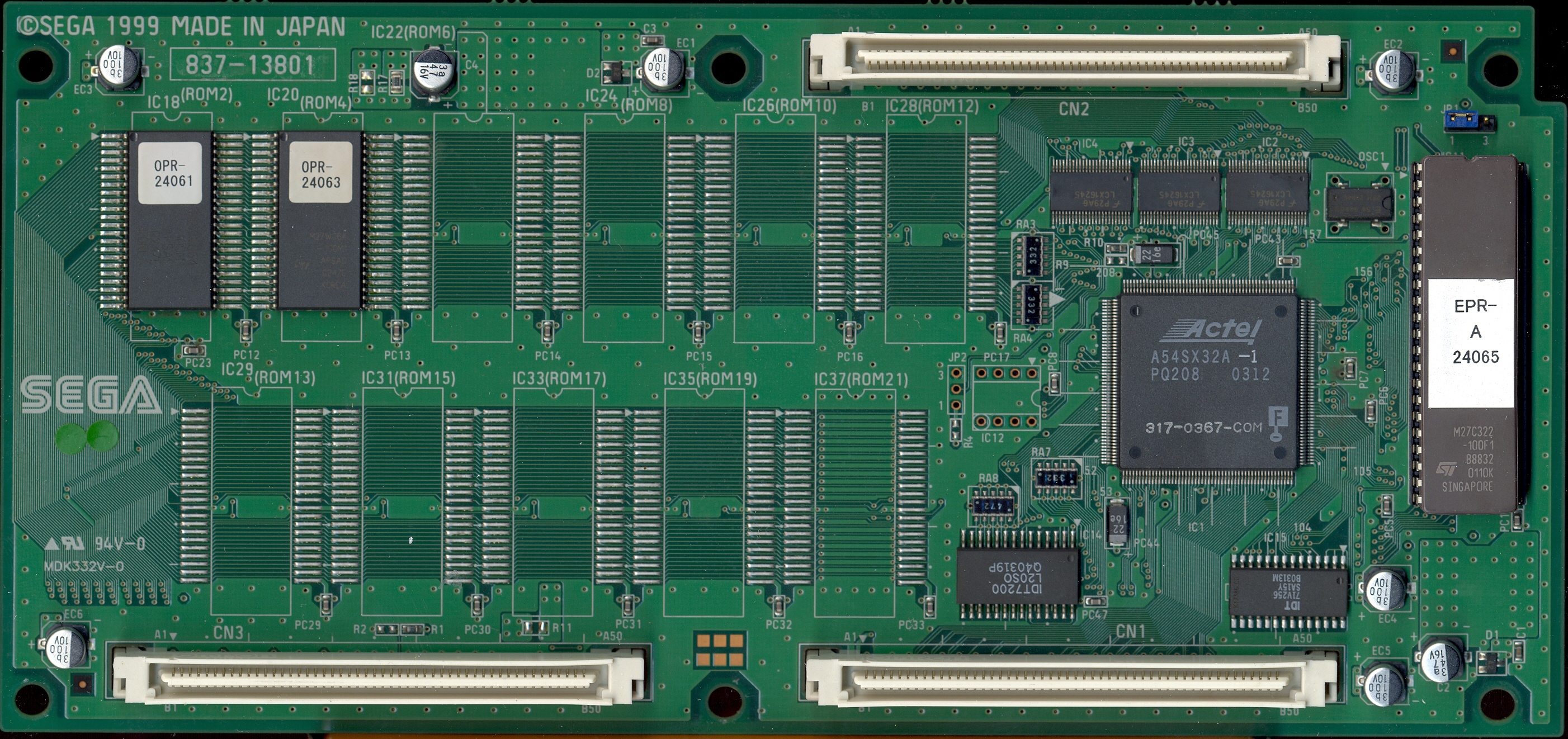

PCB component side 1
-
PCB component side 2
-

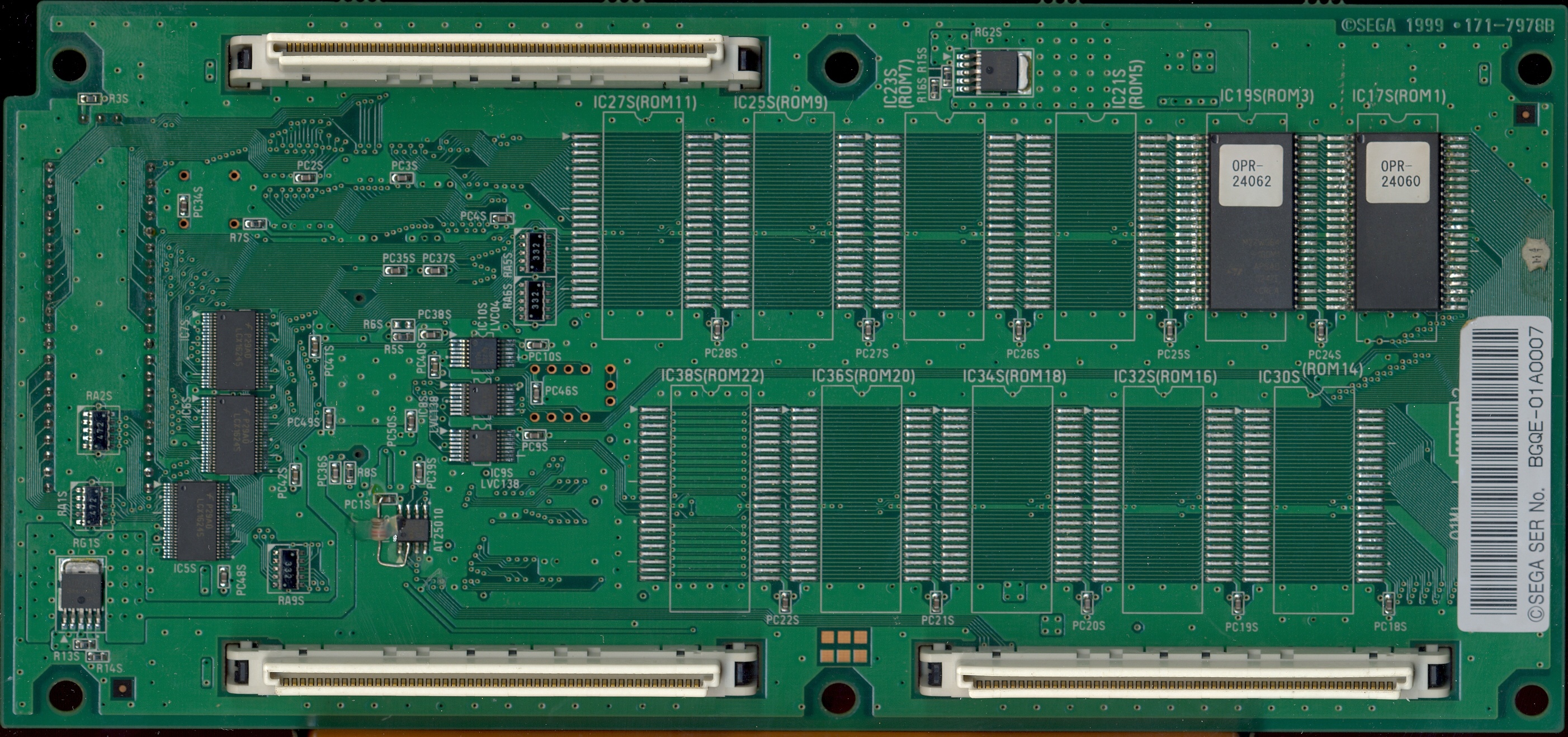

PCB solder side 1
-
PCB solder side 2
-

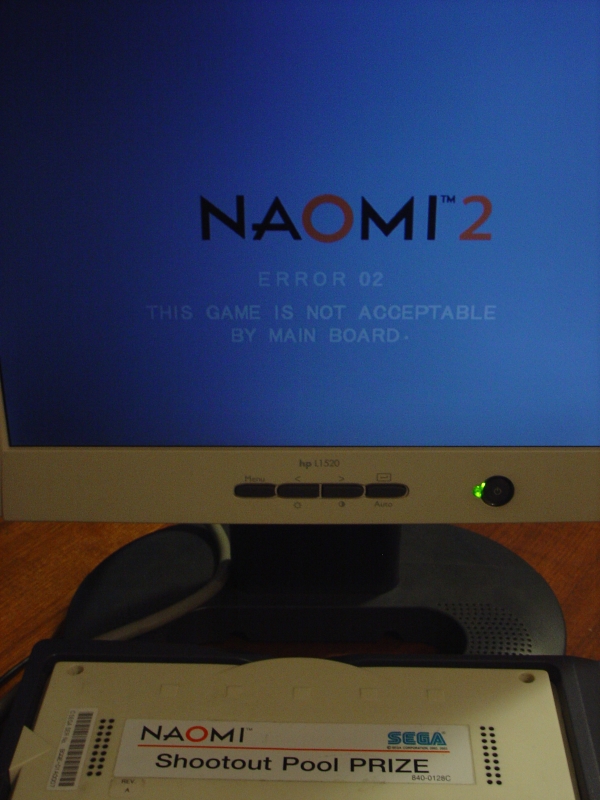

bootup
