Shin Nihon Pro Wrestling Toukon Retsuden 4 Arcade Edition (Japan, TRF1 Ver.A)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/09/2010 |
| emulator | MAME 0.144u6 |
| dev | f205v, The Dumping Union |
| name | toukon4 on ProgettoEMMA toukon4 on Arcade Database |
| description | Shin Nihon Pro Wrestling Toukon Retsuden 4 Arcade Edition (Japan, TRF1 Ver.A) |
| year | 2000.03.29-03:46:51 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28MHz | osc1 (3j) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 15x | MaskROM 128Mb TSOP48 | TRF1MA1(4n) - TRF1MA15(6l) | dumped |
| 2x | DA28F640J5 | FL0(2f), FL1(2d) | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IS61C256AH-15J | 4p, 5p |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | Altera MAX EPM7064S | NAODEC2A(1h), NAODEC1B(2k) | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: MASK B F2X
Cart N°: 25349801 TRF1 Ver. A
Protection IC: SEGA 315-5881 (317-5040-COM)
Key: 0x052e2901
Files
-

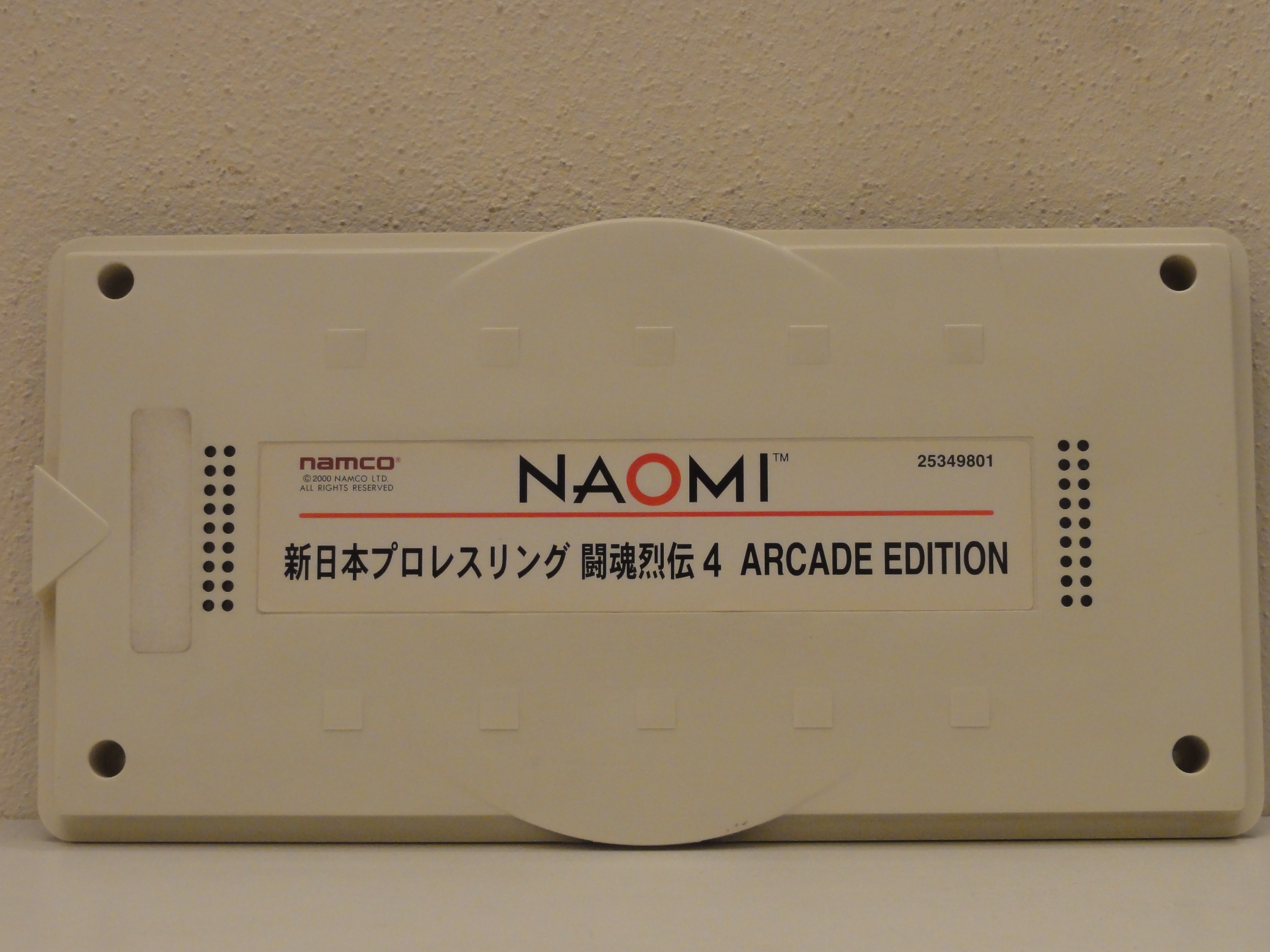

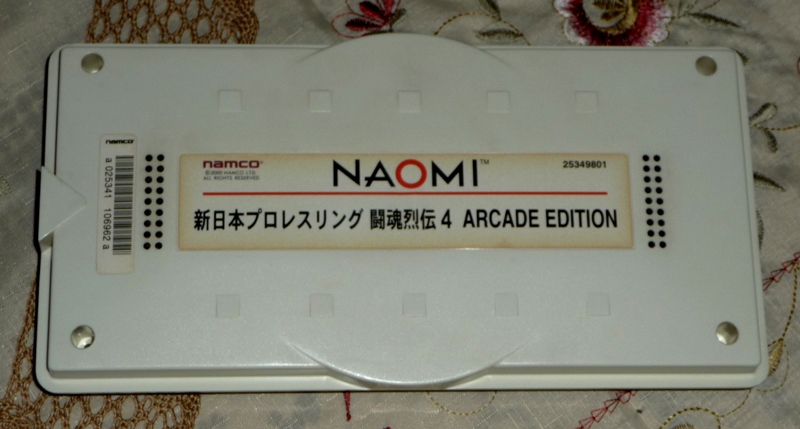

Cart 1
-

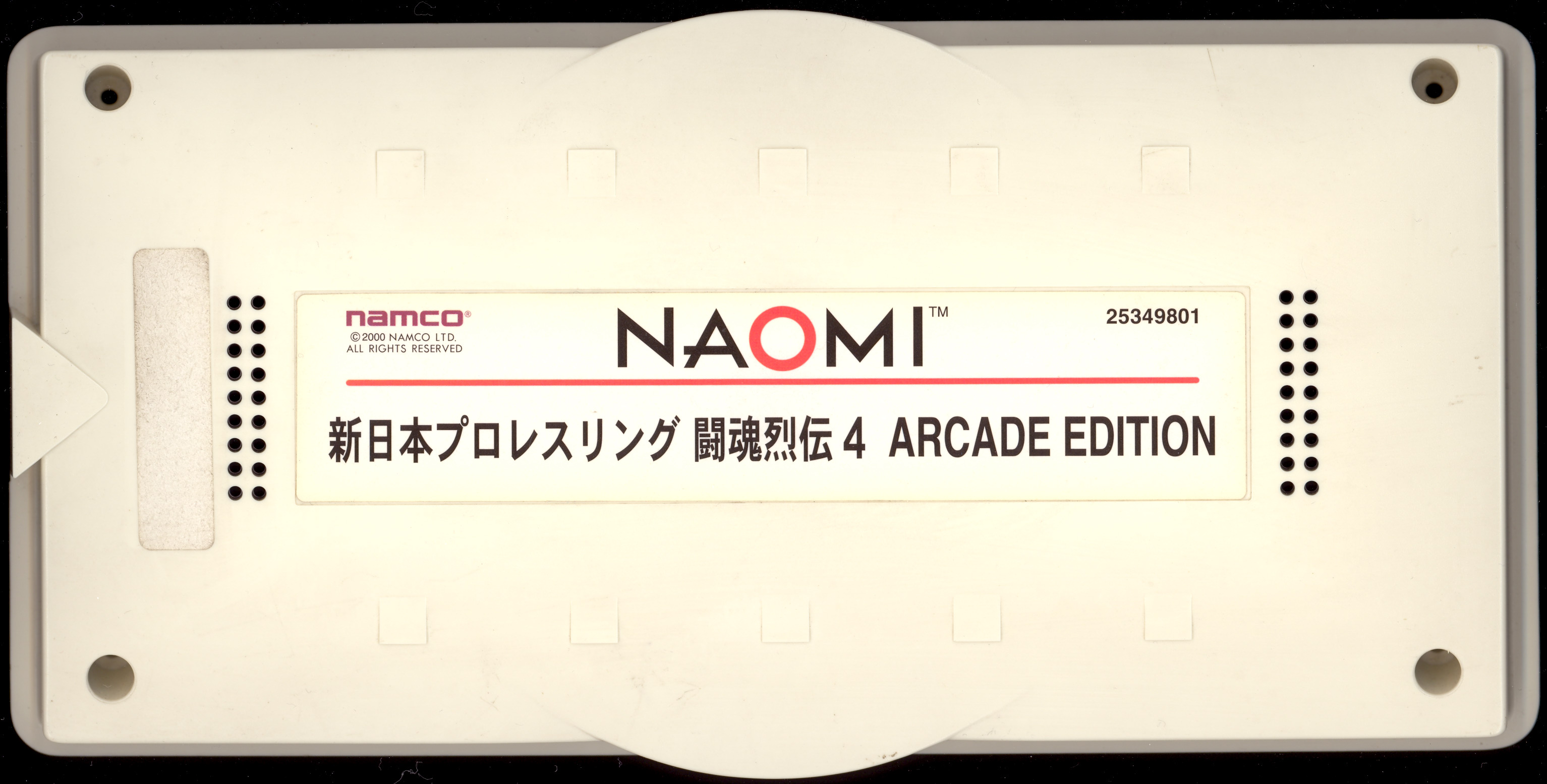

Cart 2
-
Cart 3
-

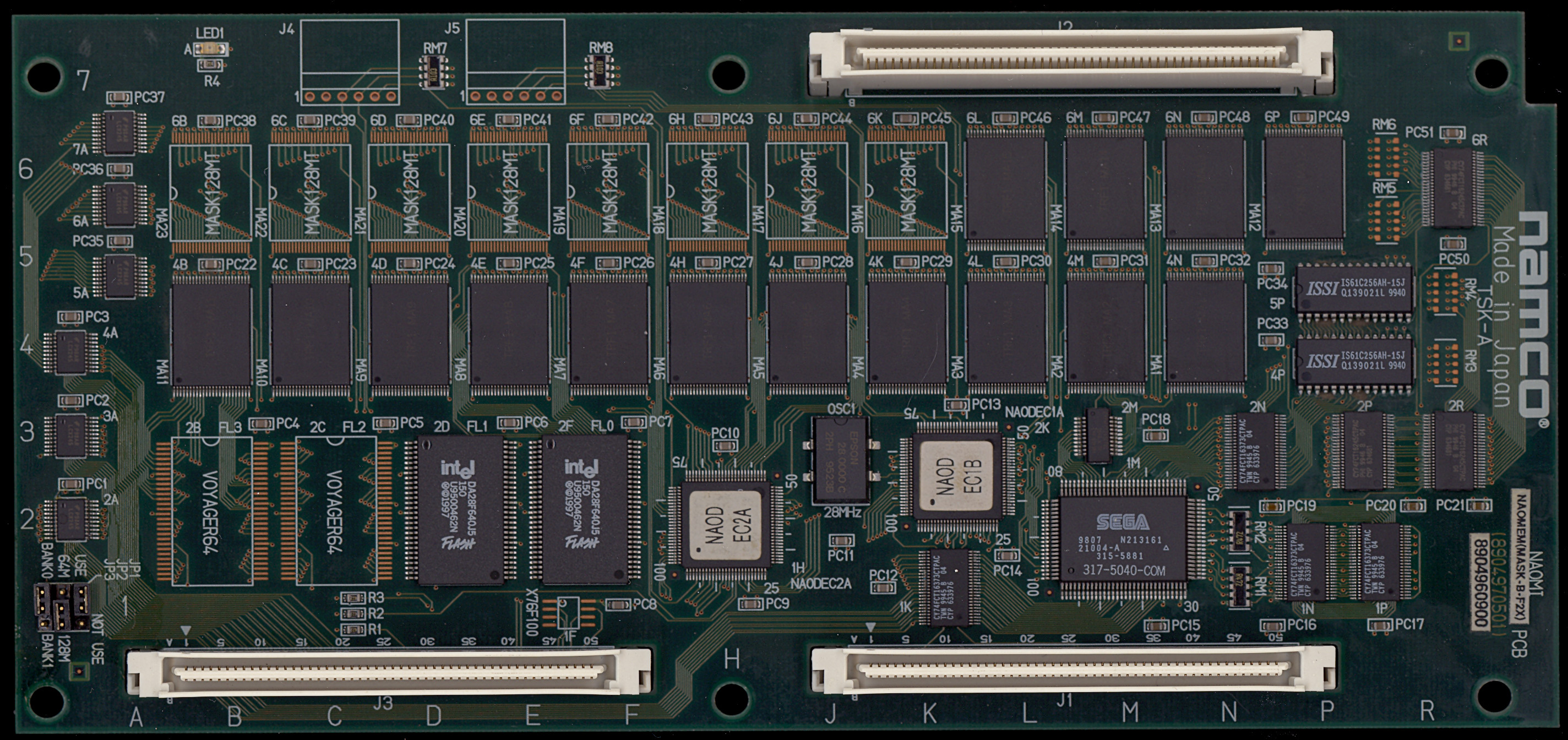

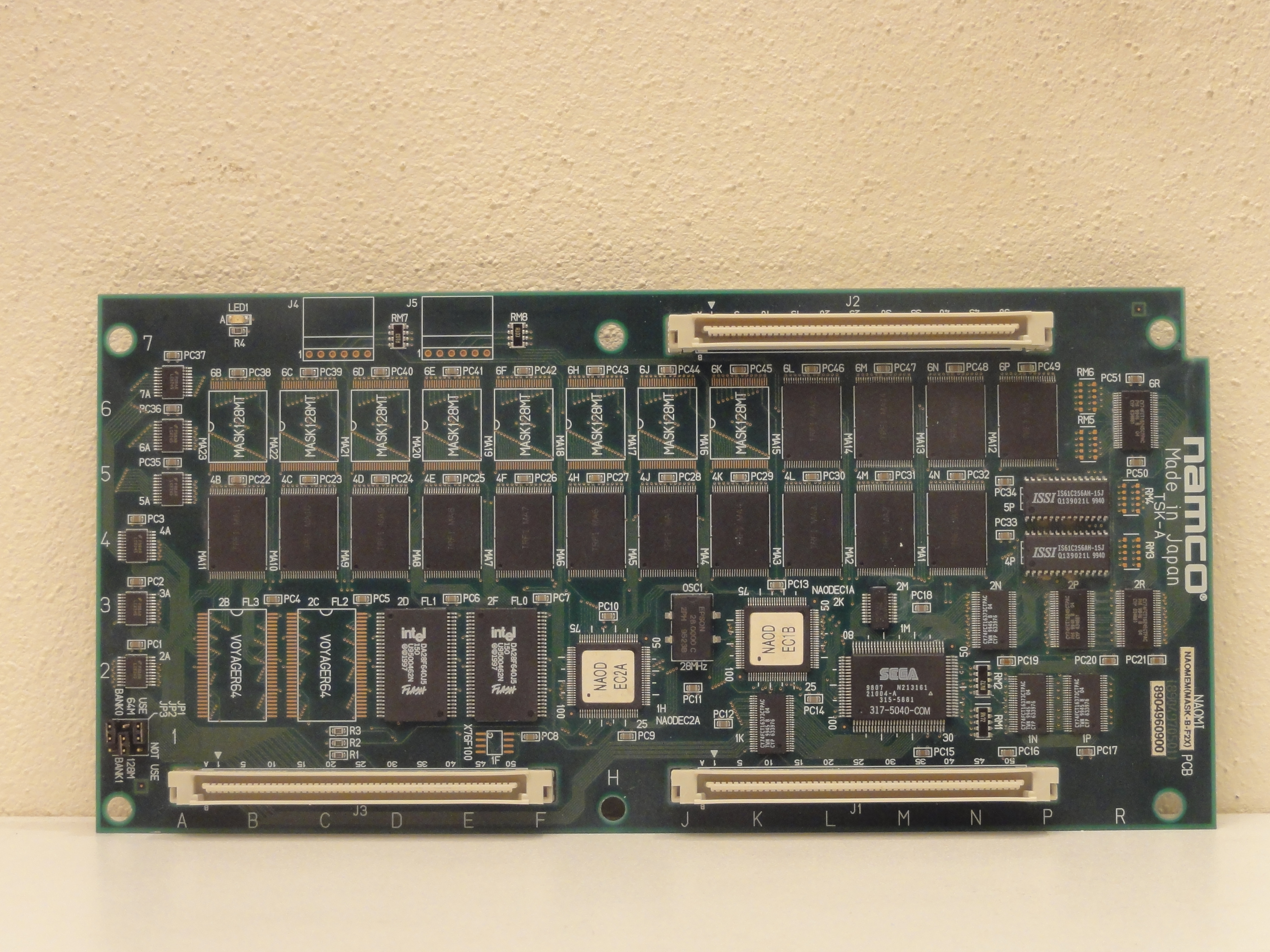

PCB component side 1
-
PCB component side 2
-

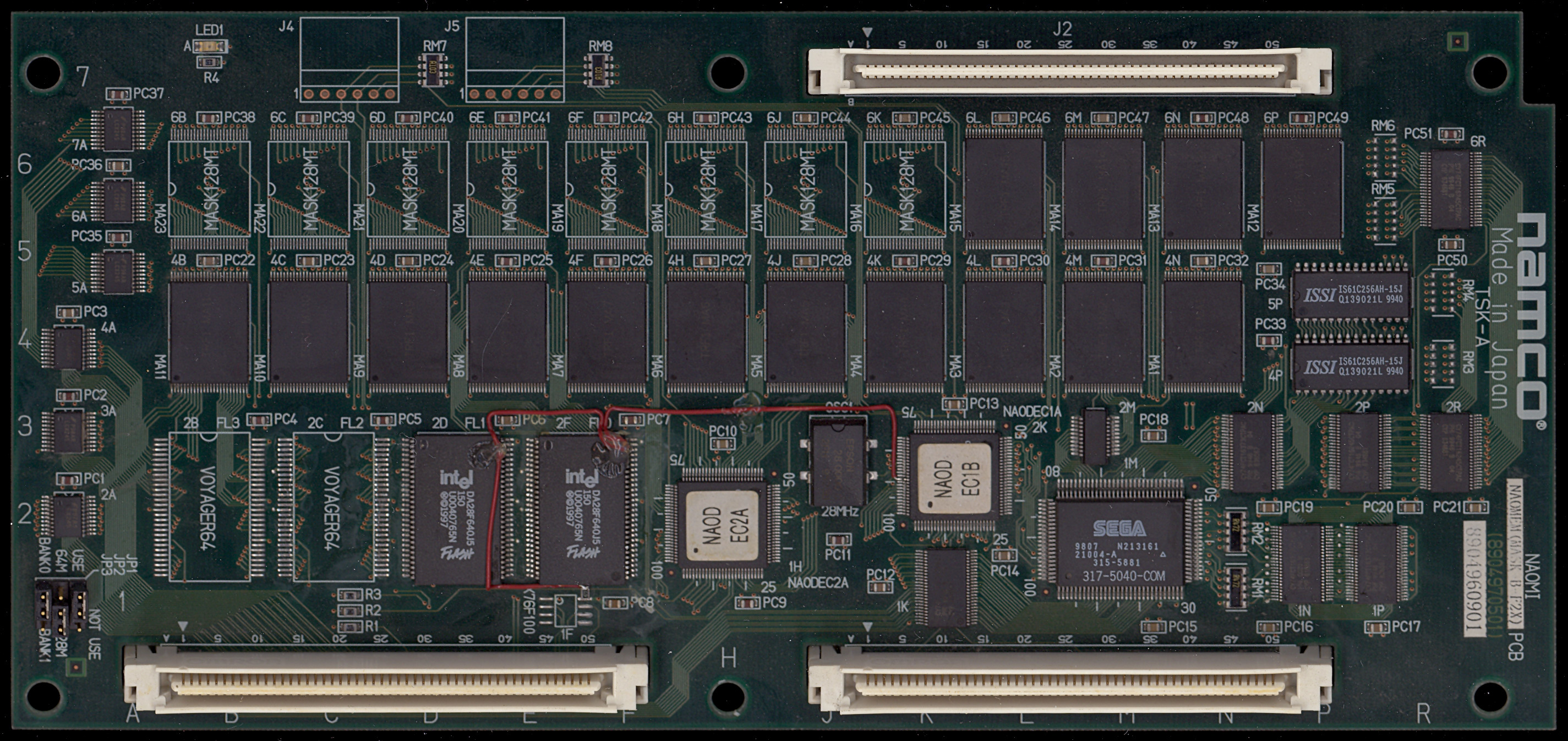

mod PCB component side
-

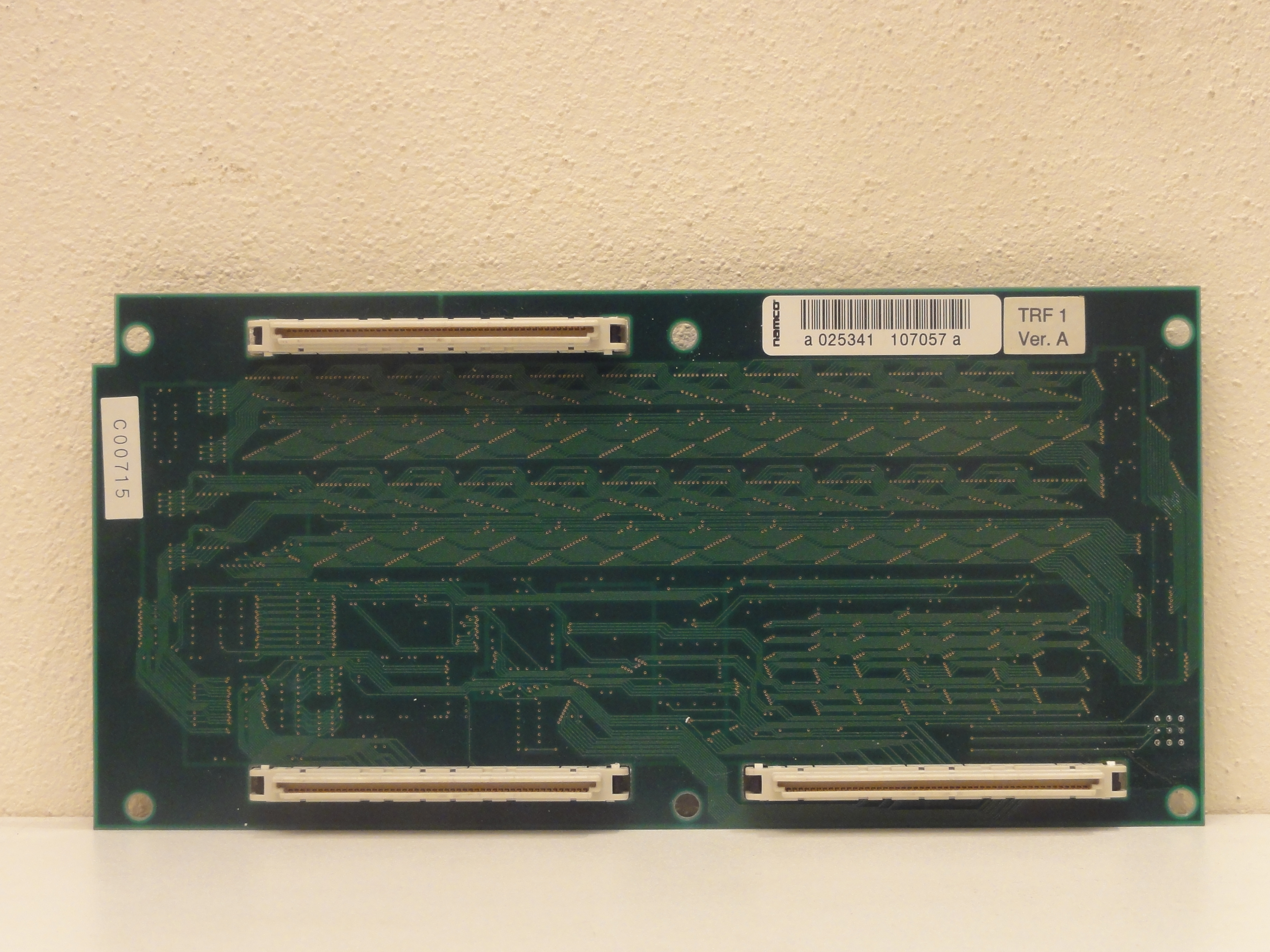

PCB solder side 1
-

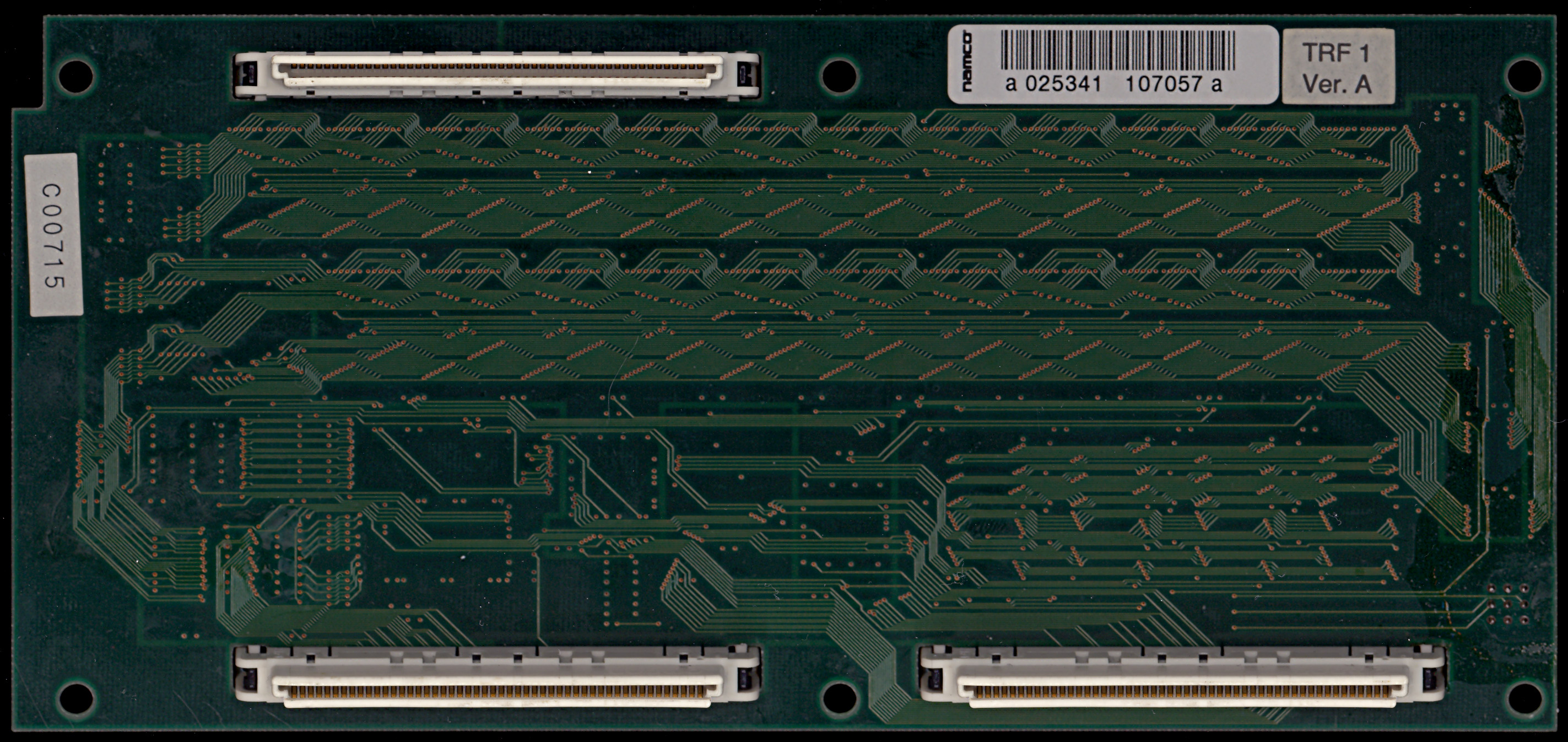

PCB solder side 2
-
System menu
-

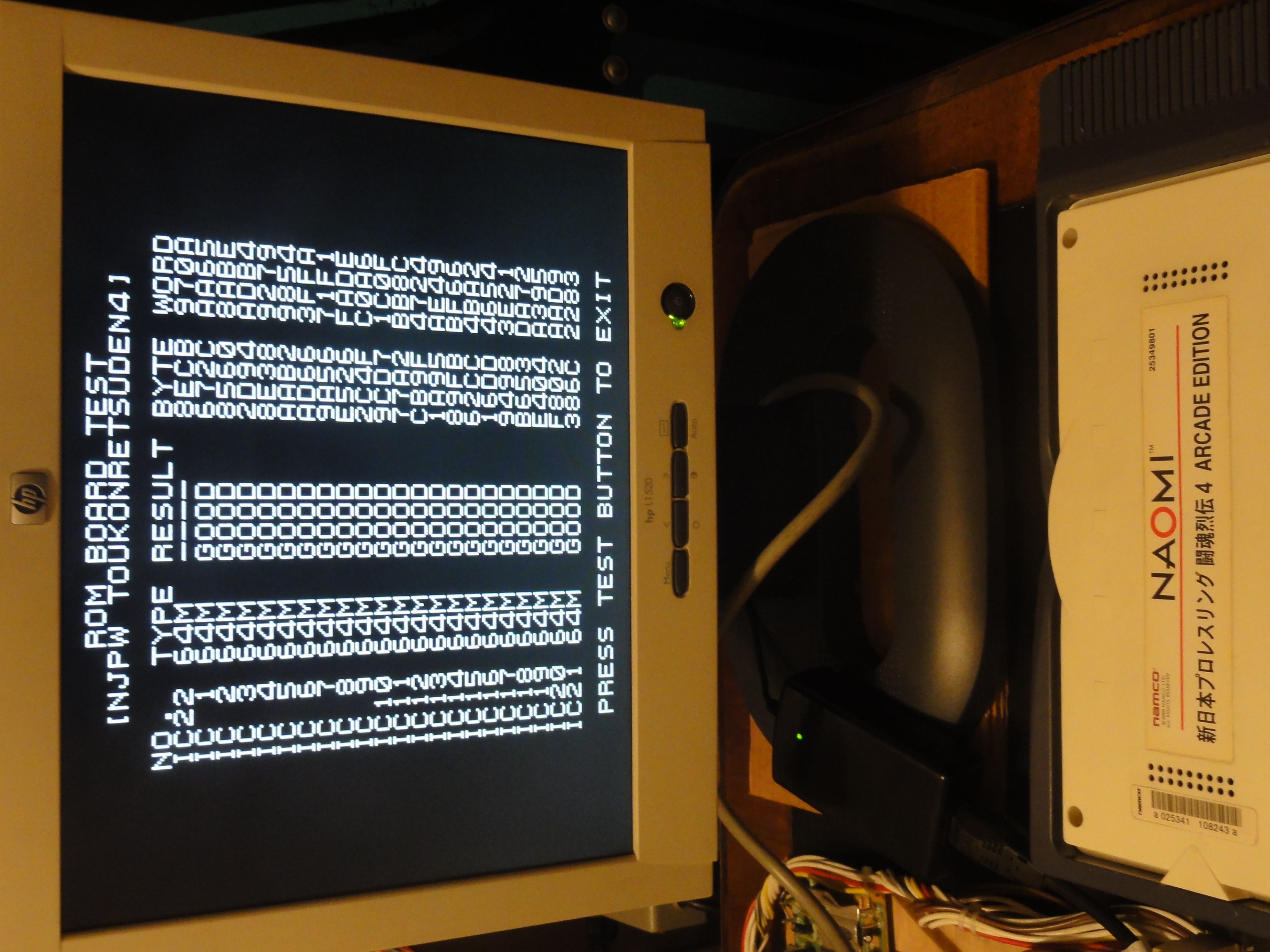

ROM board test 1
-

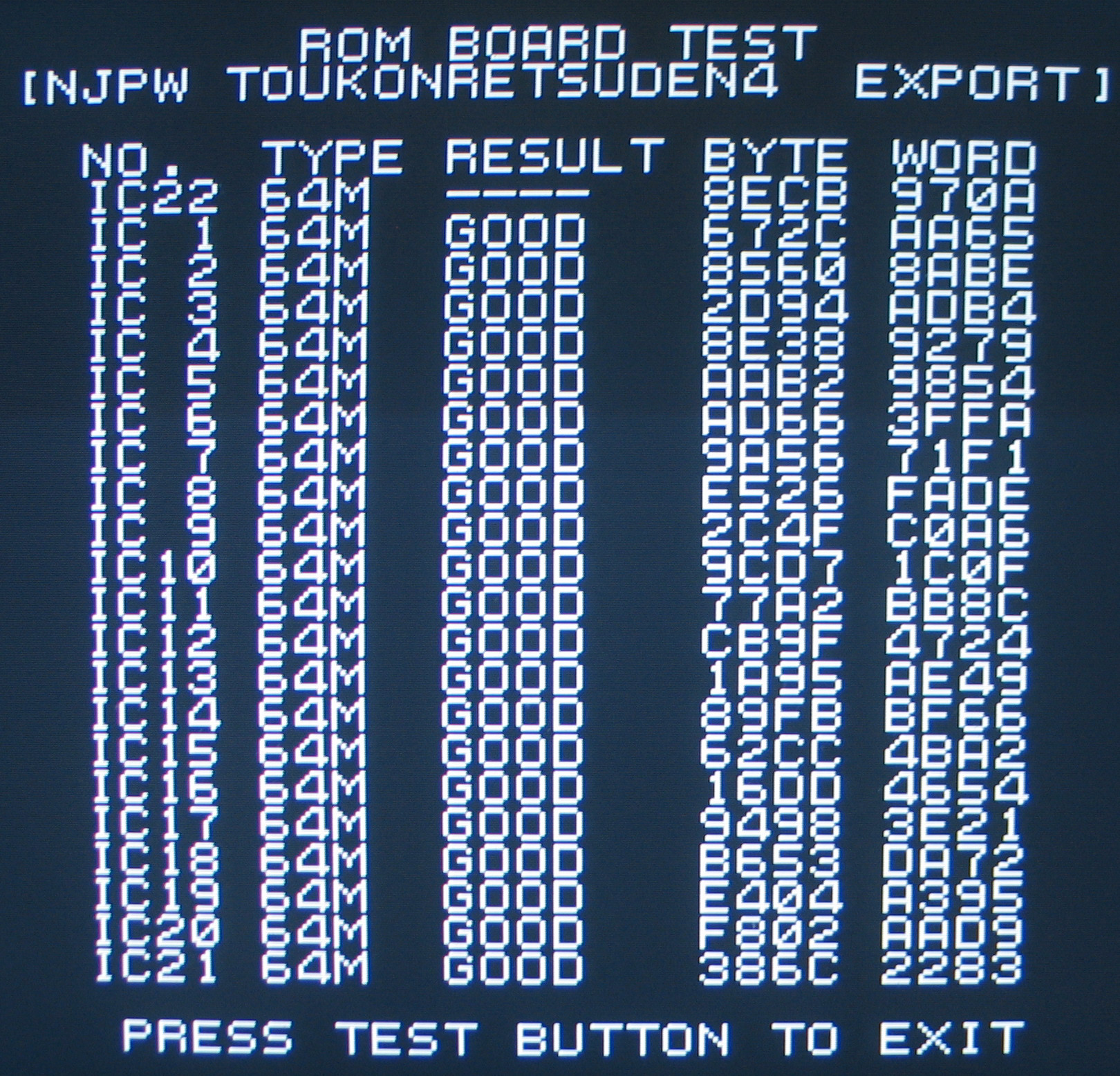

ROM board test 2
-

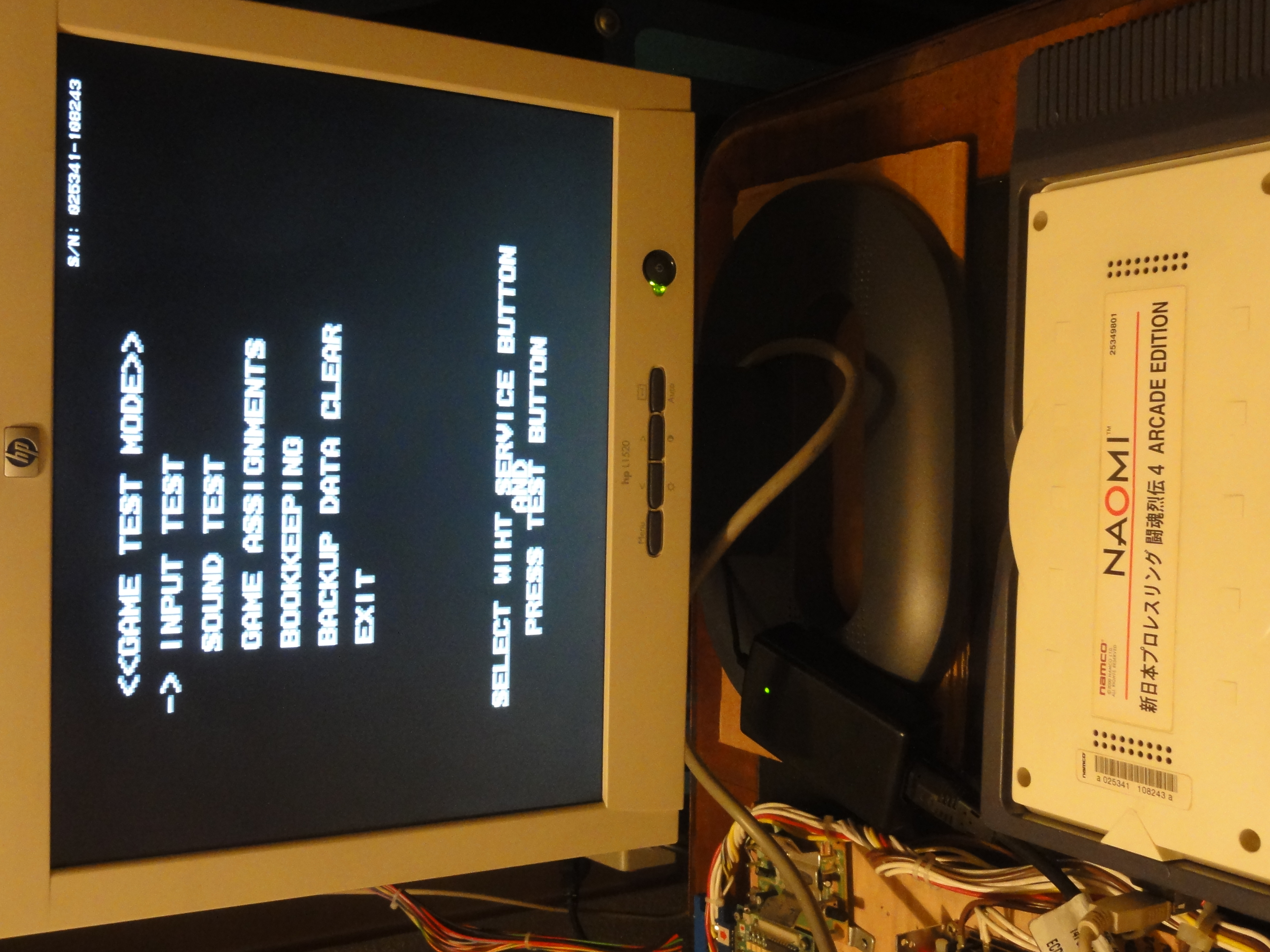

Game test mode
-

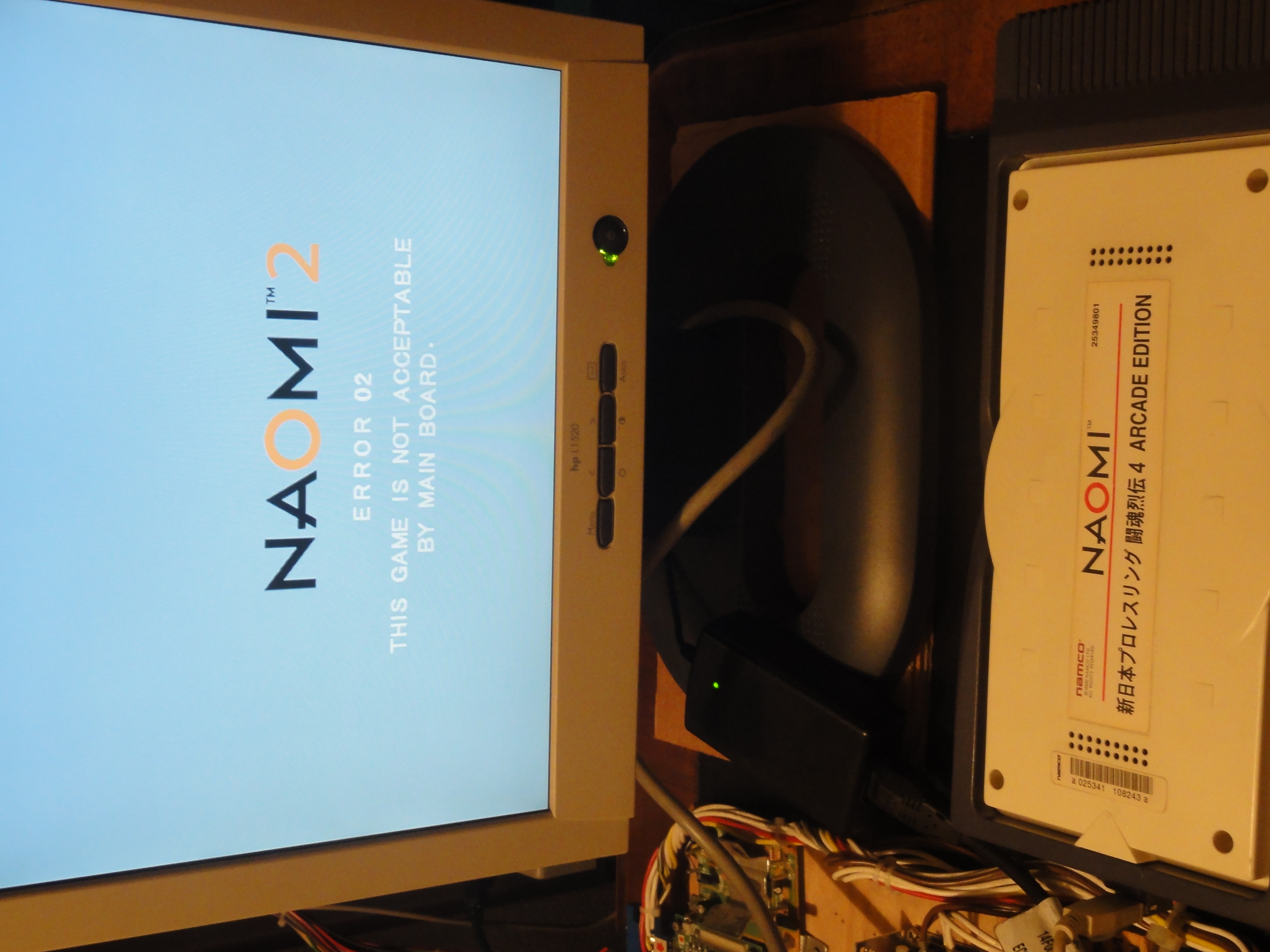

Boot
-
