Shark Party (Italy, v1.3)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 25/03/2008 |
| emulator | MAME 0.125u5 |
| dev | Luca Elia |
| name | sharkpy on Arcade Database |
| description | Shark Party (Italy, v1.3) |
| year | 1996 |
| manufacturer | Subsino |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | big unknown epoxy bloxk | main | ||
| 1x | custom Subsino SS9101 (DIP42-600mil) | u48 | main | |
| 2x | custom Subsino SS9100 (DIP42-600mil) | u9,u10 | main | |
| 2x | KD89C55A | - | u49,u50 | Programmable Peripheral Interface |
| 1x | K-665 | u55 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | K-664 | u57 | D/A Converter (DAC) - sound | |
| 1x | K-666 | u52 | FM Operator Type-L II (OPL II) - sound | |
| 1x | 4558OD | - | u8,u59,u60 | Dual Operational Amplifier - sound |
| 1x | uPC1241 | - | AMP2 | Audio Amplifier - sound |
| 1x | oscillator | 12.000MHz | x1 | |
| 1x | oscillator | 4.433619MHz | x2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C512 | u18 | dumped |
| 1x | 27C1001 | u54 | dumped |
| 2x | 27C010 | u16,u17 | dumped |
| 1x | N82S129AN | u11,u12,u13 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TIBPAL16L8 | u43,u44 | read protected |
| 4x | GAL16V8B | u2,u37,u45,u46 | read protected |
Others
1x 36x2 edge connector (CON5)
1x 10x2 edge connector (CON4)
1x pushbutton (SW5)
1x trimmer (volume)
4x 8 DIP switches banks (SW1,SW2,SW3,SW4,)
1x battery 3.6V (BT1)
Notes
Files
-

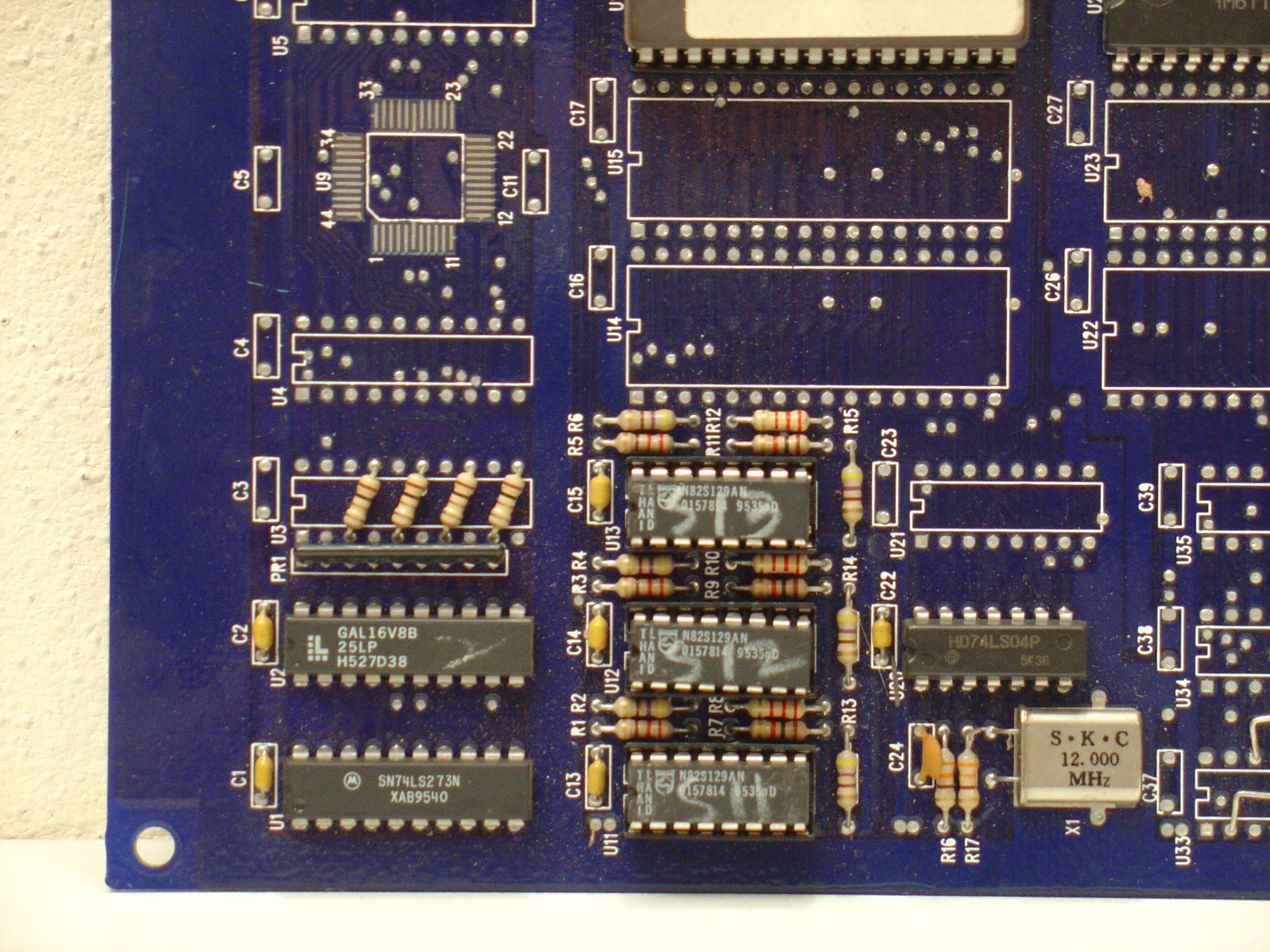

PCB resistors detail 1
-

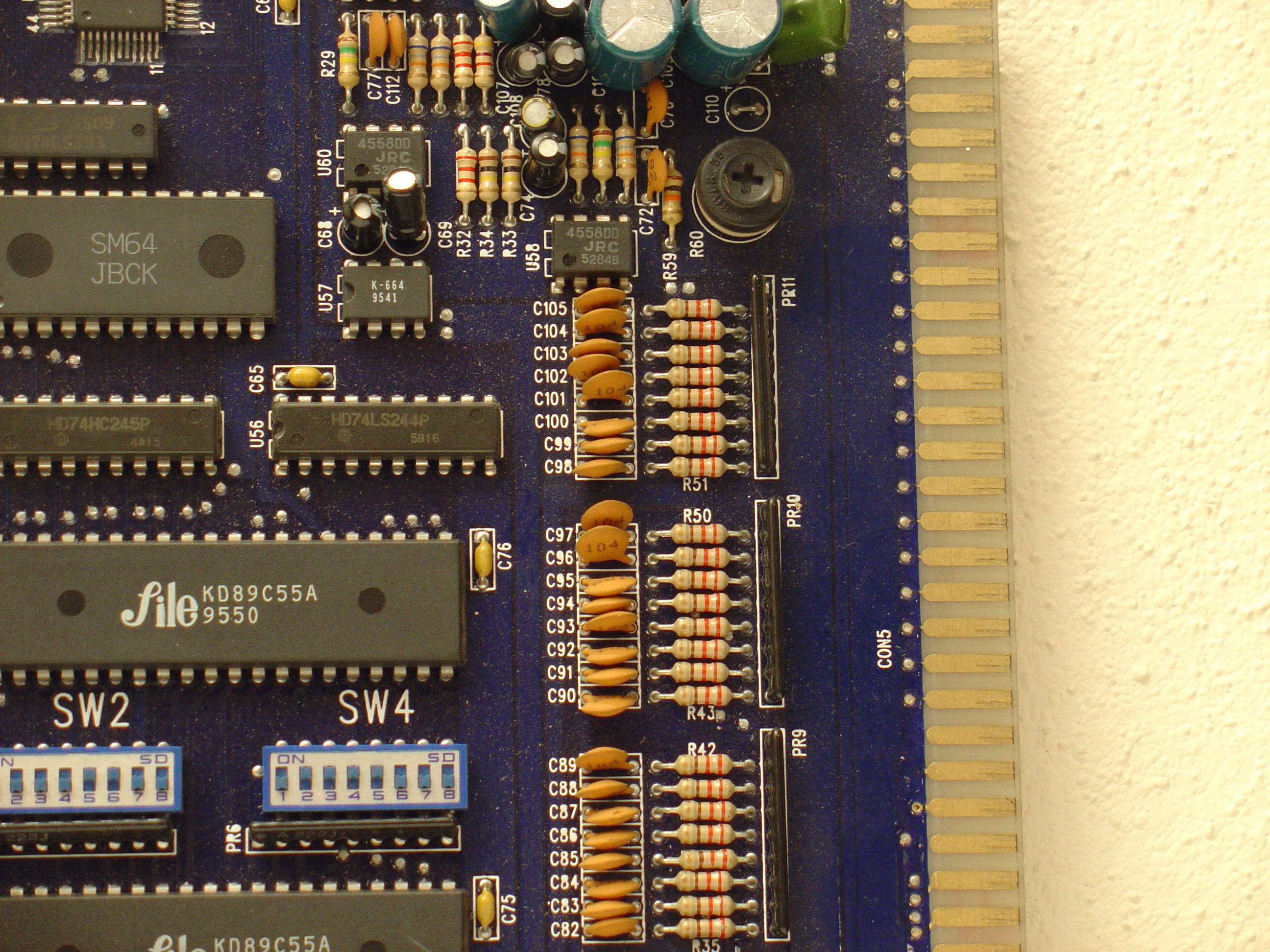

PCB resistors detail 2
-

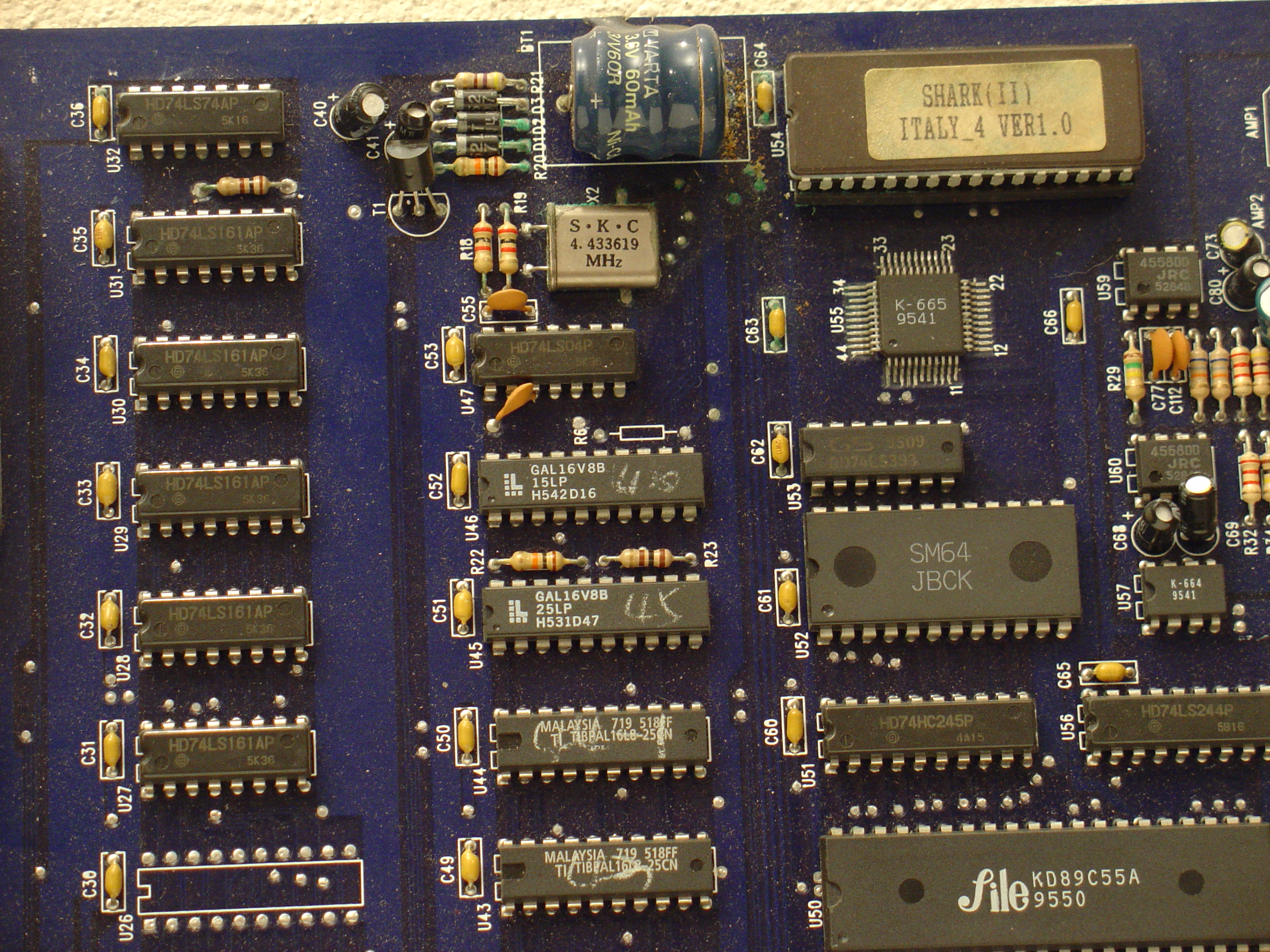

PCB resistors detail 3
-
